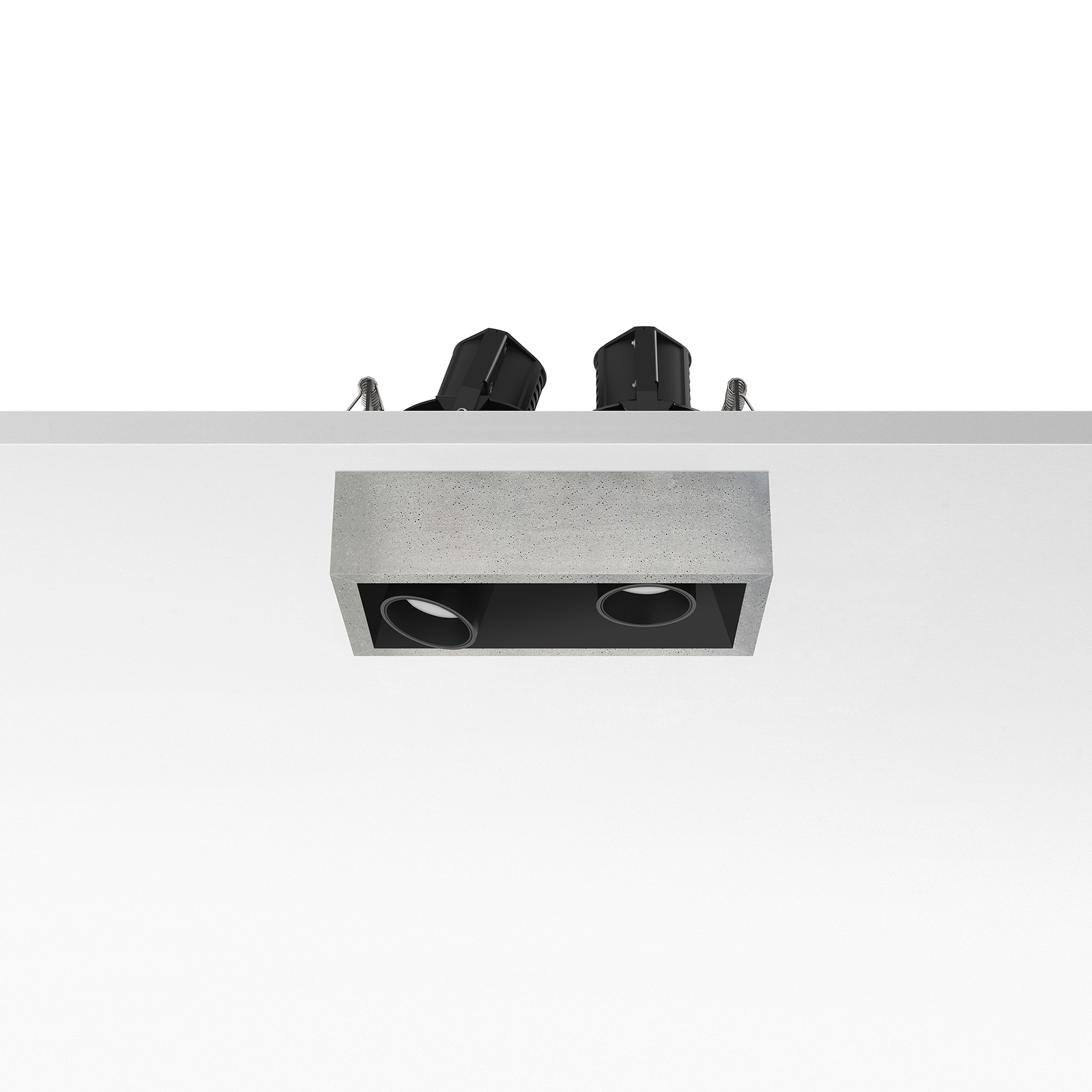

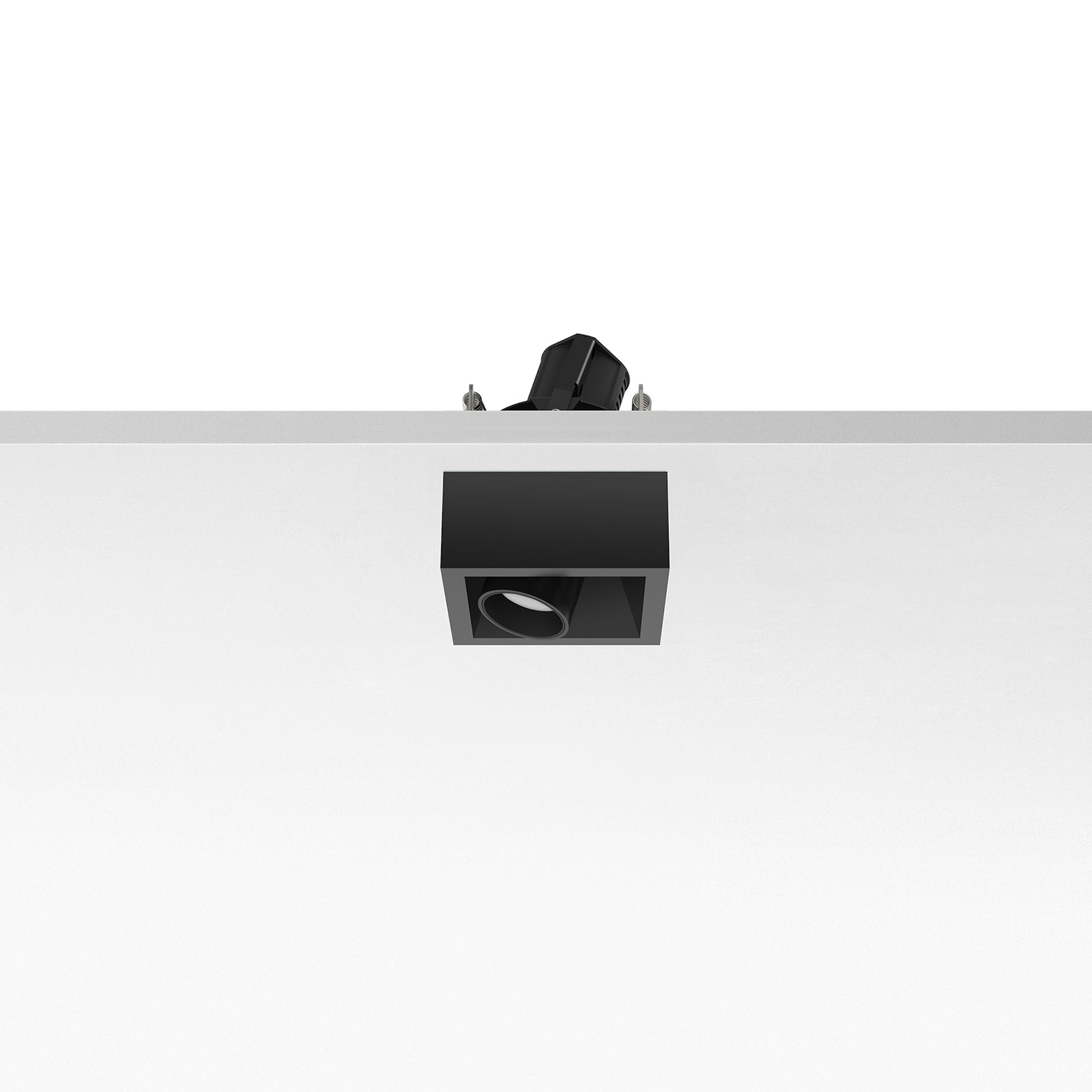

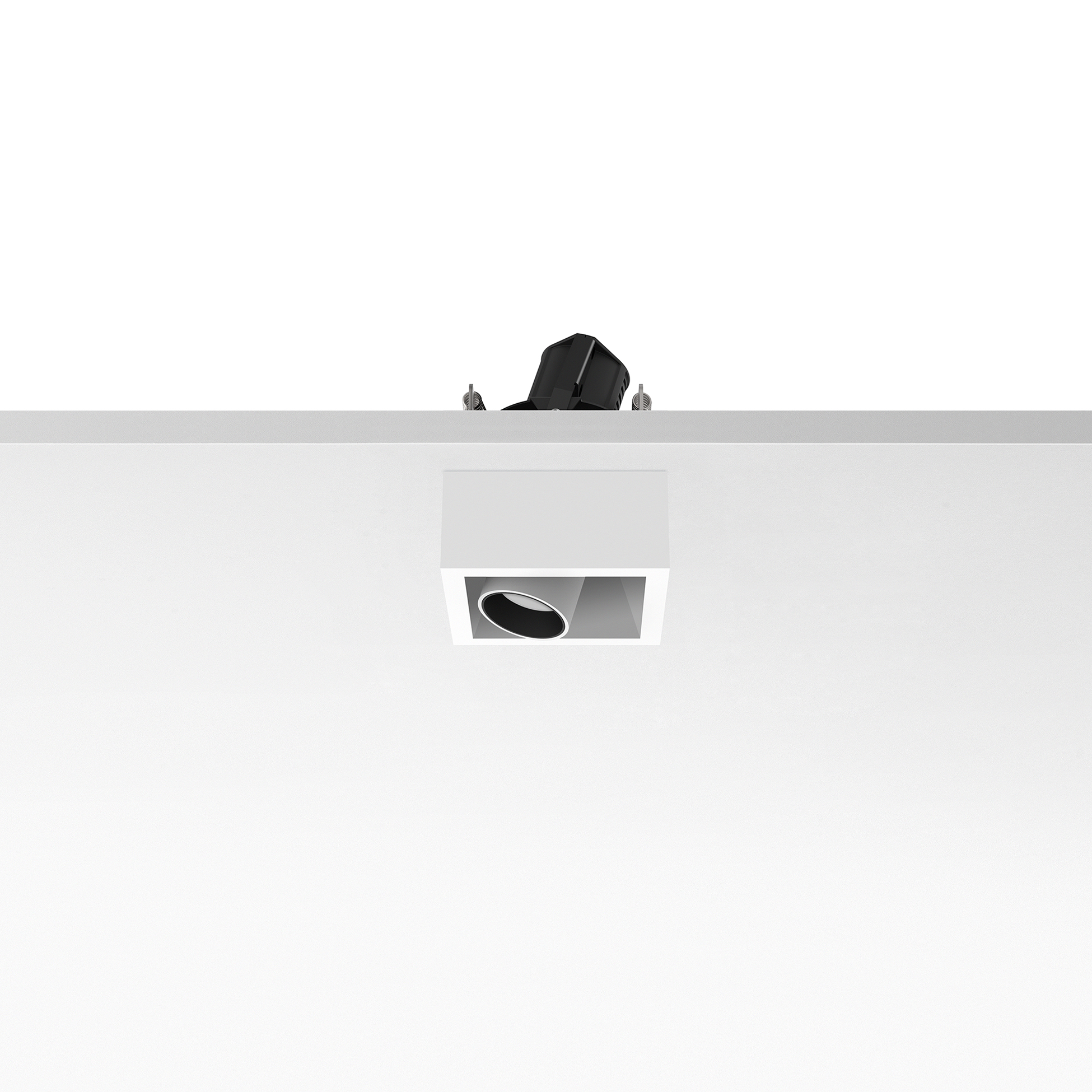

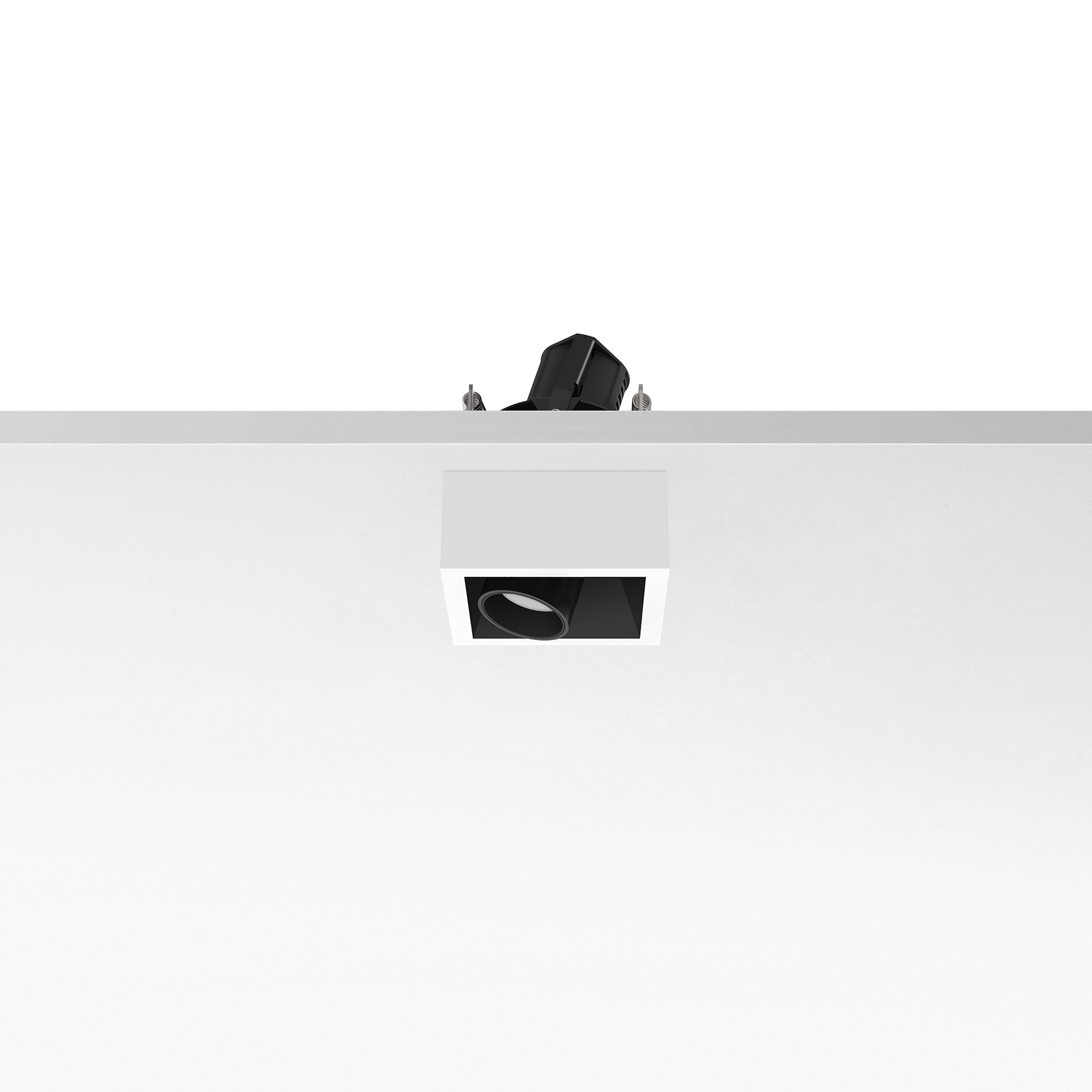

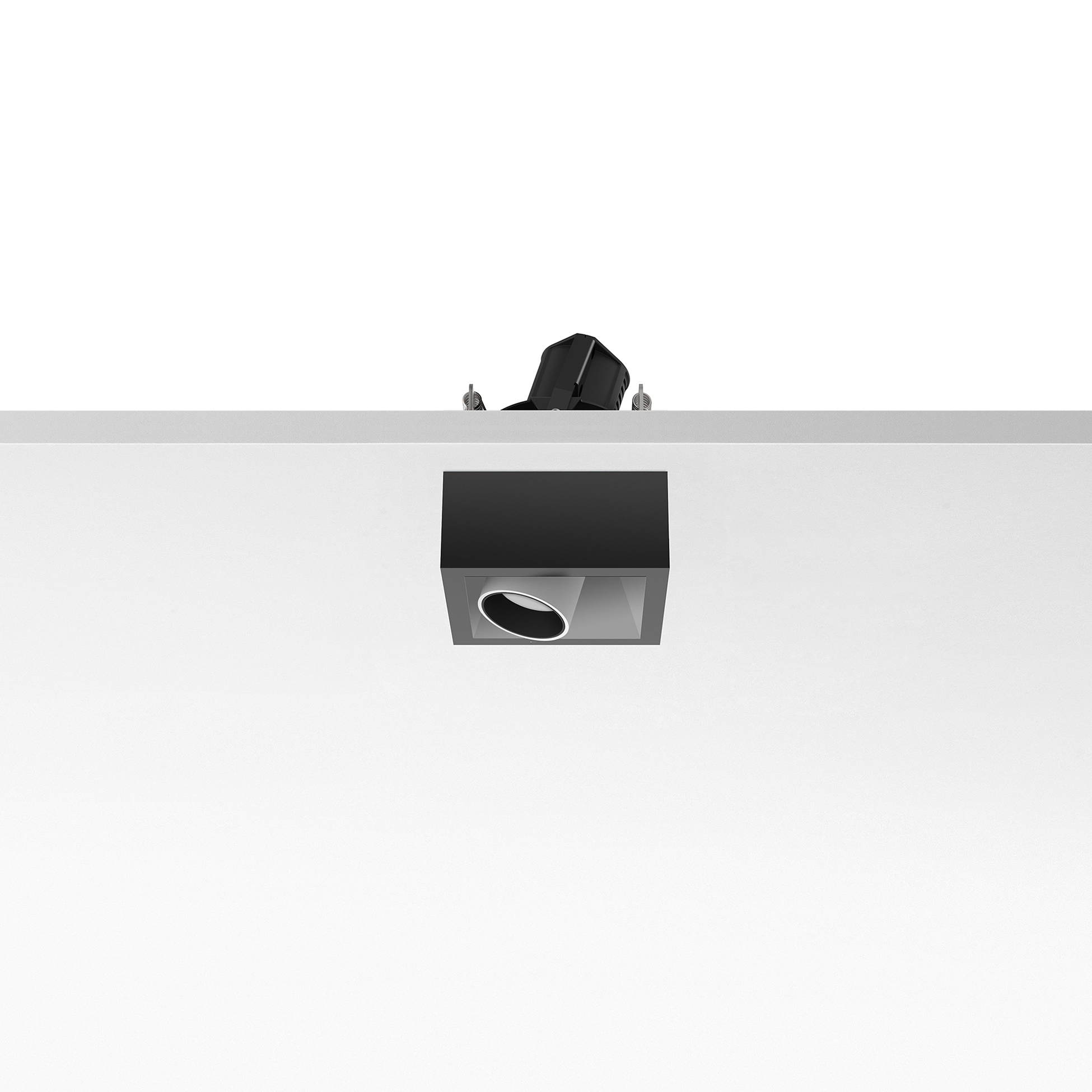

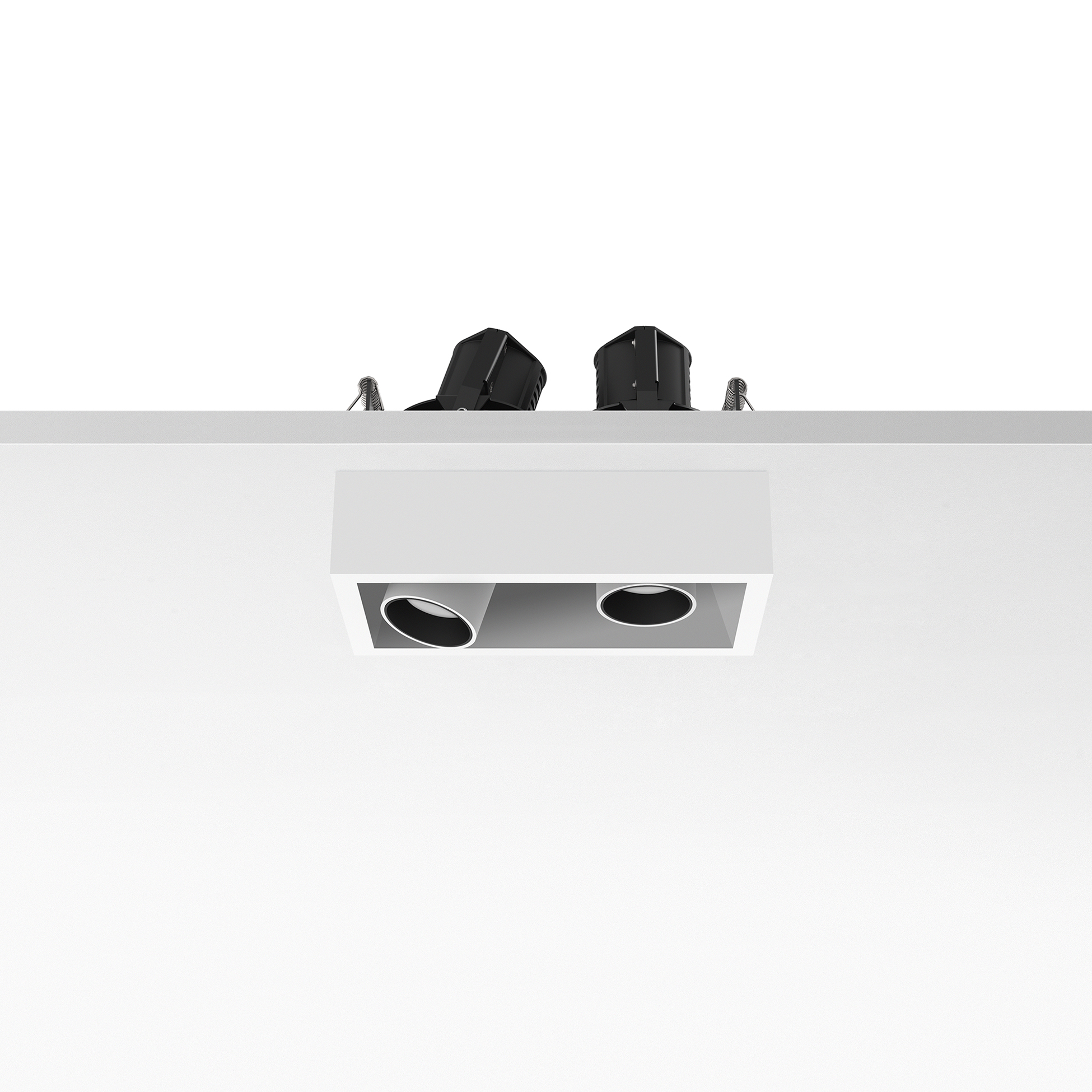

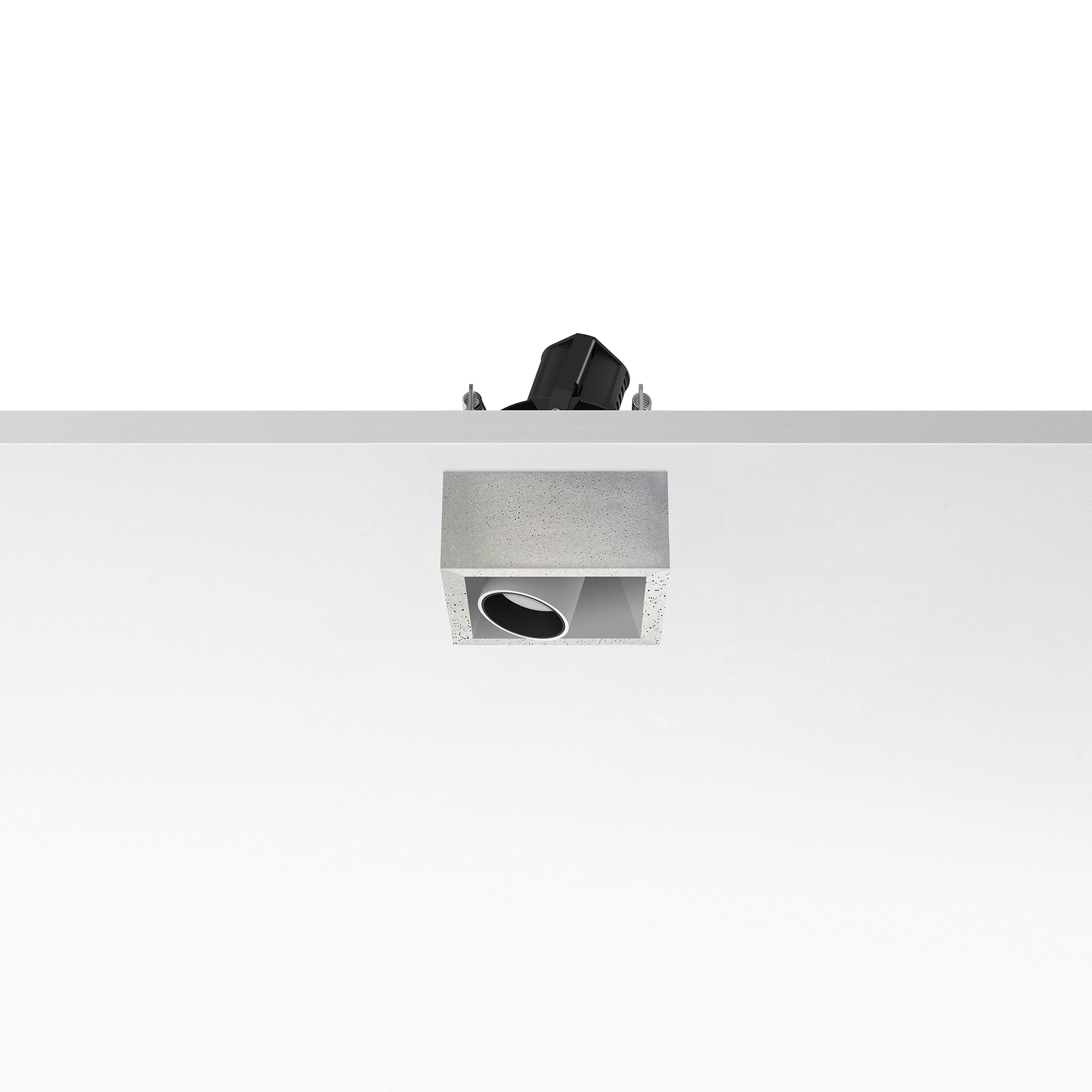

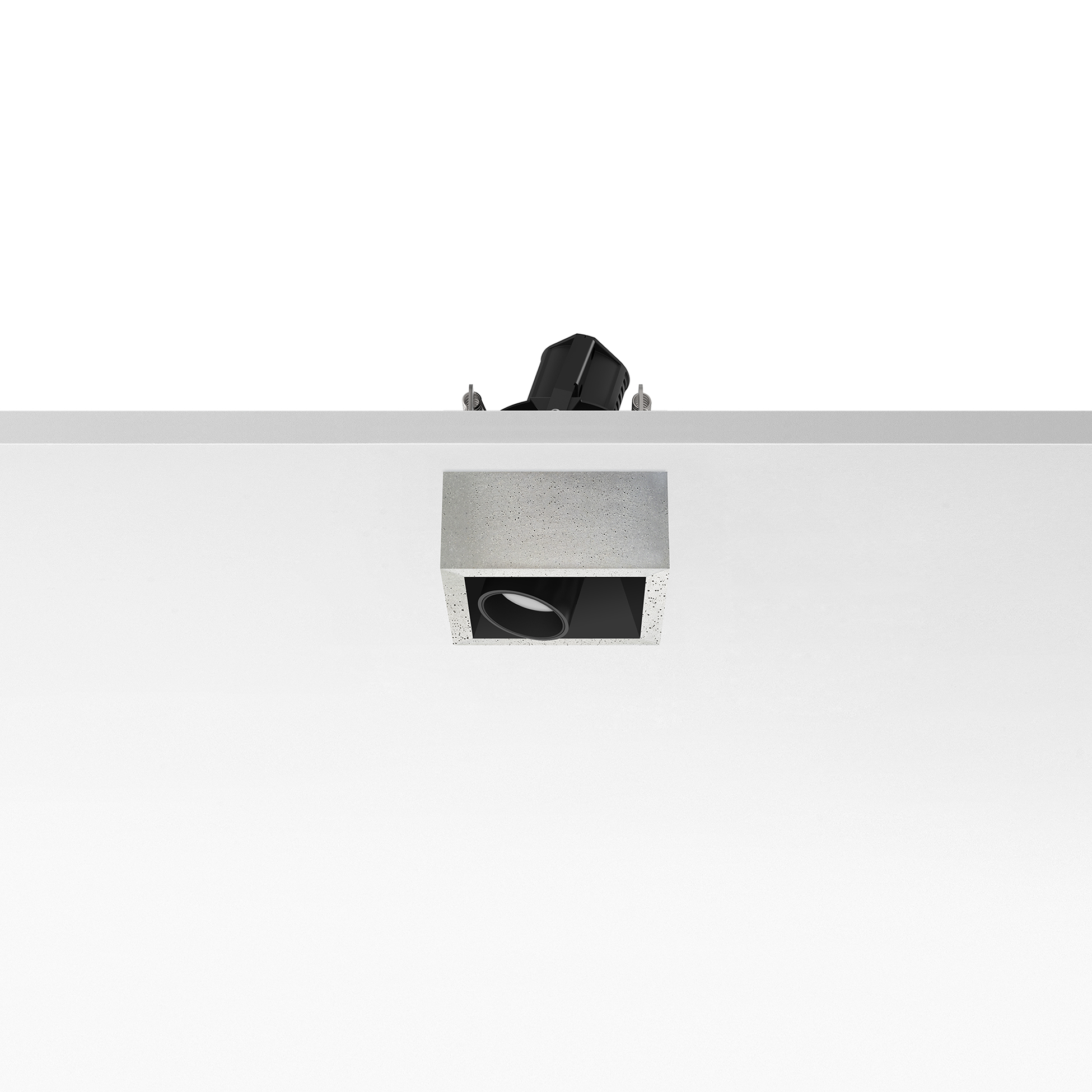

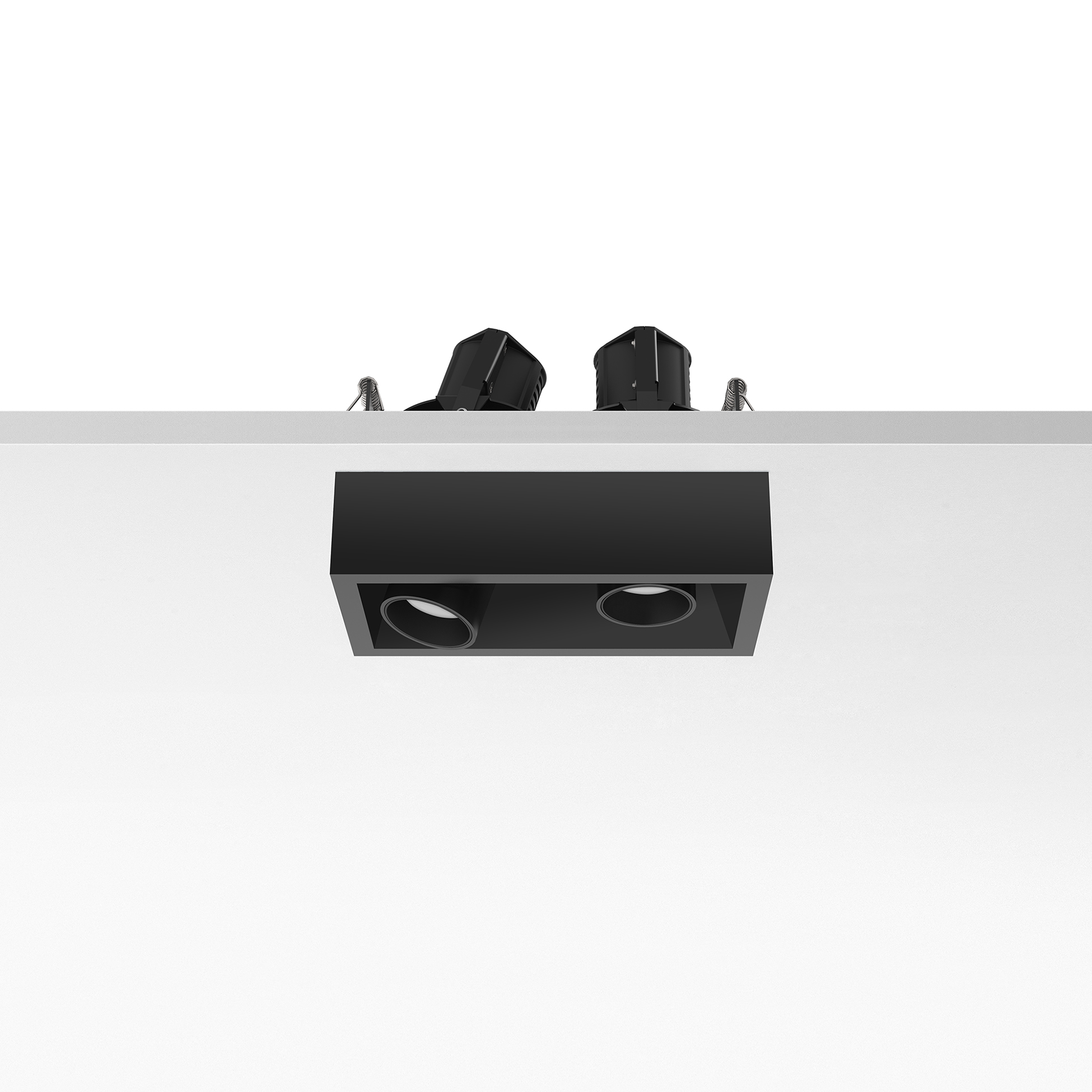

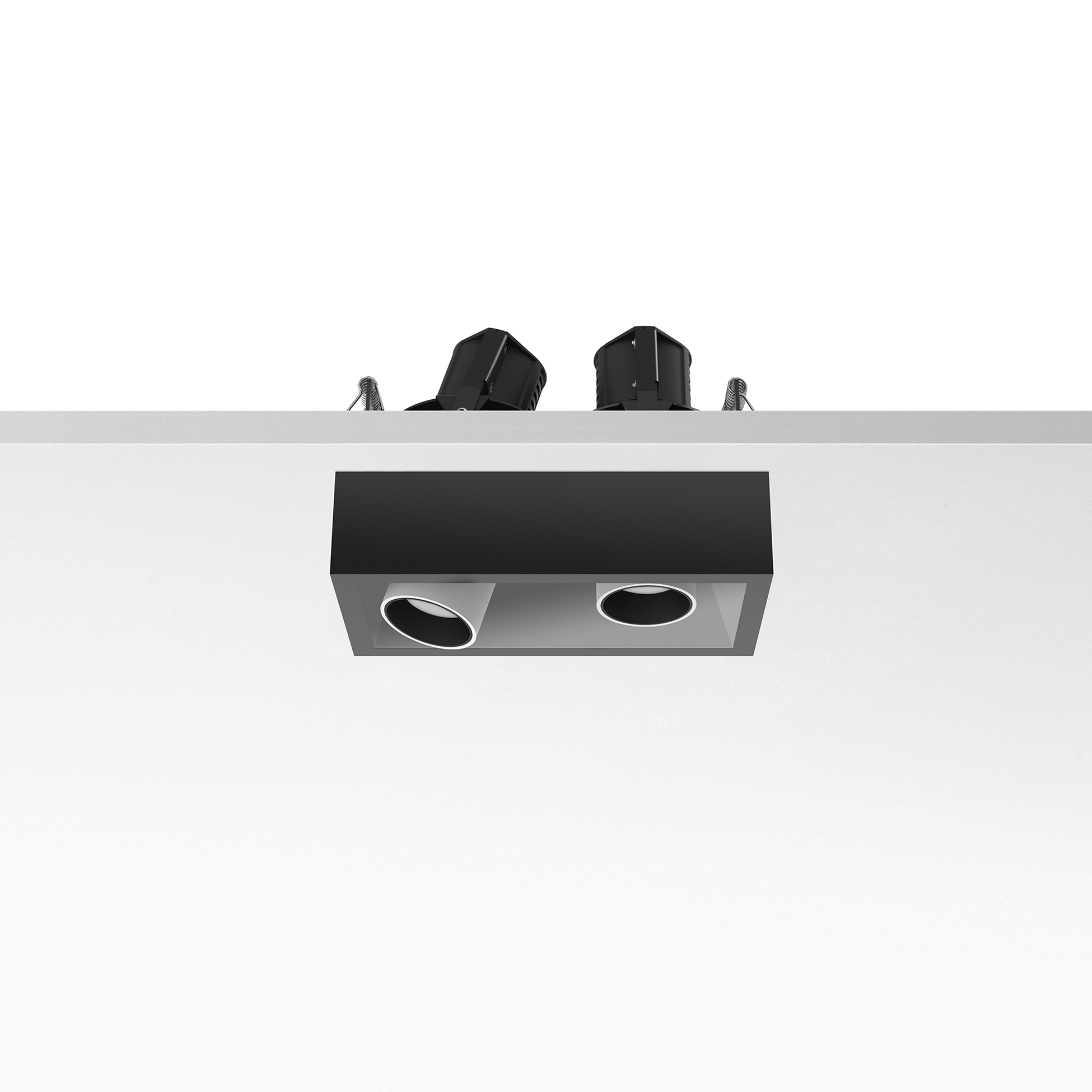

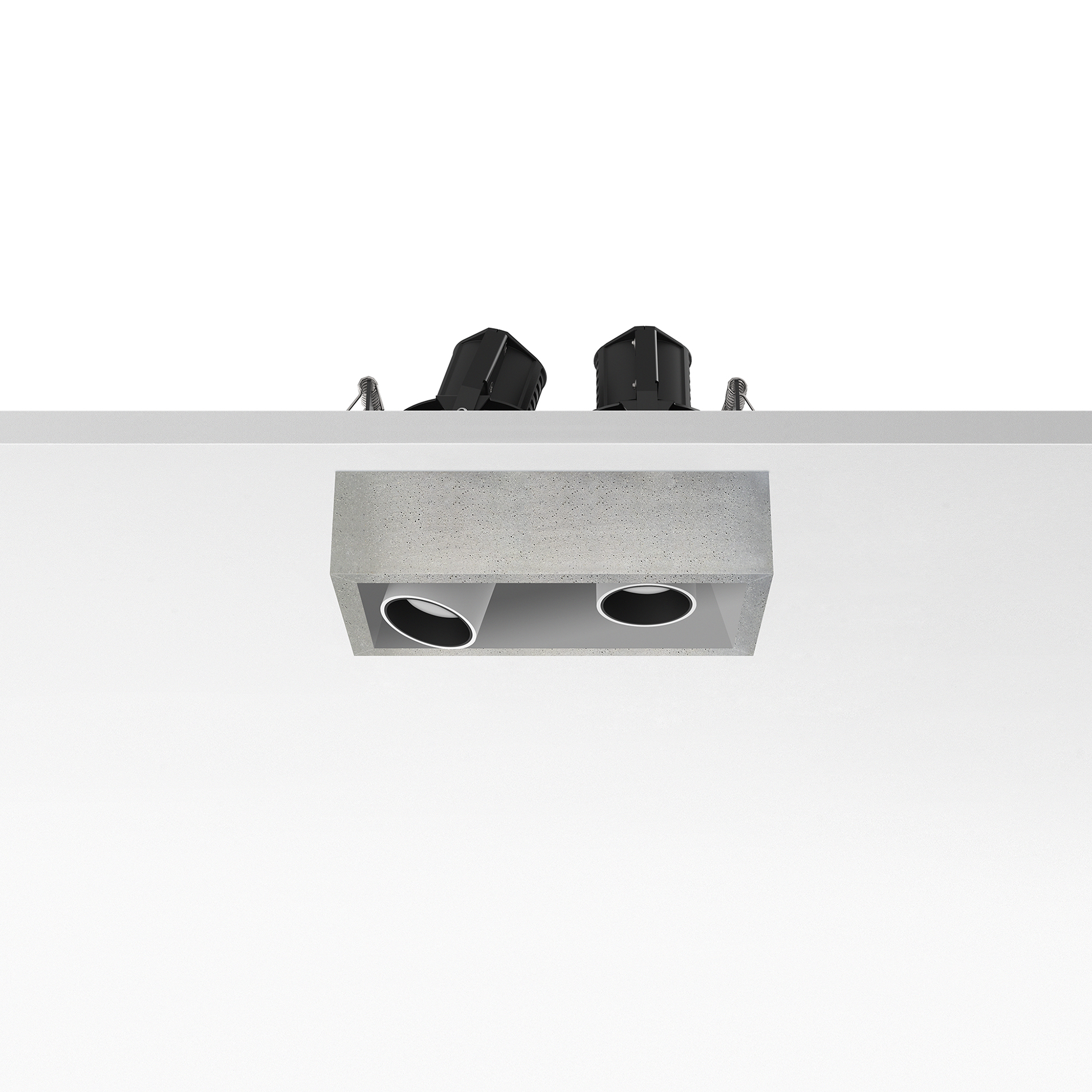

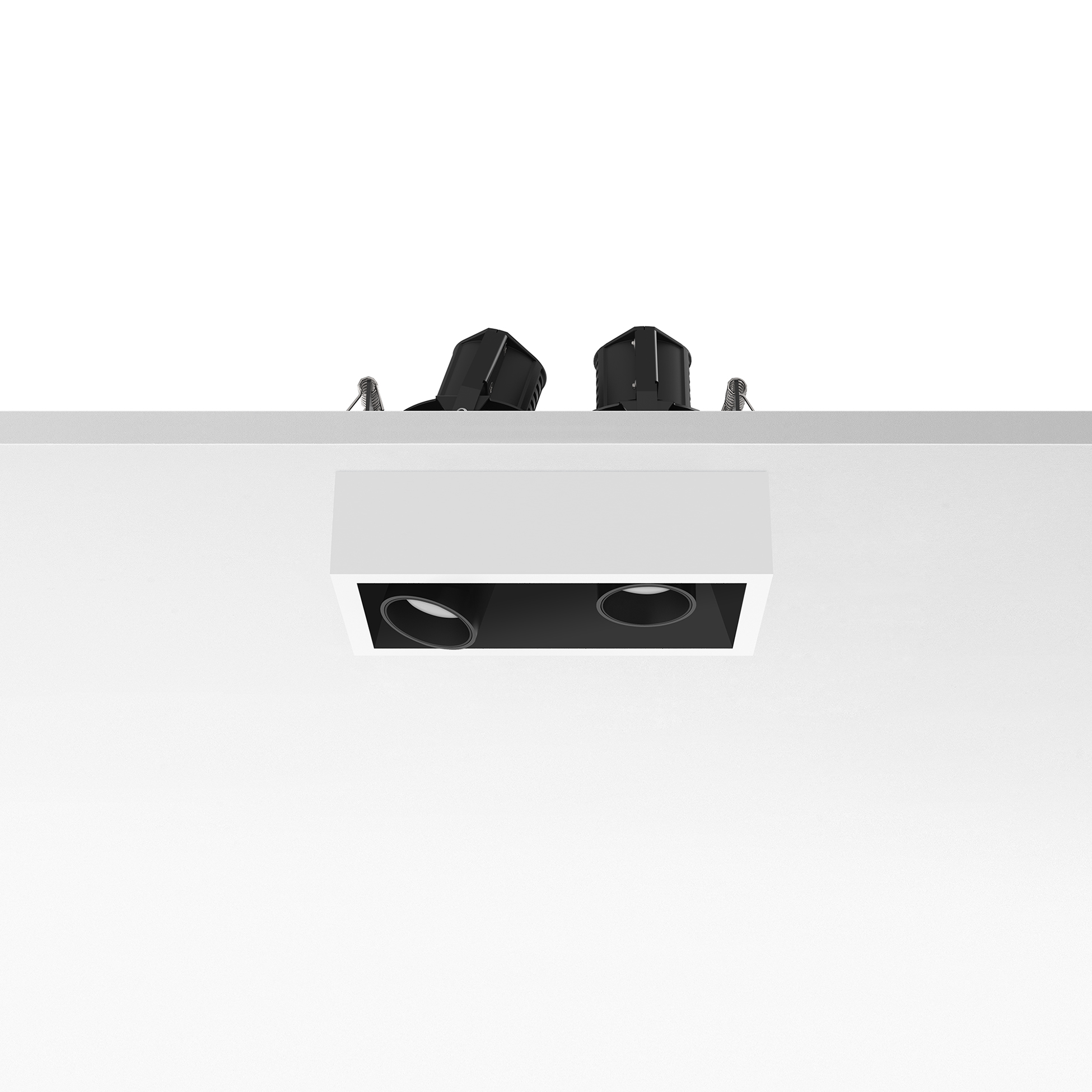

Johnny 80 Semi-Recessed

Designed by FLOS Architectural

Maximum integration with recessed and semi-recessed versions. Fitted with a mechanical rotation system ensuring efficiency and stability.

Download Documentation

Product highlight

The sky is the limit

Extremely versatile projector thanks to the two available sizes and the great variety of installation possibilities.


Luminaire

(72)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.0775.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0775.40A	Johnny 80 Semi-Recessed 2L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0775.14A	Johnny 80 Semi-Recessed 2L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0774.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0774.40A	Johnny 80 Semi-Recessed 2L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0774.14A	Johnny 80 Semi-Recessed 2L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0773.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0773.40A	Johnny 80 Semi-Recessed 2L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0773.14A	Johnny 80 Semi-Recessed 2L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0772.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0772.40A	Johnny 80 Semi-Recessed 2L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0772.14A	Johnny 80 Semi-Recessed 2L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0771.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0771.40A	Johnny 80 Semi-Recessed 2L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0771.14A	Johnny 80 Semi-Recessed 2L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0770.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0770.40A	Johnny 80 Semi-Recessed 2L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0770.14A	Johnny 80 Semi-Recessed 2L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0765.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0765.40A	Johnny 80 Semi-Recessed 1L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0765.14A	Johnny 80 Semi-Recessed 1L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0764.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0764.40A	Johnny 80 Semi-Recessed 1L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0764.14A	Johnny 80 Semi-Recessed 1L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0763.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0763.40A	Johnny 80 Semi-Recessed 1L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0763.14A	Johnny 80 Semi-Recessed 1L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0762.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0762.40A	Johnny 80 Semi-Recessed 1L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0762.14A	Johnny 80 Semi-Recessed 1L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0761.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0761.40A	Johnny 80 Semi-Recessed 1L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0761.14A	Johnny 80 Semi-Recessed 1L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0760.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0760.40A	Johnny 80 Semi-Recessed 1L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0760.14A	Johnny 80 Semi-Recessed 1L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0735.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0735.40A	Johnny 80 Semi-Recessed 2L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0735.14A	Johnny 80 Semi-Recessed 2L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0734.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0734.40A	Johnny 80 Semi-Recessed 2L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0734.14A	Johnny 80 Semi-Recessed 2L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0733.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0733.40A	Johnny 80 Semi-Recessed 2L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0733.14A	Johnny 80 Semi-Recessed 2L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0732.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0732.40A	Johnny 80 Semi-Recessed 2L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0732.14A	Johnny 80 Semi-Recessed 2L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0731.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0731.40A	Johnny 80 Semi-Recessed 2L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0731.14A	Johnny 80 Semi-Recessed 2L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0730.CEA	Johnny 80 Semi-Recessed 2L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0730.40A	Johnny 80 Semi-Recessed 2L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0730.14A	Johnny 80 Semi-Recessed 2L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0723.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0723.40A	Johnny 80 Semi-Recessed 1L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0723.14A	Johnny 80 Semi-Recessed 1L Square	6.2	300	2700	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0722.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0722.40A	Johnny 80 Semi-Recessed 1L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0722.14A	Johnny 80 Semi-Recessed 1L Square	6.2	311	3000	90	31	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0721.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0721.40A	Johnny 80 Semi-Recessed 1L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0721.14A	Johnny 80 Semi-Recessed 1L Square	6.2	359	2700	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0720.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0720.40A	Johnny 80 Semi-Recessed 1L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0720.14A	Johnny 80 Semi-Recessed 1L Square	6.2	373	3000	90	21	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0719.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0719.40A	Johnny 80 Semi-Recessed 1L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0719.14A	Johnny 80 Semi-Recessed 1L Square	6.2	385	2700	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0718.CEA	Johnny 80 Semi-Recessed 1L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0718.40A	Johnny 80 Semi-Recessed 1L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.0718.14A	Johnny 80 Semi-Recessed 1L Square	6.2	399	3000	90	11	Non Dimmable, Dimmable Casambi, Mains Cut Dimming, Dimmable DALI 2, Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
