Thin LED

Designed by FLOS Architectural

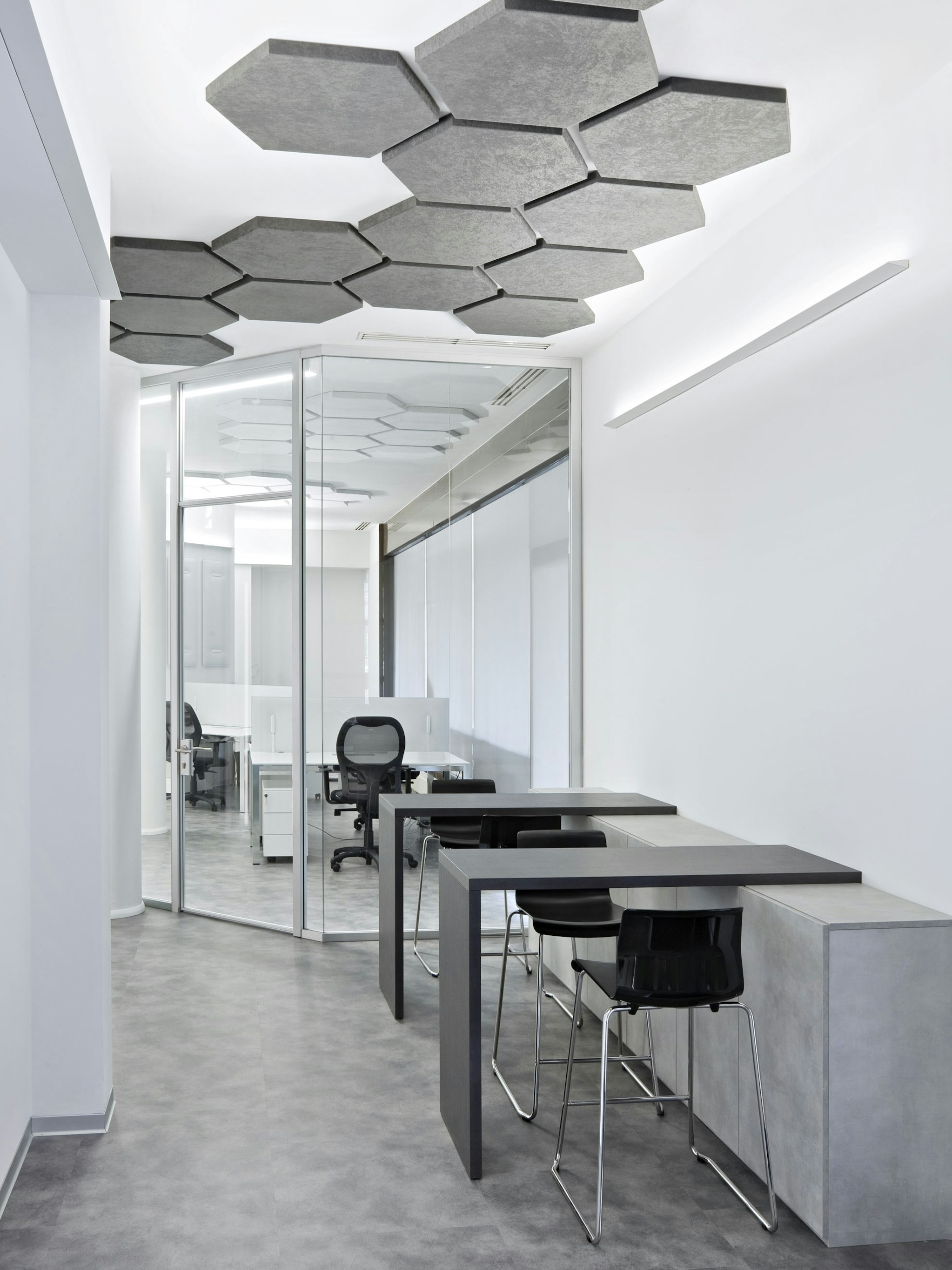

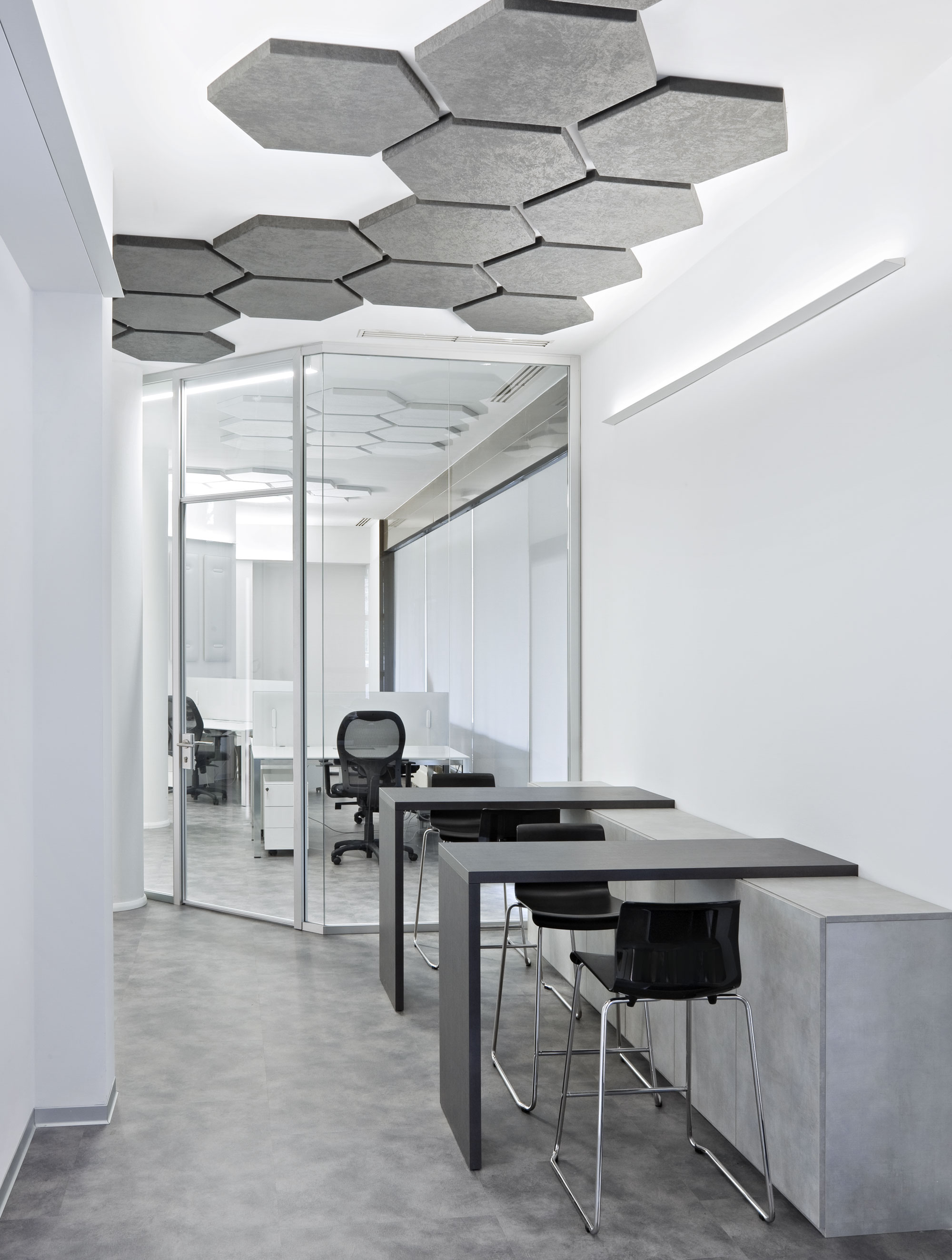

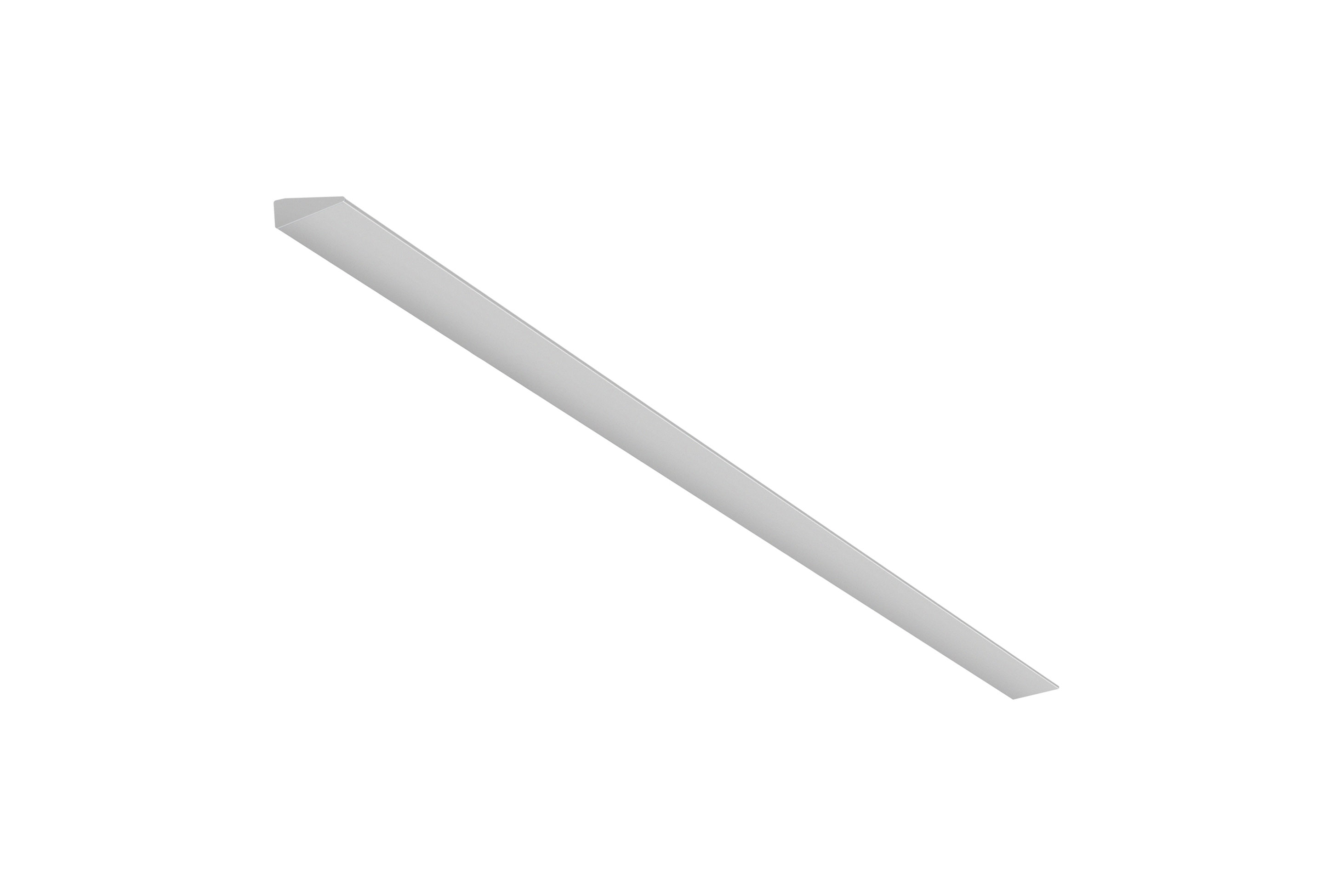

Wall-mounted profile for indirect lighting. Essential and minimal for perfect integration into the surrounding architectural space. Thin, but with really high lighting performances. A unique device for even and spotless asymmetrical lighting.

Download Documentation

Product highlight

Ethereal high performance

Wall-mounted profile for indirect lighting. Essential and minimal for perfect integration into the surrounding architectural space

Luminaire

(21)

Power (W)

Lumen Output (lm)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
09.0120.BZB	Thin LED 1201 mm	23.9	2173	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0120.30B	Thin LED 1201 mm	23.9	2173	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0120.29B	Thin LED 1201 mm	23.9	2173	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0104.BZA	Thin LED 1034 mm BLIND	-	-	-	-	-	-	Wall surface
09.0104.30A	Thin LED 1034 mm BLIND	-	-	-	-	-	-	Wall surface
09.0104.29A	Thin LED 1034 mm BLIND	-	-	-	-	-	-	Wall surface
09.0103.BZB	Thin LED 3042 mm	61.5	5588	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0103.30B	Thin LED 3042 mm	61.5	5588	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0103.29B	Thin LED 3042 mm	61.5	5588	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0102.BZB	Thin LED 2541 mm	47.8	4657	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0102.30B	Thin LED 2541 mm	47.8	4657	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0102.29B	Thin LED 2541 mm	47.8	4657	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0101.BZB	Thin LED 2040 mm	41	3726	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0101.30B	Thin LED 2040 mm	41	3726	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0101.29B	Thin LED 2040 mm	41	3726	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0100.BZB	Thin LED 1034 mm	20.5	1863	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0100.30B	Thin LED 1034 mm	20.5	1863	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0100.29B	Thin LED 1034 mm	20.5	1863	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0045.BZB	Thin LED 404 mm	6.8	621	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0045.30B	Thin LED 404 mm	6.8	621	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
09.0045.29B	Thin LED 404 mm	6.8	621	3000	90	101	Non Dimmable, Dimmable 1-10V, Dimmable DALI 1	Wall surface
