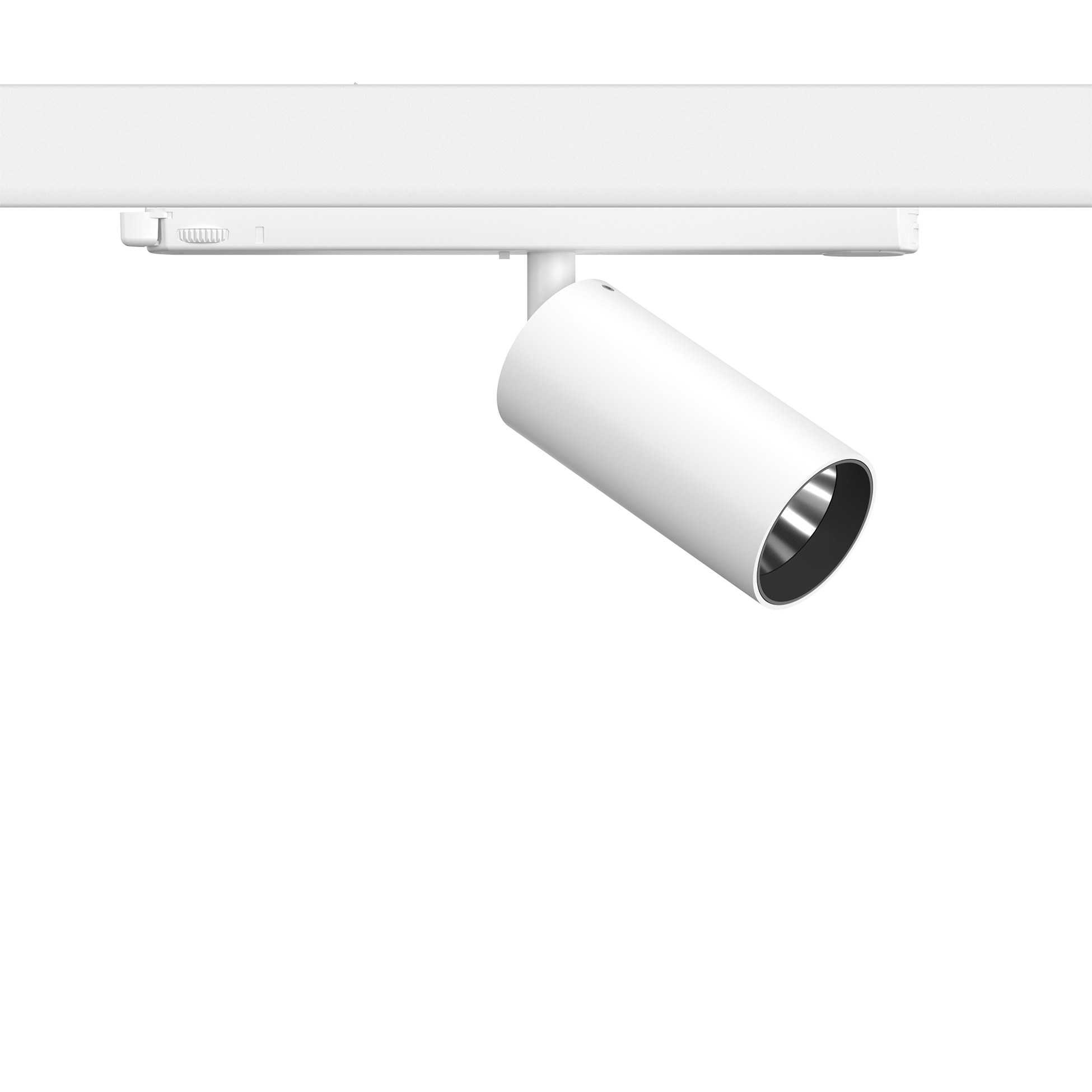

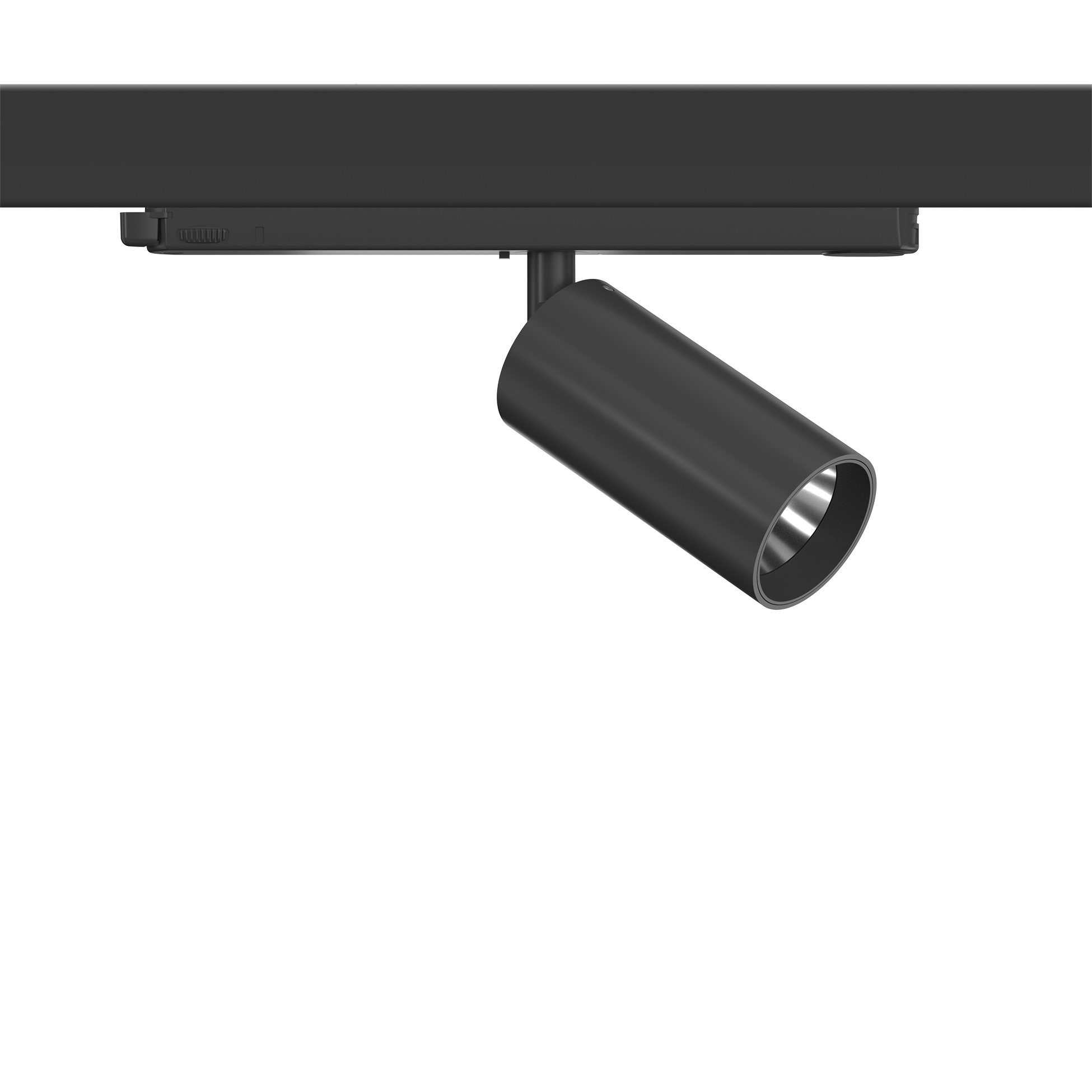

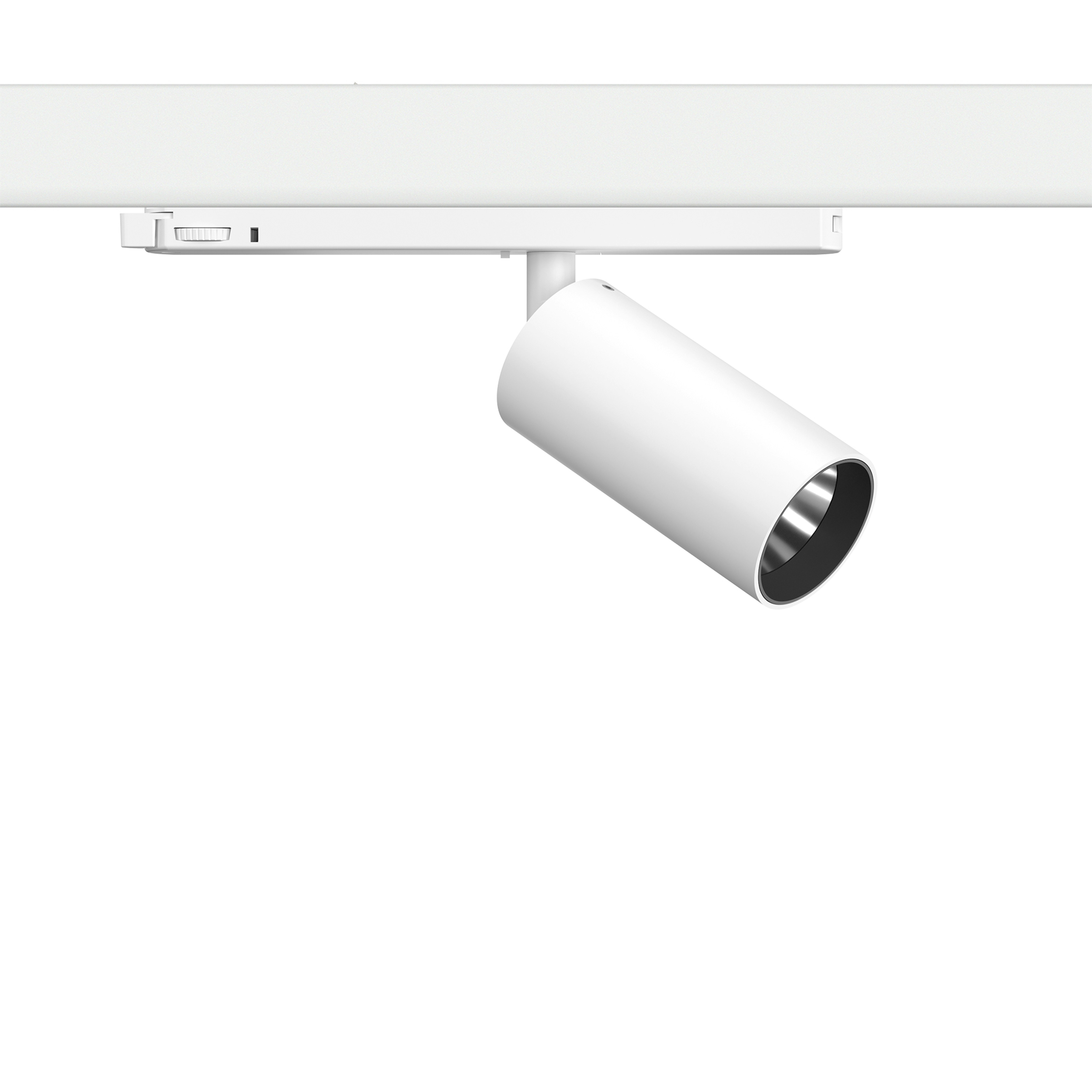

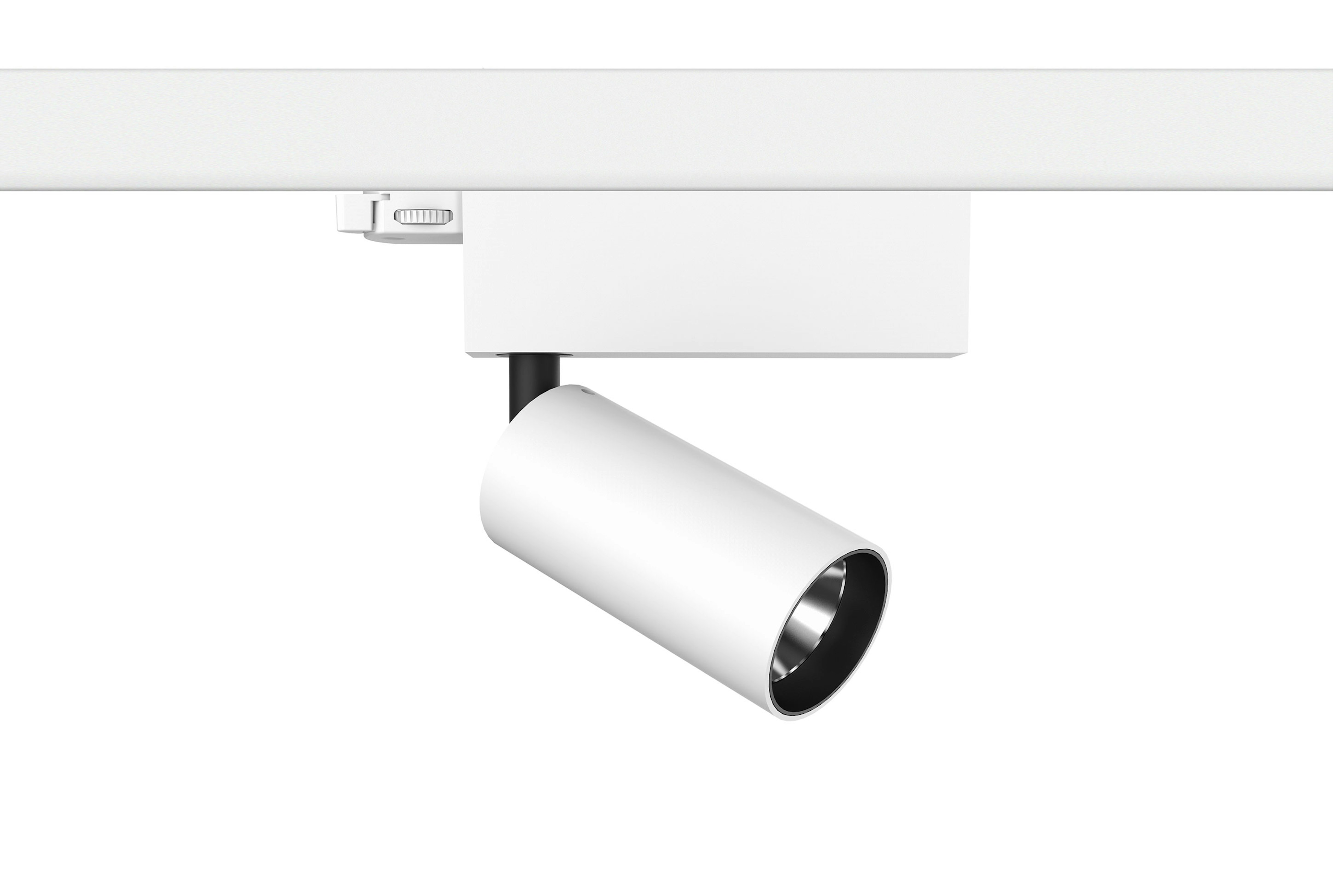

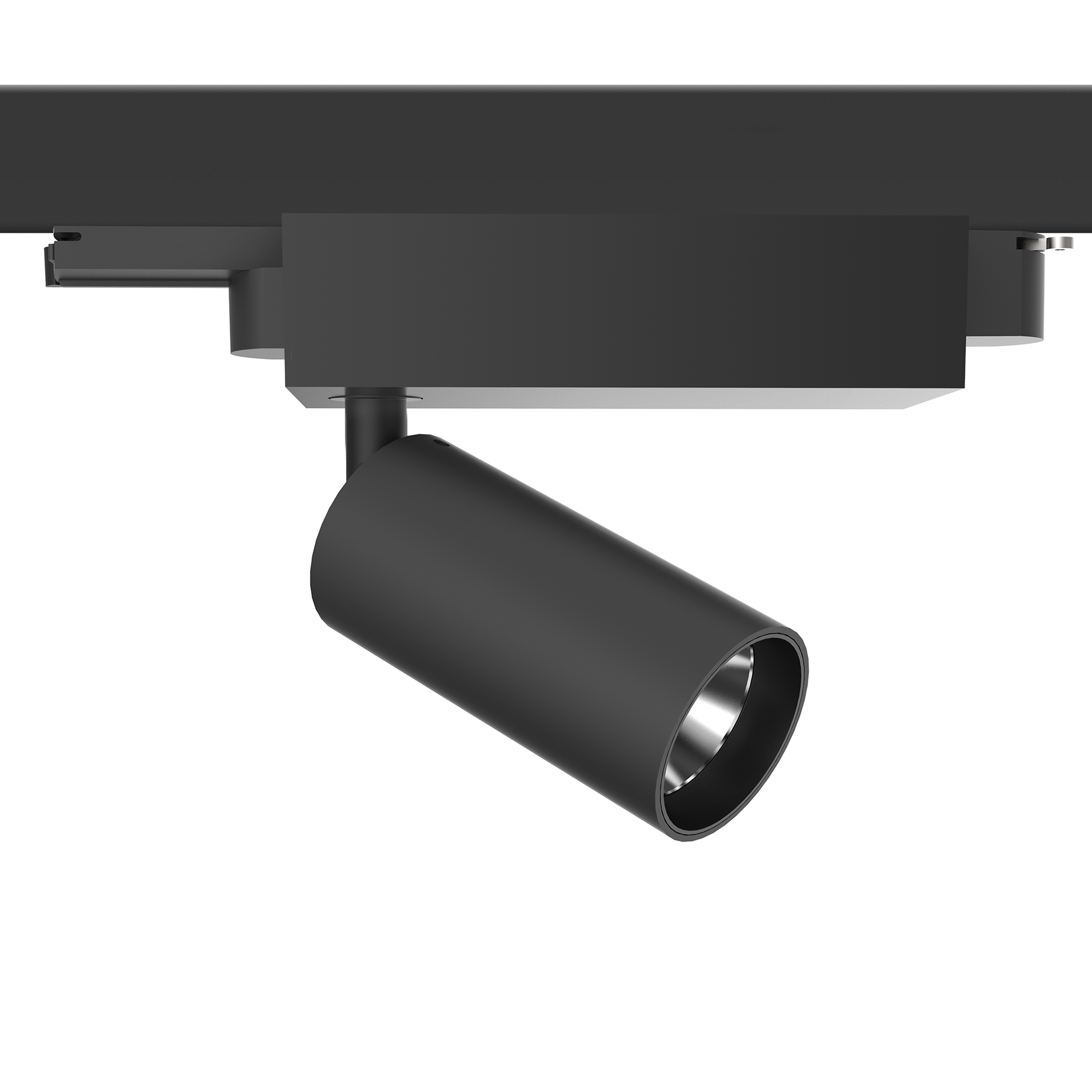

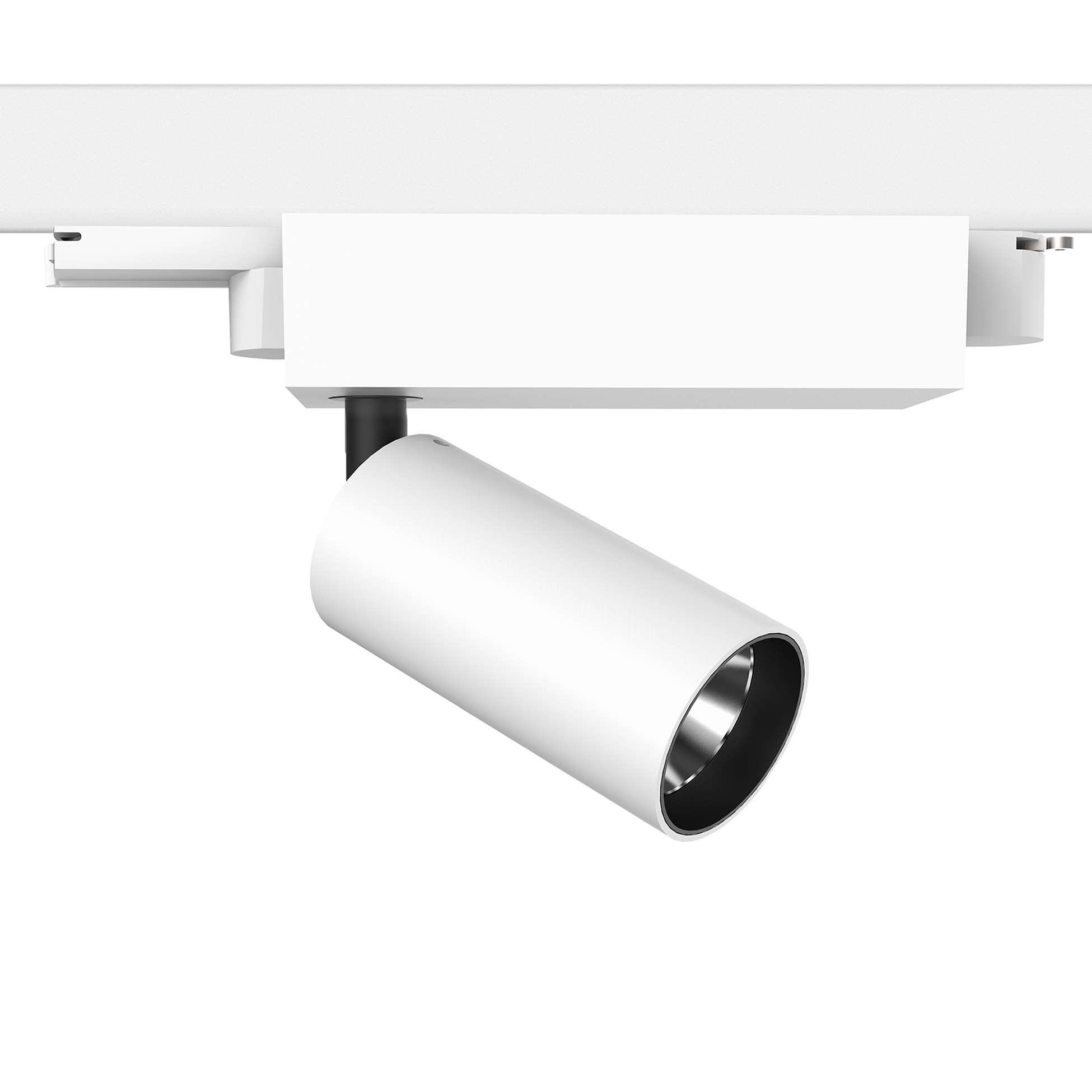

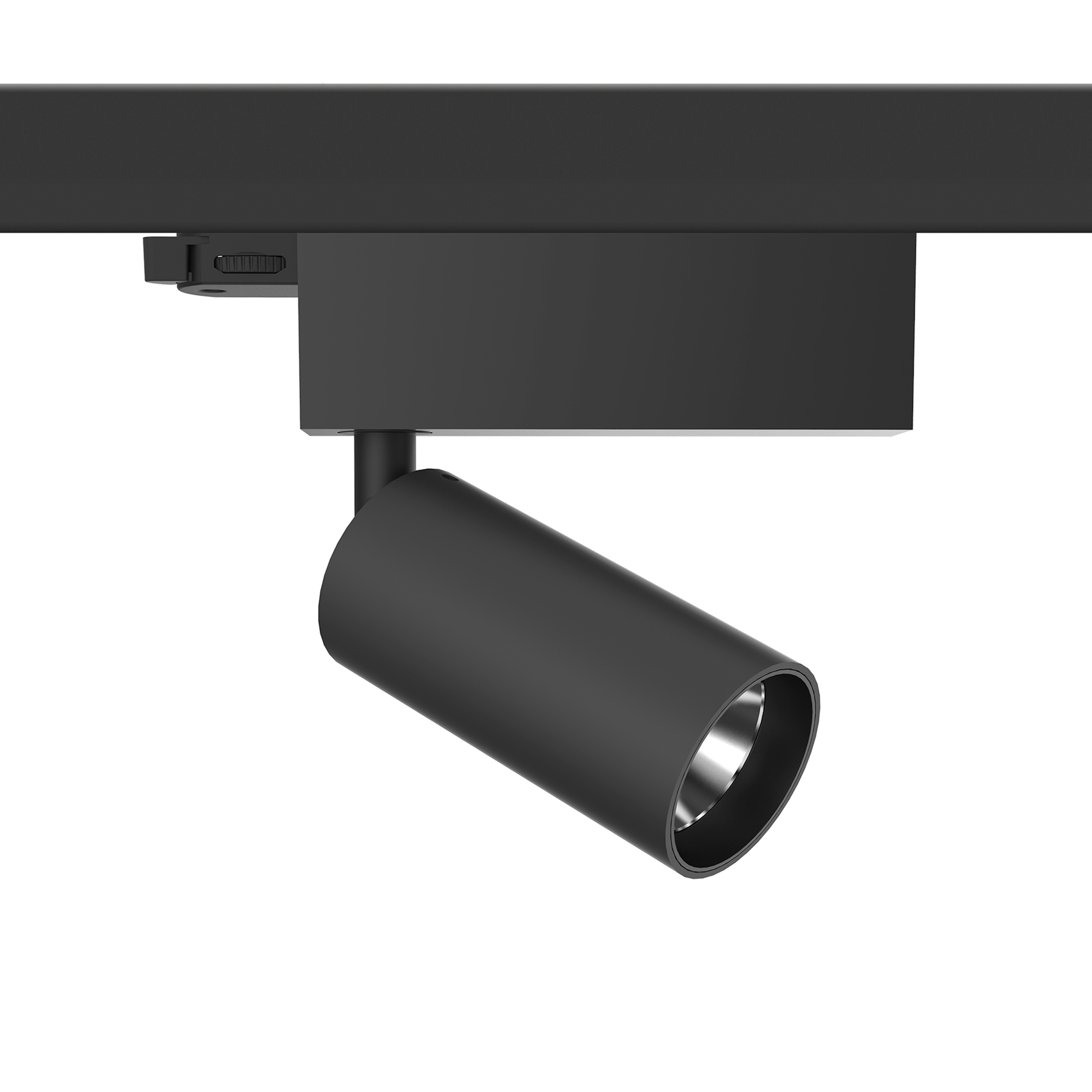

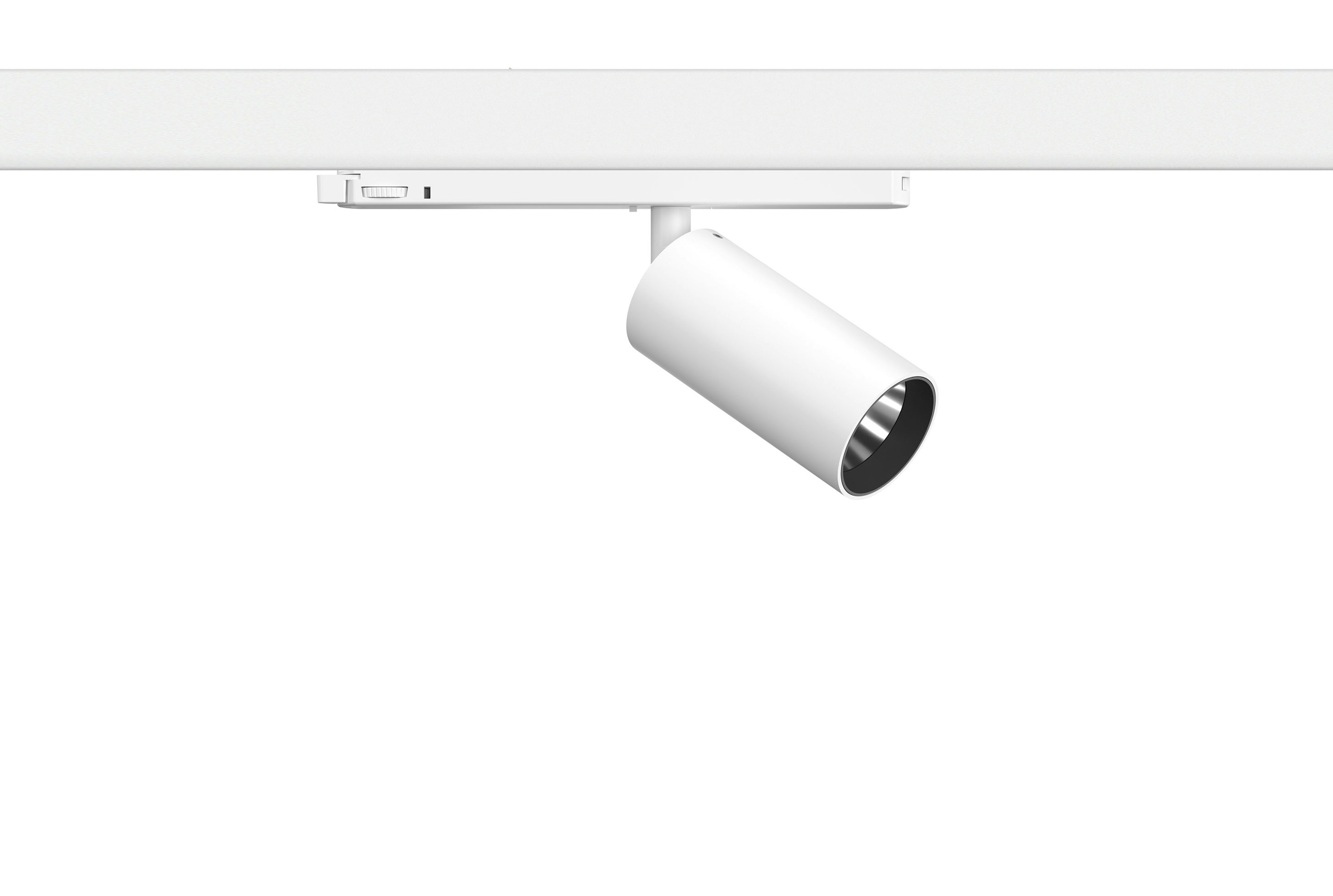

UT Spot Track Ø57

Designed by FLOS Architectural

Spotlight to be installed on 3-phase track. with LED light source. Power supply integrated.

Download Documentation

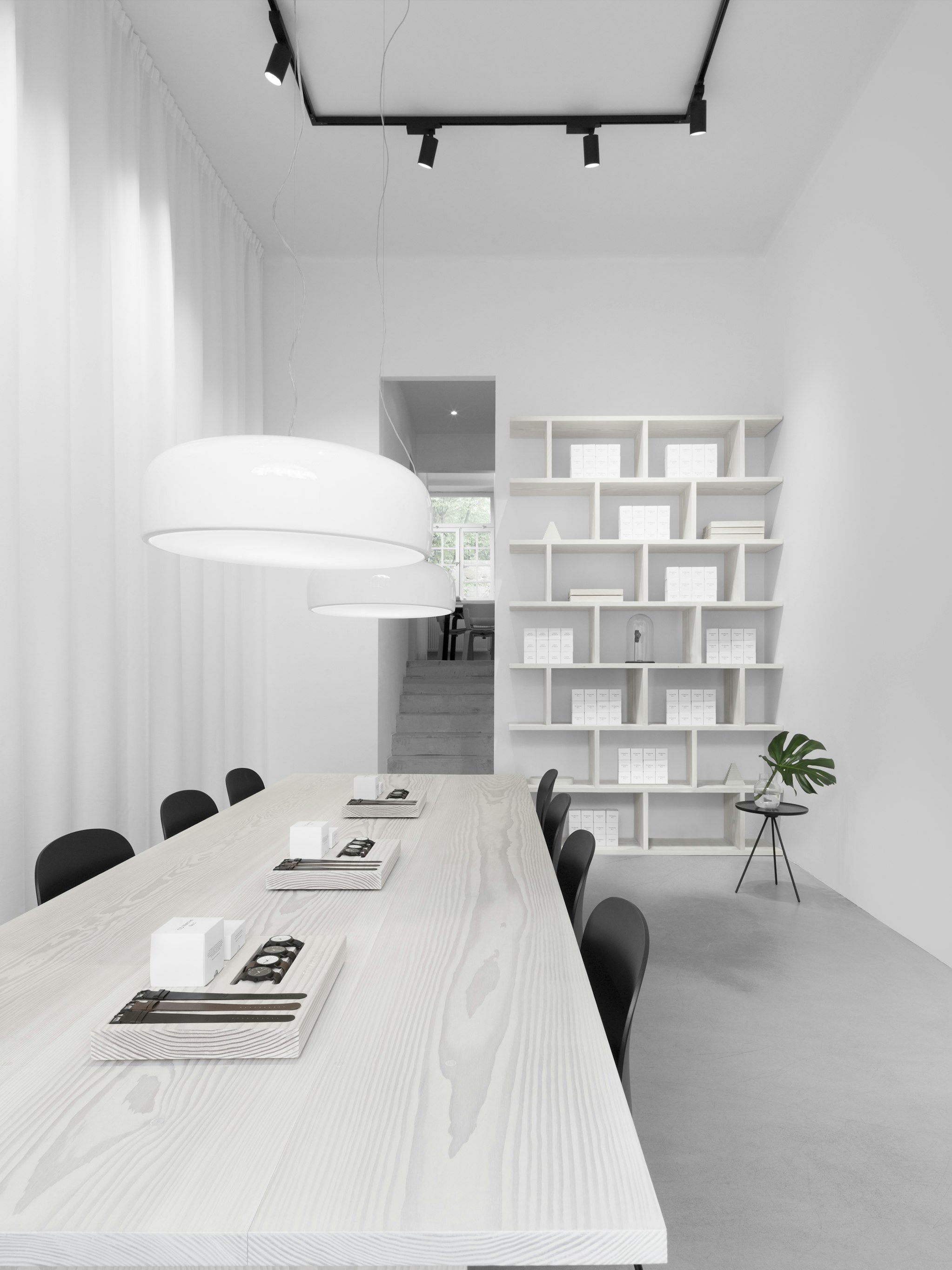

Product highlight

Minimal elegance

A wide range of solutions with light sources and optics for all your lighting needs.

Luminaire

(108)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
09.7708.30CYU	UT Spot Track Ø 57 GA Dali Version All White	15.5	1108	3000	90	42	Dimmable DALI 2	Track
09.7708.30CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1108	3000	90	42	Dimmable DALI 2	Track
09.7708.30C78	UT Spot Track Ø 57 GA All White	15.5	1108	3000	90	42	Non Dimmable	Track
09.7708.30C	UT Spot Track Ø 57 GA	15.5	1108	3000	90	42	Non Dimmable	Track
09.7708.14CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1108	3000	90	42	Dimmable DALI 2	Track
09.7708.14C	UT Spot Track Ø 57 GA	15.5	1108	3000	90	42	Non Dimmable	Track
09.7707.30CYU	UT Spot Track Ø 57 GA Dali Version All White	15.5	941	3000	90	21	Dimmable DALI 2	Track
09.7707.30CDA	UT Spot Track Ø 57 GA Dali Version	15.5	941	3000	90	21	Dimmable DALI 2	Track
09.7707.30C78	UT Spot Track Ø 57 GA All White	15.5	941	3000	90	21	Non Dimmable	Track
09.7707.30C	UT Spot Track Ø 57 GA	15.5	941	3000	90	21	Non Dimmable	Track
09.7707.14CDA	UT Spot Track Ø 57 GA Dali Version	15.5	941	3000	90	21	Dimmable DALI 2	Track
09.7707.14C	UT Spot Track Ø 57 GA	15.5	941	3000	90	21	Non Dimmable	Track
09.7706.30CYU	UT Spot Track Ø 57 GA Dali Version All White	15.5	997	3000	90	10	Dimmable DALI 2	Track
09.7706.30CDA	UT Spot Track Ø 57 GA Dali Version	15.5	997	3000	90	10	Dimmable DALI 2	Track
09.7706.30C78	UT Spot Track Ø 57 GA All White	15.5	997	3000	90	10	Non Dimmable	Track
09.7706.30C	UT Spot Track Ø 57 GA	15.5	997	3000	90	10	Non Dimmable	Track
09.7706.14CDA	UT Spot Track Ø 57 GA Dali Version	15.5	997	3000	90	10	Dimmable DALI 2	Track
09.7706.14C	UT Spot Track Ø 57 GA	15.5	997	3000	90	10	Non Dimmable	Track
09.7705.30CYU	UT Spot Track Ø 57 GA Dali Version All White	15.5	1216	4000	90	42	Dimmable DALI 2	Track
09.7705.30CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1216	4000	90	42	Dimmable DALI 2	Track
09.7705.30C78	UT Spot Track Ø 57 GA All White	15.5	1216	4000	90	42	Non Dimmable	Track
09.7705.30C	UT Spot Track Ø 57 GA	15.5	1216	4000	90	42	Non Dimmable	Track
09.7705.14CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1216	4000	90	42	Dimmable DALI 2	Track
09.7705.14C	UT Spot Track Ø 57 GA	15.5	1216	4000	90	42	Non Dimmable	Track
09.7704.30CYU	UT Spot Track Ø 57 GA Dali Version All White	23.5	1394	3000	80	42	Dimmable DALI 2	Track
09.7704.30CDA	UT Spot Track Ø 57 GA Dali Version	23.5	1394	3000	80	42	Dimmable DALI 2	Track
09.7704.30A78	UT Spot Track Ø 57 GA All White	23.5	1394	3000	80	42	Non Dimmable	Track
09.7704.30A	UT Spot Track Ø 57 GA	23.5	1394	3000	80	42	Non Dimmable	Track
09.7704.14CDA	UT Spot Track Ø 57 GA Dali Version	21	1394	3000	80	42	Dimmable DALI 2	Track
09.7704.14A	UT Spot Track Ø 57 GA	23.5	1394	3000	80	42	Non Dimmable	Track
09.7703.30CYU	UT Spot Track Ø 57 GA Dali Version All White	15.5	1033	4000	90	21	Dimmable DALI 2	Track
09.7703.30CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1033	4000	90	21	Dimmable DALI 2	Track
09.7703.30C78	UT Spot Track Ø 57 GA All White	15.5	1033	4000	90	21	Non Dimmable	Track
09.7703.30C	UT Spot Track Ø 57 GA	15.5	1033	4000	90	21	Non Dimmable	Track
09.7703.14CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1033	4000	90	21	Dimmable DALI 2	Track
09.7703.14C	UT Spot Track Ø 57 GA	15.5	1033	4000	90	21	Non Dimmable	Track
09.7702.30CYU	UT Spot Track Ø 57 GA Dali Version All White	23.5	1184	3000	80	21	Dimmable DALI 2	Track
09.7702.30CDA	UT Spot Track Ø 57 GA Dali Version	23.5	1184	3000	80	21	Dimmable DALI 2	Track
09.7702.30A78	UT Spot Track Ø 57 GA All White	23.5	1184	3000	80	21	Non Dimmable	Track
09.7702.30A	UT Spot Track Ø 57 GA	23.5	1184	3000	80	21	Non Dimmable	Track
09.7702.14CDA	UT Spot Track Ø 57 GA Dali Version	21	1184	3000	80	21	Dimmable DALI 2	Track
09.7702.14A	UT Spot Track Ø 57 GA	23.5	1184	3000	80	21	Non Dimmable	Track
09.7701.30CYU	UT Spot Track Ø 57 GA Dali Version All White	15.5	1094	4000	90	10	Dimmable DALI 2	Track
09.7701.30CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1094	4000	90	10	Dimmable DALI 2	Track
09.7701.30C78	UT Spot Track Ø 57 GA All White	15.5	1094	4000	90	10	Non Dimmable	Track
09.7701.30C	UT Spot Track Ø 57 GA	15.5	1094	4000	90	10	Non Dimmable	Track
09.7701.14CDA	UT Spot Track Ø 57 GA Dali Version	15.5	1094	4000	90	10	Dimmable DALI 2	Track
09.7701.14C	UT Spot Track Ø 57 GA	15.5	1094	4000	90	10	Non Dimmable	Track
09.7700.30CYU	UT Spot Track Ø 57 GA Dali Version All White	23.5	1255	3000	80	10	Dimmable DALI 2	Track
09.7700.30CDA	UT Spot Track Ø 57 GA Dali Version	23.5	1255	3000	80	10	Dimmable DALI 2	Track
09.7700.30A78	UT Spot Track Ø 57 GA All White	23.5	1255	3000	80	10	Non Dimmable	Track
09.7700.30A	UT Spot Track Ø 57 GA	23.5	1255	3000	80	10	Non Dimmable	Track
09.7700.14CDA	UT Spot Track Ø 57 GA Dali Version	21	1255	3000	80	10	Dimmable DALI 2	Track
09.7700.14A	UT Spot Track Ø 57 GA	23.5	1255	3000	80	10	Non Dimmable	Track
09.4488.30C	UT Spot Track Ø 57	15.5	1108	3000	90	42	Non Dimmable	Track
09.4488.14C	UT Spot Track Ø 57	15.5	1108	3000	90	42	Non Dimmable	Track
09.4487.30C	UT Spot Track Ø 57	15.5	941	3000	90	21	Non Dimmable	Track
09.4487.14C	UT Spot Track Ø 57	15.5	941	3000	90	21	Non Dimmable	Track
09.4486.30C	UT Spot Track Ø 57	15.5	997	3000	90	10	Non Dimmable	Track
09.4486.14C	UT Spot Track Ø 57	15.5	997	3000	90	10	Non Dimmable	Track
09.4485.30C	UT Spot Track Ø 57	15.5	1216	4000	90	42	Non Dimmable	Track
09.4485.14C	UT Spot Track Ø 57	15.5	1216	4000	90	42	Non Dimmable	Track
09.4484.30A	UT Spot Track Ø 57	23.2	1395	3000	80	42	Non Dimmable	Track
09.4484.14A	UT Spot Track Ø 57	23.2	1395	3000	80	42	Non Dimmable	Track
09.4483.30C	UT Spot Track Ø 57	15.5	1033	4000	90	21	Non Dimmable	Track
09.4483.14C	UT Spot Track Ø 57	15.5	1033	4000	90	21	Non Dimmable	Track
09.4482.30A	UT Spot Track Ø 57	23.2	1184	3000	80	21	Non Dimmable	Track
09.4482.14A	UT Spot Track Ø 57	23.2	1184	3000	80	21	Non Dimmable	Track
09.4481.30C	UT Spot Track Ø 57	15.5	1094	4000	90	10	Non Dimmable	Track
09.4481.14C	UT Spot Track Ø 57	15.5	1094	4000	90	10	Non Dimmable	Track
09.4480.30A	UT Spot Track Ø 57	21.5	1255	3000	80	10	Non Dimmable	Track
09.4480.14A	UT Spot Track Ø 57	21.5	1255	3000	80	10	Non Dimmable	Track
09.4452.30CDA	UT Spot Track Ø 57 Dali Version	15.5	1216	4000	90	42	Dimmable DALI 1	Track
09.4452.30C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1216	4000	90	42	Dimmer on board	Track
09.4452.14CDA	UT Spot Track Ø 57 Dali Version	15.5	1216	4000	90	42	Dimmable DALI 1	Track
09.4452.14C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1216	4000	90	42	Dimmer on board	Track
09.4451.30CDA	UT Spot Track Ø 57 Dali Version	15.5	1033	4000	90	21	Dimmable DALI 1	Track
09.4451.30C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1033	4000	90	21	Dimmer on board	Track
09.4451.14CDA	UT Spot Track Ø 57 Dali Version	15.5	1033	4000	90	21	Dimmable DALI 1	Track
09.4451.14C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1033	4000	90	21	Dimmer on board	Track
09.4450.30CDA	UT Spot Track Ø 57 Dali Version	15.5	1094	4000	90	10	Dimmable DALI 1	Track
09.4450.30C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1094	4000	90	10	Dimmer on board	Track
09.4450.14CDA	UT Spot Track Ø 57 Dali Version	15.5	1094	4000	90	10	Dimmable DALI 1	Track
09.4450.14C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1094	4000	90	10	Dimmer on board	Track
09.4445.30CDA	UT Spot Track Ø 57 Dali Version	15.5	1108	3000	90	42	Dimmable DALI 1	Track
09.4445.30C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1108	3000	90	42	Dimmer on board	Track
09.4445.14CDA	UT Spot Track Ø 57 Dali Version	15.5	1108	3000	90	42	Dimmable DALI 1	Track
09.4445.14C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	1108	3000	90	42	Dimmer on board	Track
09.4444.30CDA	UT Spot Track Ø 57 Dali Version	15.5	941	3000	90	21	Dimmable DALI 1	Track
09.4444.30C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	941	3000	90	21	Dimmer on board	Track
09.4444.14CDA	UT Spot Track Ø 57 Dali Version	15.5	941	3000	90	21	Dimmable DALI 1	Track
09.4444.14C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	941	3000	90	21	Dimmer on board	Track
09.4443.30CDA	UT Spot Track Ø 57 Dali Version	15.5	997	3000	90	10	Dimmable DALI 1	Track
09.4443.30C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	997	3000	90	10	Dimmer on board	Track
09.4443.14CDA	UT Spot Track Ø 57 Dali Version	15.5	997	3000	90	10	Dimmable DALI 1	Track
09.4443.14C	UT Spot Track Ø 57 On Board Dimmer Included	15.5	997	3000	90	10	Dimmer on board	Track
09.4442.30BDA	UT Spot Track Ø 57 Dali Version	23.2	1394	3000	80	42	Dimmable DALI 1	Track
09.4442.30A	UT Spot Track Ø 57 On Board Dimmer Included	23.2	1394	3000	80	42	Dimmer on board	Track
09.4442.14BDA	UT Spot Track Ø 57 Dali Version	23.2	1394	3000	80	42	Dimmable DALI 1	Track
09.4442.14A	UT Spot Track Ø 57 On Board Dimmer Included	23.2	1394	3000	80	42	Dimmer on board	Track
09.4441.30BDA	UT Spot Track Ø 57 Dali Version	23.2	1184	3000	80	21	Dimmable DALI 1	Track
09.4441.30A	UT Spot Track Ø 57 On Board Dimmer Included	23.2	1184	3000	80	21	Dimmer on board	Track
09.4441.14BDA	UT Spot Track Ø 57 Dali Version	23.2	1184	3000	80	21	Dimmable DALI 1	Track
09.4441.14A	UT Spot Track Ø 57 On Board Dimmer Included	23.2	1184	3000	80	21	Dimmer on board	Track
09.4440.30BDA	UT Spot Track Ø 57 Dali Version	23.2	1255	3000	80	10	Dimmable DALI 1	Track
09.4440.30A	UT Spot Track Ø 57 On Board Dimmer Included	23.2	1255	3000	80	10	Dimmer on board	Track
09.4440.14BDA	UT Spot Track Ø 57 Dali Version	23.2	1255	3000	80	10	Dimmable DALI 1	Track
09.4440.14A	UT Spot Track Ø 57 On Board Dimmer Included	23.2	1255	3000	80	10	Dimmer on board	Track
