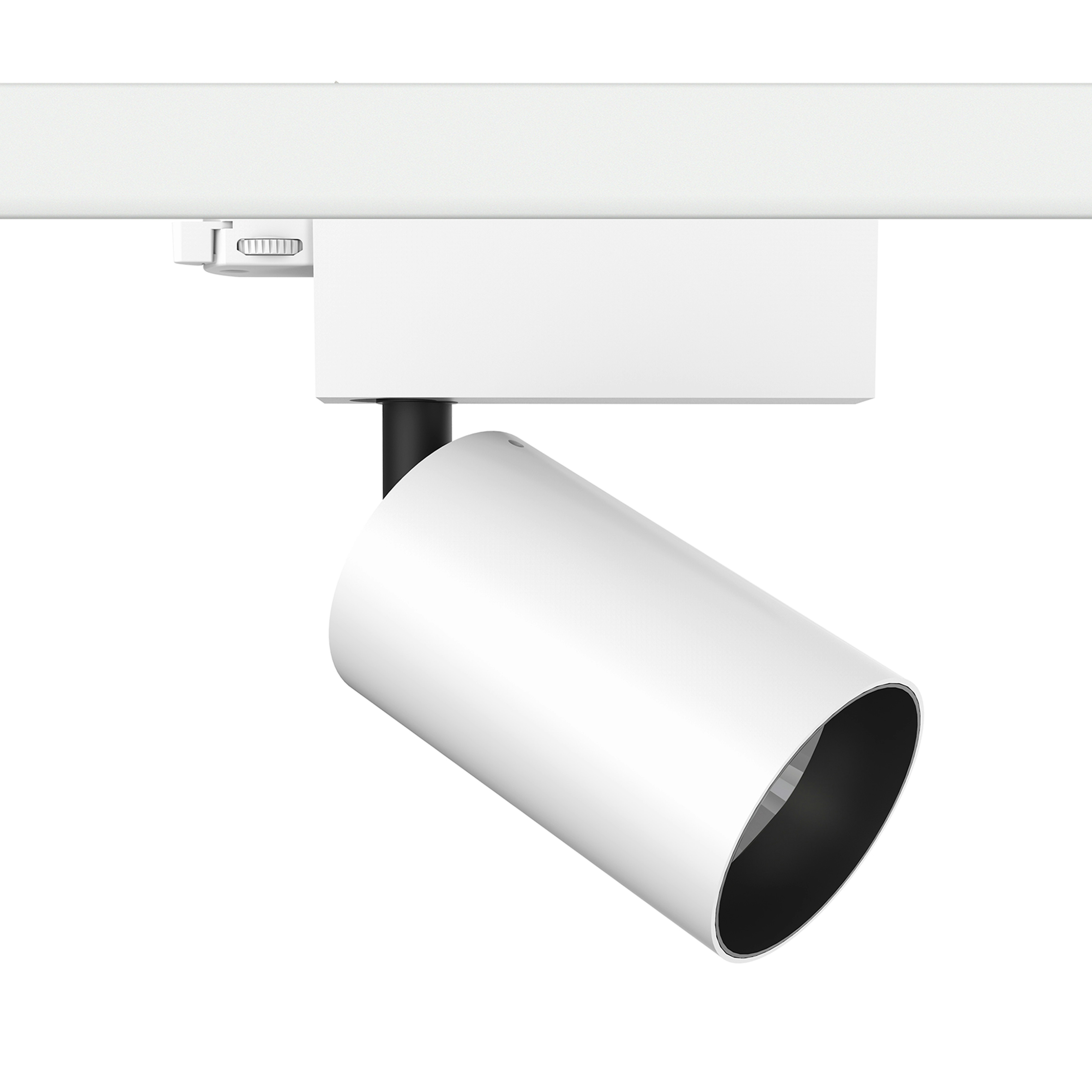

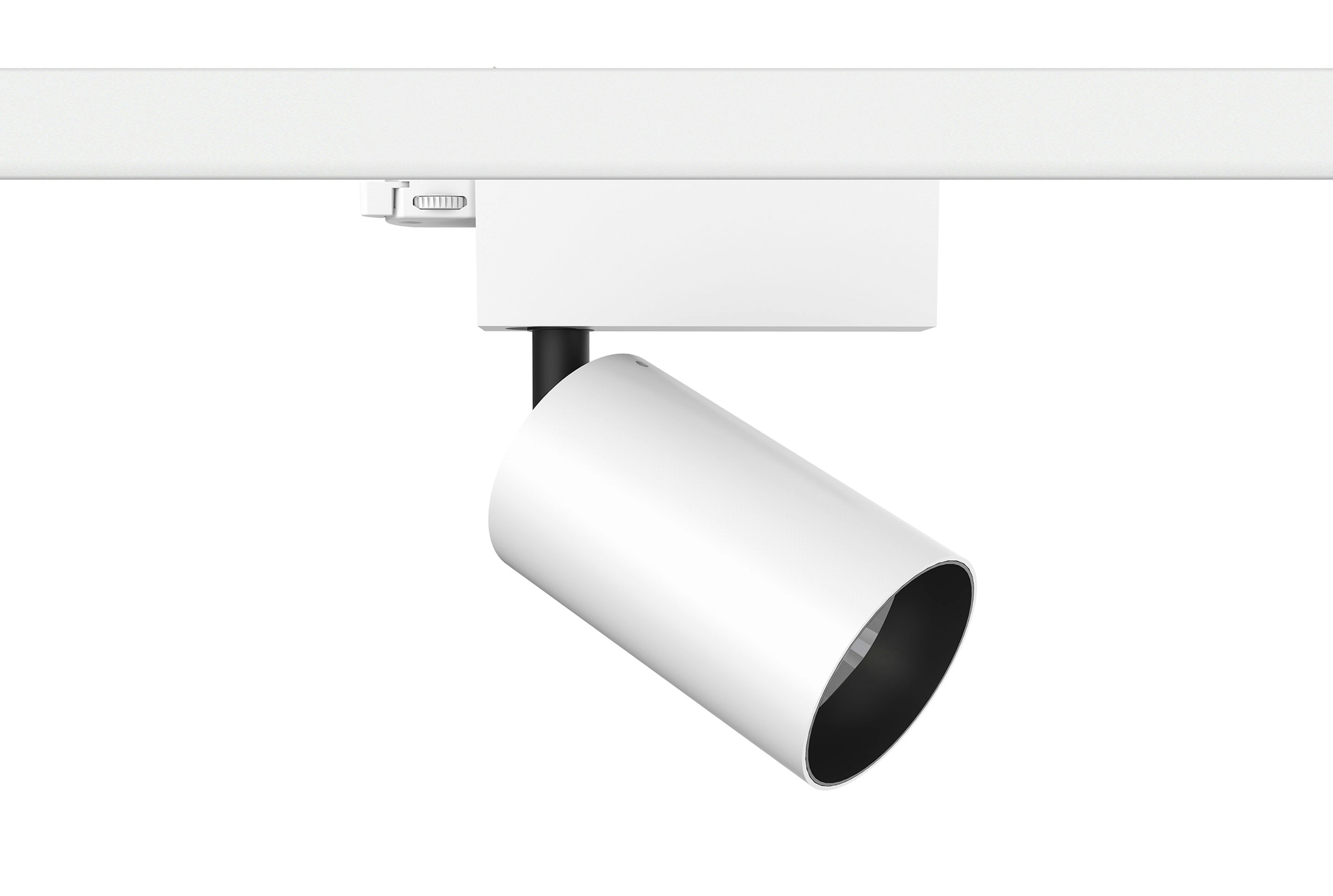

UT Spot Track Ø86

Designed by FLOS Architectural

Spotlight to be installed on 3-phase track. with LED light source. Power supply integrated.

Download Documentation

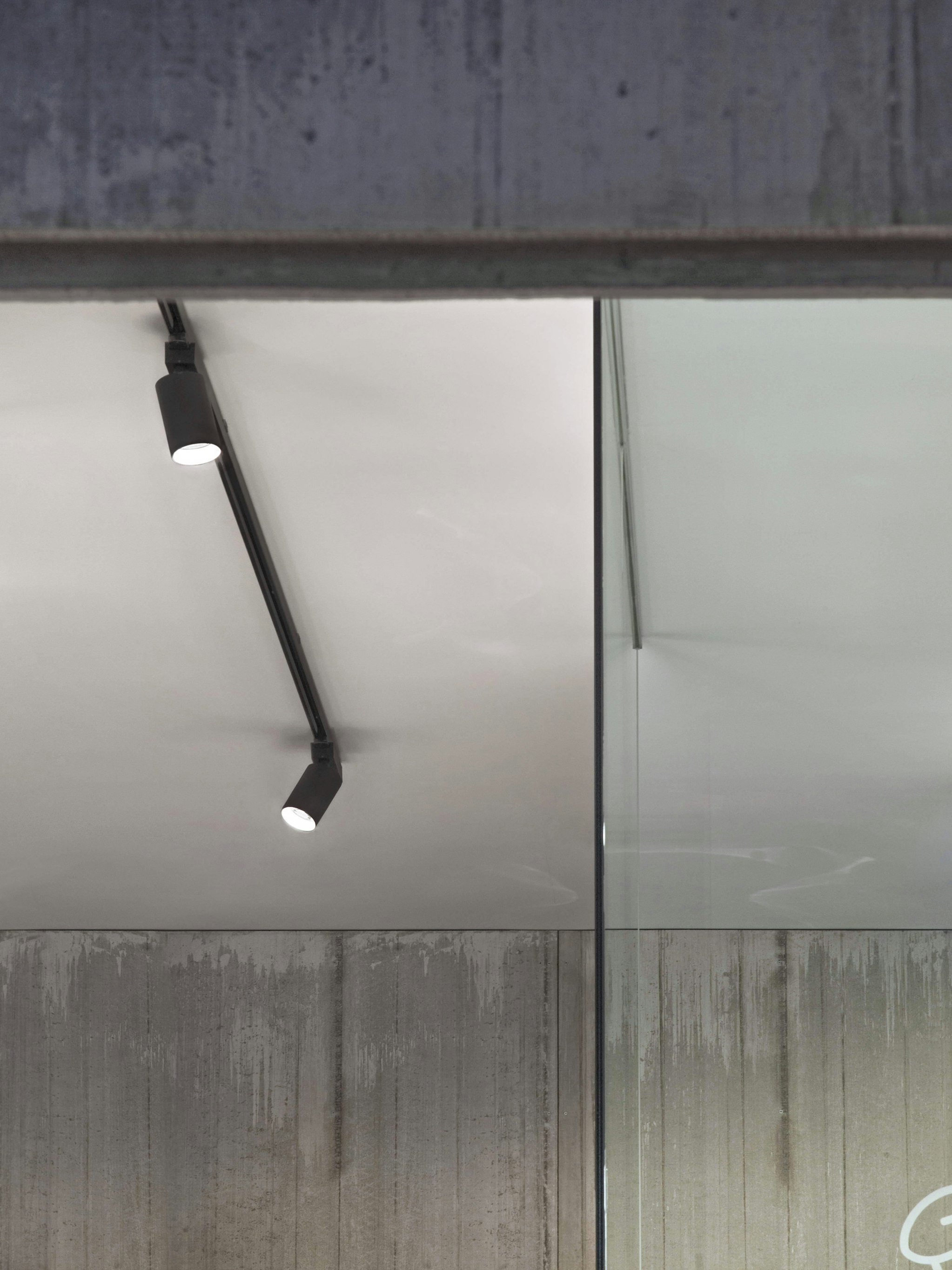

Product highlight

Minimal elegance

A wide range of solutions with light sources and optics for all your lighting needs.

Luminaire

(162)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting

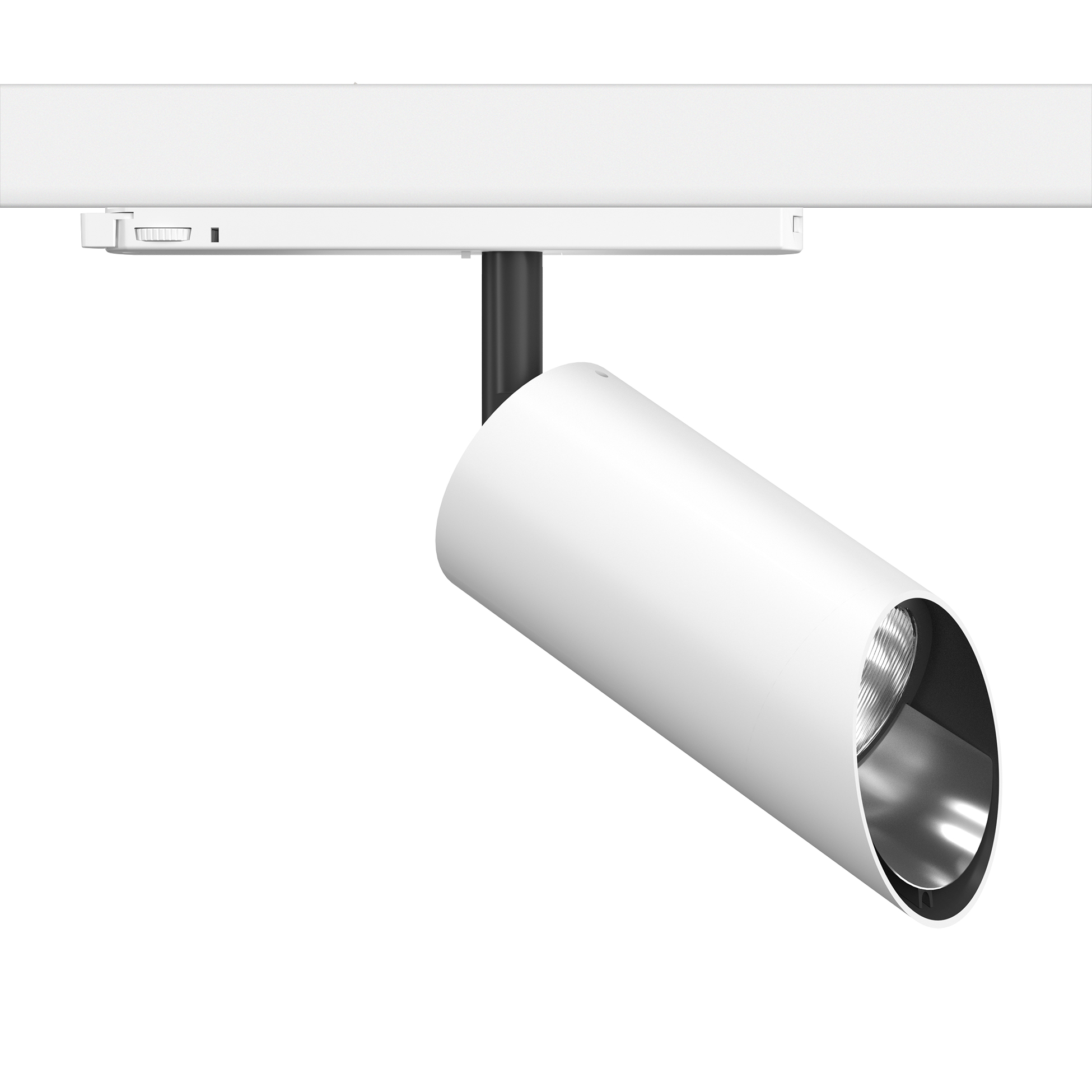

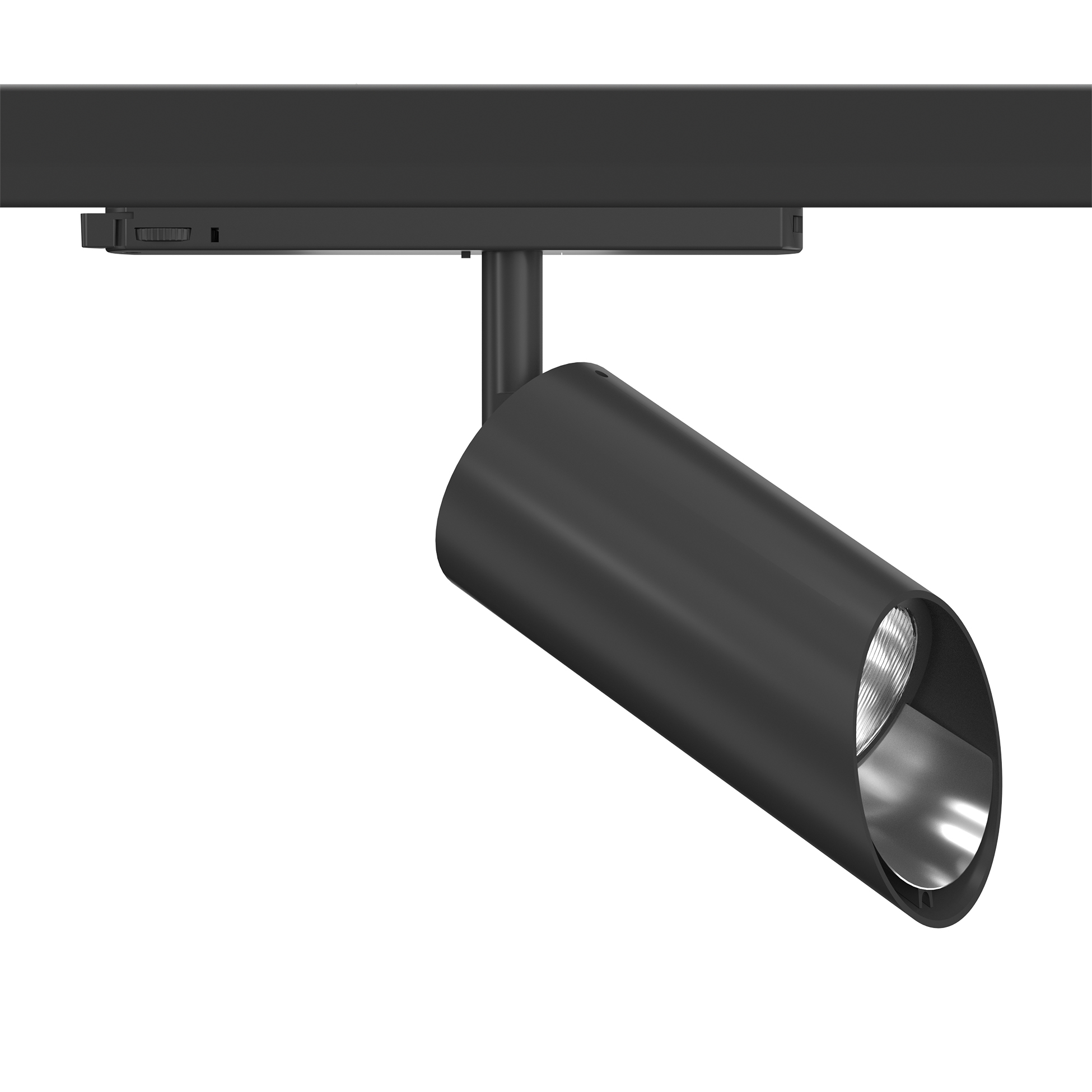

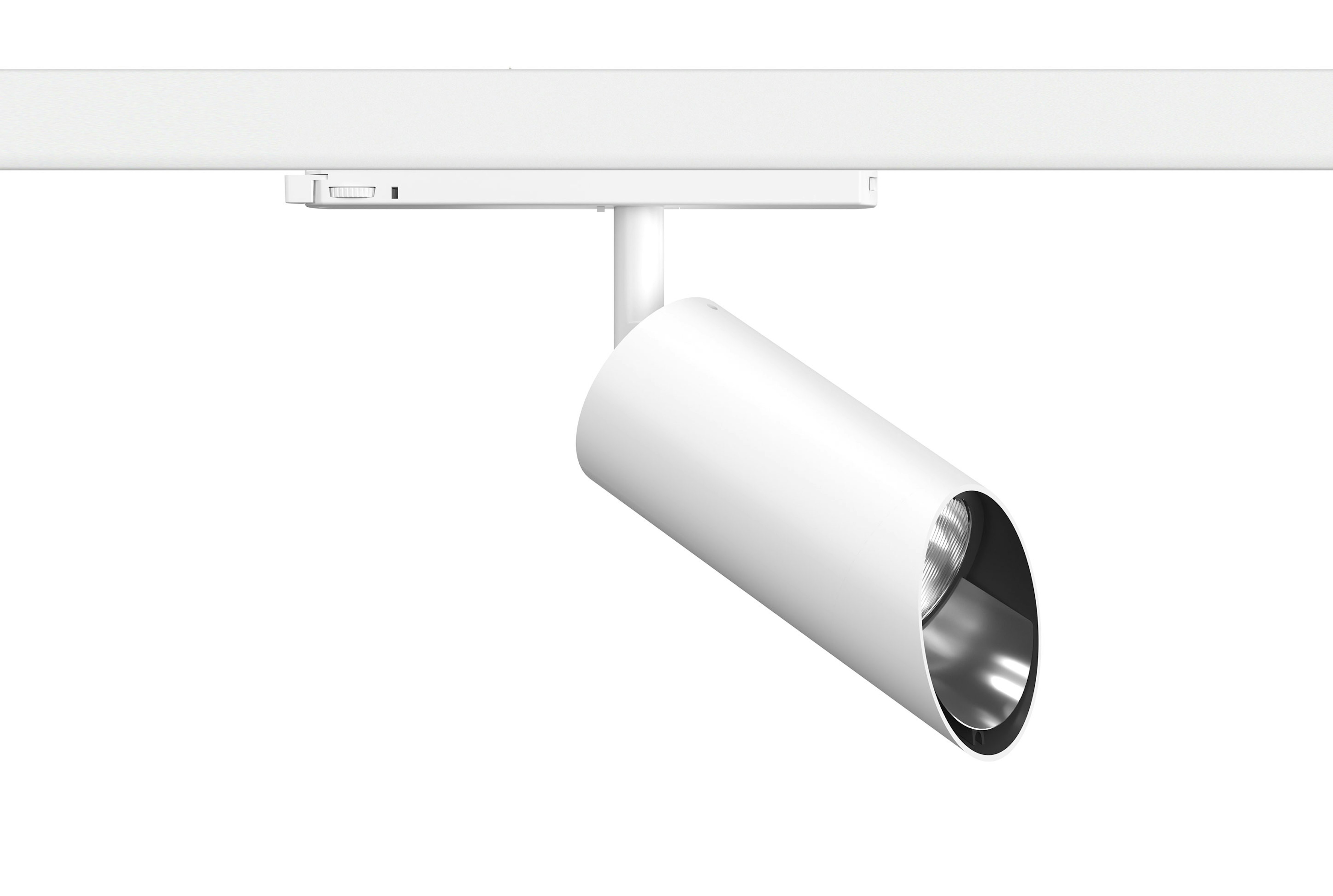

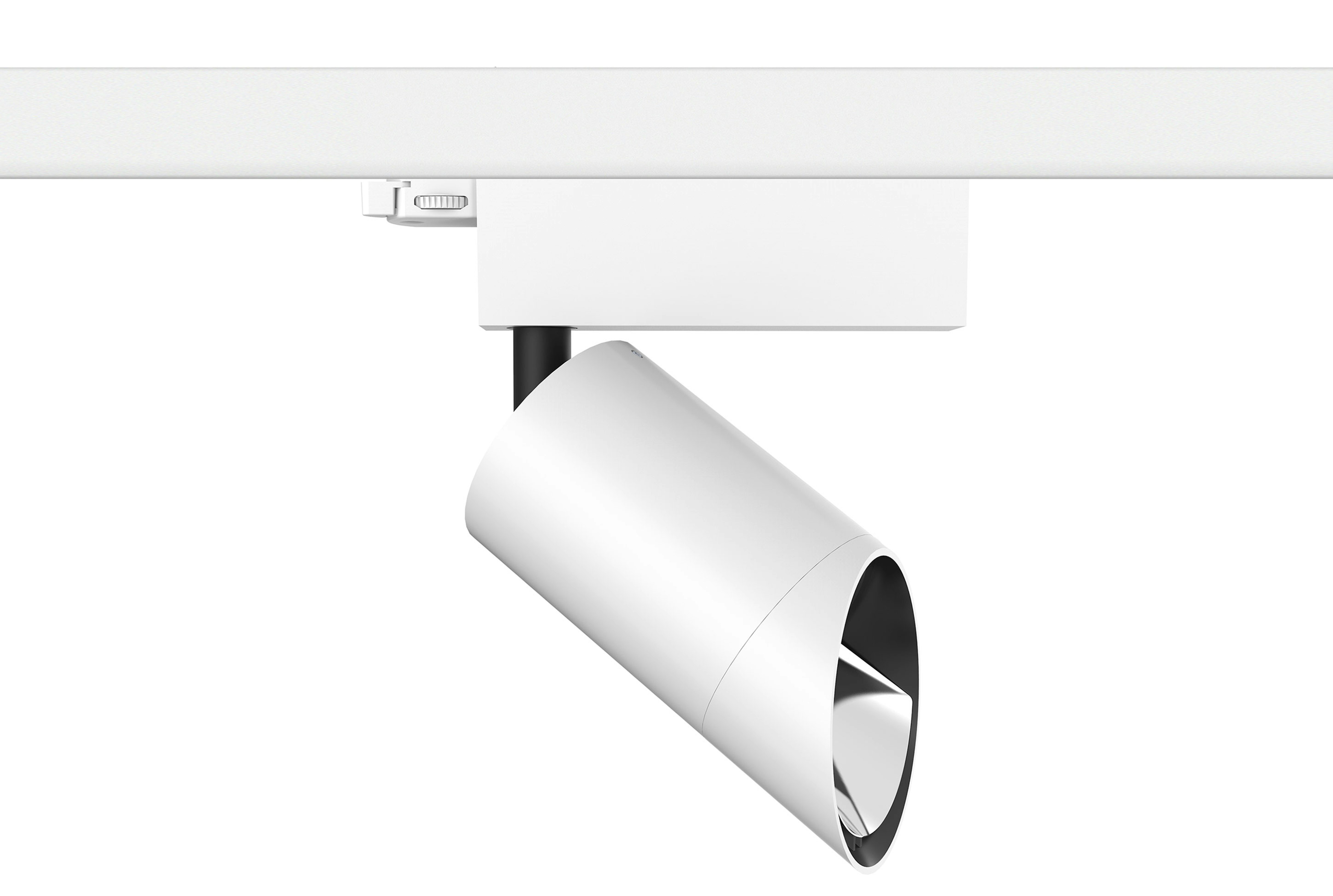

09.7772.30CYU	UT Spot Track Wall-Washer Ø 86 GA Dali Version All White	27.8	2204	4000	90	50	Dimmable DALI 2	Track
09.7772.30CDA	UT Spot Track Wall-Washer Ø 86 GA Dali Version	27.8	2204	4000	90	50	Dimmable DALI 2	Track

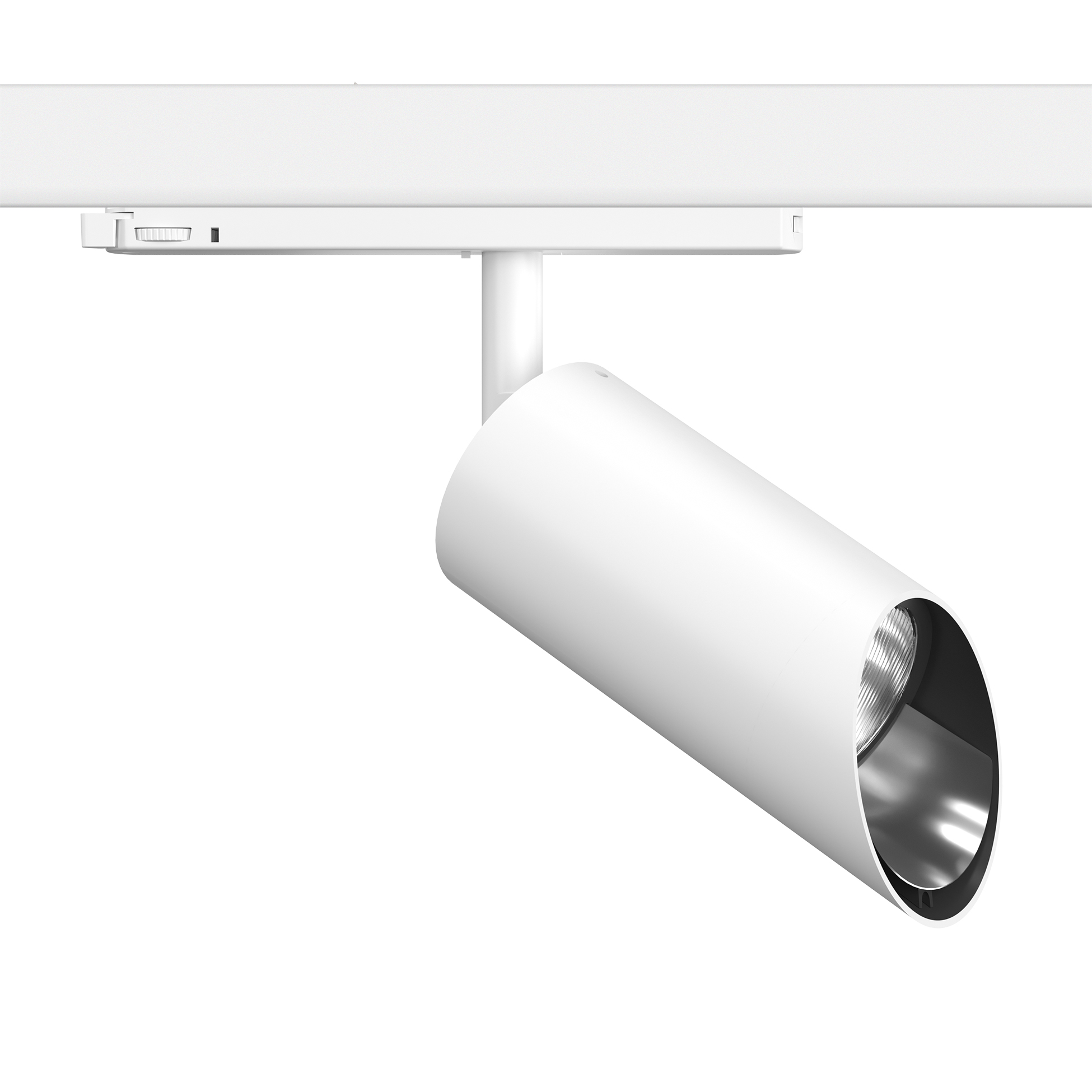

09.7772.30C78	UT Spot Track Wall-Washer Ø 86 GA All White	27.8	2204	4000	90	50	Non Dimmable	Track
09.7772.30C	UT Spot Track Wall-Washer Ø 86 GA	27.8	2204	4000	90	50	Non Dimmable	Track
09.7772.14CDA	UT Spot Track Wall-Washer Ø 86 GA Dali Version	27.8	2204	4000	90	50	Dimmable DALI 2	Track
09.7772.14C	UT Spot Track Wall-Washer Ø 86 GA	27.8	2204	4000	90	50	Non Dimmable	Track
09.7771.30CYU	UT Spot Track Wall-Washer Ø 86 GA Dali Version All White	27.8	2116	3000	90	50	Dimmable DALI 2	Track
09.7771.30CDA	UT Spot Track Wall-Washer Ø 86 GA Dali Version	27.8	2116	3000	90	50	Dimmable DALI 2	Track
09.7771.30C78	UT Spot Track Wall-Washer Ø 86 GA All White	27.8	2116	3000	90	50	Non Dimmable	Track
09.7771.30C	UT Spot Track Wall-Washer Ø 86 GA	27.8	2116	3000	90	50	Non Dimmable	Track
09.7771.14CDA	UT Spot Track Wall-Washer Ø 86 GA Dali Version	27.8	2116	3000	90	50	Dimmable DALI 2	Track
09.7771.14C	UT Spot Track Wall-Washer Ø 86 GA	27.8	2116	3000	90	50	Non Dimmable	Track
09.7770.30BYU	UT Spot Track Wall-Washer Ø 86 GA Dali Version All White	33	2560	3000	80	50	Dimmable DALI 2	Track
09.7770.30BDA	UT Spot Track Wall-Washer Ø 86 GA Dali Version	33	2560	3000	80	50	Dimmable DALI 2	Track
09.7770.30B78	UT Spot Track Wall-Washer Ø 86 GA All White	33	2560	3000	80	50	Non Dimmable	Track
09.7770.30B	UT Spot Track Wall-Washer Ø 86 GA	33	2560	3000	80	50	Non Dimmable	Track
09.7770.14BDA	UT Spot Track Wall-Washer Ø 86 GA Dali Version	32.4	2560	3000	80	50	Dimmable DALI 2	Track
09.7770.14B	UT Spot Track Wall-Washer Ø 86 GA	33	2560	3000	80	50	Non Dimmable	Track

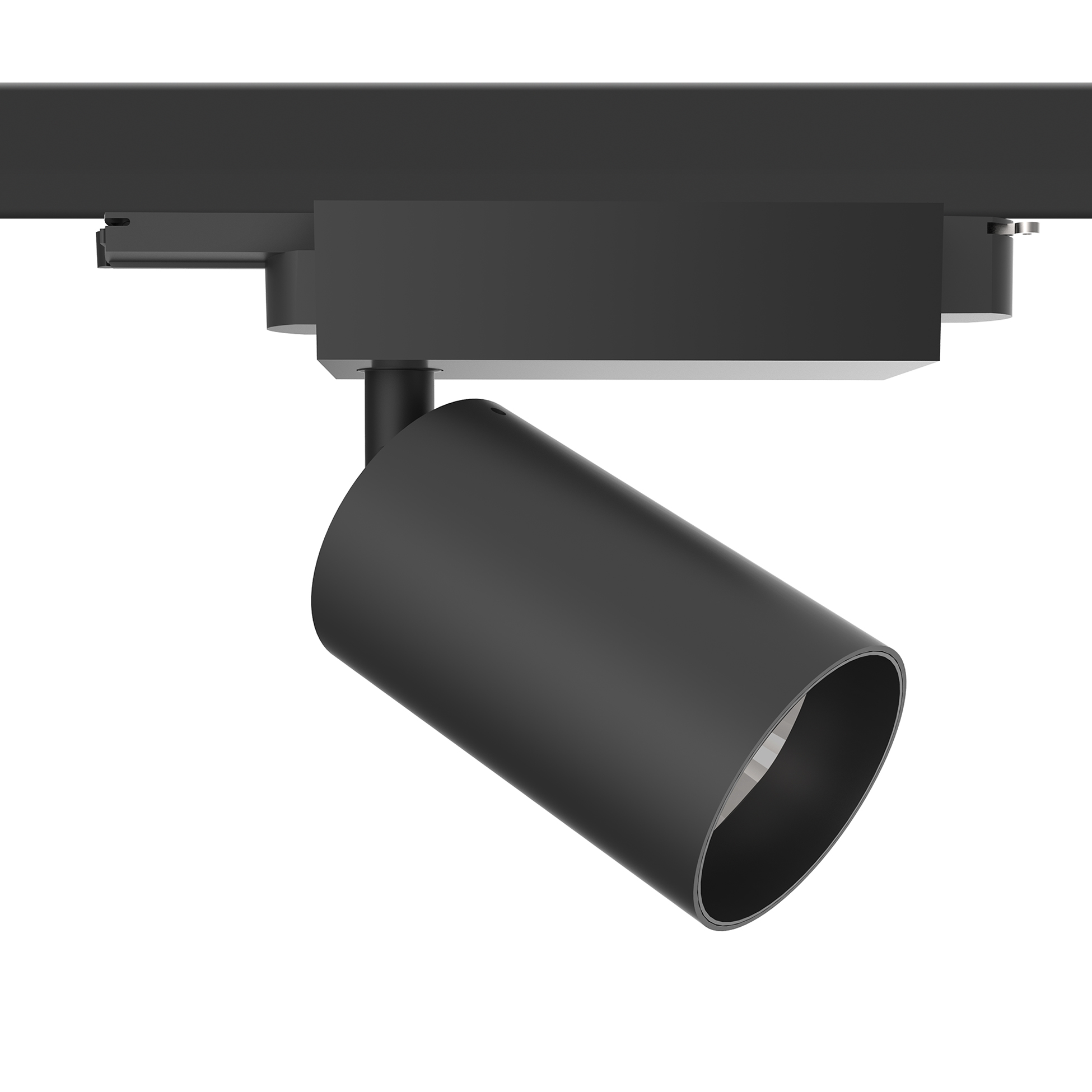

09.7758.30CYU	UT Spot Track Ø 86 GA Dali Version All White	27.8	1991	3000	90	37	Dimmable DALI 2	Track

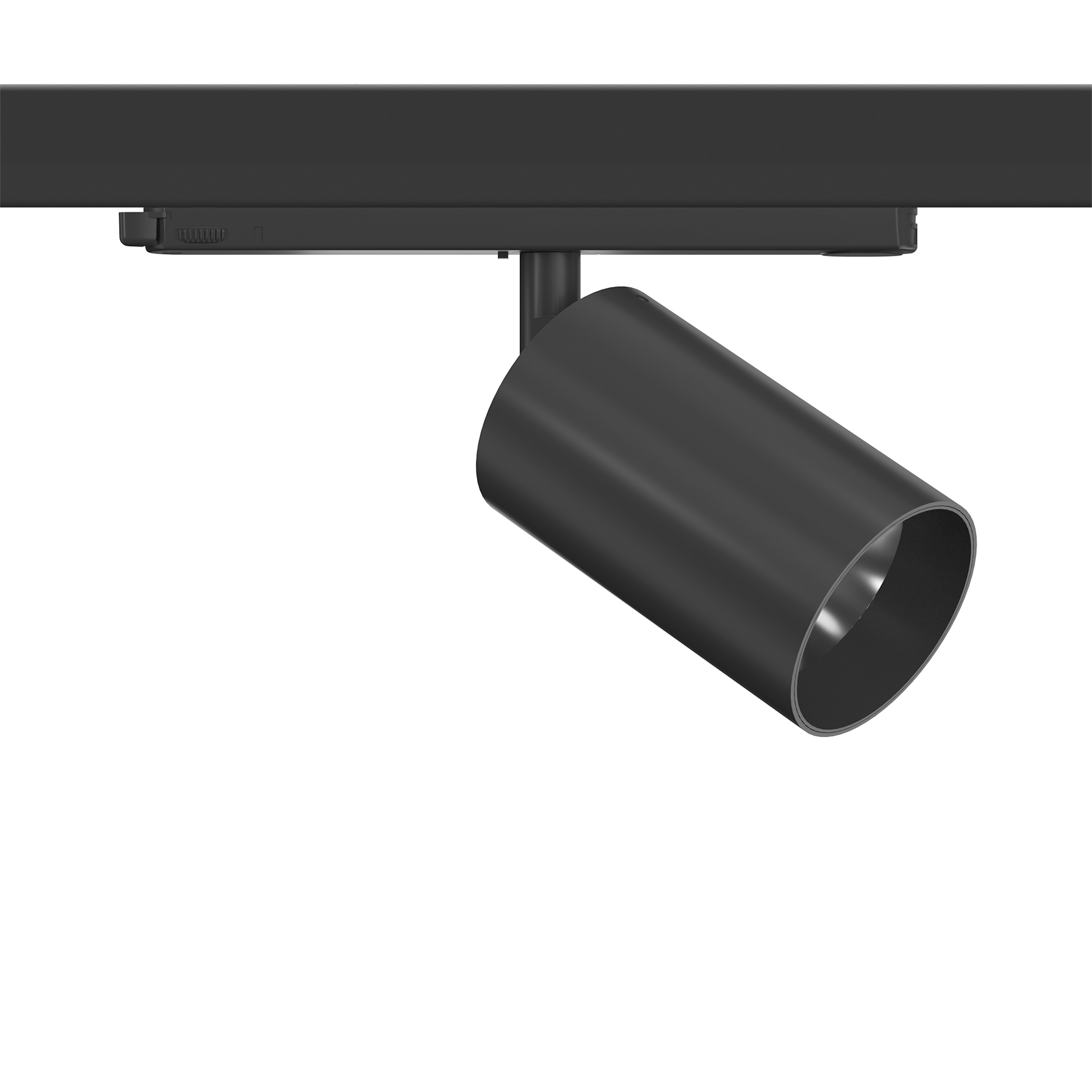

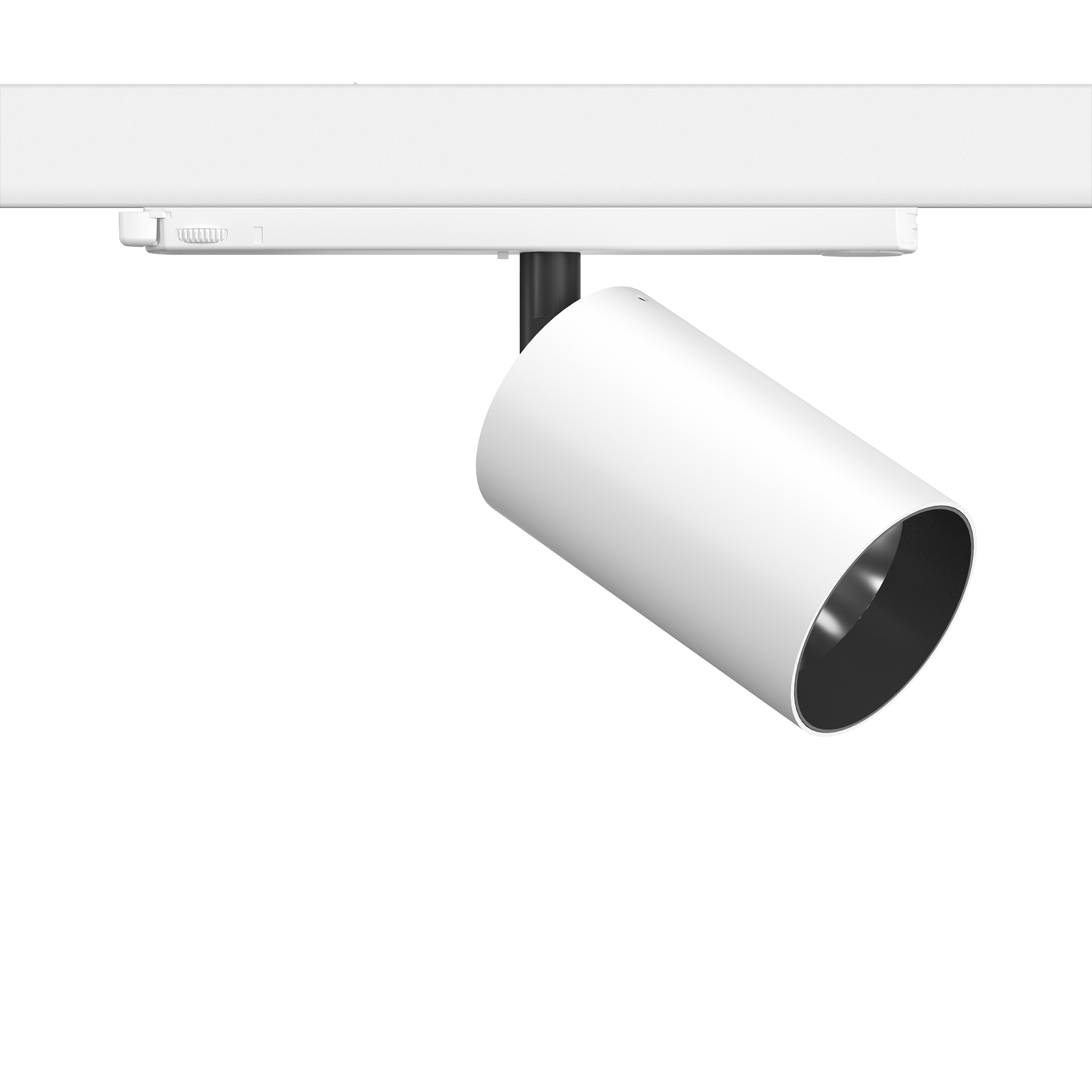

09.7758.30CDA	UT Spot Track Ø 86 GA Dali Version	27.8	1991	3000	90	37	Dimmable DALI 2	Track

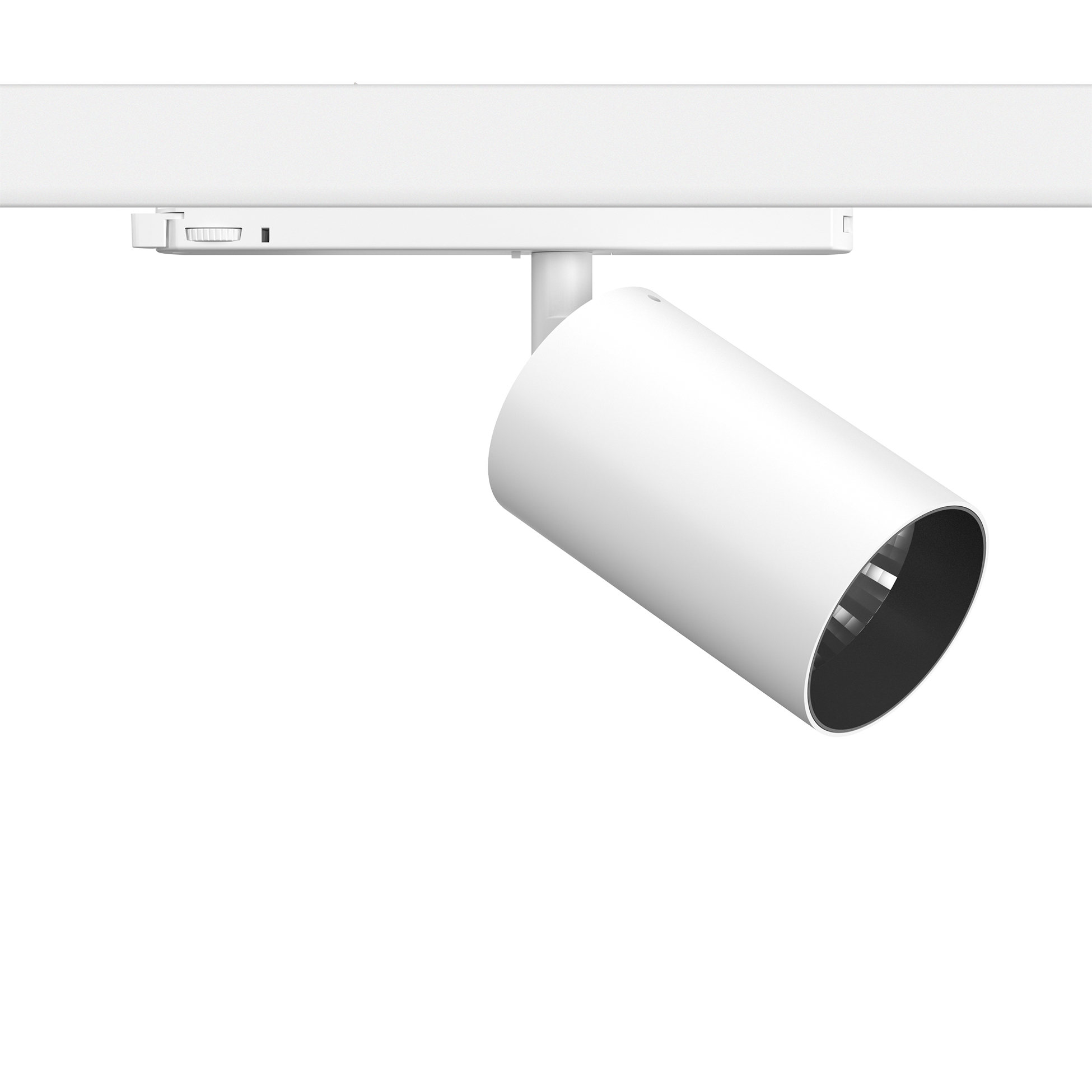

09.7758.30C78	UT Spot Track Ø 86 GA All White	27.8	1991	3000	90	37	Non Dimmable	Track

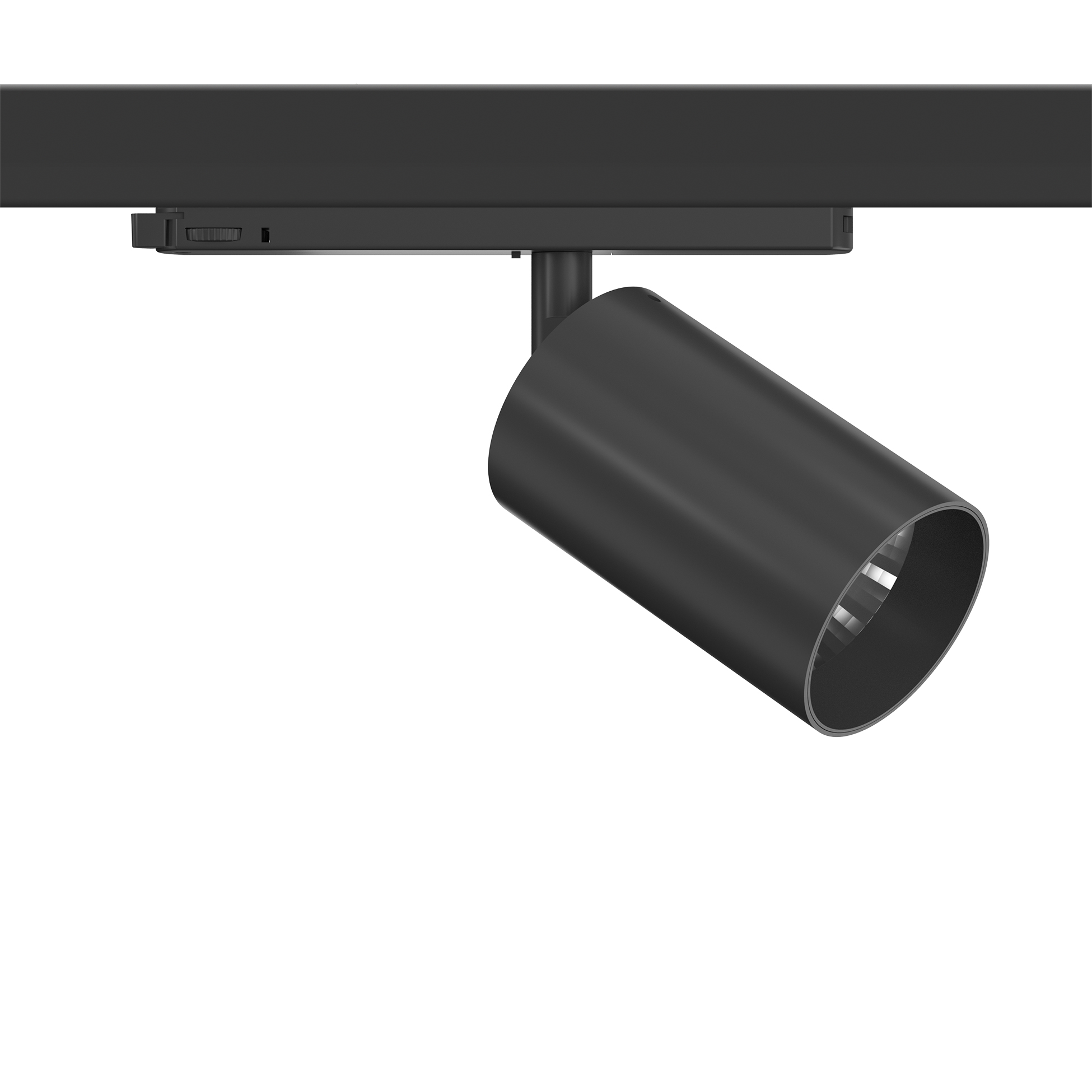

09.7758.30C	UT Spot Track Ø 86 GA	27.8	1991	3000	90	37	Non Dimmable	Track
09.7758.14CDA	UT Spot Track Ø 86 GA Dali Version	27.8	1991	3000	90	37	Dimmable DALI 2	Track
09.7758.14C	UT Spot Track Ø 86 GA	27.8	1991	3000	90	37	Non Dimmable	Track
09.7757.30CYU	UT Spot Track Ø 86 GA Dali Version All White	27.8	2089	3000	90	24	Dimmable DALI 2	Track
09.7757.30CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2089	3000	90	24	Dimmable DALI 2	Track
09.7757.30C78	UT Spot Track Ø 86 GA All White	27.8	2089	3000	90	24	Non Dimmable	Track
09.7757.30C	UT Spot Track Ø 86 GA	27.8	2089	3000	90	24	Non Dimmable	Track
09.7757.14CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2089	3000	90	24	Dimmable DALI 2	Track
09.7757.14C	UT Spot Track Ø 86 GA	27.8	2089	3000	90	24	Non Dimmable	Track
09.7756.30CYU	UT Spot Track Ø 86 GA Dali Version All White	27.8	2190	3000	90	12	Dimmable DALI 2	Track
09.7756.30CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2190	3000	90	12	Dimmable DALI 2	Track
09.7756.30C78	UT Spot Track Ø 86 GA All White	27.8	2190	3000	90	12	Non Dimmable	Track
09.7756.30C	UT Spot Track Ø 86 GA	27.8	2190	3000	90	12	Non Dimmable	Track
09.7756.14CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2190	3000	90	12	Dimmable DALI 2	Track
09.7756.14C	UT Spot Track Ø 86 GA	27.8	2190	3000	90	12	Non Dimmable	Track
09.7755.30CYU	UT Spot Track Ø 86 GA Dali Version All White	27.8	2074	4000	90	37	Dimmable DALI 2	Track
09.7755.30CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2074	4000	90	37	Dimmable DALI 2	Track
09.7755.30C78	UT Spot Track Ø 86 GA All White	27.8	2074	4000	90	37	Non Dimmable	Track
09.7755.30C	UT Spot Track Ø 86 GA	27.8	2074	4000	90	37	Non Dimmable	Track
09.7755.14CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2074	4000	90	37	Dimmable DALI 2	Track
09.7755.14C	UT Spot Track Ø 86 GA	27.8	2074	4000	90	37	Non Dimmable	Track
09.7754.30BYU	UT Spot Track Ø 86 GA Dali Version All White	33	2408	3000	80	37	Dimmable DALI 2	Track
09.7754.30BDA	UT Spot Track Ø 86 GA Dali Version	33	2408	3000	80	37	Dimmable DALI 2	Track
09.7754.30B78	UT Spot Track Ø 86 GA All White	33	2408	3000	80	37	Non Dimmable	Track
09.7754.30B	UT Spot Track Ø 86 GA	33	2408	3000	80	37	Non Dimmable	Track
09.7754.14BDA	UT Spot Track Ø 86 GA Dali Version	32.4	2408	3000	80	37	Dimmable DALI 2	Track
09.7754.14B	UT Spot Track Ø 86 GA	33	2408	3000	80	37	Non Dimmable	Track
09.7753.30CYU	UT Spot Track Ø 86 GA Dali Version All White	27.8	2176	4000	90	24	Dimmable DALI 2	Track
09.7753.30CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2176	4000	90	24	Dimmable DALI 2	Track
09.7753.30C78	UT Spot Track Ø 86 GA All White	27.8	2176	4000	90	24	Non Dimmable	Track
09.7753.30C	UT Spot Track Ø 86 GA	27.8	2176	4000	90	24	Non Dimmable	Track
09.7753.14CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2176	4000	90	24	Dimmable DALI 2	Track
09.7753.14C	UT Spot Track Ø 86 GA	27.8	2176	4000	90	24	Non Dimmable	Track
09.7752.30BYU	UT Spot Track Ø 86 GA Dali Version All White	33	2528	3000	80	24	Dimmable DALI 2	Track
09.7752.30BDA	UT Spot Track Ø 86 GA Dali Version	33	2528	3000	80	24	Dimmable DALI 2	Track
09.7752.30B78	UT Spot Track Ø 86 GA All White	33	2528	3000	80	24	Non Dimmable	Track
09.7752.30B	UT Spot Track Ø 86 GA	33	2528	3000	80	24	Non Dimmable	Track
09.7752.14BDA	UT Spot Track Ø 86 GA Dali Version	32.4	2528	3000	80	24	Dimmable DALI 2	Track
09.7752.14B	UT Spot Track Ø 86 GA	33	2528	3000	80	24	Non Dimmable	Track
09.7751.30CYU	UT Spot Track Ø 86 GA Dali Version All White	27.8	2281	4000	90	12	Dimmable DALI 2	Track
09.7751.30CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2281	4000	90	12	Dimmable DALI 2	Track
09.7751.30C78	UT Spot Track Ø 86 GA All White	27.8	2281	4000	90	12	Non Dimmable	Track
09.7751.30C	UT Spot Track Ø 86 GA	27.8	2281	4000	90	12	Non Dimmable	Track
09.7751.14CDA	UT Spot Track Ø 86 GA Dali Version	27.8	2281	4000	90	12	Dimmable DALI 2	Track
09.7751.14C	UT Spot Track Ø 86 GA	27.8	2281	4000	90	12	Non Dimmable	Track
09.7750.30BYU	UT Spot Track Ø 86 GA Dali Version All White	33	2650	3000	80	12	Dimmable DALI 2	Track
09.7750.30BDA	UT Spot Track Ø 86 GA Dali Version	33	2650	3000	80	12	Dimmable DALI 2	Track
09.7750.30B78	UT Spot Track Ø 86 GA All White	33	2650	3000	80	12	Non Dimmable	Track
09.7750.30B	UT Spot Track Ø 86 GA	33	2650	3000	80	12	Non Dimmable	Track
09.7750.14BDA	UT Spot Track Ø 86 GA Dali Version	32.4	2650	3000	80	12	Dimmable DALI 2	Track
09.7750.14B	UT Spot Track Ø 86 GA	33	2650	3000	80	12	Non Dimmable	Track

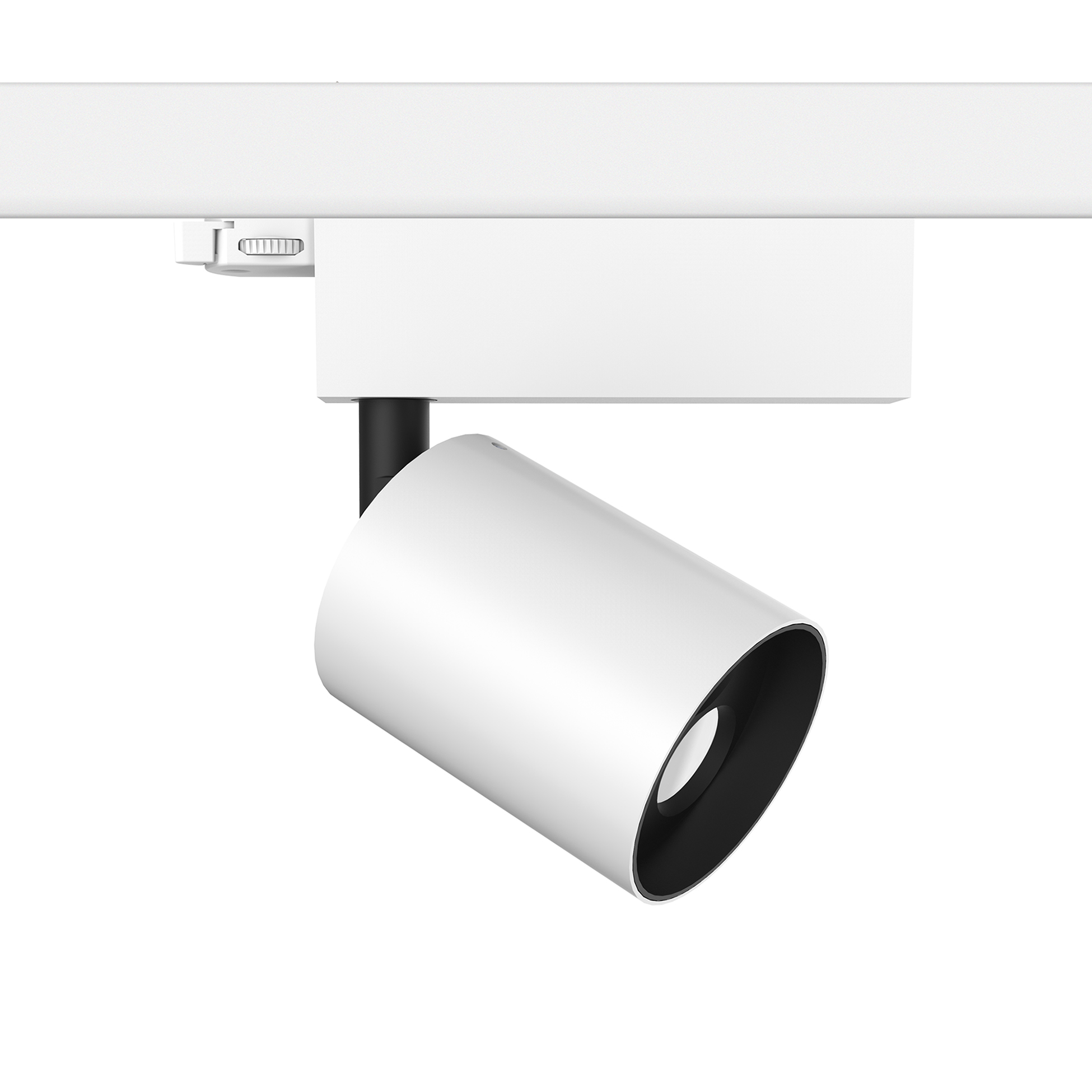

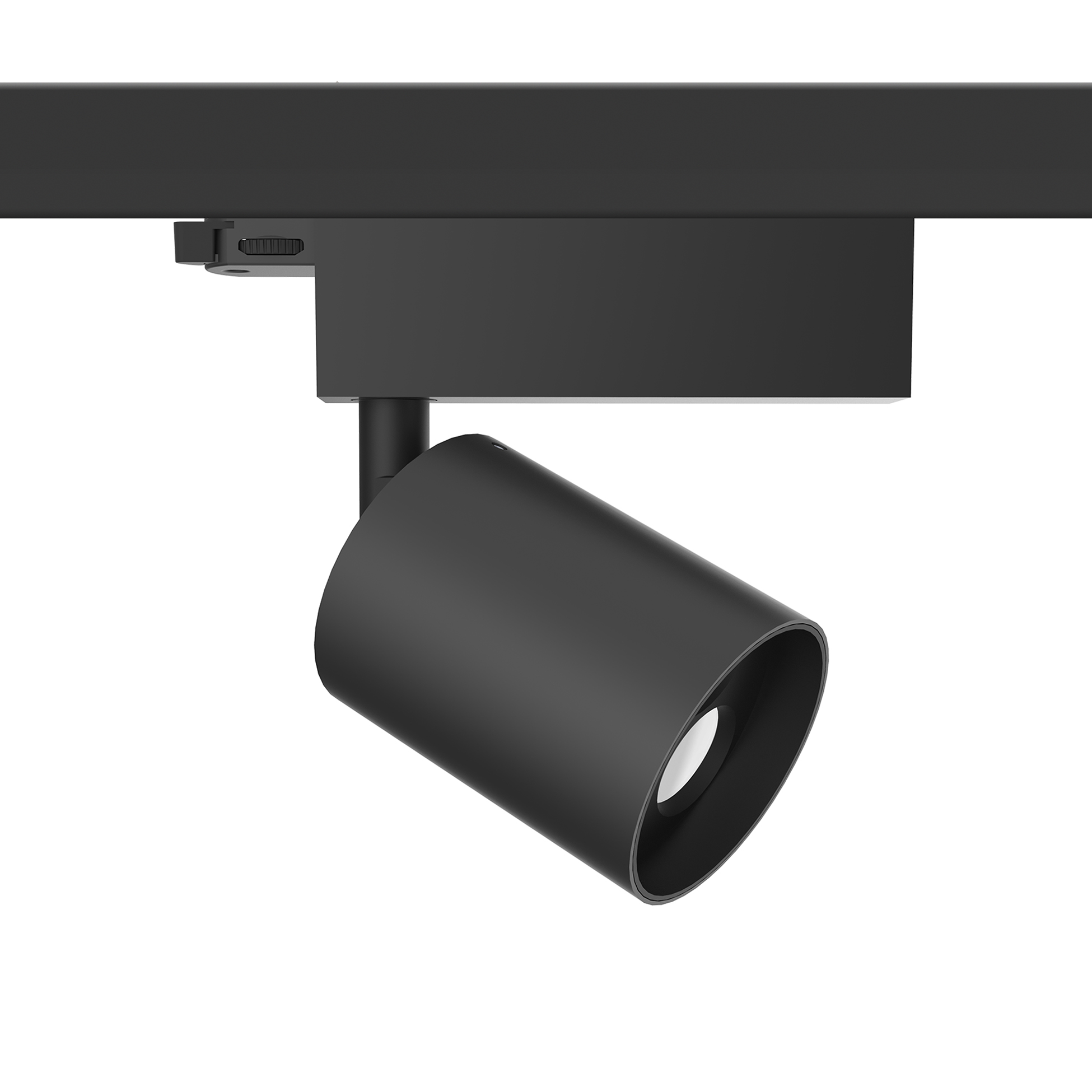

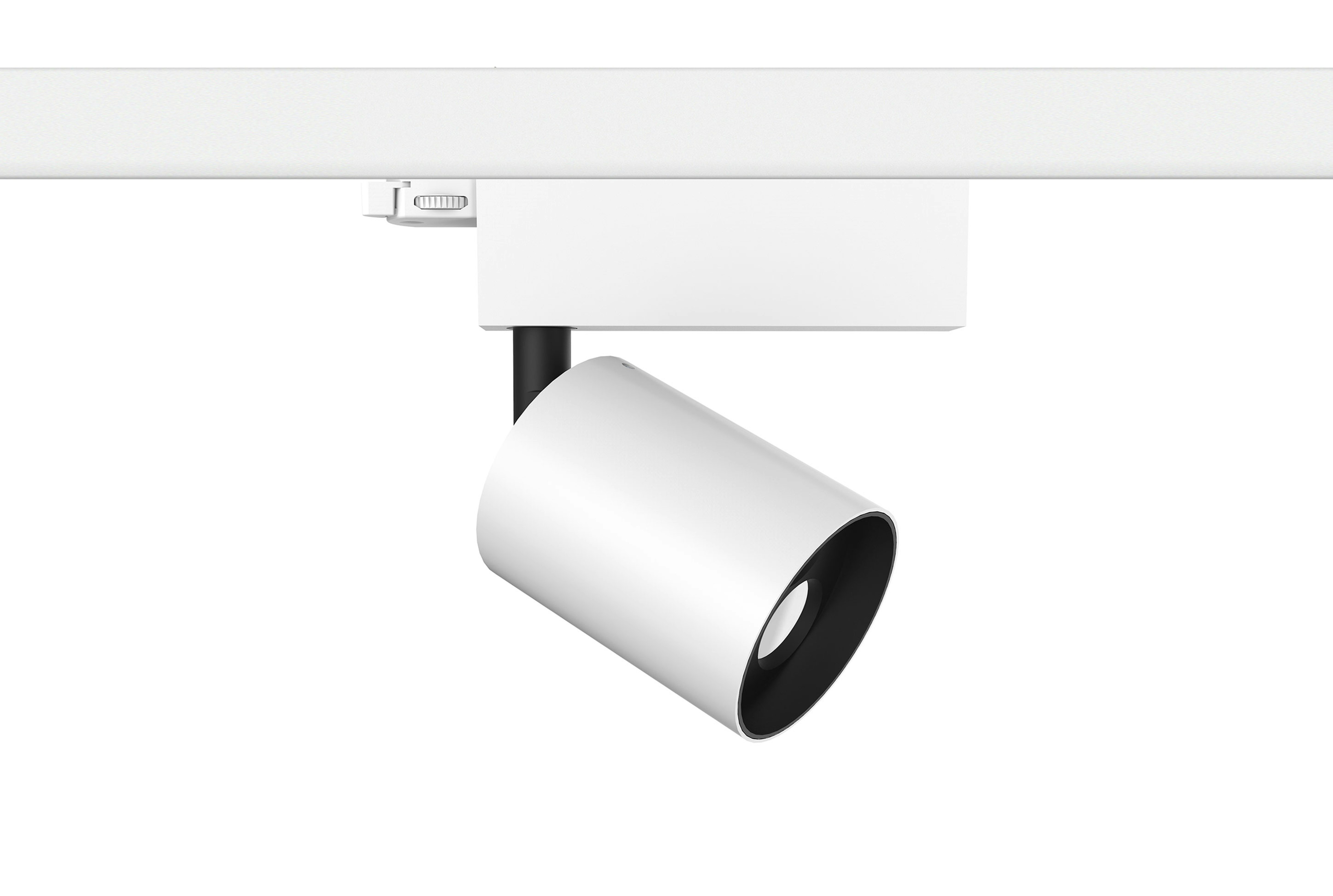

09.4985.30	UT Spot Track Multichip Ø 86	11.5	807	4000	80	8	Non Dimmable	Track
09.4985.14	UT Spot Track Multichip Ø 86	11.5	807	4000	80	8	Non Dimmable	Track
09.4984.30	UT Spot Track Multichip Ø 86	11.5	687	3000	90	8	Non Dimmable	Track
09.4984.14	UT Spot Track Multichip Ø 86	11.5	687	3000	90	8	Non Dimmable	Track
09.4983.30	UT Spot Track Multichip Ø 86	11.5	776	3000	80	8	Non Dimmable	Track
09.4983.14	UT Spot Track Multichip Ø 86	11.5	776	3000	80	8	Non Dimmable	Track
09.4982.30ADA	UT Spot Track Multichip Ø 86 Dali Version	11.5	807	4000	80	8	Dimmable DALI 1	Track
09.4982.30	UT Spot Track Multichip Ø 86 On Board Dimmer Included	11.5	807	4000	80	8	Dimmer on board	Track
09.4982.14ADA	UT Spot Track Multichip Ø 86 Dali Version	11.5	807	4000	80	8	Dimmable DALI 1	Track
09.4982.14	UT Spot Track Multichip Ø 86 On Board Dimmer Included	11.5	807	4000	80	8	Dimmer on board	Track
09.4981.30ADA	UT Spot Track Multichip Ø 86 Dali Version	11.5	687	3000	90	8	Dimmable DALI 1	Track
09.4981.30	UT Spot Track Multichip Ø 86 On Board Dimmer Included	11.5	687	3000	90	8	Dimmer on board	Track
09.4981.14ADA	UT Spot Track Multichip Ø 86 Dali Version	11.5	687	3000	90	8	Dimmable DALI 1	Track
09.4981.14	UT Spot Track Multichip Ø 86 On Board Dimmer Included	11.5	687	3000	90	8	Dimmer on board	Track
09.4980.30ADA	UT Spot Track Multichip Ø 86 Dali Version	11.5	776	3000	80	8	Dimmable DALI 1	Track
09.4980.30	UT Spot Track Multichip Ø 86 On Board Dimmer Included	11.5	776	3000	80	8	Dimmer on board	Track
09.4980.14ADA	UT Spot Track Multichip Ø 86 Dali Version	11.5	776	3000	80	8	Dimmable DALI 1	Track
09.4980.14	UT Spot Track Multichip Ø 86 On Board Dimmer Included	11.5	776	3000	80	8	Dimmer on board	Track

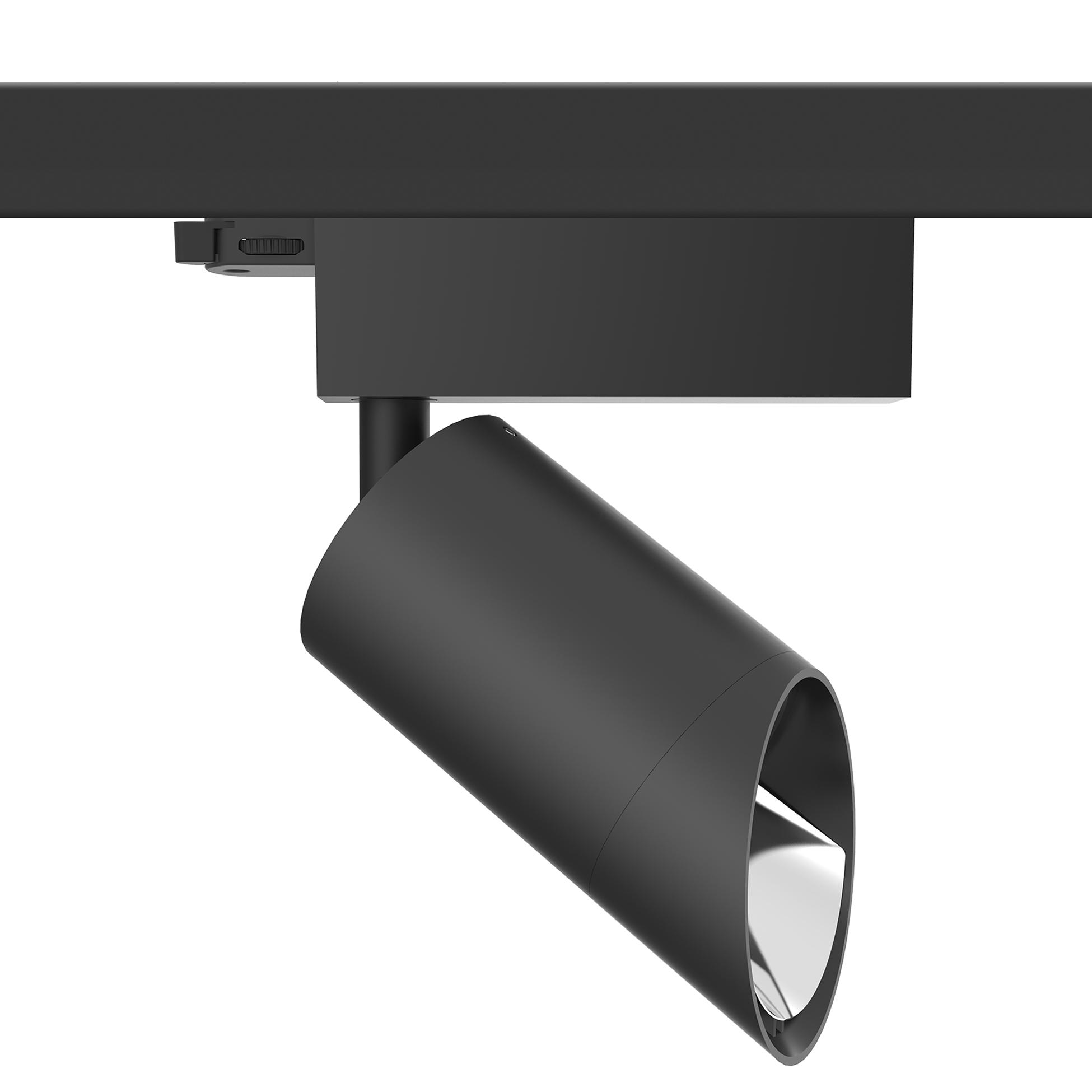

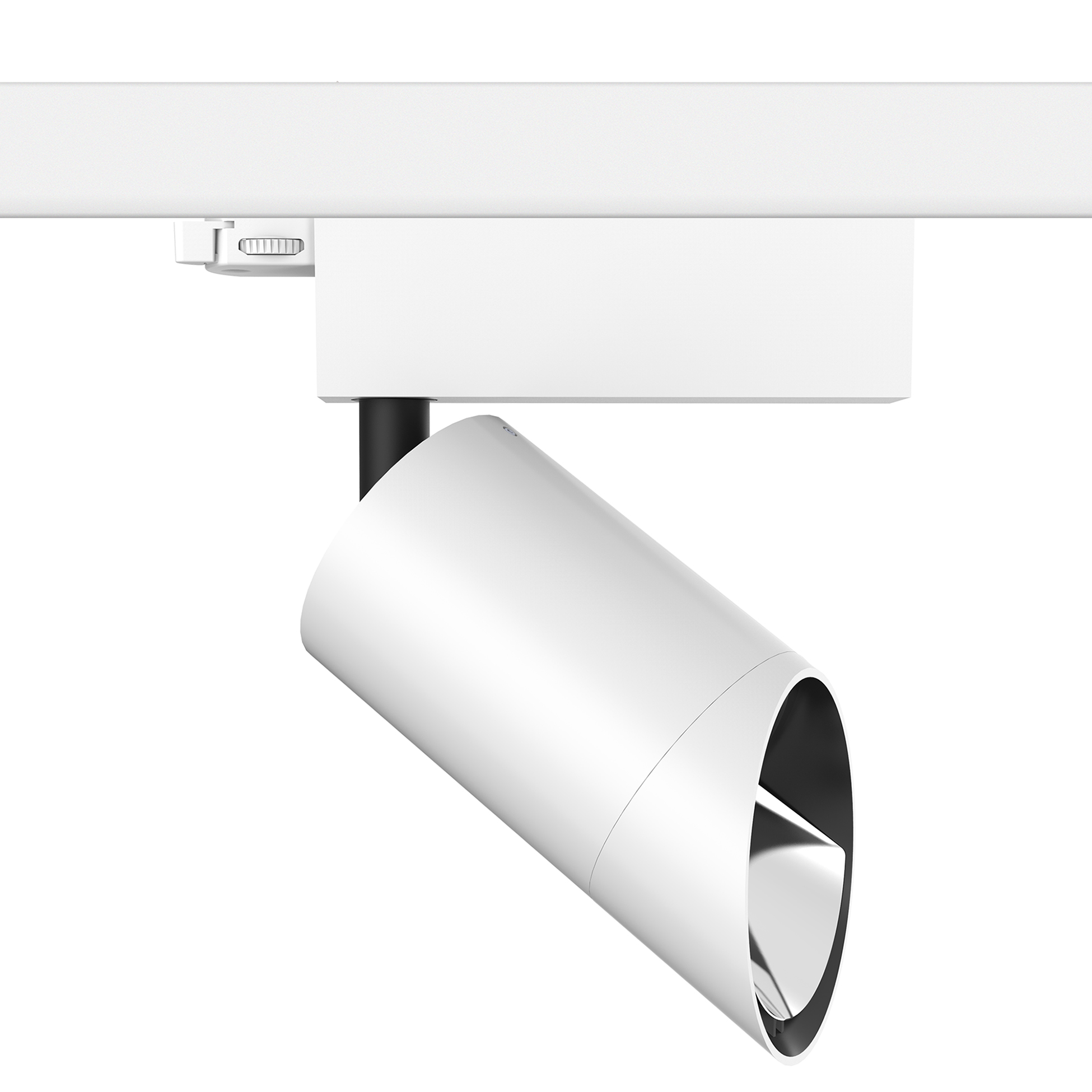

09.4957.30C	UT Spot Track Wall-Washer Ø 86	27.8	2204	4000	90	50	Non Dimmable	Track
09.4957.14C	UT Spot Track Wall-Washer Ø 86	27.8	2204	4000	90	50	Non Dimmable	Track
09.4956.30CDA	UT Spot Track Wall-Washer Ø 86 Dali Version	27.8	2204	4000	90	50	Dimmable DALI 1	Track
09.4956.30C	UT Spot Track Wall-Washer Ø 86 On Board Dimmer Included	27.8	2204	4000	90	50	Dimmer on board	Track
09.4956.14CDA	UT Spot Track Wall-Washer Ø 86 Dali Version	27.8	2204	4000	90	50	Dimmable DALI 1	Track
09.4956.14C	UT Spot Track Wall-Washer Ø 86 On Board Dimmer Included	27.8	2204	4000	90	50	Dimmer on board	Track
09.4954.30C	UT Spot Track Wall-Washer Ø 86	27.8	2116	3000	90	50	Non Dimmable	Track
09.4954.14C	UT Spot Track Wall-Washer Ø 86	27.8	2116	3000	90	50	Non Dimmable	Track
09.4953.30CDA	UT Spot Track Wall-Washer Ø 86 Dali Version	27.8	2116	3000	90	50	Dimmable DALI 1	Track
09.4953.30C	UT Spot Track Wall-Washer Ø 86 On Board Dimmer Included	27.8	2116	3000	90	50	Dimmer on board	Track
09.4953.14CDA	UT Spot Track Wall-Washer Ø 86 Dali Version	27.8	2116	3000	90	50	Dimmable DALI 1	Track
09.4953.14C	UT Spot Track Wall-Washer Ø 86 On Board Dimmer Included	27.8	2116	3000	90	50	Dimmer on board	Track
09.4951.30A	UT Spot Track Wall-Washer Ø 86	32.8	2560	3000	80	50	Non Dimmable	Track
09.4951.14A	UT Spot Track Wall-Washer Ø 86	32.8	2560	3000	80	50	Non Dimmable	Track
09.4950.30BDA	UT Spot Track Wall-Washer Ø 86 Dali Version	32.8	2560	3000	80	50	Dimmable DALI 1	Track
09.4950.30A	UT Spot Track Wall-Washer Ø 86 On Board Dimmer Included	32.8	2560	3000	80	50	Dimmer on board	Track
09.4950.14BDA	UT Spot Track Wall-Washer Ø 86 Dali Version	32.8	2560	3000	80	50	Dimmable DALI 1	Track
09.4950.14A	UT Spot Track Wall-Washer Ø 86 On Board Dimmer Included	32.8	2560	3000	80	50	Dimmer on board	Track
09.4888.30C	UT Spot Track Ø 86	27.8	1991	3000	90	37	Non Dimmable	Track
09.4888.14C	UT Spot Track Ø 86	27.8	1991	3000	90	37	Non Dimmable	Track
09.4887.30C	UT Spot Track Ø 86	27.8	2089	3000	90	24	Non Dimmable	Track
09.4887.14C	UT Spot Track Ø 86	27.8	2089	3000	90	24	Non Dimmable	Track
09.4886.30C	UT Spot Track Ø 86	27.8	2190	3000	90	12	Non Dimmable	Track
09.4886.14C	UT Spot Track Ø 86	27.8	2190	3000	90	12	Non Dimmable	Track
09.4885.30C	UT Spot Track Ø 86	27.8	2074	4000	90	37	Non Dimmable	Track
09.4885.14C	UT Spot Track Ø 86	27.8	2074	4000	90	37	Non Dimmable	Track
09.4884.30A	UT Spot Track Ø 86	32.8	2408	3000	80	37	Non Dimmable	Track
09.4884.14A	UT Spot Track Ø 86	32.8	2408	3000	80	37	Non Dimmable	Track
09.4883.30C	UT Spot Track Ø 86	27.8	2176	4000	90	24	Non Dimmable	Track
09.4883.14C	UT Spot Track Ø 86	27.8	2176	4000	90	24	Non Dimmable	Track
09.4882.30A	UT Spot Track Ø 86	32.8	2528	3000	80	24	Non Dimmable	Track
09.4882.14A	UT Spot Track Ø 86	32.8	2528	3000	80	24	Non Dimmable	Track
09.4881.30C	UT Spot Track Ø 86	27.8	2281	4000	90	12	Non Dimmable	Track
09.4881.14C	UT Spot Track Ø 86	27.8	2281	4000	90	12	Non Dimmable	Track
09.4880.30A	UT Spot Track Ø 86	32.8	2650	3000	80	12	Non Dimmable	Track
09.4880.14A	UT Spot Track Ø 86	32.8	2650	3000	80	12	Non Dimmable	Track
09.4852.30CDA	UT Spot Track Ø 86 Dali Version	27.8	2074	4000	90	37	Dimmable DALI 1	Track
09.4852.30C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2074	4000	90	37	Dimmer on board	Track
09.4852.14CDA	UT Spot Track Ø 86 Dali Version	27.8	2074	4000	90	37	Dimmable DALI 1	Track
09.4852.14C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2074	4000	90	37	Dimmer on board	Track
09.4851.30CDA	UT Spot Track Ø 86 Dali Version	27.8	2176	4000	90	24	Dimmable DALI 1	Track
09.4851.30C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2176	4000	90	24	Dimmer on board	Track
09.4851.14CDA	UT Spot Track Ø 86 Dali Version	27.8	2176	4000	90	24	Dimmable DALI 1	Track
09.4851.14C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2176	4000	90	24	Dimmer on board	Track
09.4850.30CDA	UT Spot Track Ø 86 Dali Version	27.8	2281	4000	90	12	Dimmable DALI 1	Track
09.4850.30C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2281	4000	90	12	Dimmer on board	Track
09.4850.14CDA	UT Spot Track Ø 86 Dali Version	27.8	2281	4000	90	12	Dimmable DALI 1	Track
09.4850.14C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2281	4000	90	12	Dimmer on board	Track
09.4845.30CDA	UT Spot Track Ø 86 Dali Version	27.8	1991	3000	90	37	Dimmable DALI 1	Track
09.4845.30C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	1991	3000	90	37	Dimmer on board	Track
09.4845.14CDA	UT Spot Track Ø 86 Dali Version	27.8	1991	3000	90	37	Dimmable DALI 1	Track
09.4845.14C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	1991	3000	90	37	Dimmer on board	Track
09.4844.30CDA	UT Spot Track Ø 86 Dali Version	27.8	2089	3000	90	24	Dimmable DALI 1	Track
09.4844.30C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2089	3000	90	24	Dimmer on board	Track
09.4844.14CDA	UT Spot Track Ø 86 Dali Version	27.8	2089	3000	90	24	Dimmable DALI 1	Track
09.4844.14C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2089	3000	90	24	Dimmer on board	Track
09.4843.30CDA	UT Spot Track Ø 86 Dali Version	27.8	2190	3000	90	12	Dimmable DALI 1	Track
09.4843.30C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2190	3000	90	12	Dimmer on board	Track
09.4843.14CDA	UT Spot Track Ø 86 Dali Version	27.8	2190	3000	90	12	Dimmable DALI 1	Track
09.4843.14C	UT Spot Track Ø 86 On Board Dimmer Included	27.8	2190	3000	90	12	Dimmer on board	Track
09.4842.30BDA	UT Spot Track Ø 86 Dali Version	32.8	2408	3000	80	37	Dimmable DALI 1	Track
09.4842.30A	UT Spot Track Ø 86 On Board Dimmer Included	32.8	2408	3000	80	37	Dimmer on board	Track
09.4842.14BDA	UT Spot Track Ø 86 Dali Version	32.8	2408	3000	80	37	Dimmable DALI 1	Track
09.4842.14A	UT Spot Track Ø 86 On Board Dimmer Included	32.8	2408	3000	80	37	Dimmer on board	Track
09.4841.30BDA	UT Spot Track Ø 86 Dali Version	32.8	2528	3000	80	24	Dimmable DALI 1	Track
09.4841.30A	UT Spot Track Ø 86 On Board Dimmer Included	32.8	2528	3000	80	24	Dimmer on board	Track
09.4841.14BDA	UT Spot Track Ø 86 Dali Version	32.8	2528	3000	80	24	Dimmable DALI 1	Track
09.4841.14A	UT Spot Track Ø 86 On Board Dimmer Included	32.8	2528	3000	80	24	Dimmer on board	Track
09.4840.30BDA	UT Spot Track Ø 86 Dali Version	32.8	2650	3000	80	12	Dimmable DALI 1	Track
09.4840.30A	UT Spot Track Ø 86 On Board Dimmer Included	32.8	2650	3000	80	12	Dimmer on board	Track
09.4840.14BDA	UT Spot Track Ø 86 Dali Version	32.8	2650	3000	80	12	Dimmable DALI 1	Track
09.4840.14A	UT Spot Track Ø 86 On Board Dimmer Included	32.8	2650	3000	80	12	Dimmer on board	Track
