2097
A1501031

2097/50 (frosted bulbs)

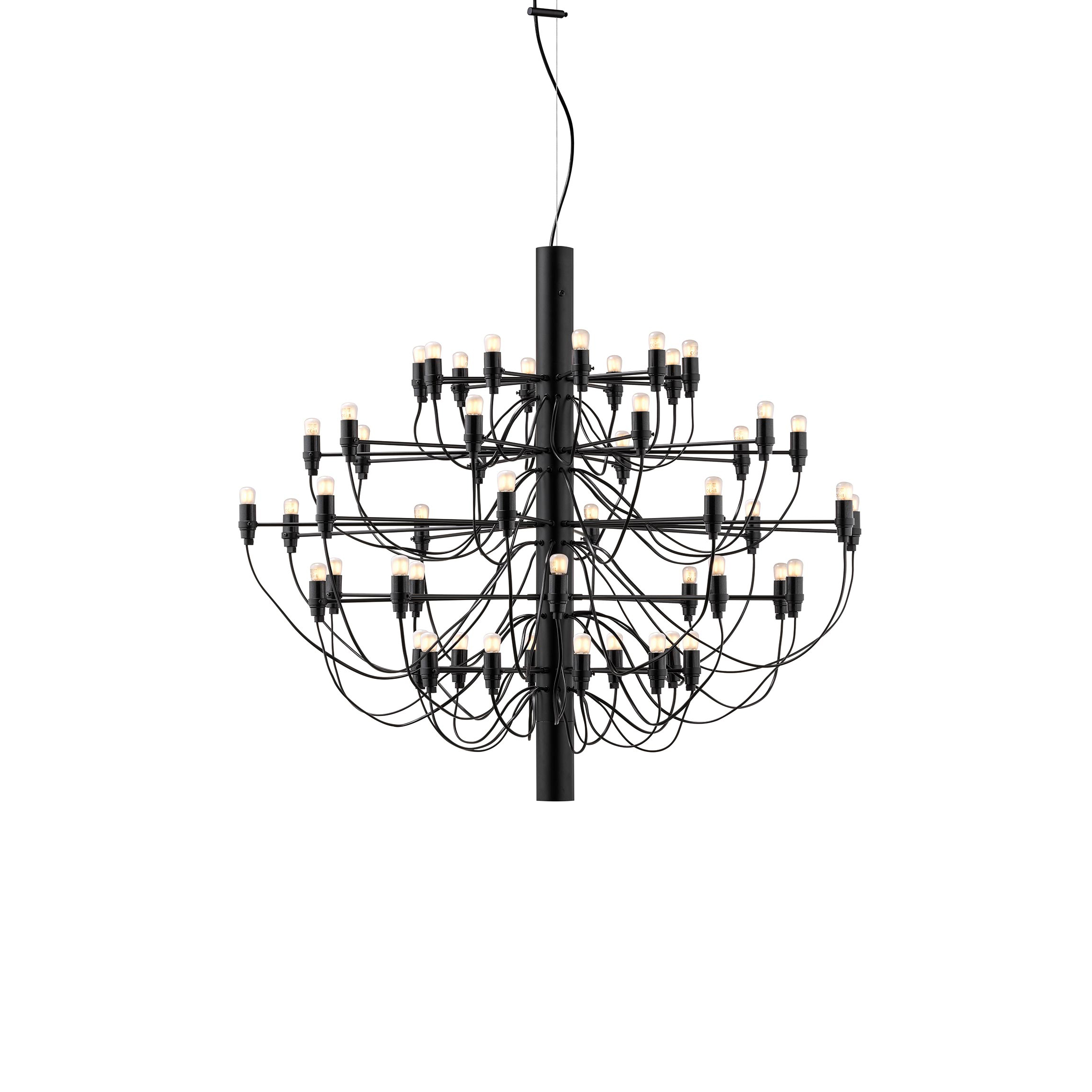

Suspension lamp emitting diffused light. Central steel structure with brass arms, available chrome-plated, matt black, matt white or brass, each holding an exposed bulb. Exposed wiring. Steel ceiling fitting and rose.

LED retrofit - 50 x 3W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-2097-50
Main specifications
EAN
8059607000458
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp holders
Ilcos
IBS/F
Number of lamps
50
Power (W)
3
Schematic light drawing
A15000XXW2097-50_50X15W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1000
Cord colour
productFields.physical.cordLength
2800
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
9.4
Package volume (m3)
0.04
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Bulbs

Thumbnail
x50
NOT INCLUDEDLED Frosted Lamp 2,7W E14 150lm 2700K Dimmable T26 DimmableRF25316
Thumbnail
x50
NOT INCLUDEDLED Clear Lamp 2W E14 220-240 2200K T26 DimmableRF28422
Thumbnail
x1
INCLUDEDLED Frosted Mini Lamp E14 2,7W 2700K Dimmable (Set 20pcs)RF28889
Thumbnail
x1
NOT INCLUDEDLED Clear Mini Lamp E14 2W 2200K Dimmable (Set 20pcs)RF28890
Thumbnail
x1
INCLUDEDLED Frosted Mini Lamp E14 2,7W 2700K Dimmable (set 32pcs)RF28987
Thumbnail
x1
NOT INCLUDEDLED Clear Mini Lamp E14 2W 2200K Dimmable (Set 32pcs)RF28988

Spare Parts

A1501031-2097-50-flos-boom
01. 2097-18-30-50 black ceiling rose
RF1500331
02. Opal black short arm (200mm)
RF26022
03. 2097/50 Opal black medium arm (375mm)
RF26024
04. 2097/50 Opal black long arm (475mm)
RF26025
05. 2097 E14 lamp holder
RL7050100
06. 2097 Opal black screw kit
RF1400100
07. 2097/50 Opal black lower cap
RF1400300
x1
2097-18-30-50 black ceiling roseRF1500331
Thumbnail
x1
Opal black short arm (200mm)RF26022
Thumbnail
x1
2097/50 Opal black medium arm (375mm)RF26024
Thumbnail
x1
2097/50 Opal black long arm (475mm)RF26025
x1
2097 E14 lamp holderRL7050100
Thumbnail
x1
2097 Opal black screw kitRF1400100
Thumbnail
x1
2097/50 Opal black lower capRF1400300
