2097
A1501059

2097/50 (frosted bulbs)

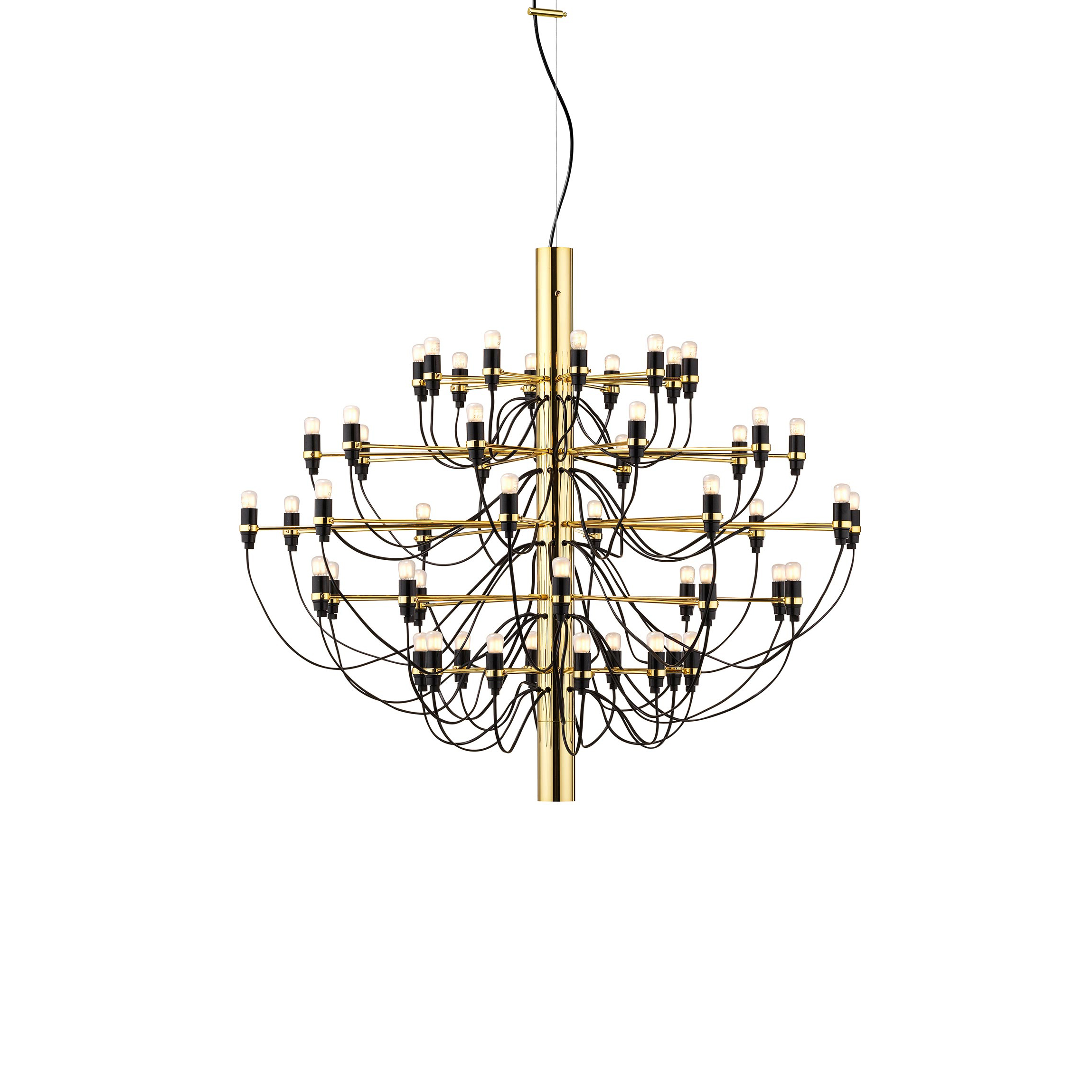

Suspension lamp emitting diffused light. Central steel structure with brass arms, available chrome-plated, matt black, matt white or brass, each holding an exposed bulb. Exposed wiring. Steel ceiling fitting and rose.

LED retrofit - 50 x 3W

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-2097-50
Main specifications
EAN
8059607000472
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp holders
Ilcos
IBS/F
Number of lamps
50
Power (W)
3
Schematic light drawing
A15000XXW2097-50_50X15W-HL
Photometric
Lighting type
Light distribution
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
1000
Cord colour
productFields.physical.cordLength
2800
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
9.4
Package volume (m3)
0.04
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Spare Parts

A1501059-2097-50-flos-boom
01. 2097-18-30-50 black ceiling rose
RF1500331
02. Brass short arm (200mm)
RL7060459
03. 2097/50 Brass medium arm (375mm)
RL7060558
04. 2097/50 Brass long arm (475mm)
RL7060659
05. 2097 E14 lamp holder
RL7050100
06. 2097 Brass screw kit
RL7050759
07. 2097/50 Brass lower cap
RL7060158
