CoordinatesCoordinates Floor
Designed by Michael Anastassiades, 2020

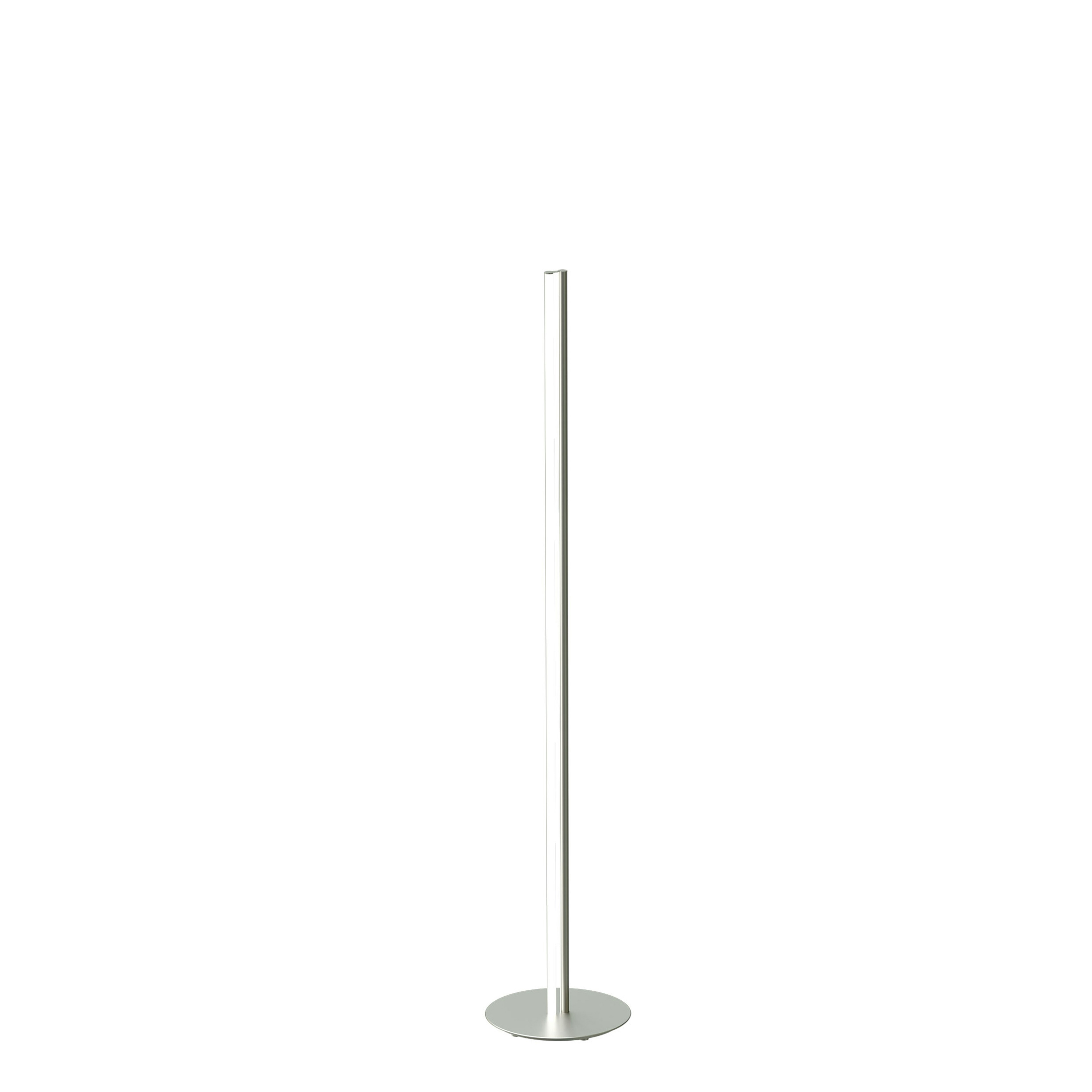

Coordinates Floor is a floor lamp with diffuse light composed of two vertical poles that can be oriented during installation, attached to a base with an anodized aluminium cover. Each element is made of extruded anodized aluminium with a champagne or argent finish and a diffuser in platinum optical silicone with an integrated LED strip (CRI 95). Usable power cable length 260 cm with pedal dimmer switch for ON/OFF and adjustable brightness 10–100%. Power supply attached to interchangeable plug.
53W - 3049lm - 2700K - CRI> 95
Also available in:
Technical Drawing
Main specifications
EAN
8059607039830
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
53
Lumen Output (lm)
3049
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
380
Cord colour
Net weight (kg)
5.2
Package volume (m3)
0.03
IP internal
Spare Parts

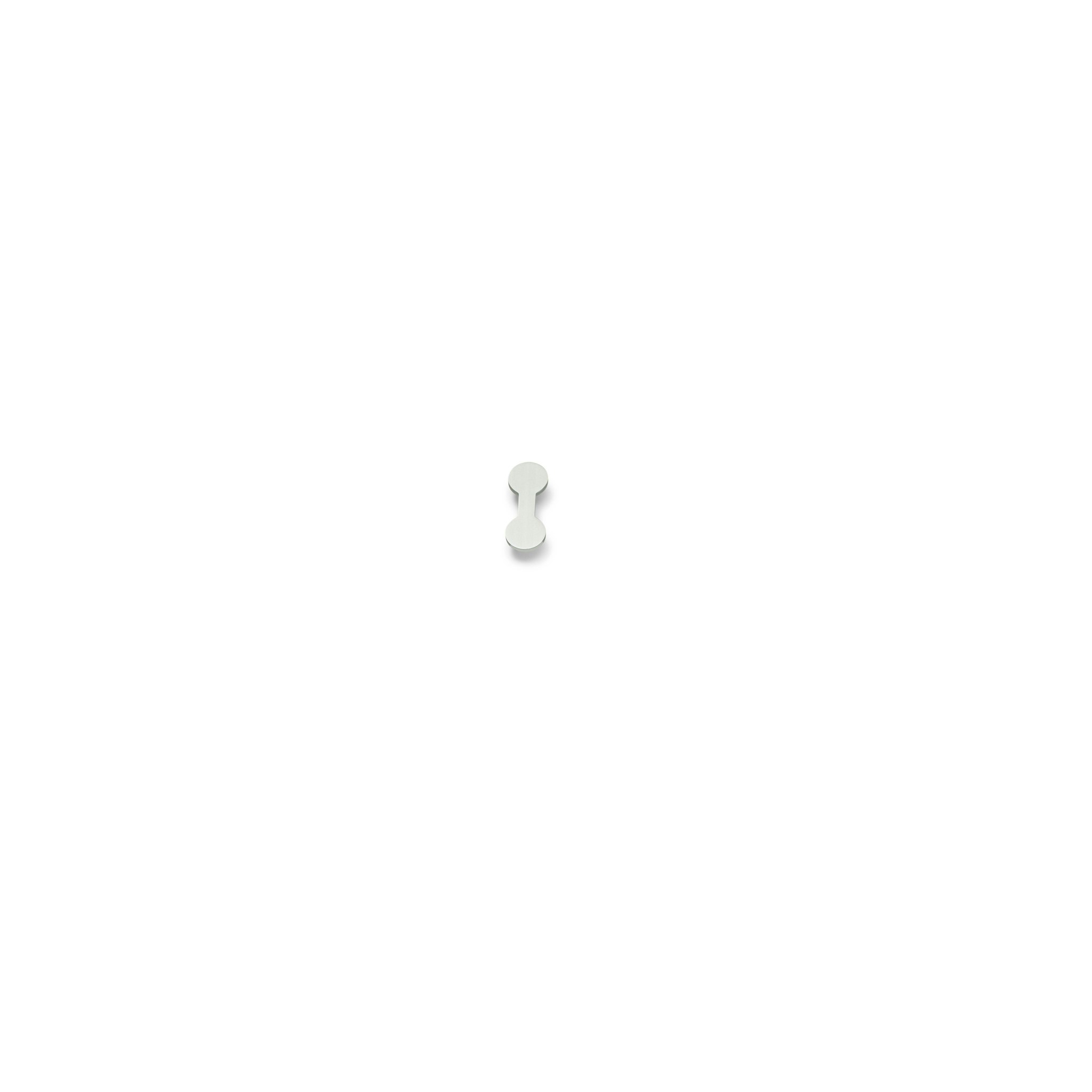

01. Coordinates Floor Assembly Body Fixing for Coordinates F Argent
RF31068

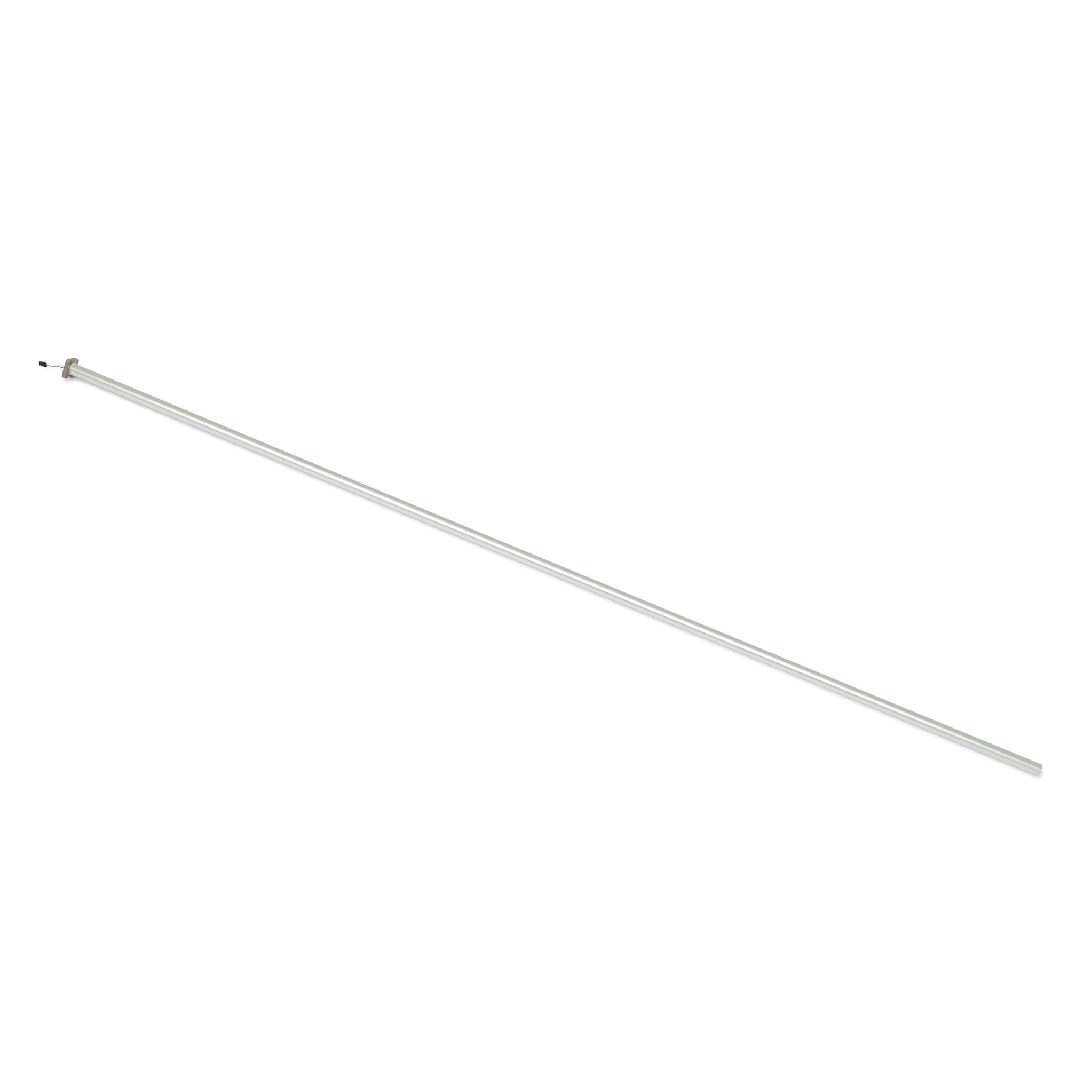

02. Coordinates Floor argent body assembly
RF1800033

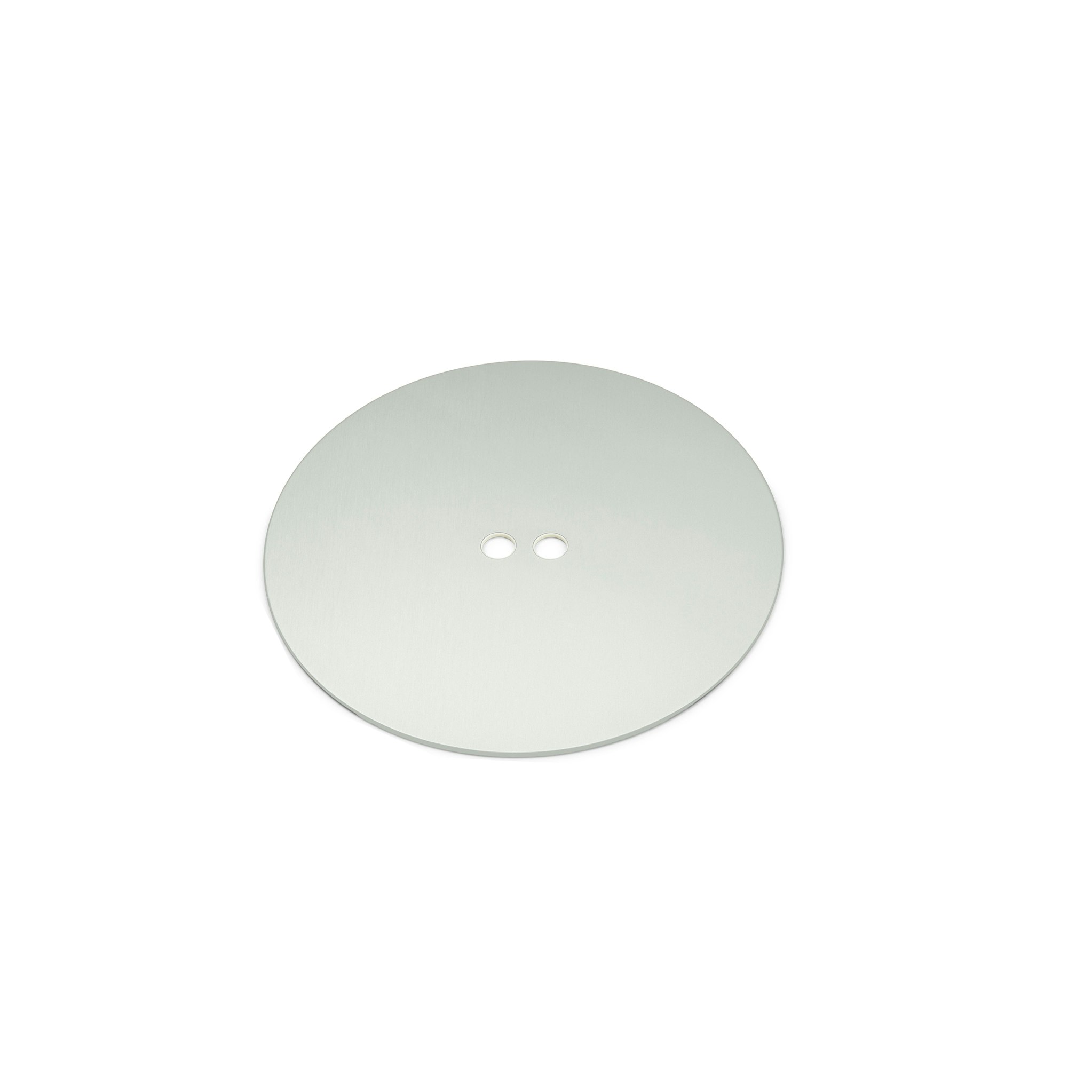

03. Coordinates Floor Base Upper Cover
RF31826

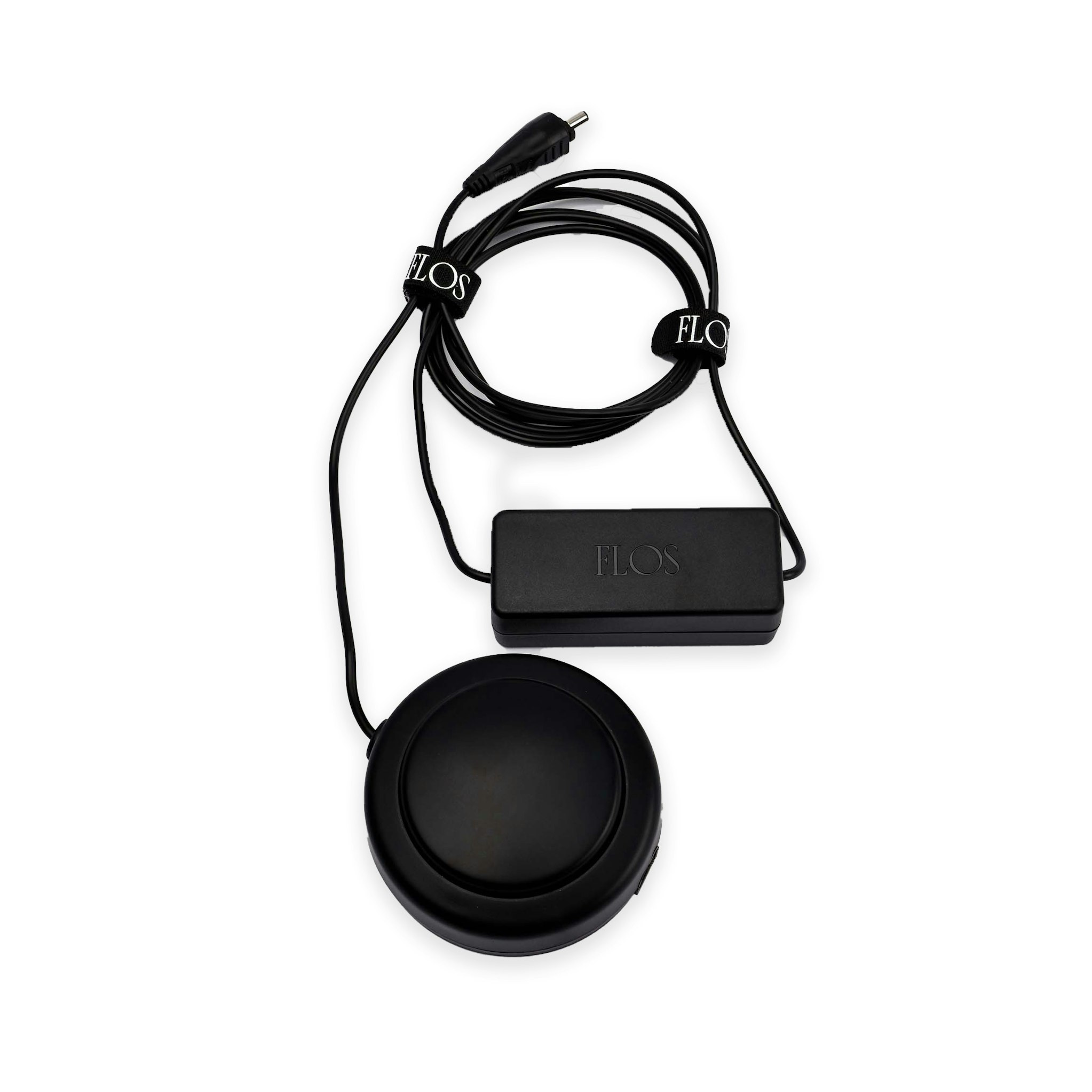

04. Coordinates F switch dimmer assembly (with EMC filter)
RF37531
05. Black plug assembly kit & 48V driver
RF6600130

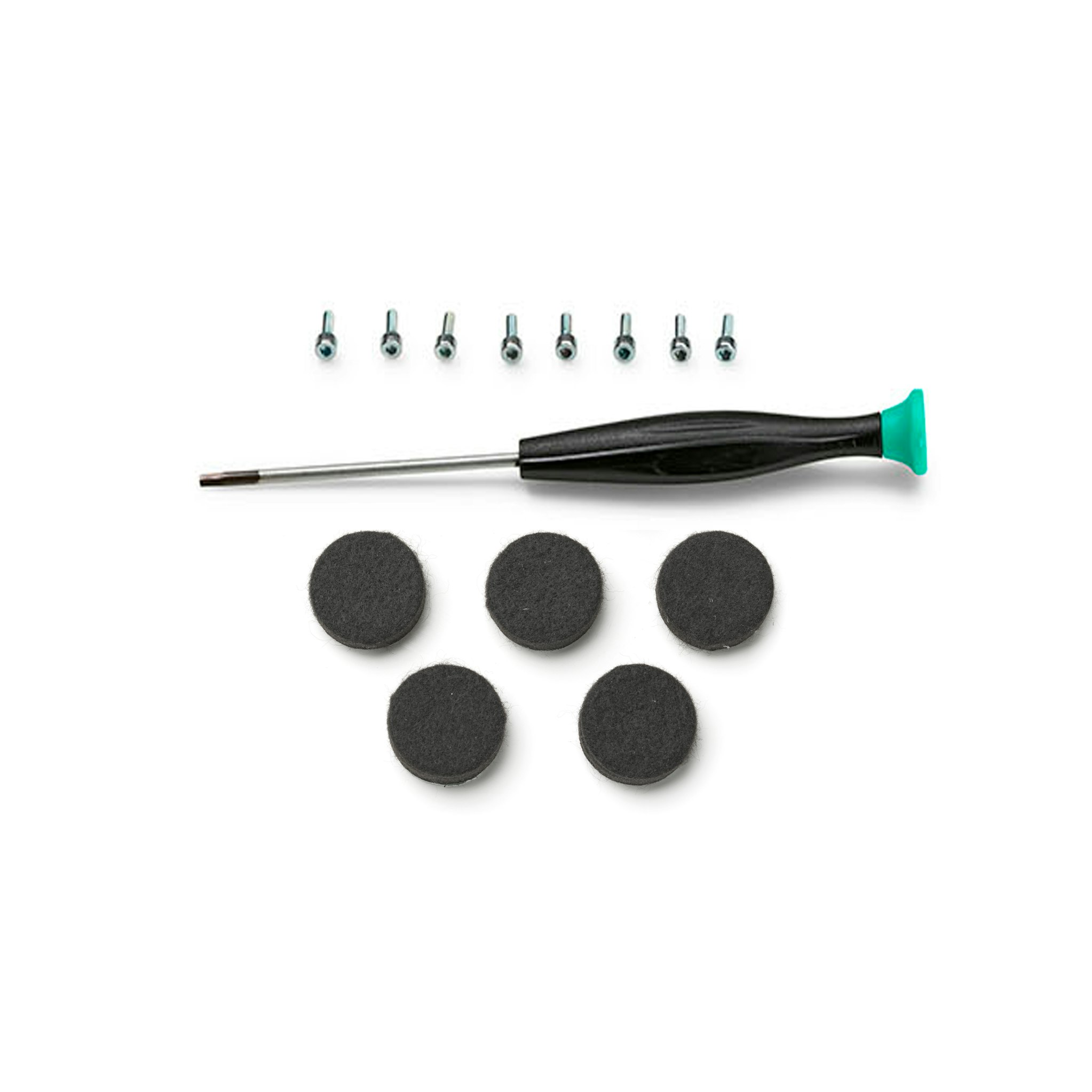

06. Coordinates Floor Kit of screws, screwdriver ad feet pads
RF29554
