CoordinatesCoordinates Floor
Designed by Michael Anastassiades, 2020

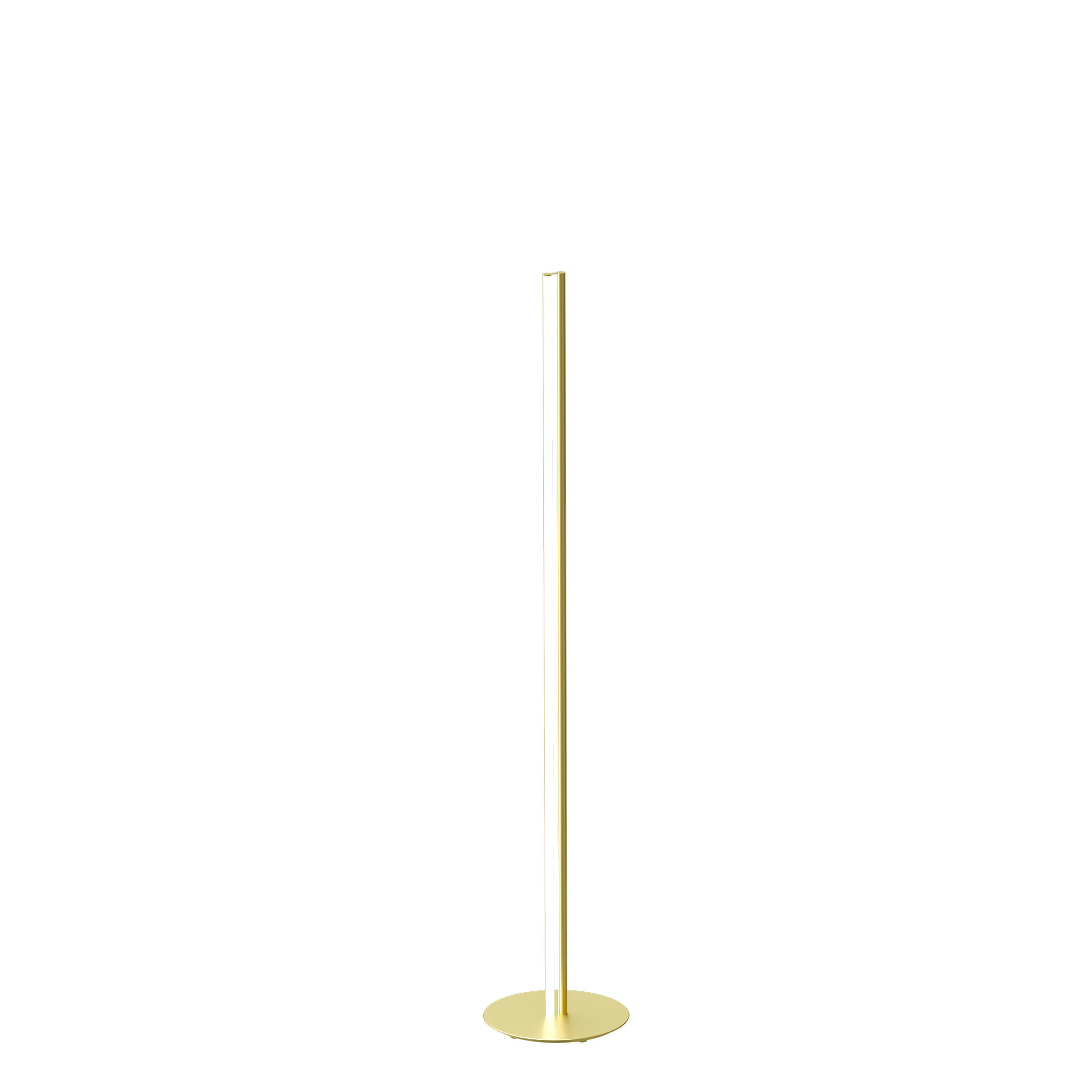

Coordinates Floor is a floor lamp with diffuse light composed of two vertical poles that can be oriented during installation, attached to a base with an anodized aluminium cover. Each element is made of extruded anodized aluminium with a champagne finish and a diffuser in platinum optical silicone with an integrated LED strip (CRI 95). Usable power cable length 260 cm with pedal dimmer switch for ON/OFF and adjustable brightness 10–100%. Power supply attached to interchangeable plug.
53W - 3240lm - 2700K - CRI> 95
Also available in:
Technical Drawing
Main specifications
EAN
8059607031223
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
53
Lumen Output (lm)
3240
Photometric
Lighting type
,
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Dimmable
Power supply type
Dimming interface
Plug type
, ,
Batteries inside
No
Physical
Colour
Length (mm)
380
Cord colour
Net weight (kg)
5.2
Package volume (m3)
0.03
IP internal
Spare Parts

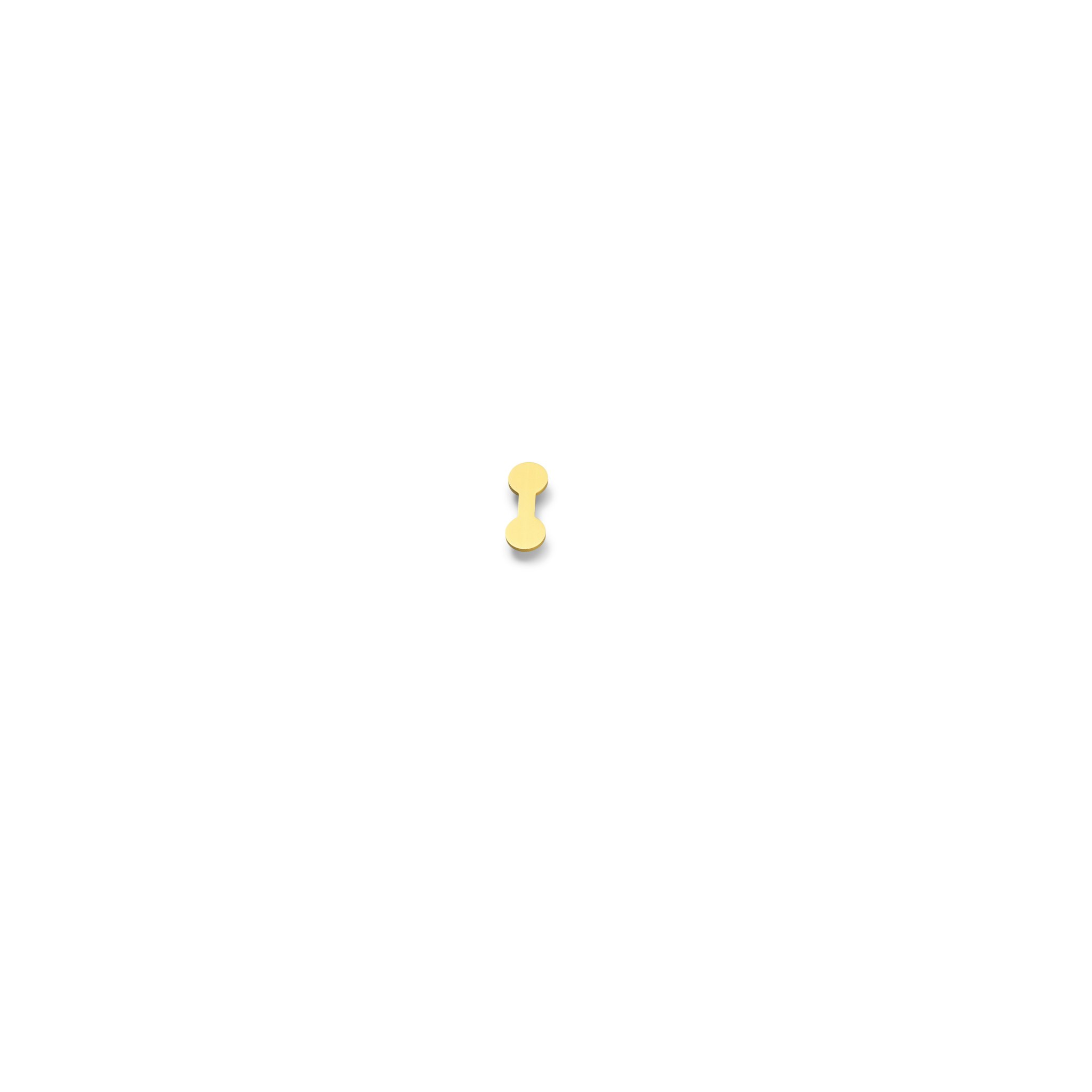

01. Assembly Body Fixing for Coordinates Floor Anodized Champagne
RF29550

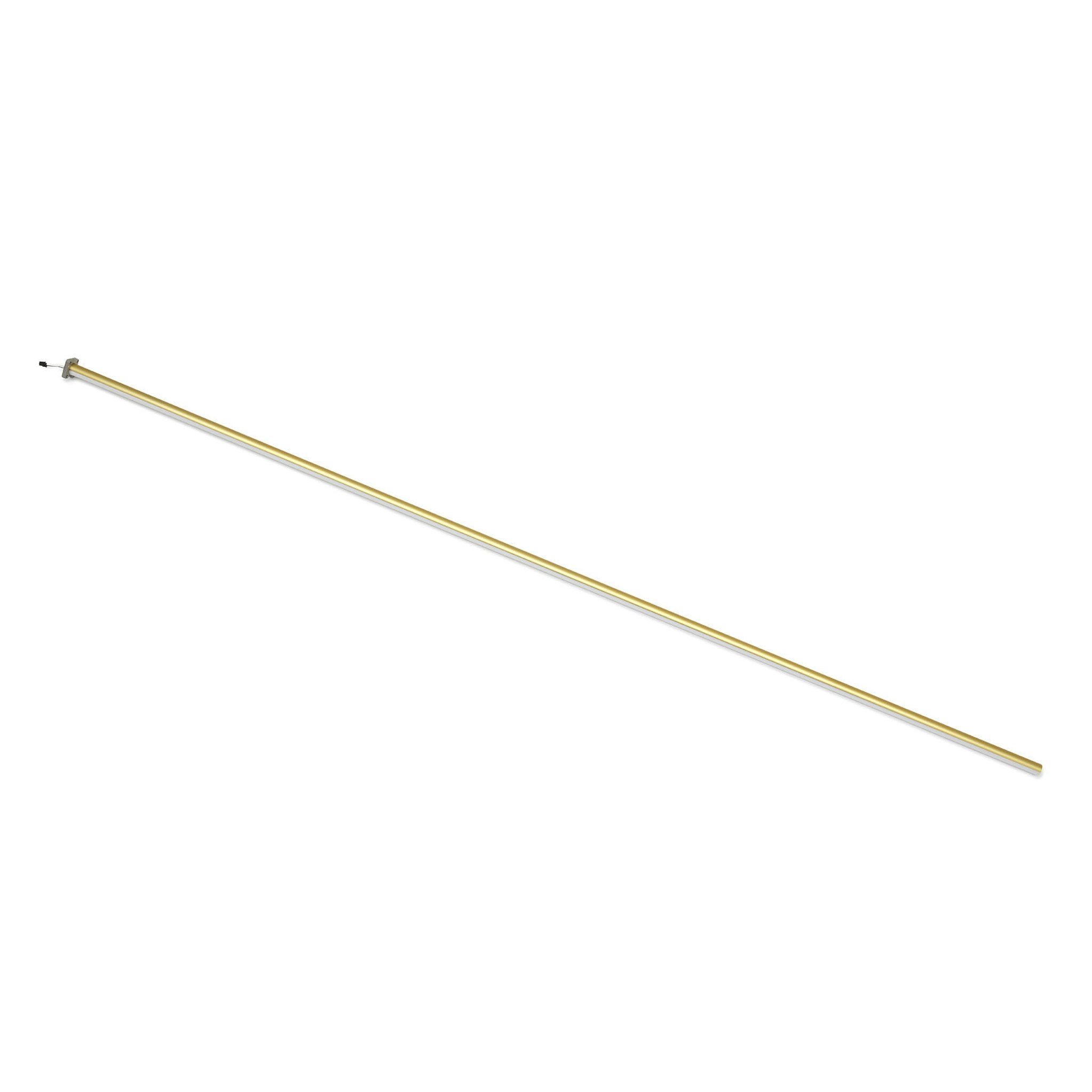

02. Coordinates Floor Body
RF1800044

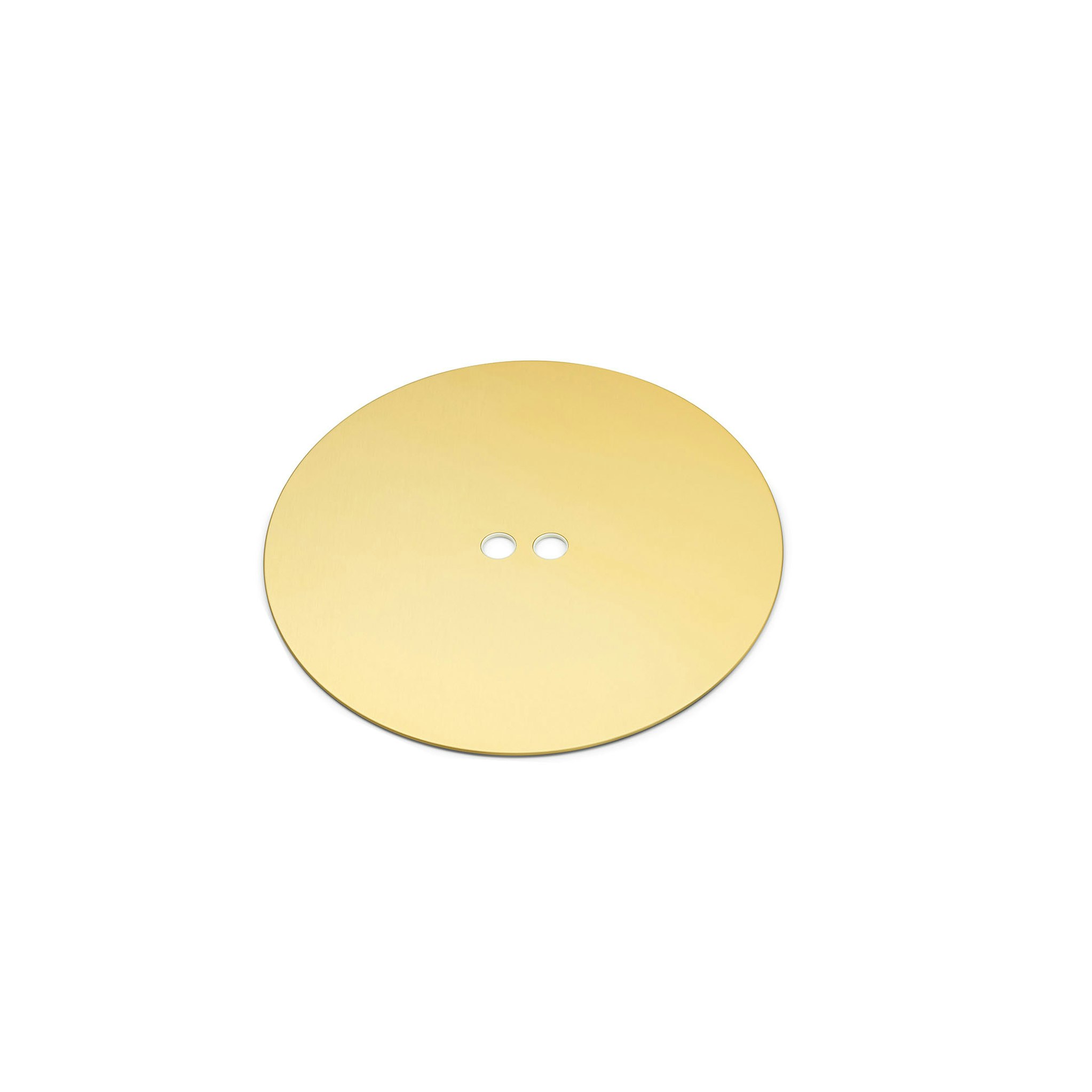

03. Coordinates Floor Cover Base
RF31891
04. Coordinates F switch dimmer assembly (with EMC filter)
RF37531
05. Black plug assembly kit & 48V driver
RF6600130
06. Coordinates Floor Kit of screws, screwdriver ad feet pads
RF29554
