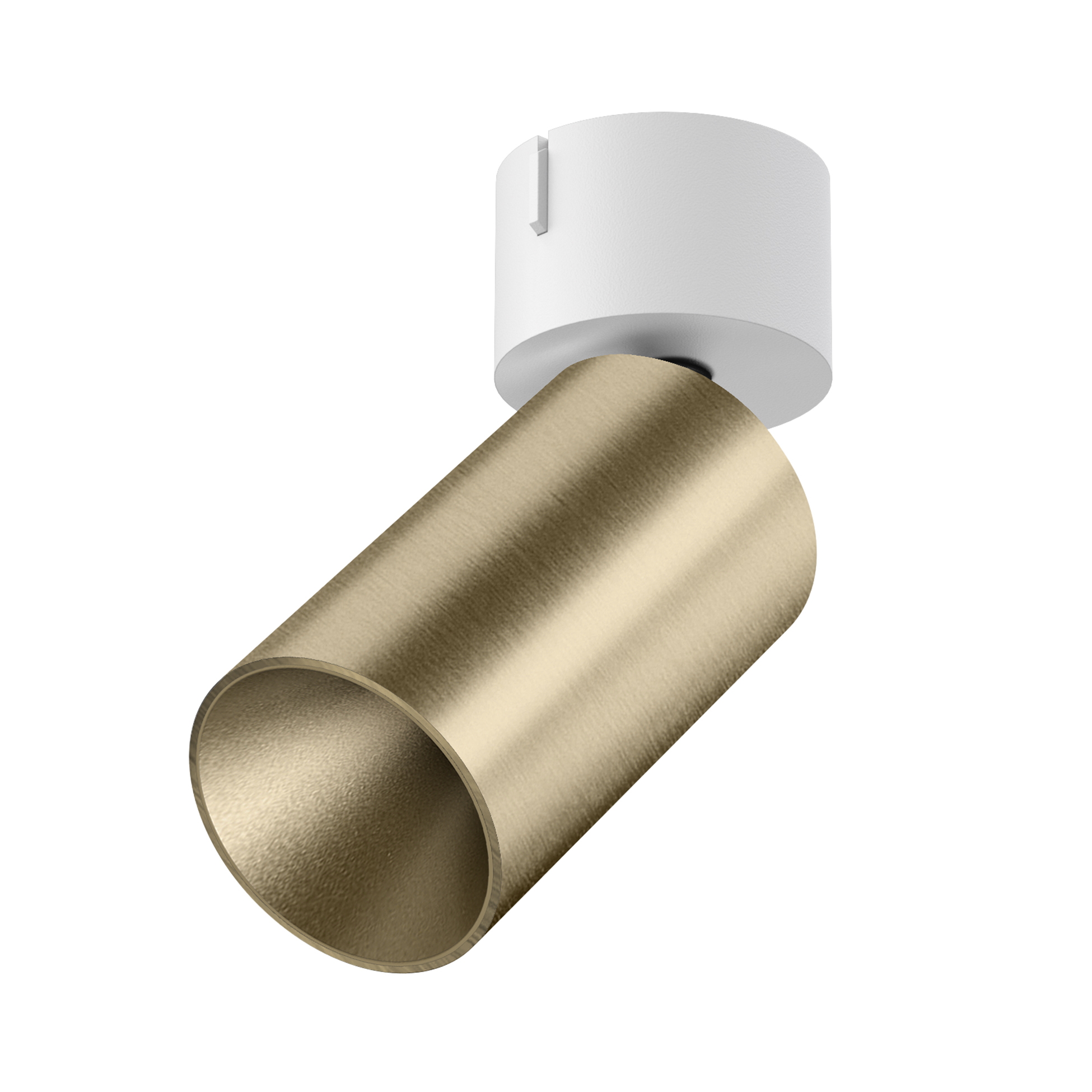

Light ShadowLight Shadow Pro Ø45 Push Spot
Designed by FLOS Architectural, 2022
Luminaire with 2x1 functionality: it can work as downlight (recessed, flush with ceiling) or as a projector (fully adjustable). The passage from one position to the other can be made by moving the product easily by hand. Necessary installation pre-frames, not included (to be ordered separately). Requires a power supply unit which is not included, to be ordered separately according to recommendations.
8.5W - 652lm - 2700K - CRI> 90 - Beam° 15
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Number of lamps
1
Power (W)
8.5
Source flux (lm)
756
Lumen Output (lm)
652
Efficacy (lm/W)
56
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50>60.000h_Tc85ºC
Beam angle C0-180 (º)
15
Extreme cut off
Yes
UGRL
<10
Electrical
Insulation class
Forward voltage (V)
12
LED current (mA)
700
Power supply
Dimmable
Physical
Colour
Trim
No
Orientation
Recessed depth (mm)
150
Net weight (kg)
0.23
IP internal
