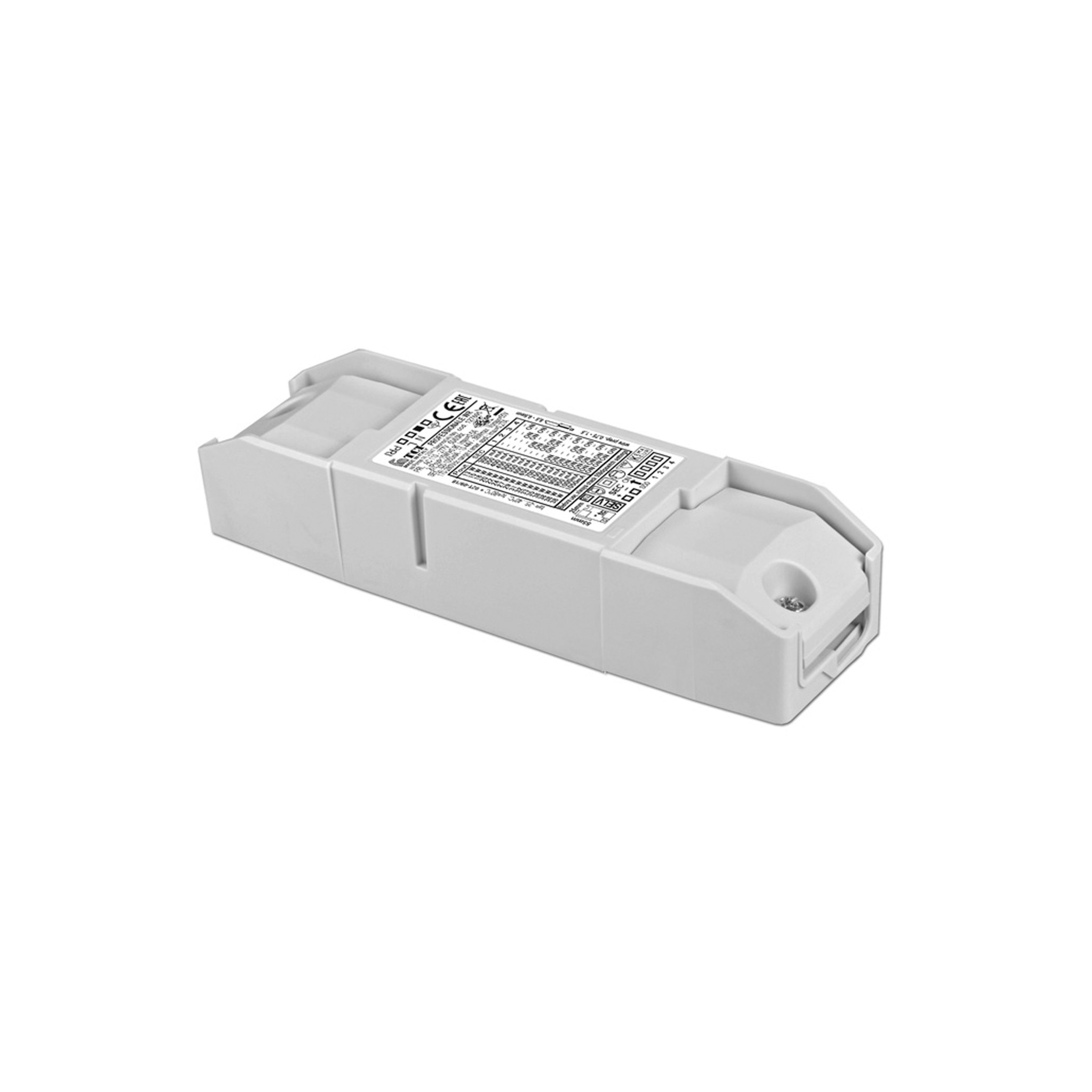

60.9387

Continuous current power supply 18W, 100/277V - 50/60Hz with power current selected through adjustable switch. Non Dimmable.

Output current: 1050mA - 30/38W (100-110V / 120-277V) / 1000mA - 30/38W (100-110V / 120-277V) / 950mA - 30/38W (100-110V / 120-277V) / 900mA - 30/38W (100-110V / 120-277V) / 850mA - 30/35W (100-110V / 120-277V) / 800mA - 30/33W (100-110V / 120-277V) / 750mA - 30/32W (100-110V / 120-277V) / 700mA - 30/31W (100-110V / 120-277V) / 650mA - 29W / 600mA - 27W / 550mA - 24W / 500mA - 22W / 450mA - 20W / 400mA - 18W / 350mA - 15W / 300mA - 13W.

Find a Flos store
Technical Drawing
DR_60.9387-DRIVER
Main specifications
Power (W)
38
Photometric
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50-60
Main voltage (Vac)
100-277
Driver output voltage (V)
300 / 350 / 400 / 450 / 500 / 550 / 600 / 650 / 700mA - 10-45V / 750mA - 10-44V / 800 / 850 / 900mA - 10-42V / 950mA - 10-40V / 1000mA - 10-38V / 1050mA - 10-36V
Power supply
Dimmable
Precabled
No
Emergency
Yes
Physical
Length (mm)
147
Net weight (kg)
0.12
IP internal
Notes

Consult features for use at 100-110V
