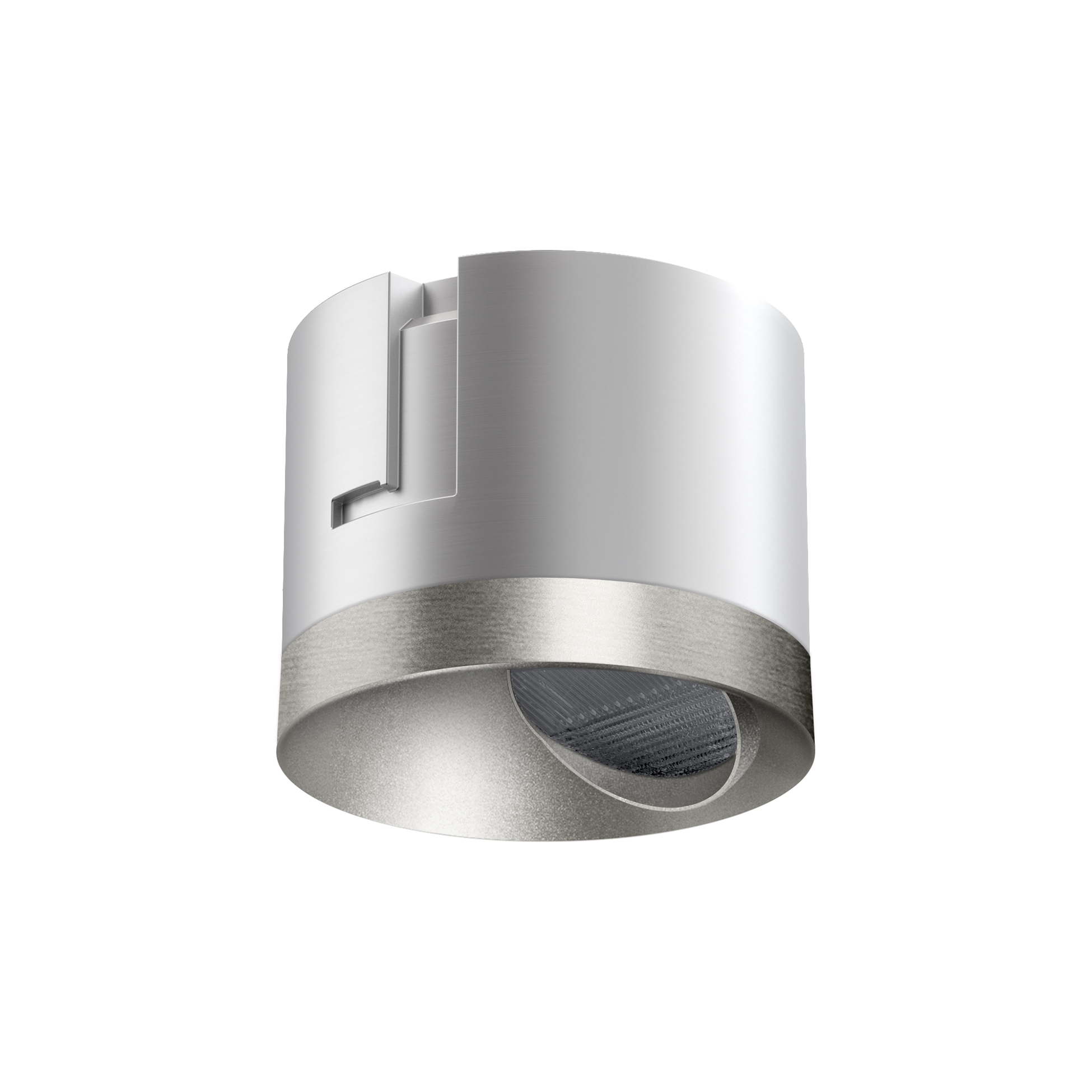

Light ShadowLight Shadow Pro Ø 90 Wall-Washer
Designed by FLOS Architectural, 2022
LED lighting module, with wall washer optic, to be inserted in the recessed frames (not included), installation through a bayonet system with interchangeable spots. Remote driver not included.
LED - LED array - 18W - 1187lm - 2700K - CRI> 90 - Beam° 27
Technical Drawing
Main specifications
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Lamp category
Number of lamps
1
Power (W)
18
System power (W)
18
Source flux (lm)
1593
Lumen Output (lm)
1187
Efficacy (lm/W)
54
Schematic light drawing
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
McAdam steps (SDCM)
2
Rf fidelity index
91
Rg gamut index
100
LED Life / Failure Ratio
L70B40 >50.000h (Tc=85ºC)
Beam angle C0-180 (º)
27
UGRL
<19
Electrical
Insulation class
Forward voltage (V)
37
LED current (mA)
500
Power supply
Power supply type
Physical
Colour
Orientation
Recessed depth (mm)
139
Spot diameter (mm)
93
Length (mm)
93
Net weight (kg)
0.4
Package height (mm)
19
Package width (mm)
22
Package length (mm)
18
Package volume (m3)
0.01
IP internal
IP external
