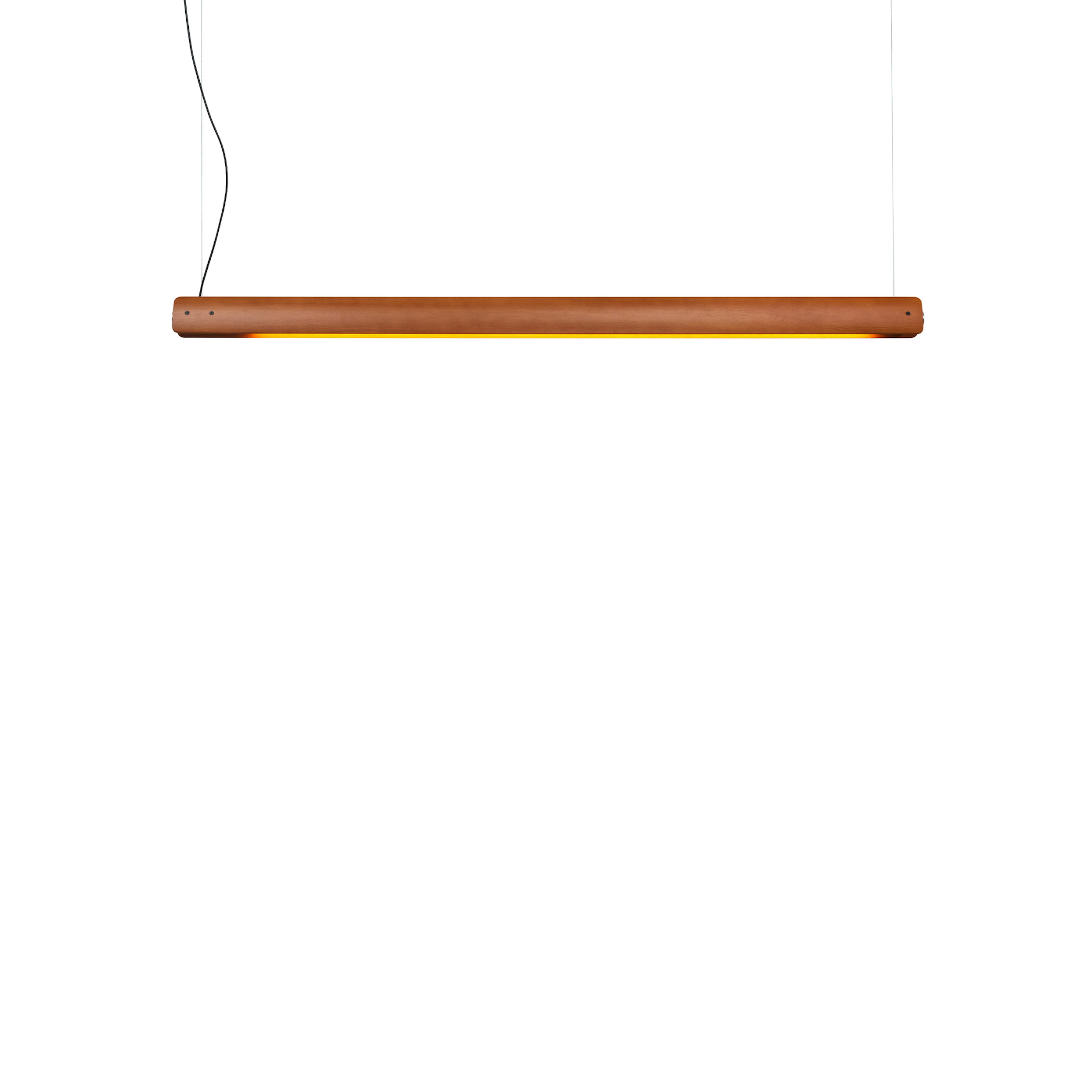

Seki-HanSeki-Han Suspension
Designed by Tobia Scarpa, 2025
Suspension lamp emitting direct and indirect light with symmetrical and asymmetrical distribution. Features two horizontal ash wood blades joined by chromed metal fittings. Blades rotate around a central tubular light source to allow variable light emission. Custom-developed dimmable linear LED light source. The lamp can also be fitted with standard T8 LED tubes.
LED retrofit - 22W - 2700K - CRI> 80
Technical Drawing
Main specifications
EAN
8059607076330
Mounting
Environments
Light source type
Light sources included
Yes
Lamp category
Lamp type
Lamp holders
Bulb finish
Number of lamps
1
Power (W)
22
System power (W)
22
Photometric
Lighting type
Light distribution
CCT (K)
CRI>
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Dimming interface
Physical
Colour
Length (mm)
1690
productFields.physical.cordLength
3000
Canopy length/diameter (mm)
132
Canopy height (mm)
31
Net weight (kg)
4.1
Package volume (m3)
0.08
IP internal
Spare Parts

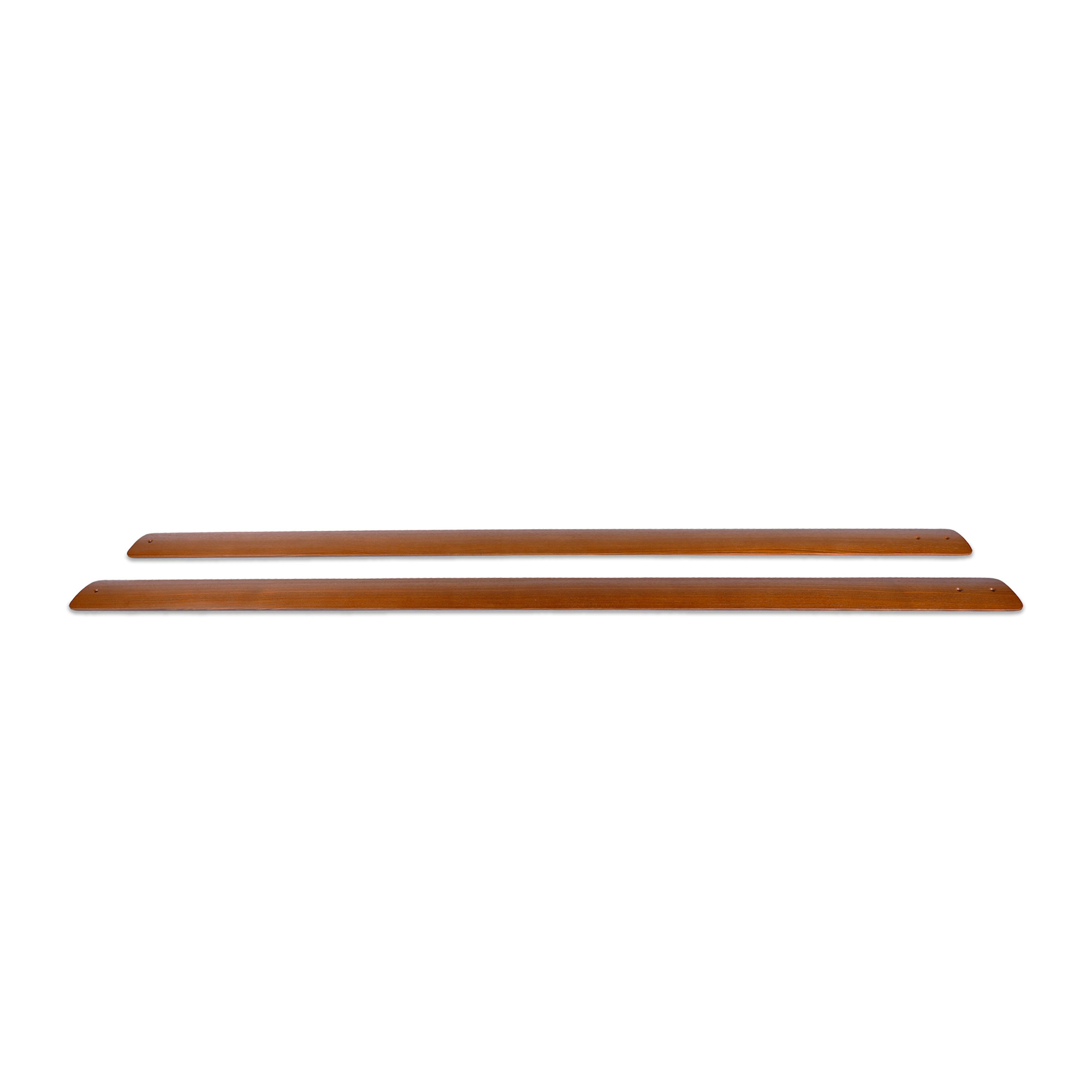

01. Seki-Han ash wood blades
RF37780

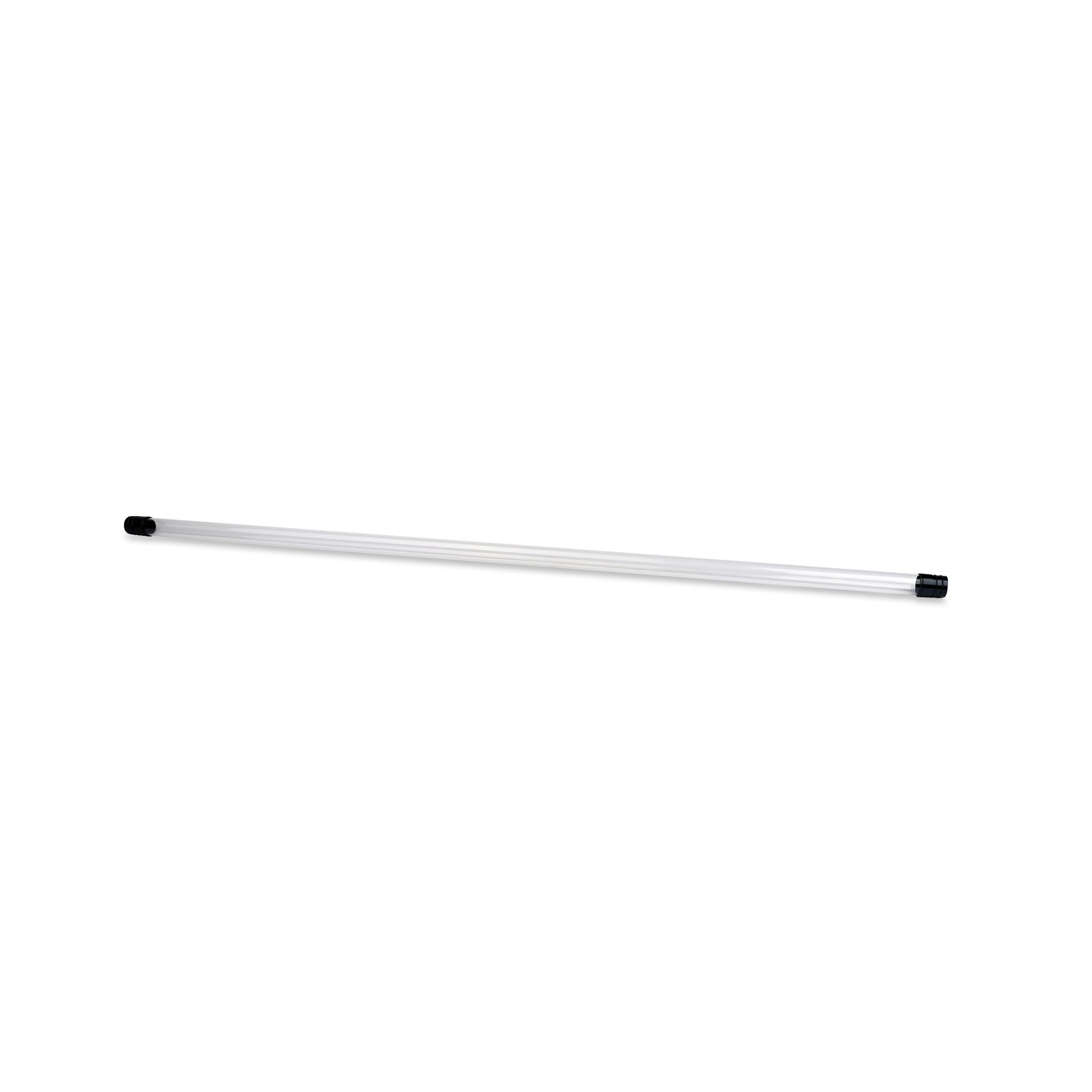

02. Seki-Han glass diffuser assembly
RF37777

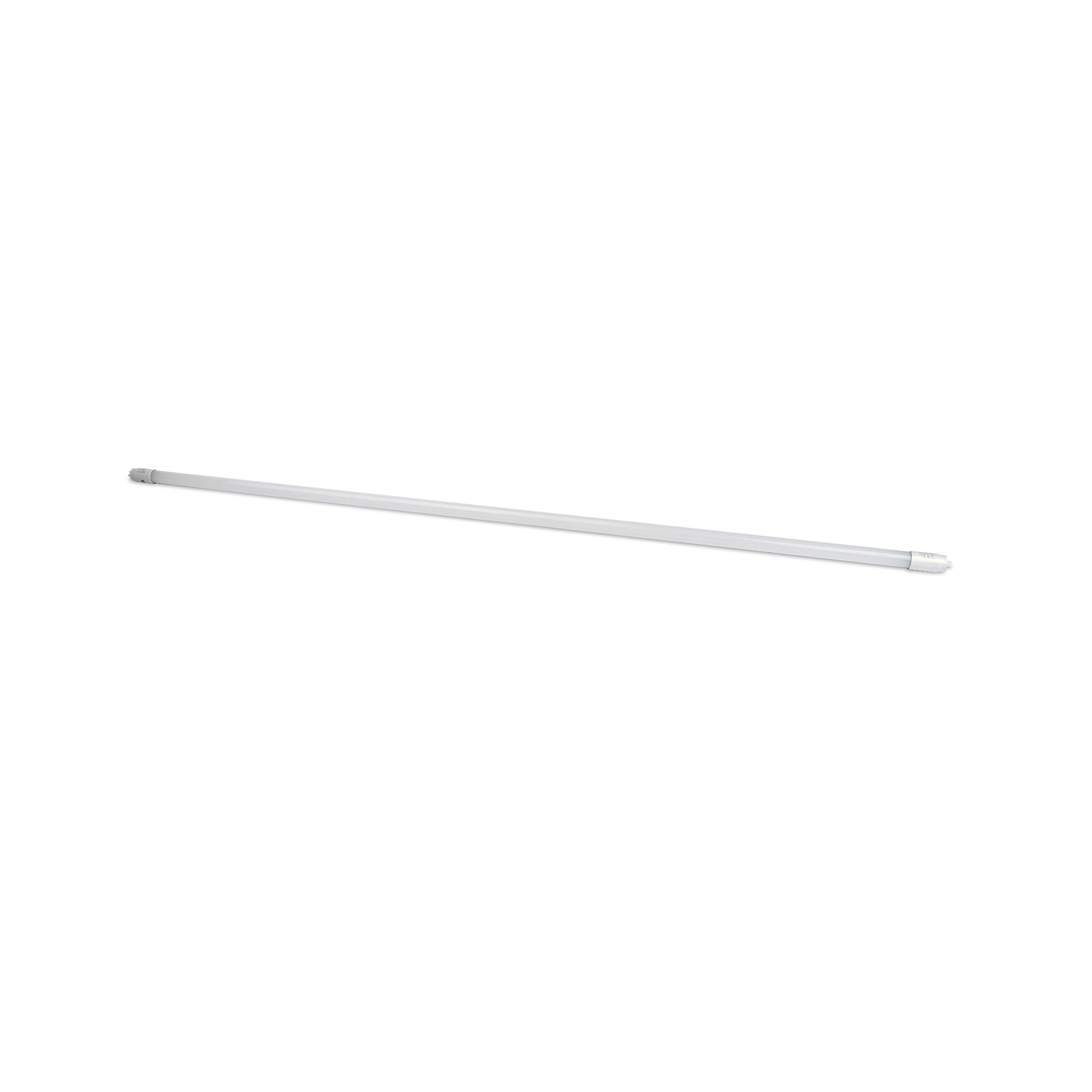

03. Seki-Han G13 Led light source
RF37818

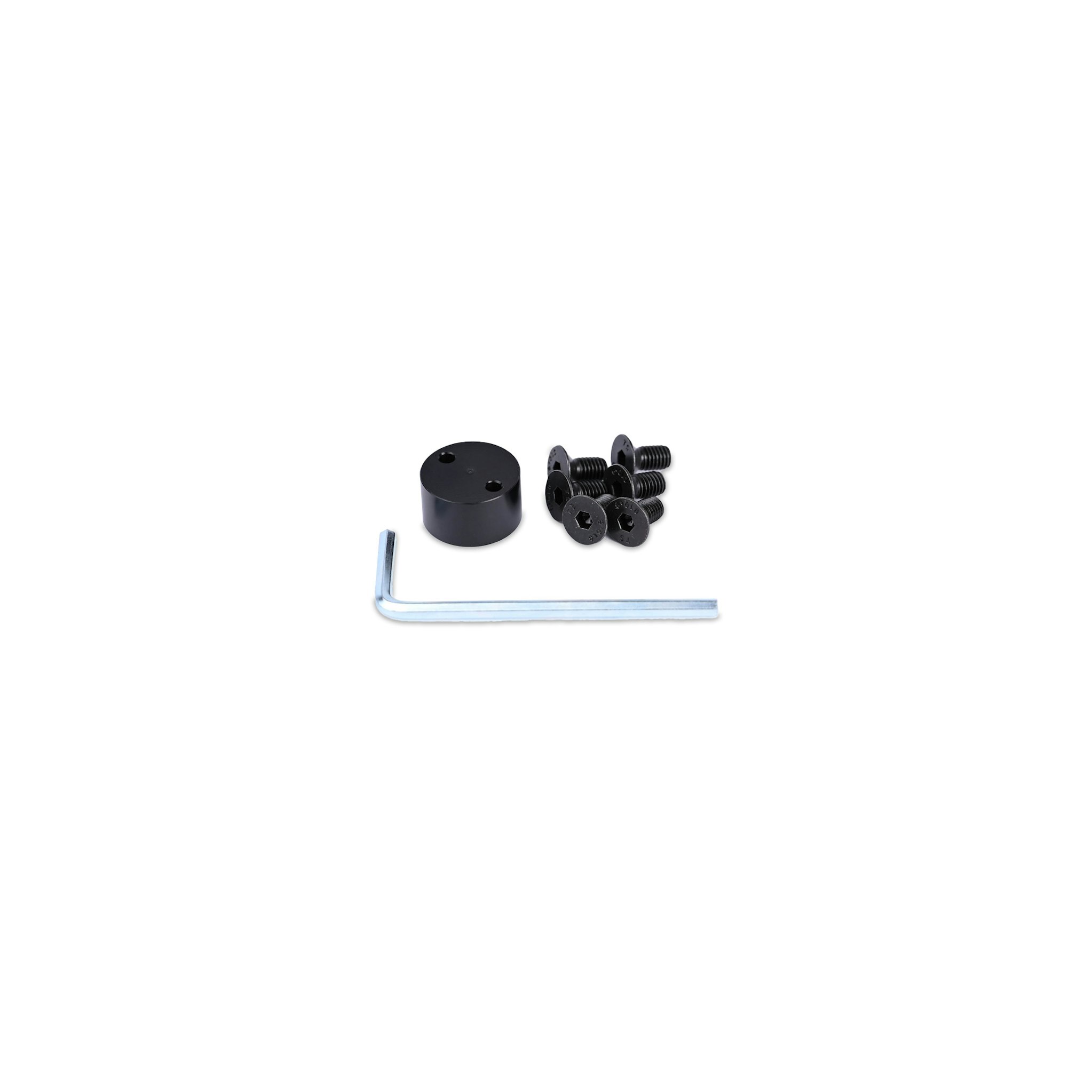

04. Seki-Han body screws kit
RF3040100

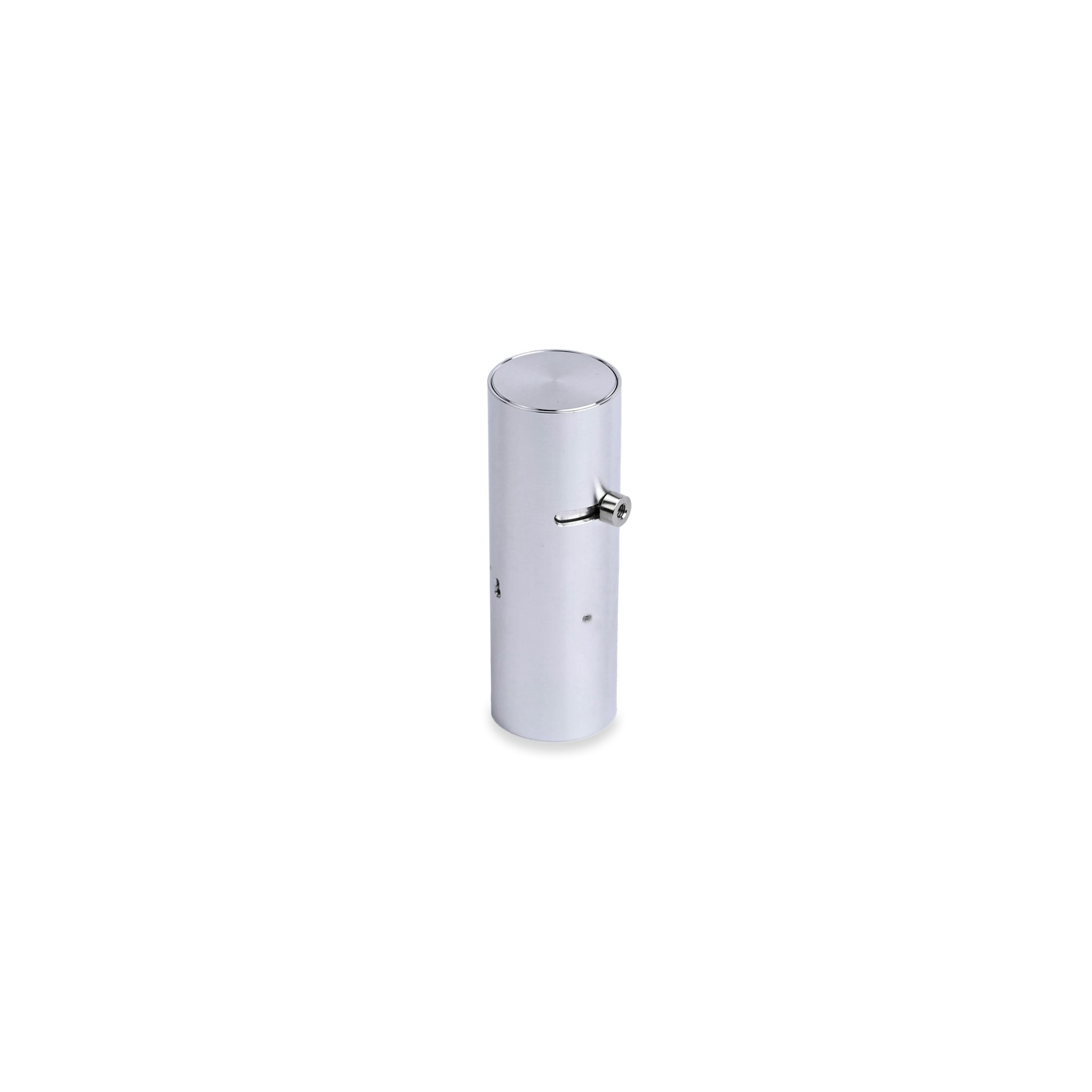

05. Seki-Han S Upper joint assembly
RF37820
06. Seki-Han S Lower joint assembly
RF37821

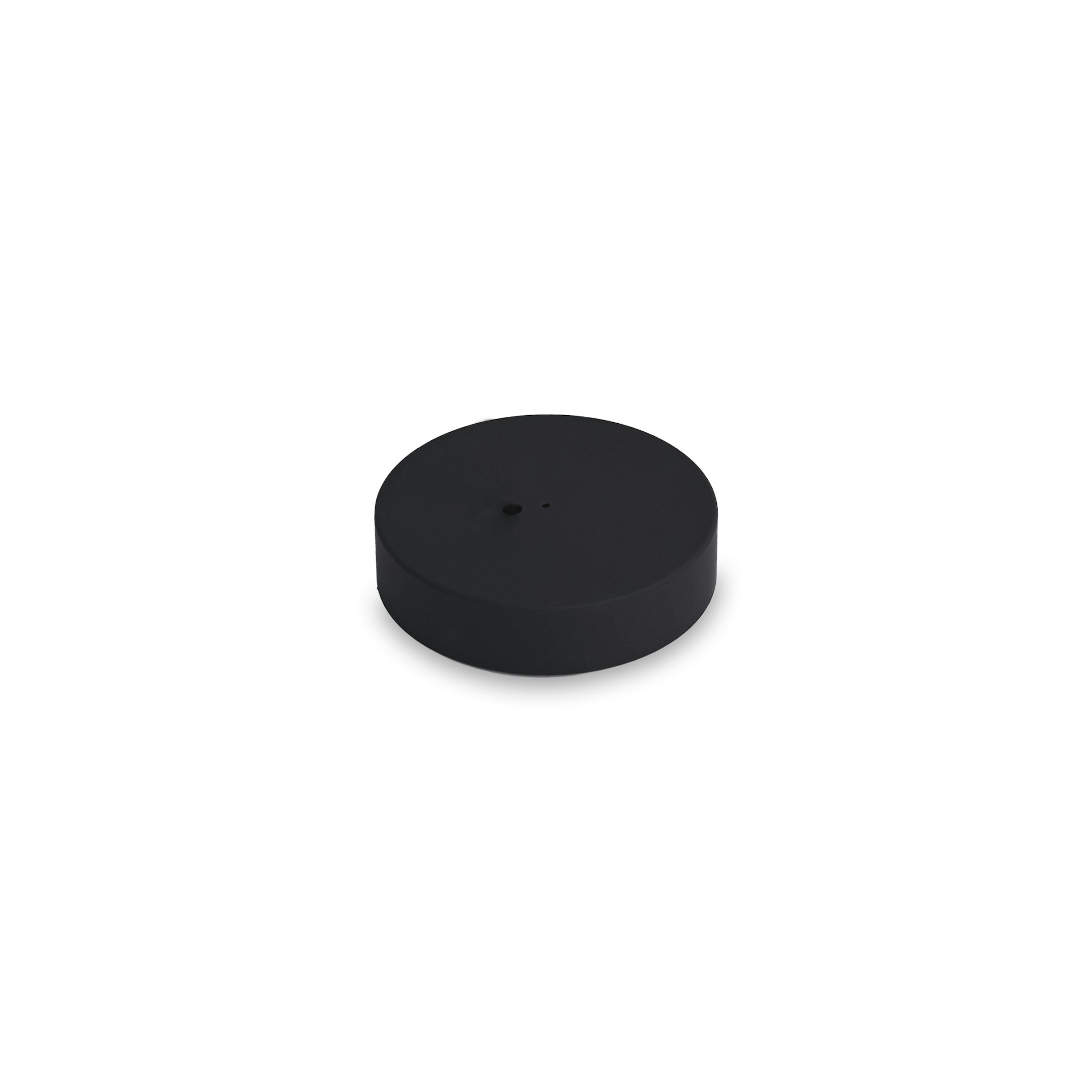

07. Seki-Han S Ceiling rose assembly
RF37850

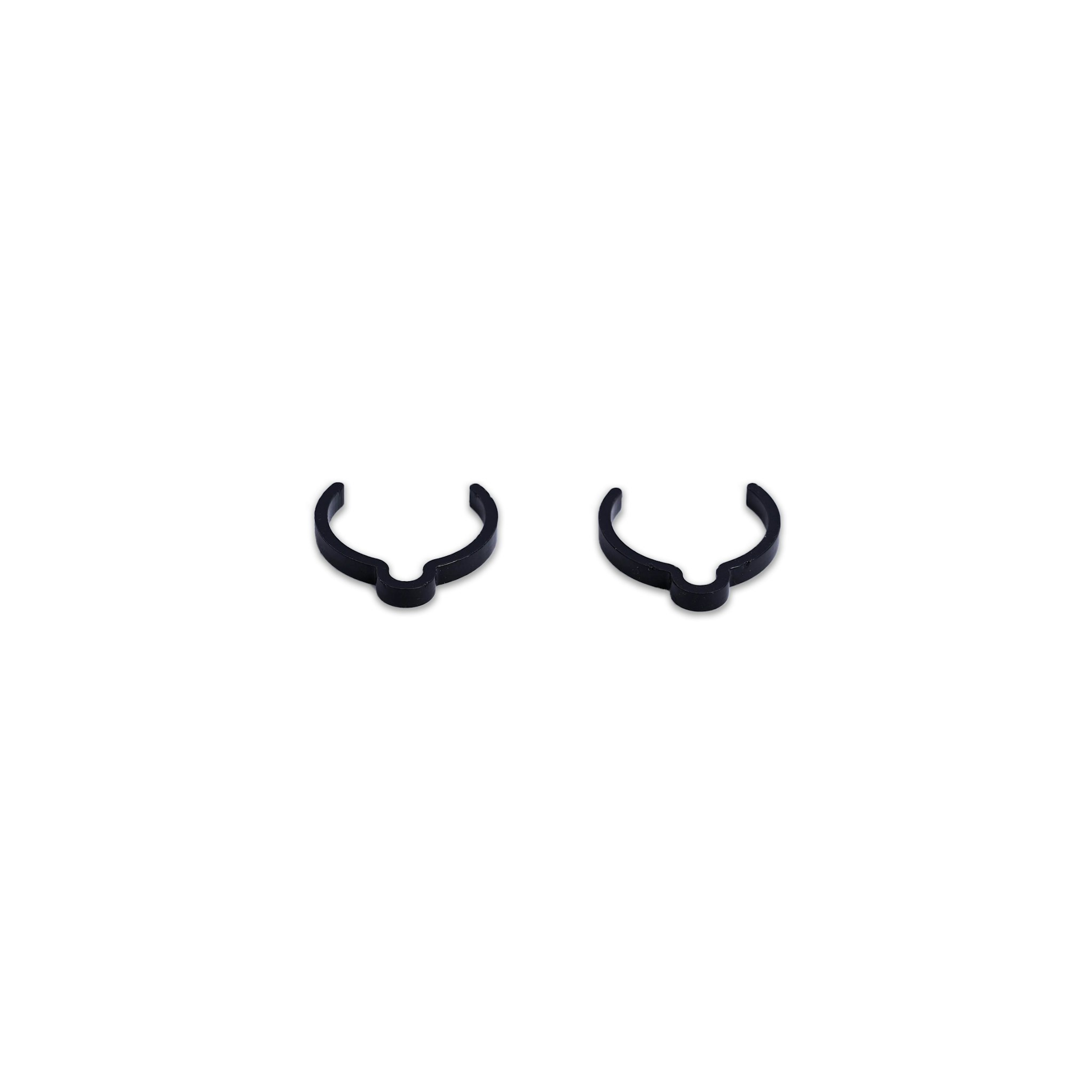

08. Seki-Han S Cable guide hook
RF37848

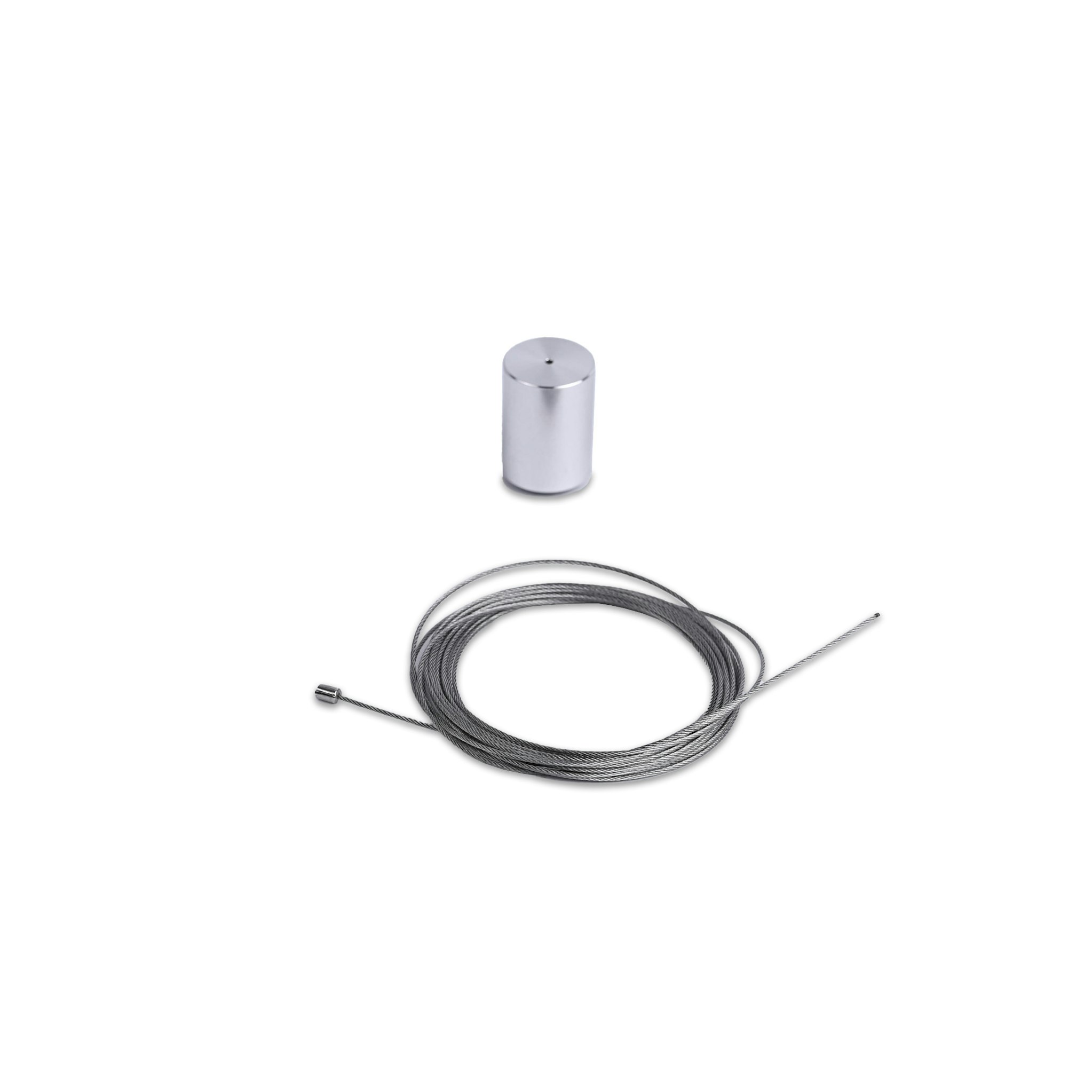

09. Seki-Han S Little rose and steel wire cable assembly
RF37849
