Smithfield
F1369009

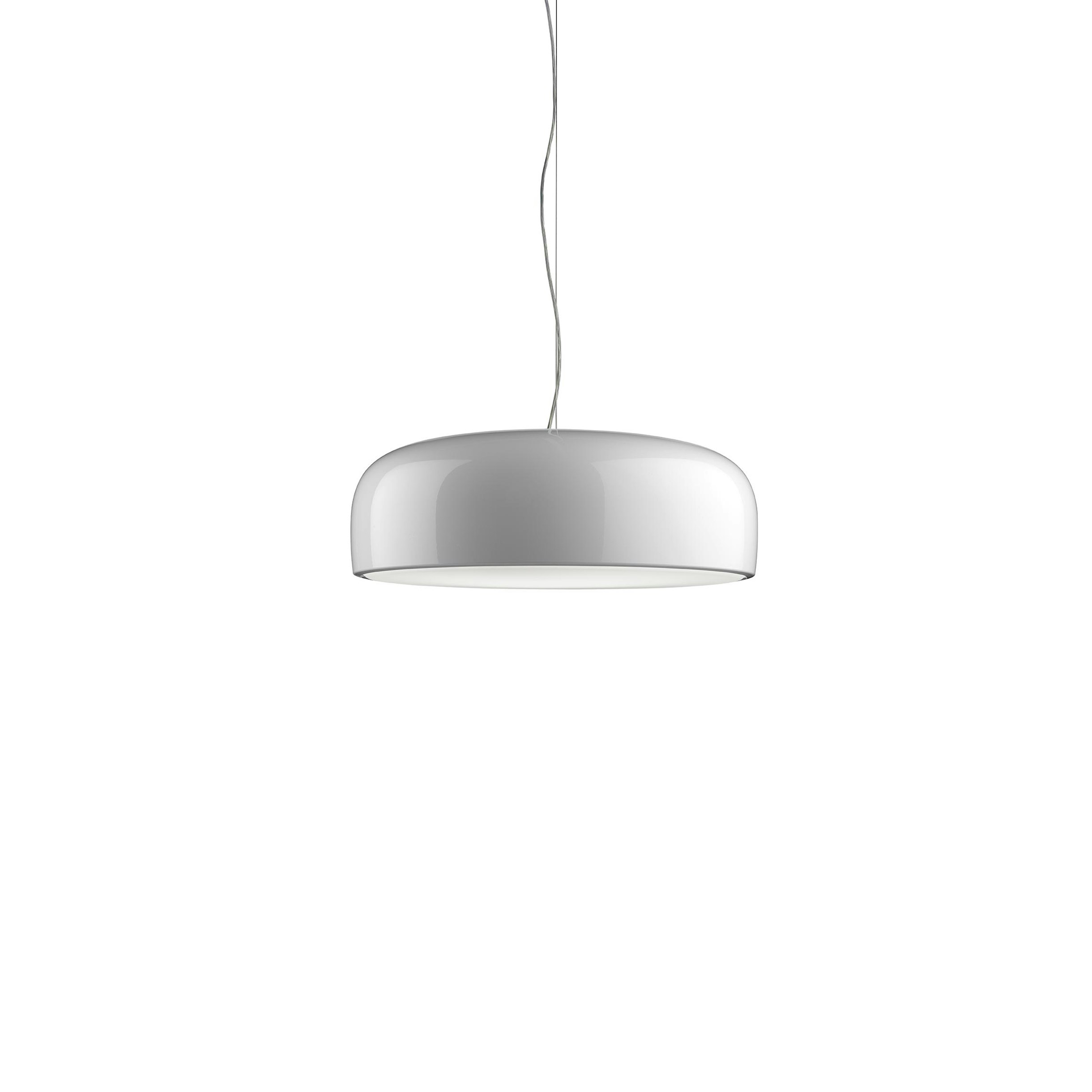

Smithfield Suspension Pro dimmable DALI

Suspension lamp with direct light. Aluminium body. Available in gloss black, white, matt black, green, red or MUD. Injection-moulded opalescent methacrylate diffuser. Steel ceiling attachment with steel suspension cable , 5 pole electric cable in PTFE double insulation, working length 2700 mm. Control DALI dimmable.

45W - 2791lm - 2700K

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Smithfield
Main specifications
EAN
8059607015117
Mounting
Environments
Light source type
Light sources included
Yes
LED type
Power (W)
45
Lumen Output (lm)
2791
Schematic light drawing
F13690XXWSMITHFIELD-S-PRO-DALI_45W-LED
Photometric
Lighting type
Light distribution
CCT (K)
Extreme cut off
No
Electrical
Insulation class
Frequency (Hz)
50/60
Main voltage (Vac)
200-240
Power supply
Dimmable
Power supply type
Dimming interface
Batteries inside
No
Physical
Colour
Length (mm)
600
Cord colour
productFields.physical.cordLength
2700
Canopy colour
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
5.9
Package height (mm)
310
Package width (mm)
710
Package length (mm)
710
Package volume (m3)
0.16
IP internal

Download

Tech spec pdf

Photometric Files

Technical Drawings

Ecodesign and Energy Labelling

REPLACEABLE2

PWRSUPRPL2

Spare Parts

F1369009-smithfield-s-pro-flos-boom
01. White rose assembly
RA3690209
02. Kit of 5 or rings
RF05382
03. Smithfiled Suspension 2,9mt fep/pvc 5x0,75 transparent cable
RF29934
04. 3 mt steel cable ø1,2 with 19 winded wires
RF29665
05. Smithfield C/S Power supply 45W 450-1050mA
RF31980
06. Smithfield Methacrylate diffuser
RF19022
Thumbnail
x1
White rose assemblyRA3690209
Thumbnail
x1
Kit of 5 or ringsRF05382
x1

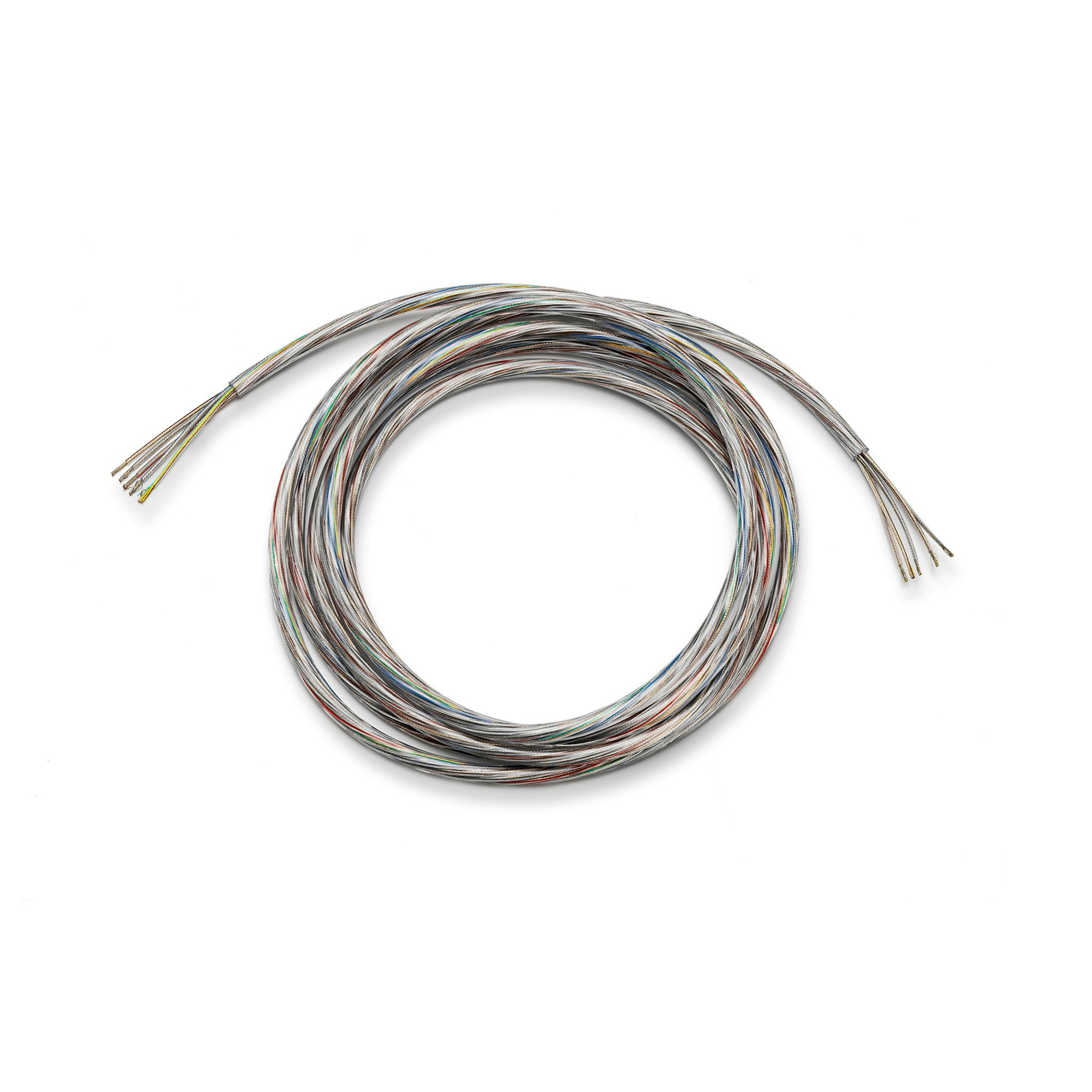

Smithfiled Suspension 2,9mt fep/pvc 5x0,75 transparent cableRF29934
x1
3 mt steel cable ø1,2 with 19 winded wiresRF29665
x1

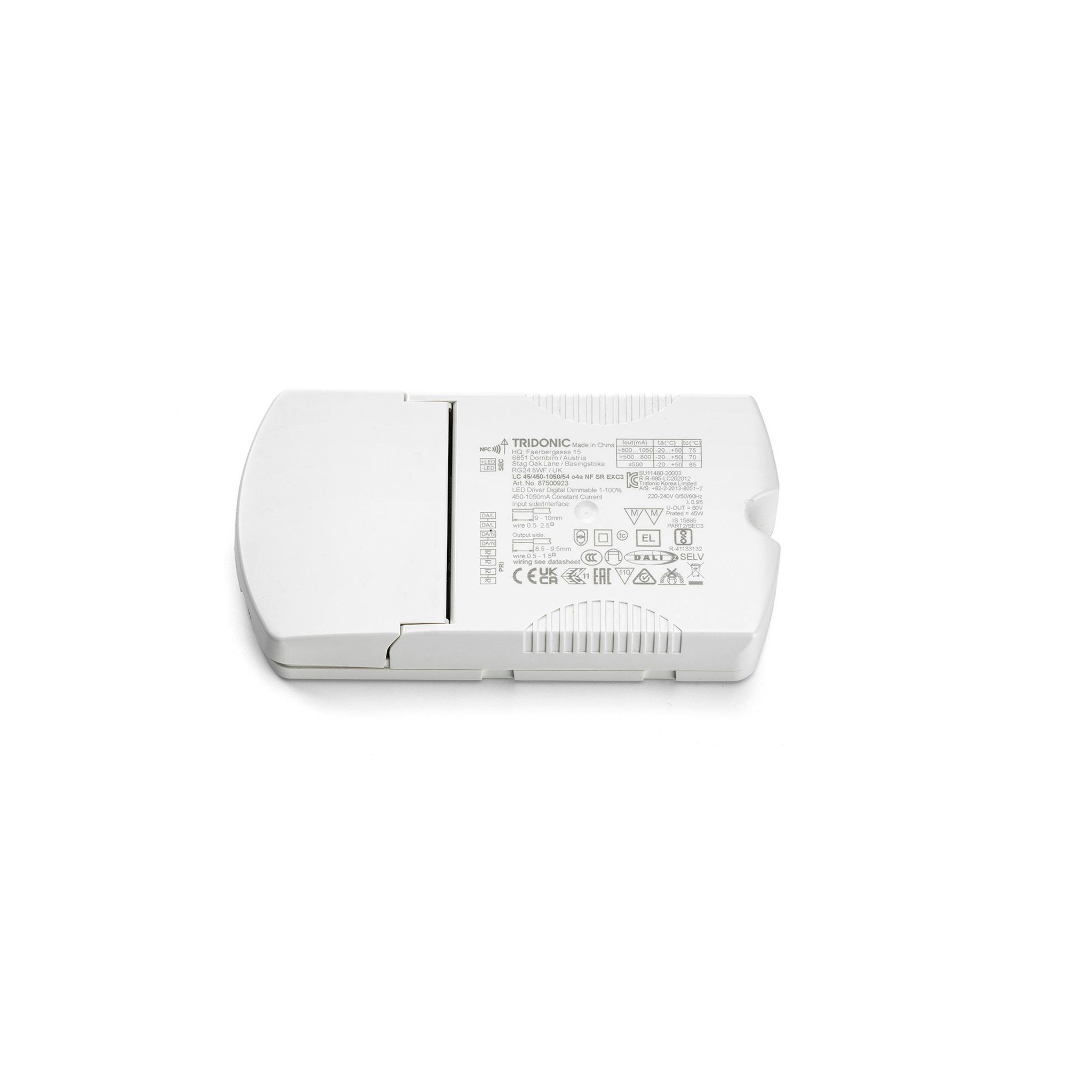

Smithfield C/S Power supply 45W 450-1050mARF31980
Thumbnail
x1
Smithfield Methacrylate diffuserRF19022
