Decorative Smithfield
F1369030 Glossy Black

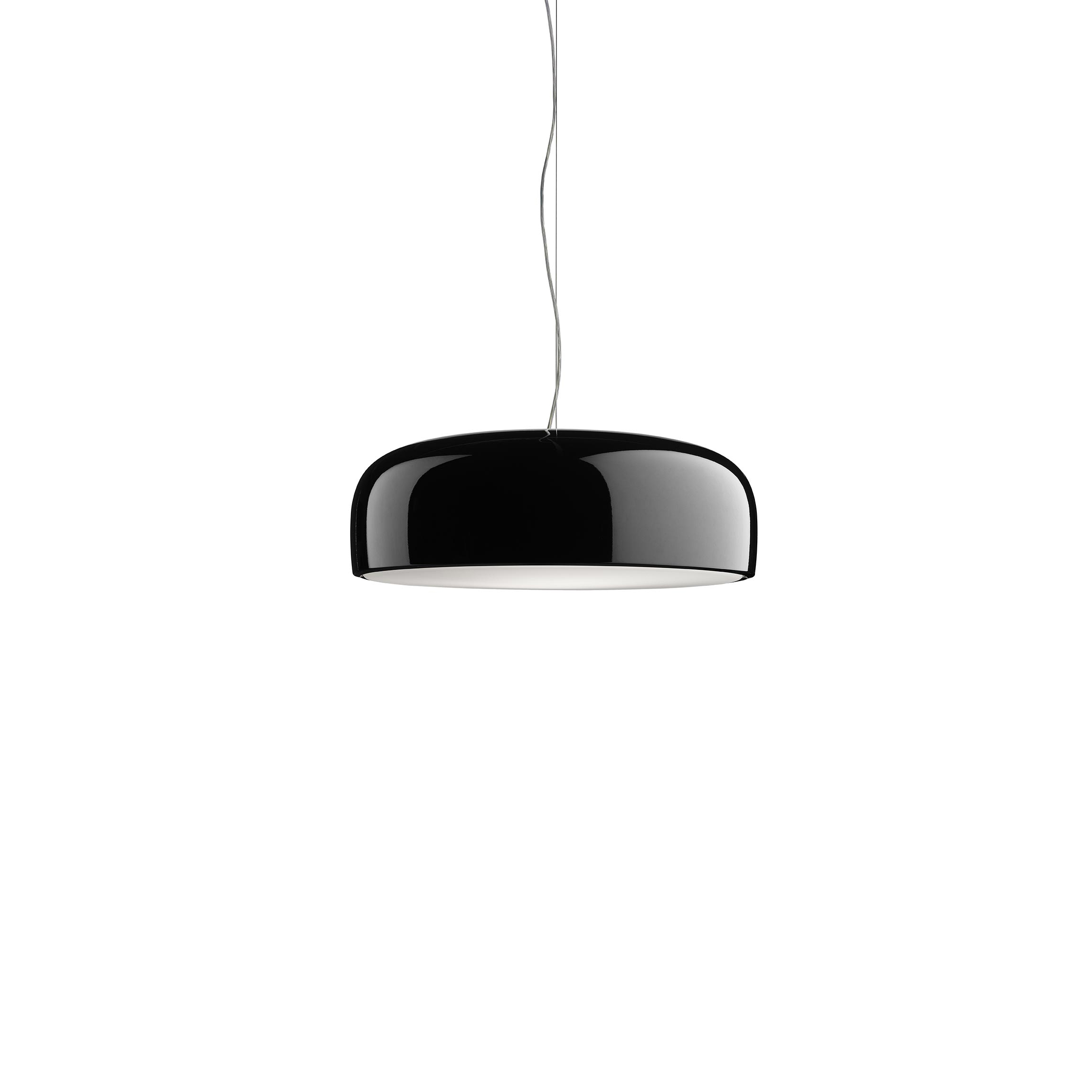

Smithfield Suspension Pro dimmable DALI

Suspension lamp with direct light. Aluminium body. Available in gloss black, white, matt black, green, red or MUD. Injection-moulded opalescent methacrylate diffuser. Steel ceiling attachment with steel suspension cable , 5 pole electric cable in PTFE double insulation, working length 2700 mm. Control DALI dimmable.

45W - 2791lm - 2700K

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8059607015131
Mounting
Suspension
Enviroment
Indoor dry location
Light source type
LED
LED type
LED Module
Power (W)
45
System flux (lm)
2791
Schematic light drawing
Photometric
Light distribution
Roto symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
200-240
Driver
Integrated
Dimmable
Yes
Dimming type
Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Glossy Black
Length (mm)
600
Cord colour
Clear
Canopy colour
Black
Canopy dimension (mm)
146
Net weight (kg)
5.8
Package height (cm)
310
Package width (cm)
710
Package length (cm)
710
Package volume (m3)
0.16
IP
20
CE
CMIM Morocco
IECEE-CB
BIS
EAC
RETILAP
UKCA
IRAM Argentina
CCC
USA
20
20

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts
