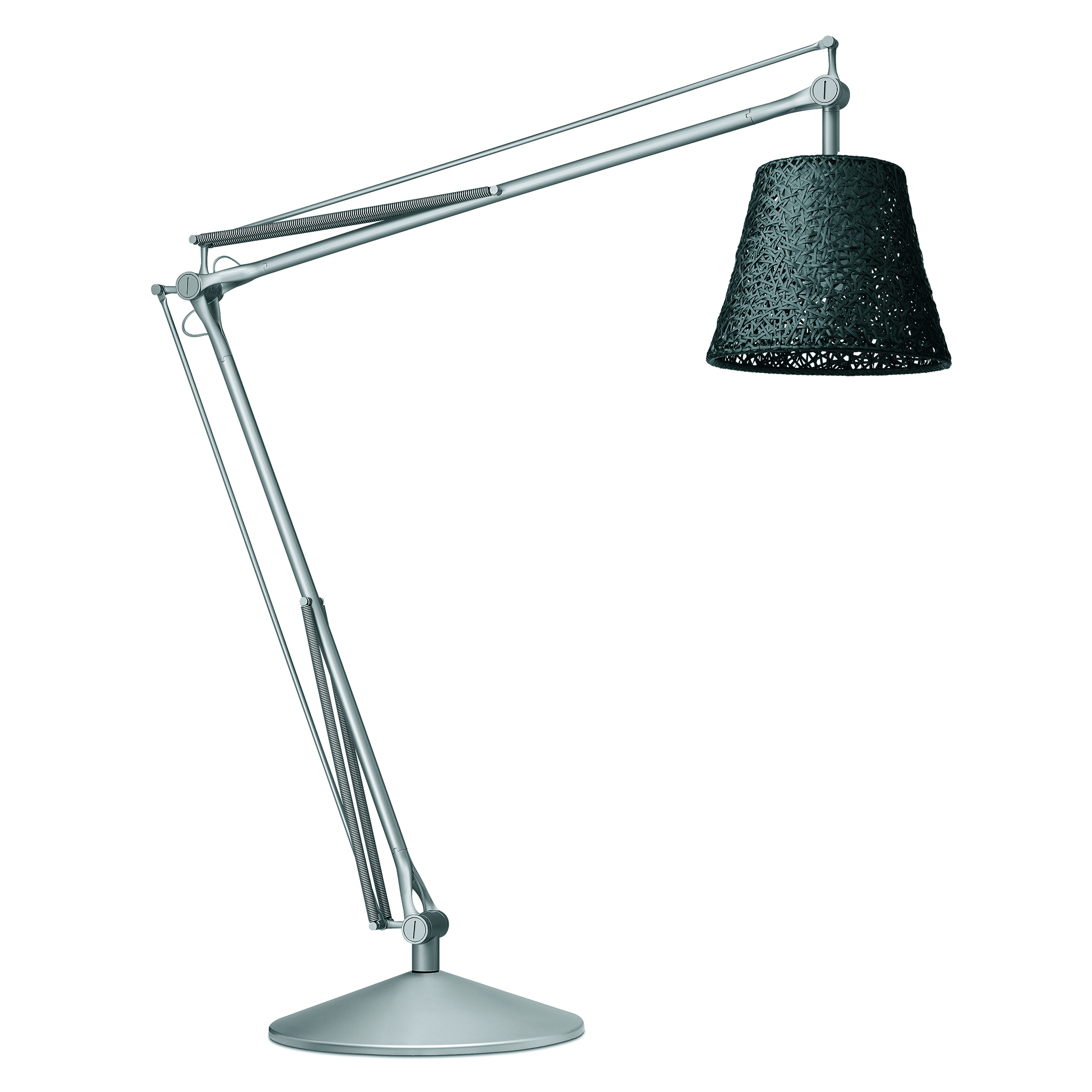

F6367041 Green WallSuperarchimoon outdoor Green wall
Designed by Philippe Starck, 2000
Light source not included.
250W - Beam° 74
Also available in:
Technical Drawing
Main specifications
Mounting
Floor
Enviroment
Outdoor wet location
Light source type
Bulb
Lamp holder
E27
Ilcos
HSGS
Number of heads
1
Power (W)
250
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
Beam angle C0-180 (º)
74
Beam angle C90-270 (º)
74
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Plug type
Type C
Emergency type
No
Batteries inside
No
Charging min time
NO
Physical
Colour
Green Wall
Orientation
Adjustable
Length (mm)
790
Net weight (kg)
160.3
Package volume (m3)
1.46
IP
55
Notes
Light source not included. HSGS E27: 1x250W or 1 LED: 21W - 2450 lm - 3000K
We recommend using a connection system with a degree of protection greater than or equal to the degree of protection of the luminaire.
Photometric Files
