Light Supply Adjustable

Designed by FLOS Architectural

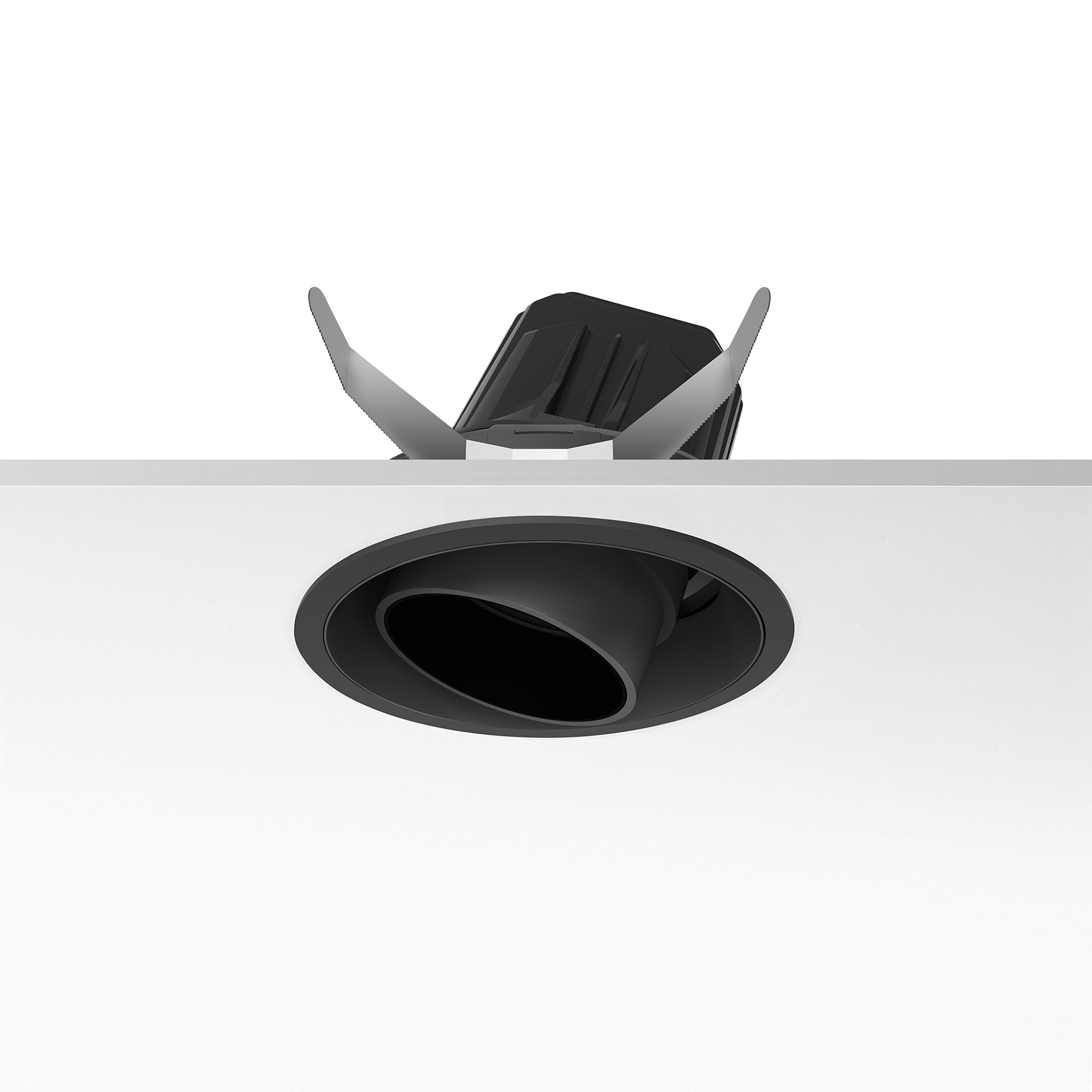

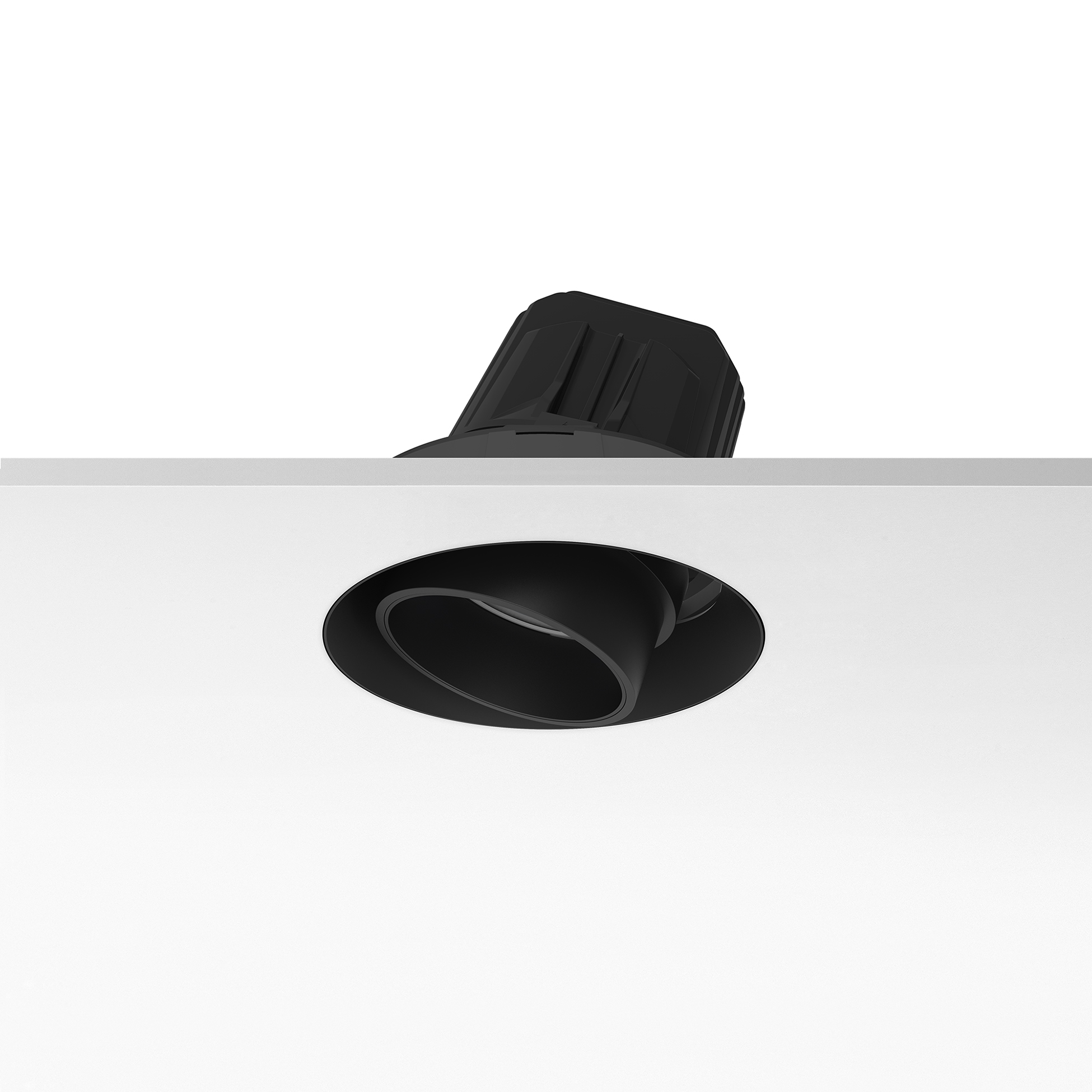

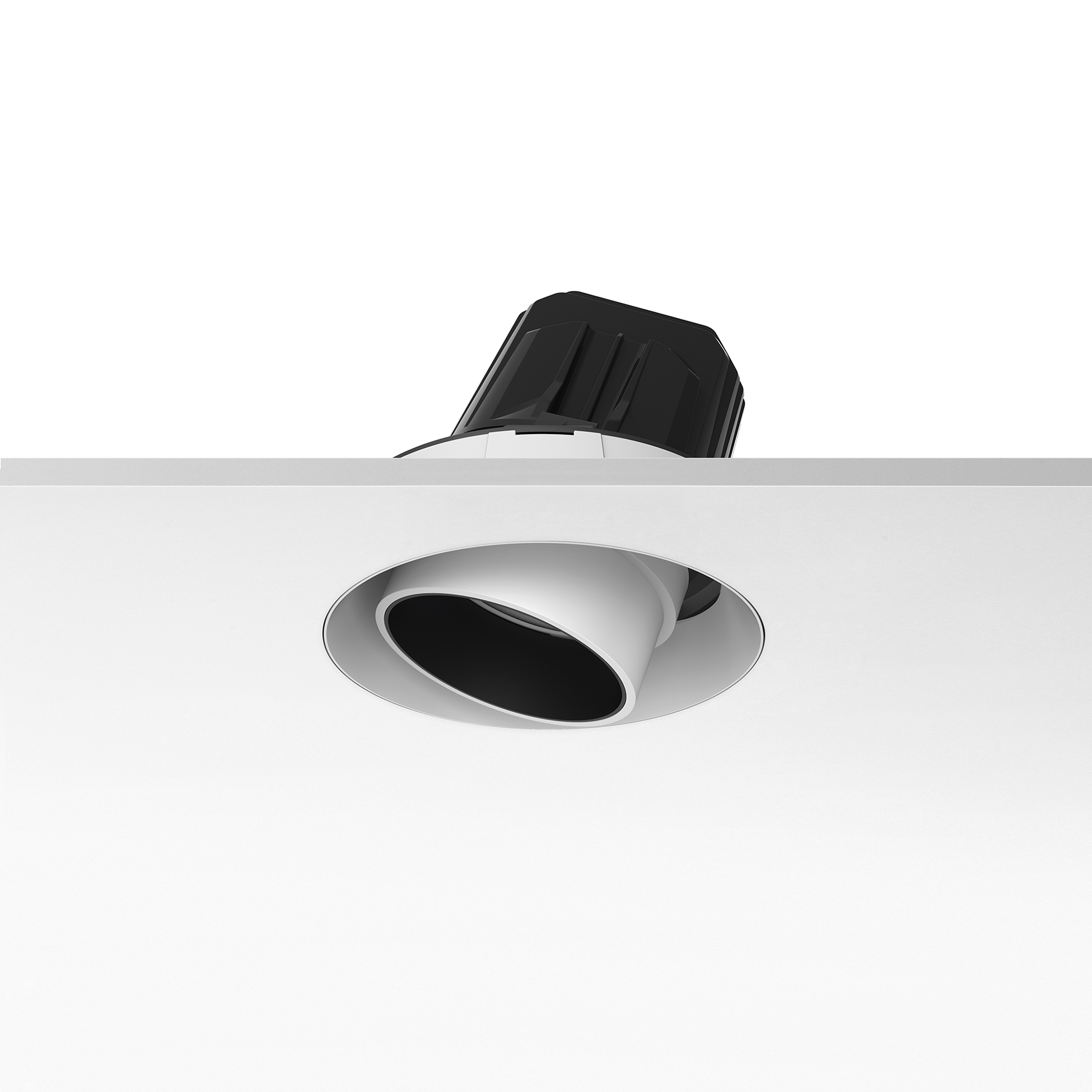

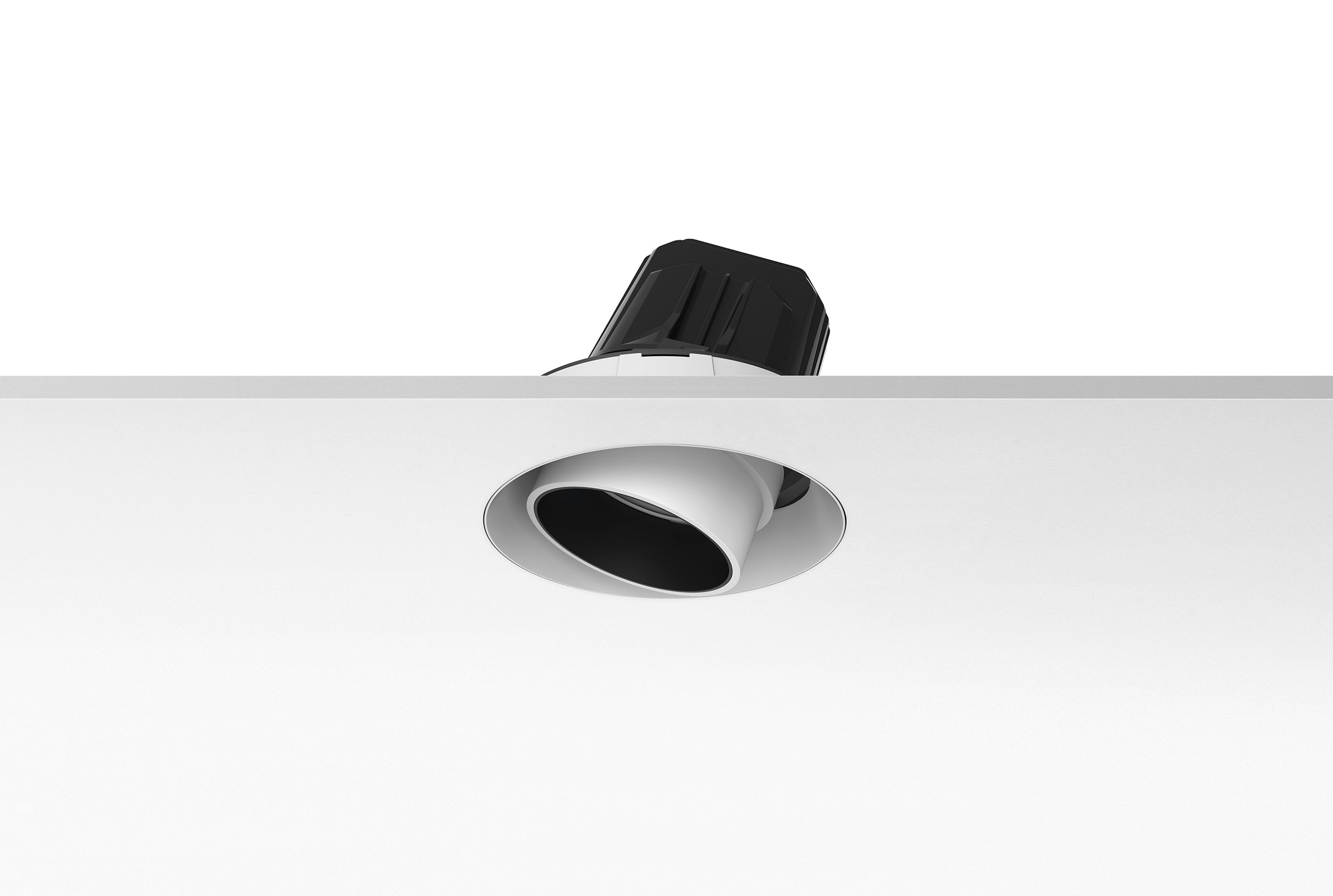

Recessed luminaire with LED light source. Remote power supply included.

Download Documentation

Product highlight

Compact meets avant-garde

High-power embedded elements with avant-garde LED modules featuring a compact size with maximum integration into the architecture.


Luminaire

(108)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.6823.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1508	3000	90	39	Dimmable DALI 2	Ceiling recessed
03.6823.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1508	3000	90	39	Dimmable 1-10V	Ceiling recessed
03.6823.40A	Light Supply Adjustable No Trim	30.1	1508	3000	90	39	Non Dimmable	Ceiling recessed
03.6823.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1508	3000	90	39	Dimmable DALI 2	Ceiling recessed
03.6823.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1508	3000	90	39	Dimmable 1-10V	Ceiling recessed
03.6823.14A	Light Supply Adjustable No Trim	30.1	1508	3000	90	39	Non Dimmable	Ceiling recessed
03.6822.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1367	3000	90	21	Dimmable DALI 2	Ceiling recessed
03.6822.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1367	3000	90	21	Dimmable 1-10V	Ceiling recessed
03.6822.40A	Light Supply Adjustable No Trim	30.1	1367	3000	90	21	Non Dimmable	Ceiling recessed
03.6822.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1367	3000	90	21	Dimmable DALI 2	Ceiling recessed
03.6822.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1367	3000	90	21	Dimmable 1-10V	Ceiling recessed
03.6822.14A	Light Supply Adjustable No Trim	30.1	1367	3000	90	21	Non Dimmable	Ceiling recessed
03.6821.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1698	3000	90	13	Dimmable DALI 2	Ceiling recessed
03.6821.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1698	3000	90	13	Dimmable 1-10V	Ceiling recessed
03.6821.40A	Light Supply Adjustable No Trim	30.1	1698	3000	90	13	Non Dimmable	Ceiling recessed
03.6821.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1698	3000	90	13	Dimmable DALI 2	Ceiling recessed
03.6821.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1698	3000	90	13	Dimmable 1-10V	Ceiling recessed
03.6821.14A	Light Supply Adjustable No Trim	30.1	1698	3000	90	13	Non Dimmable	Ceiling recessed
03.6820.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1639	4000	90	39	Dimmable DALI 2	Ceiling recessed
03.6820.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1639	4000	90	39	Dimmable 1-10V	Ceiling recessed
03.6820.40A	Light Supply Adjustable No Trim	30.1	1639	4000	90	39	Non Dimmable	Ceiling recessed
03.6820.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1639	4000	90	39	Dimmable DALI 2	Ceiling recessed
03.6820.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1639	4000	90	39	Dimmable 1-10V	Ceiling recessed
03.6820.14A	Light Supply Adjustable No Trim	30.1	1639	4000	90	39	Non Dimmable	Ceiling recessed
03.6819.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1486	4000	90	21	Dimmable DALI 2	Ceiling recessed
03.6819.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1486	4000	90	21	Dimmable 1-10V	Ceiling recessed
03.6819.40A	Light Supply Adjustable No Trim	30.1	1486	4000	90	21	Non Dimmable	Ceiling recessed
03.6819.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1486	4000	90	21	Dimmable DALI 2	Ceiling recessed
03.6819.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1486	4000	90	21	Dimmable 1-10V	Ceiling recessed
03.6819.14A	Light Supply Adjustable No Trim	30.1	1486	4000	90	21	Non Dimmable	Ceiling recessed
03.6818.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1846	4000	90	13	Dimmable DALI 2	Ceiling recessed
03.6818.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1846	4000	90	13	Dimmable 1-10V	Ceiling recessed
03.6818.40A	Light Supply Adjustable No Trim	30.1	1846	4000	90	13	Non Dimmable	Ceiling recessed
03.6818.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1846	4000	90	13	Dimmable DALI 2	Ceiling recessed
03.6818.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1846	4000	90	13	Dimmable 1-10V	Ceiling recessed
03.6818.14A	Light Supply Adjustable No Trim	30.1	1846	4000	90	13	Non Dimmable	Ceiling recessed
03.6817.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1960	3000	80	39	Dimmable DALI 2	Ceiling recessed
03.6817.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1960	3000	80	39	Dimmable 1-10V	Ceiling recessed
03.6817.40A	Light Supply Adjustable No Trim	30.1	1960	3000	80	39	Non Dimmable	Ceiling recessed
03.6817.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1960	3000	80	39	Dimmable DALI 2	Ceiling recessed
03.6817.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1960	3000	80	39	Dimmable 1-10V	Ceiling recessed
03.6817.14A	Light Supply Adjustable No Trim	30.1	1960	3000	80	39	Non Dimmable	Ceiling recessed
03.6816.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	1777	3000	80	21	Dimmable DALI 2	Ceiling recessed
03.6816.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	1777	3000	80	21	Dimmable 1-10V	Ceiling recessed
03.6816.40A	Light Supply Adjustable No Trim	30.1	1777	3000	80	21	Non Dimmable	Ceiling recessed
03.6816.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	1777	3000	80	21	Dimmable DALI 2	Ceiling recessed
03.6816.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	1777	3000	80	21	Dimmable 1-10V	Ceiling recessed
03.6816.14A	Light Supply Adjustable No Trim	30.1	1777	3000	80	21	Non Dimmable	Ceiling recessed
03.6815.40BDA	Light Supply Adjustable No Trim Dimmable	30.1	2208	3000	80	13	Dimmable DALI 2	Ceiling recessed
03.6815.40A1V	Light Supply Adjustable No Trim Dimmable	30.1	2208	3000	80	13	Dimmable 1-10V	Ceiling recessed
03.6815.40A	Light Supply Adjustable No Trim	30.1	2208	3000	80	13	Non Dimmable	Ceiling recessed
03.6815.14BDA	Light Supply Adjustable No Trim Dimmable	30.1	2208	3000	80	13	Dimmable DALI 2	Ceiling recessed
03.6815.14A1V	Light Supply Adjustable No Trim Dimmable	30.1	2208	3000	80	13	Dimmable 1-10V	Ceiling recessed
03.6815.14A	Light Supply Adjustable No Trim	30.1	2208	3000	80	13	Non Dimmable	Ceiling recessed
03.6808.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1508	3000	90	39	Dimmable DALI 2	Ceiling recessed
03.6808.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1508	3000	90	39	Dimmable 1-10V	Ceiling recessed
03.6808.40A	Light Supply Adjustable Trim	30.1	1508	3000	90	39	Non Dimmable	Ceiling recessed
03.6808.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1508	3000	90	39	Dimmable DALI 2	Ceiling recessed
03.6808.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1508	3000	90	39	Dimmable 1-10V	Ceiling recessed
03.6808.14A	Light Supply Adjustable Trim	30.1	1508	3000	90	39	Non Dimmable	Ceiling recessed
03.6807.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1367	3000	90	21	Dimmable DALI 2	Ceiling recessed
03.6807.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1367	3000	90	21	Dimmable 1-10V	Ceiling recessed
03.6807.40A	Light Supply Adjustable Trim	30.1	1367	3000	90	21	Non Dimmable	Ceiling recessed
03.6807.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1367	3000	90	21	Dimmable DALI 2	Ceiling recessed
03.6807.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1367	3000	90	21	Dimmable 1-10V	Ceiling recessed
03.6807.14A	Light Supply Adjustable Trim	30.1	1367	3000	90	21	Non Dimmable	Ceiling recessed
03.6806.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1698	3000	90	13	Dimmable DALI 2	Ceiling recessed
03.6806.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1698	3000	90	13	Dimmable 1-10V	Ceiling recessed
03.6806.40A	Light Supply Adjustable Trim	30.1	1698	3000	90	13	Non Dimmable	Ceiling recessed
03.6806.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1698	3000	90	13	Dimmable DALI 2	Ceiling recessed
03.6806.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1698	3000	90	13	Dimmable 1-10V	Ceiling recessed
03.6806.14A	Light Supply Adjustable Trim	30.1	1698	3000	90	13	Non Dimmable	Ceiling recessed
03.6805.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1639	4000	90	39	Dimmable DALI 2	Ceiling recessed
03.6805.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1639	4000	90	39	Dimmable 1-10V	Ceiling recessed
03.6805.40A	Light Supply Adjustable Trim	30.1	1639	4000	90	39	Non Dimmable	Ceiling recessed
03.6805.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1639	4000	90	39	Dimmable DALI 2	Ceiling recessed
03.6805.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1639	4000	90	39	Dimmable 1-10V	Ceiling recessed
03.6805.14A	Light Supply Adjustable Trim	30.1	1639	4000	90	39	Non Dimmable	Ceiling recessed
03.6804.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1486	4000	90	21	Dimmable DALI 2	Ceiling recessed
03.6804.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1486	4000	90	21	Dimmable 1-10V	Ceiling recessed
03.6804.40A	Light Supply Adjustable Trim	30.1	1486	4000	90	21	Non Dimmable	Ceiling recessed
03.6804.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1486	4000	90	21	Dimmable DALI 2	Ceiling recessed
03.6804.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1486	4000	90	21	Dimmable 1-10V	Ceiling recessed
03.6804.14A	Light Supply Adjustable Trim	30.1	1486	4000	90	21	Non Dimmable	Ceiling recessed
03.6803.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1846	4000	90	13	Dimmable DALI 2	Ceiling recessed
03.6803.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1846	4000	90	13	Dimmable 1-10V	Ceiling recessed
03.6803.40A	Light Supply Adjustable Trim	30.1	1846	4000	90	13	Non Dimmable	Ceiling recessed
03.6803.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1846	4000	90	13	Dimmable DALI 2	Ceiling recessed
03.6803.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1846	4000	90	13	Dimmable 1-10V	Ceiling recessed
03.6803.14A	Light Supply Adjustable Trim	30.1	1846	4000	90	13	Non Dimmable	Ceiling recessed
03.6802.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1960	3000	80	39	Dimmable DALI 2	Ceiling recessed
03.6802.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1960	3000	80	39	Dimmable 1-10V	Ceiling recessed
03.6802.40A	Light Supply Adjustable Trim	30.1	1960	3000	80	39	Non Dimmable	Ceiling recessed
03.6802.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1960	3000	80	39	Dimmable DALI 2	Ceiling recessed
03.6802.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1960	3000	80	39	Dimmable 1-10V	Ceiling recessed
03.6802.14A	Light Supply Adjustable Trim	30.1	1960	3000	80	39	Non Dimmable	Ceiling recessed
03.6801.40BDA	Light Supply Adjustable Trim Dimmable	30.1	1777	3000	80	21	Dimmable DALI 2	Ceiling recessed
03.6801.40A1V	Light Supply Adjustable Trim Dimmable	30.1	1777	3000	80	21	Dimmable 1-10V	Ceiling recessed
03.6801.40A	Light Supply Adjustable Trim	30.1	1777	3000	80	21	Non Dimmable	Ceiling recessed
03.6801.14BDA	Light Supply Adjustable Trim Dimmable	30.1	1777	3000	80	21	Dimmable DALI 2	Ceiling recessed
03.6801.14A1V	Light Supply Adjustable Trim Dimmable	30.1	1777	3000	80	21	Dimmable 1-10V	Ceiling recessed
03.6801.14A	Light Supply Adjustable Trim	30.1	1777	3000	80	21	Non Dimmable	Ceiling recessed
03.6800.40BDA	Light Supply Adjustable Trim Dimmable	30.1	2208	3000	80	13	Dimmable DALI 2	Ceiling recessed
03.6800.40A1V	Light Supply Adjustable Trim Dimmable	30.1	2208	3000	80	13	Dimmable 1-10V	Ceiling recessed
03.6800.40A	Light Supply Adjustable Trim	30.1	2208	3000	80	13	Non Dimmable	Ceiling recessed
03.6800.14BDA	Light Supply Adjustable Trim Dimmable	30.1	2208	3000	80	13	Dimmable DALI 2	Ceiling recessed
03.6800.14A1V	Light Supply Adjustable Trim Dimmable	30.1	2208	3000	80	13	Dimmable 1-10V	Ceiling recessed
03.6800.14A	Light Supply Adjustable Trim	30.1	2208	3000	80	13	Non Dimmable	Ceiling recessed
