Light Supply Wall-Washer

Designed by FLOS Architectural

Recessed luminaire with LED light source. Remote power supply included.

Download Documentation

Product highlight

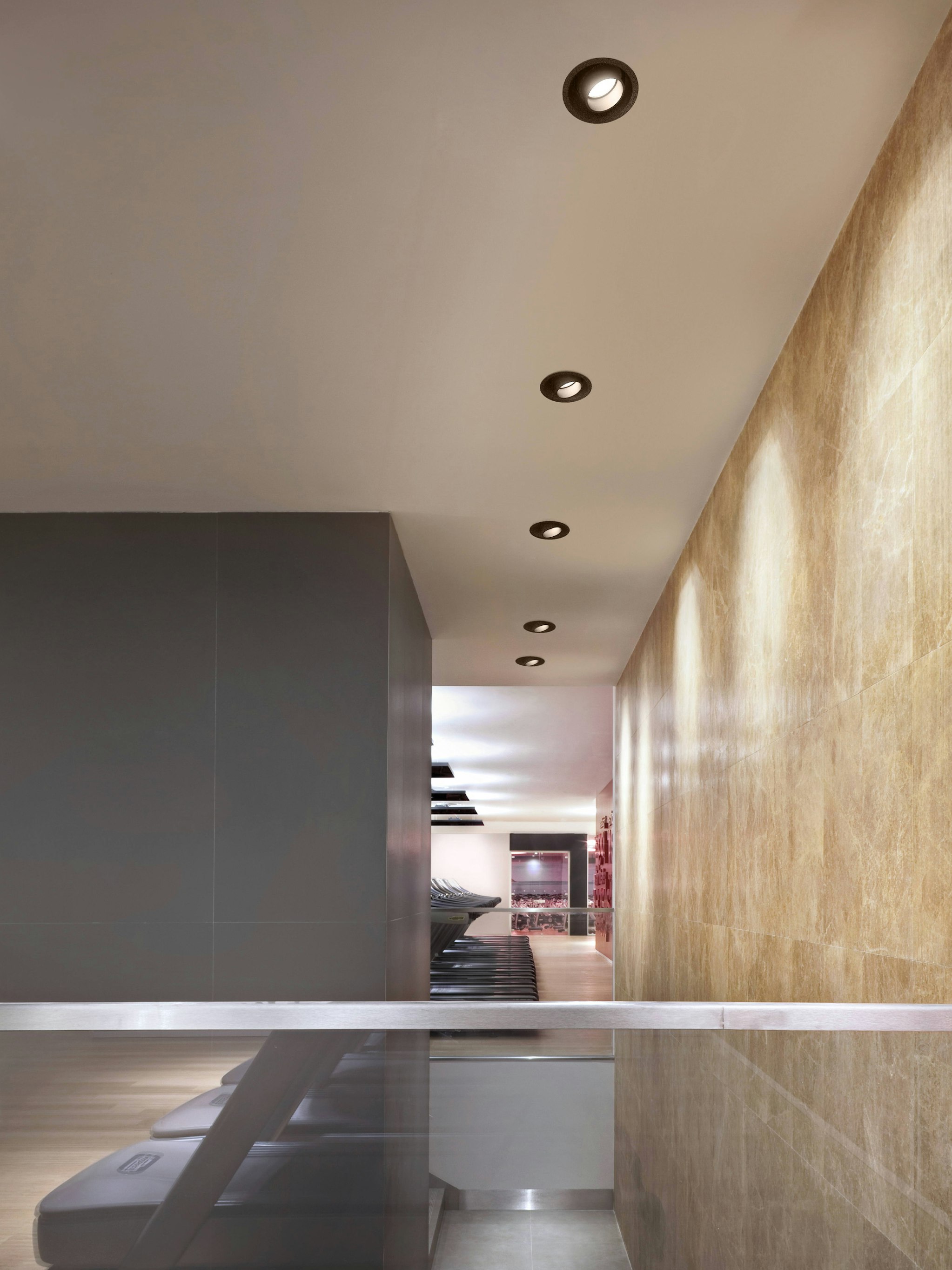

Compact meets avant-garde

High-power embedded elements with avant-garde LED modules featuring a compact size with maximum integration into the architecture.


Luminaire

(54)

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Certifications

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting

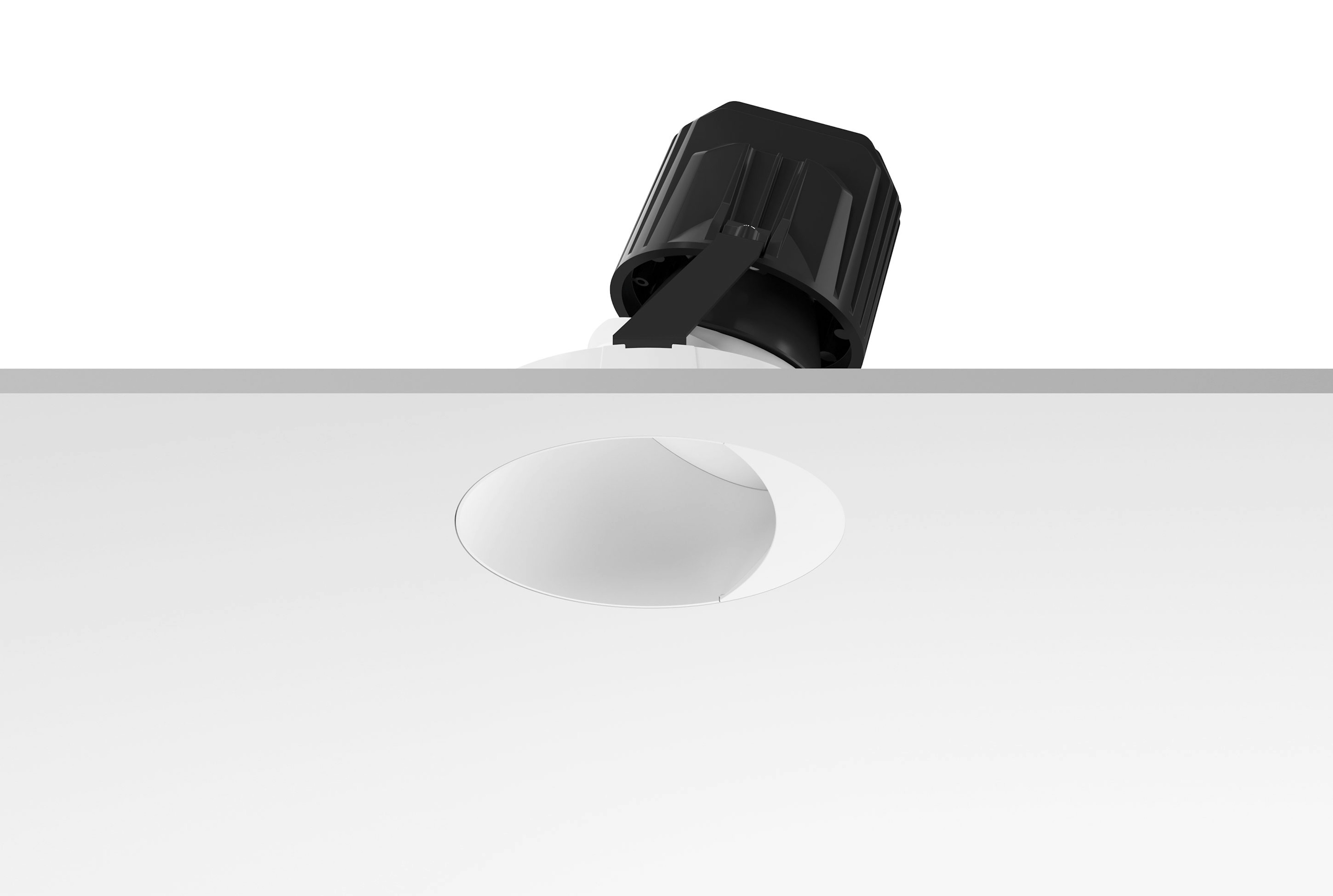

03.6829.40BDA	Light Supply Wall-Washer No Trim Dimmable	33.2	1771	3000	90	36	Dimmable DALI 2	Ceiling recessed
03.6829.40A1V	Light Supply Wall-Washer No Trim Dimmable	33.2	1771	3000	90	36	Dimmable 1-10V	Ceiling recessed
03.6829.40A	Light Supply Wall-Washer No Trim	33.2	1771	3000	90	36	Non Dimmable	Ceiling recessed
03.6829.06BDA	Light Supply Wall-Washer No Trim Dimmable	33.2	1909	3000	90	34	Dimmable DALI 2	Ceiling recessed
03.6829.06A1V	Light Supply Wall-Washer No Trim Dimmable	33.2	1909	3000	90	34	Dimmable 1-10V	Ceiling recessed
03.6829.06A	Light Supply Wall-Washer No Trim	33.2	1909	3000	90	34	Non Dimmable	Ceiling recessed
03.6828.40BDA	Light Supply Wall-Washer No Trim Dimmable	33.2	1845	4000	90	36	Dimmable DALI 2	Ceiling recessed
03.6828.40A1V	Light Supply Wall-Washer No Trim Dimmable	33.2	1845	4000	90	36	Dimmable 1-10V	Ceiling recessed
03.6828.40A	Light Supply Wall-Washer No Trim	33.2	1845	4000	90	36	Non Dimmable	Ceiling recessed
03.6828.06BDA	Light Supply Wall-Washer No Trim Dimmable	33.2	1989	4000	90	34	Dimmable DALI 2	Ceiling recessed
03.6828.06A1V	Light Supply Wall-Washer No Trim Dimmable	33.2	1989	4000	90	34	Dimmable 1-10V	Ceiling recessed
03.6828.06A	Light Supply Wall-Washer No Trim	33.2	1989	4000	90	34	Non Dimmable	Ceiling recessed
03.6827.40BDA	Light Supply Wall-Washer No Trim Dimmable	33.2	2142	3000	80	36	Dimmable DALI 2	Ceiling recessed
03.6827.40A1V	Light Supply Wall-Washer No Trim Dimmable	33.2	2142	3000	80	36	Dimmable 1-10V	Ceiling recessed
03.6827.40A	Light Supply Wall-Washer No Trim	33.2	2142	3000	80	36	Non Dimmable	Ceiling recessed
03.6827.06BDA	Light Supply Wall-Washer No Trim Dimmable	33.2	2310	3000	80	34	Dimmable DALI 2	Ceiling recessed
03.6827.06A1V	Light Supply Wall-Washer No Trim Dimmable	33.2	2310	3000	80	34	Dimmable 1-10V	Ceiling recessed
03.6827.06A	Light Supply Wall-Washer No Trim	33.2	2310	3000	80	34	Non Dimmable	Ceiling recessed

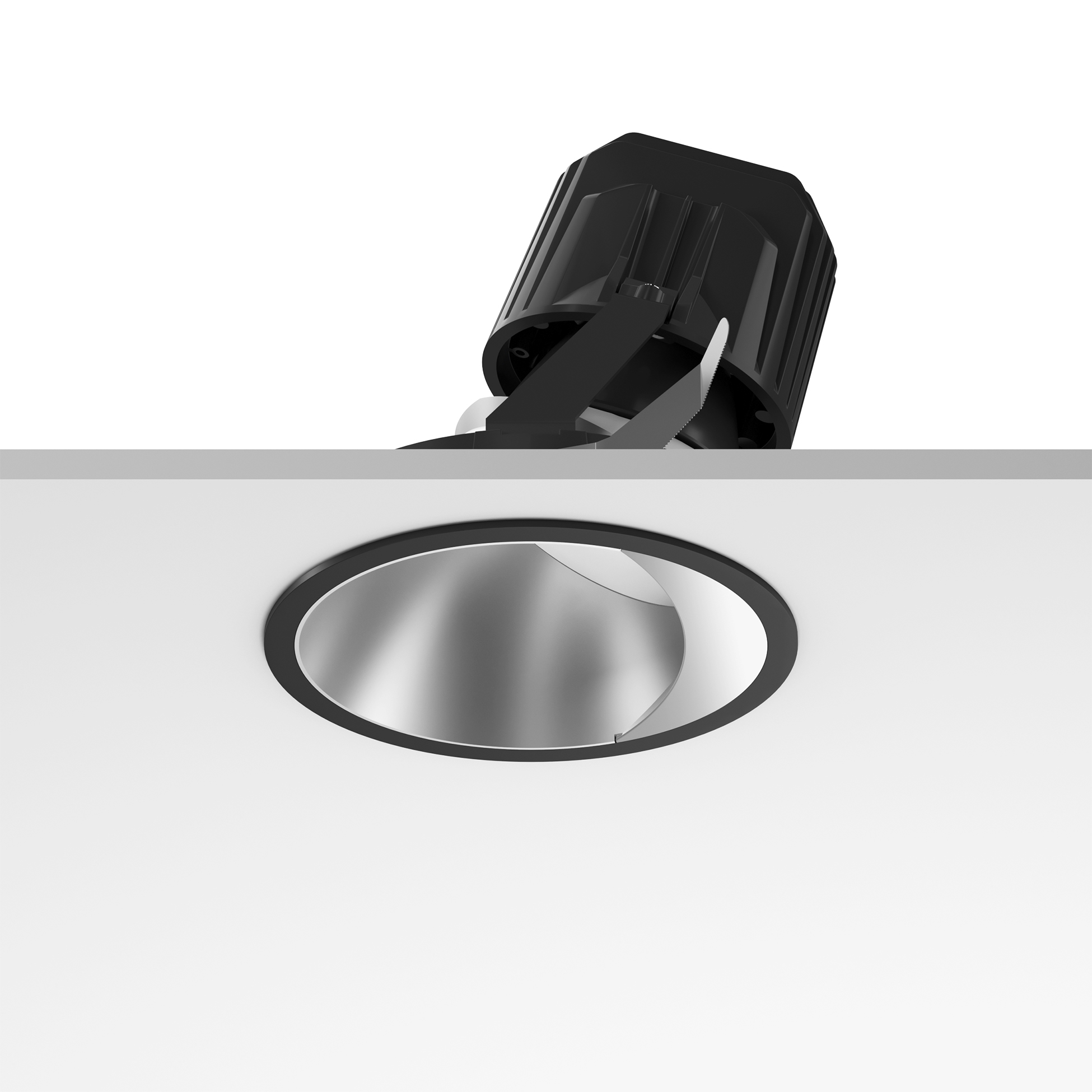

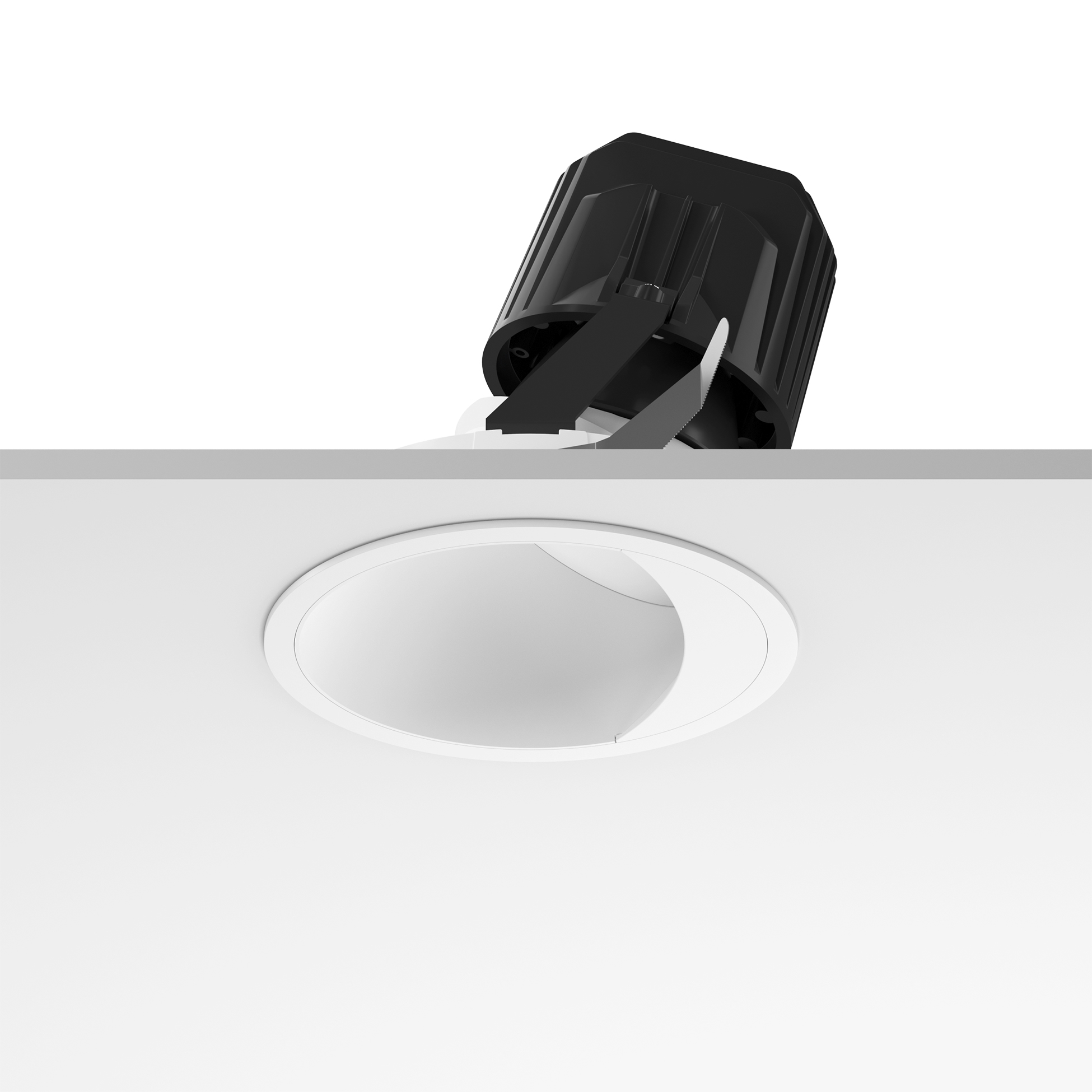

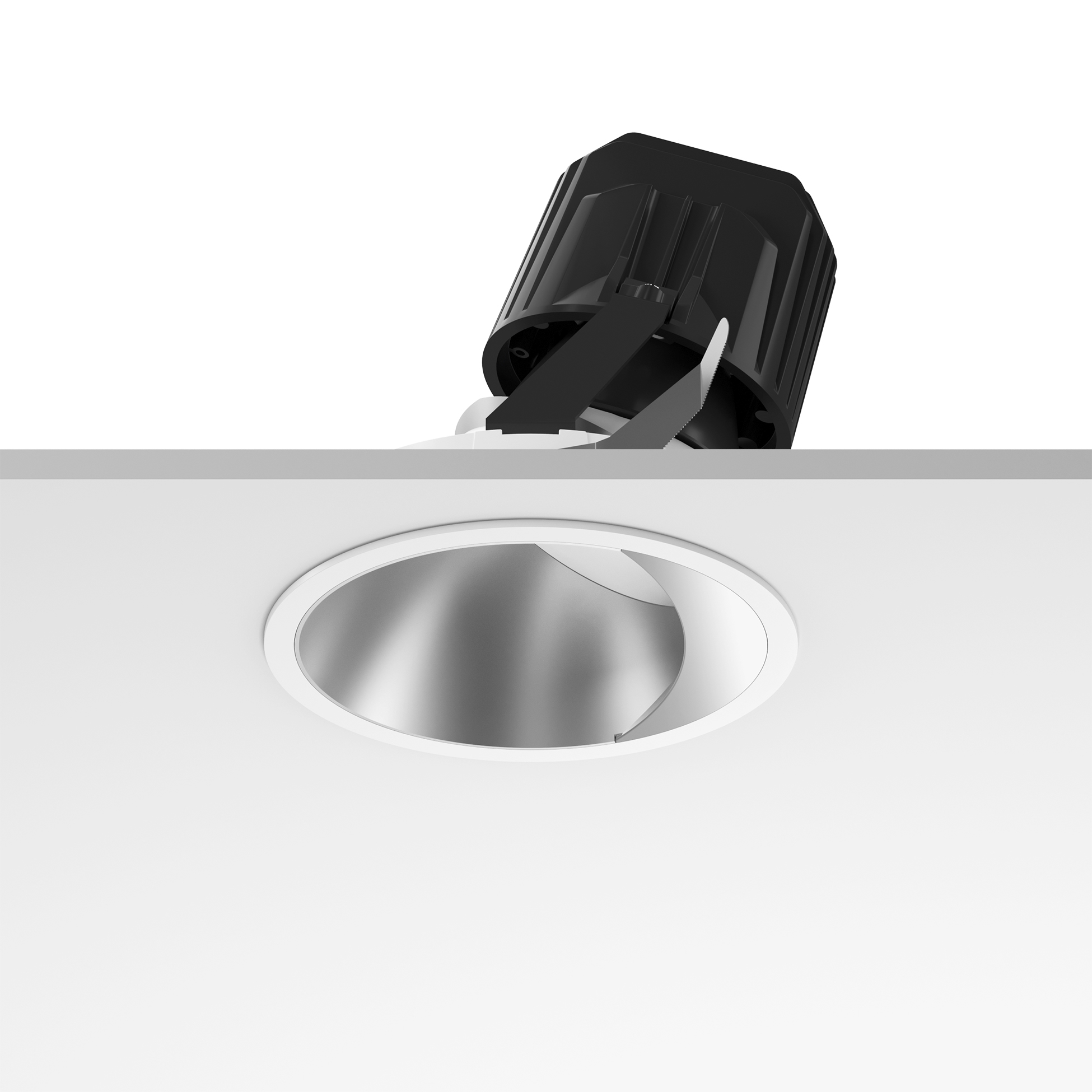

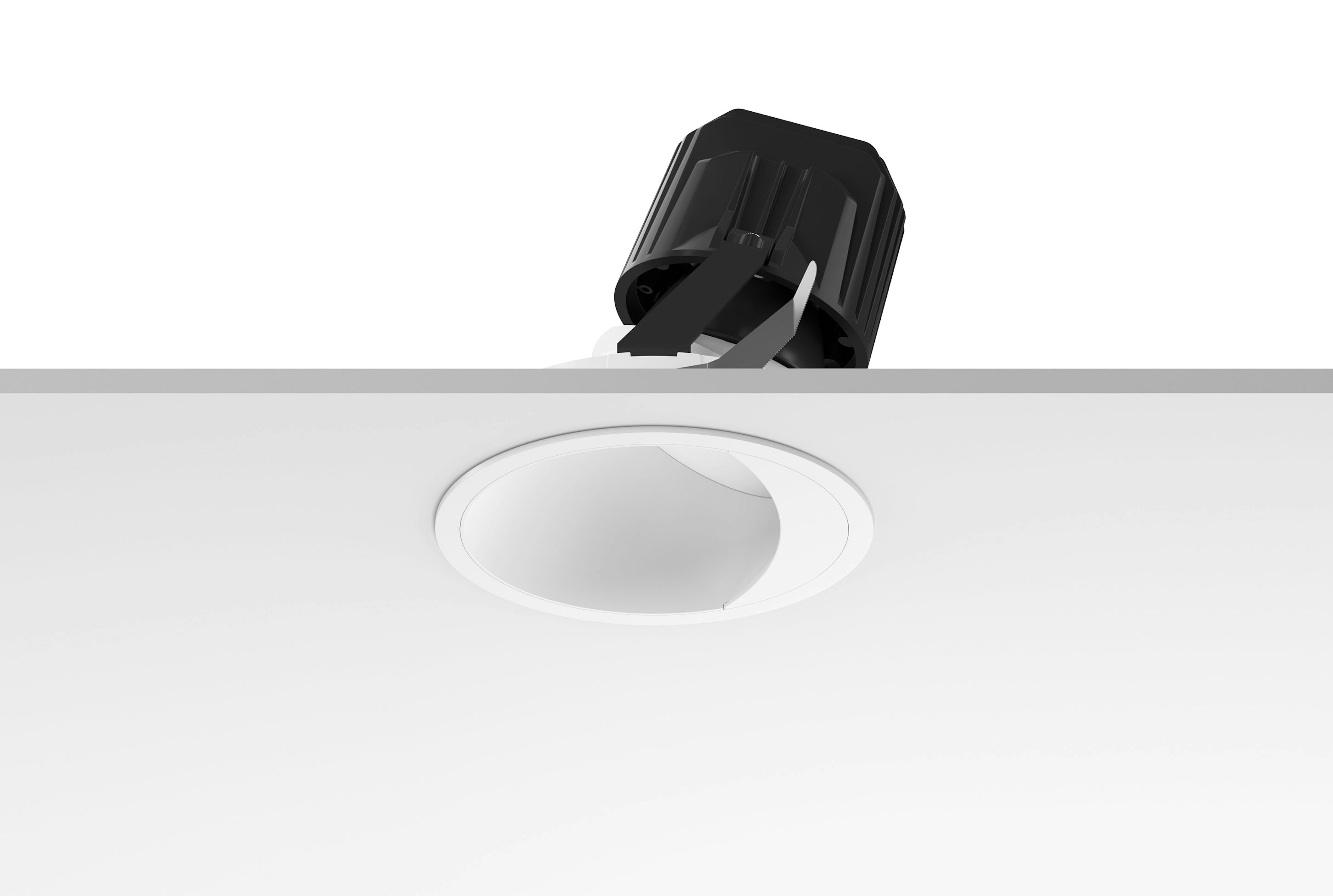

03.6814.3CBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable DALI 2	Ceiling recessed
03.6814.3CA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable 1-10V	Ceiling recessed
03.6814.3CA	Light Supply Wall-Washer Trim	33.2	1771	3000	90	36	Non Dimmable	Ceiling recessed
03.6814.3BBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable DALI 2	Ceiling recessed
03.6814.3BA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable 1-10V	Ceiling recessed
03.6814.3BA	Light Supply Wall-Washer Trim	33.2	1771	3000	90	36	Non Dimmable	Ceiling recessed
03.6814.1CBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable DALI 2	Ceiling recessed
03.6814.1CA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable 1-10V	Ceiling recessed
03.6814.1CA	Light Supply Wall-Washer Trim	33.2	1771	3000	90	36	Non Dimmable	Ceiling recessed
03.6814.1BBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable DALI 2	Ceiling recessed
03.6814.1BA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1771	3000	90	36	Dimmable 1-10V	Ceiling recessed
03.6814.1BA	Light Supply Wall-Washer Trim	33.2	1771	3000	90	36	Non Dimmable	Ceiling recessed
03.6813.3CBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable DALI 2	Ceiling recessed
03.6813.3CA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable 1-10V	Ceiling recessed
03.6813.3CA	Light Supply Wall-Washer Trim	33.2	1845	4000	90	36	Non Dimmable	Ceiling recessed
03.6813.3BBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable DALI 2	Ceiling recessed
03.6813.3BA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable 1-10V	Ceiling recessed
03.6813.3BA	Light Supply Wall-Washer Trim	33.2	1845	4000	90	36	Non Dimmable	Ceiling recessed
03.6813.1CBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable DALI 2	Ceiling recessed
03.6813.1CA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable 1-10V	Ceiling recessed
03.6813.1CA	Light Supply Wall-Washer Trim	33.2	1845	4000	90	36	Non Dimmable	Ceiling recessed
03.6813.1BBDA	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable DALI 2	Ceiling recessed
03.6813.1BA1V	Light Supply Wall-Washer Trim Dimmable	33.2	1845	4000	90	36	Dimmable 1-10V	Ceiling recessed
03.6813.1BA	Light Supply Wall-Washer Trim	33.2	1845	4000	90	36	Non Dimmable	Ceiling recessed
03.6812.3CBDA	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable DALI 2	Ceiling recessed
03.6812.3CA1V	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable 1-10V	Ceiling recessed
03.6812.3CA	Light Supply Wall-Washer Trim	33.2	2142	3000	80	36	Non Dimmable	Ceiling recessed
03.6812.3BBDA	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable DALI 2	Ceiling recessed
03.6812.3BA1V	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable 1-10V	Ceiling recessed
03.6812.3BA	Light Supply Wall-Washer Trim	33.2	2142	3000	80	36	Non Dimmable	Ceiling recessed
03.6812.1CBDA	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable DALI 2	Ceiling recessed
03.6812.1CA1V	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable 1-10V	Ceiling recessed
03.6812.1CA	Light Supply Wall-Washer Trim	33.2	2142	3000	80	36	Non Dimmable	Ceiling recessed
03.6812.1BBDA	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable DALI 2	Ceiling recessed
03.6812.1BA1V	Light Supply Wall-Washer Trim Dimmable	33.2	2142	3000	80	36	Dimmable 1-10V	Ceiling recessed
03.6812.1BA	Light Supply Wall-Washer Trim	33.2	2142	3000	80	36	Non Dimmable	Ceiling recessed
