Light Supply Fixed

Designed by FLOS Architectural

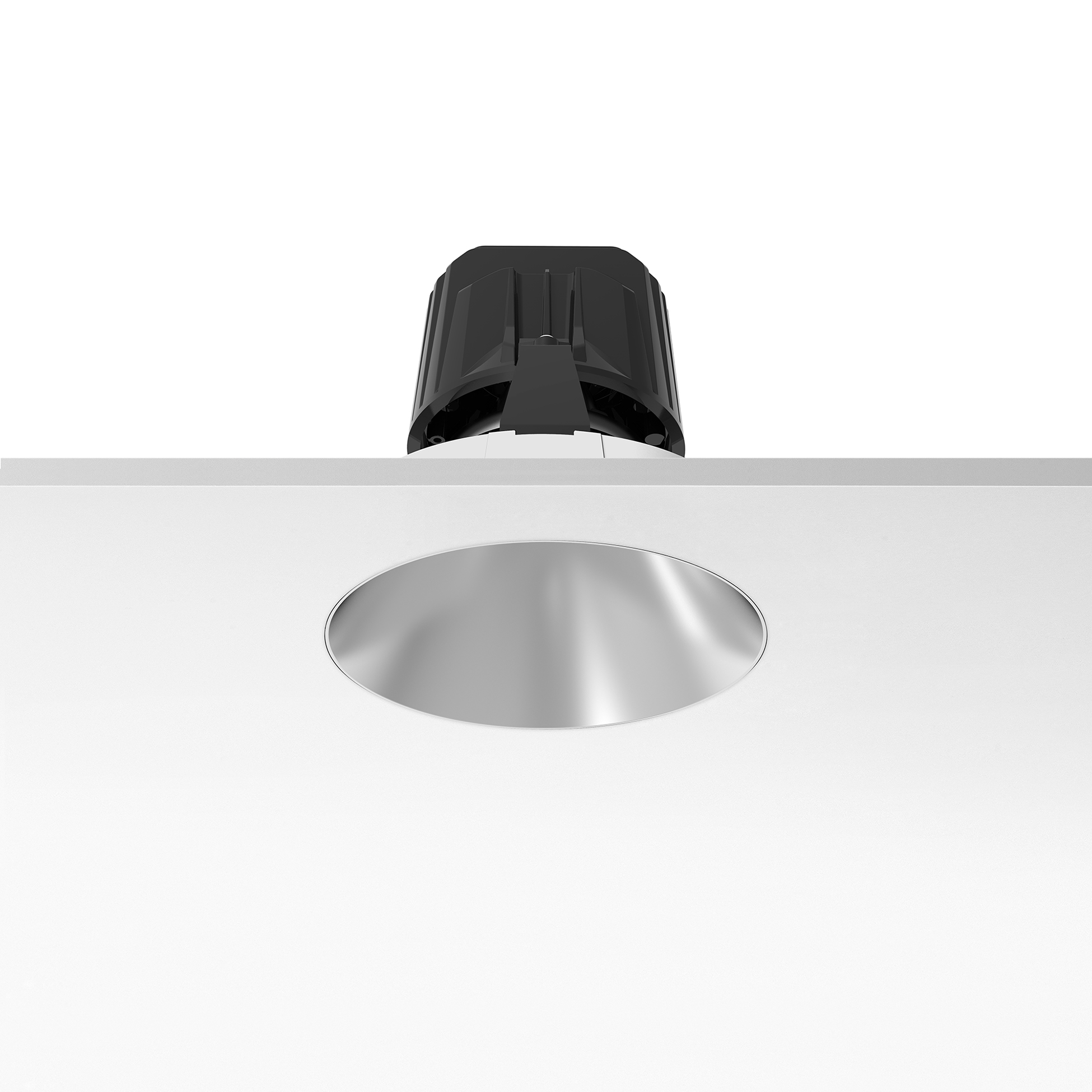

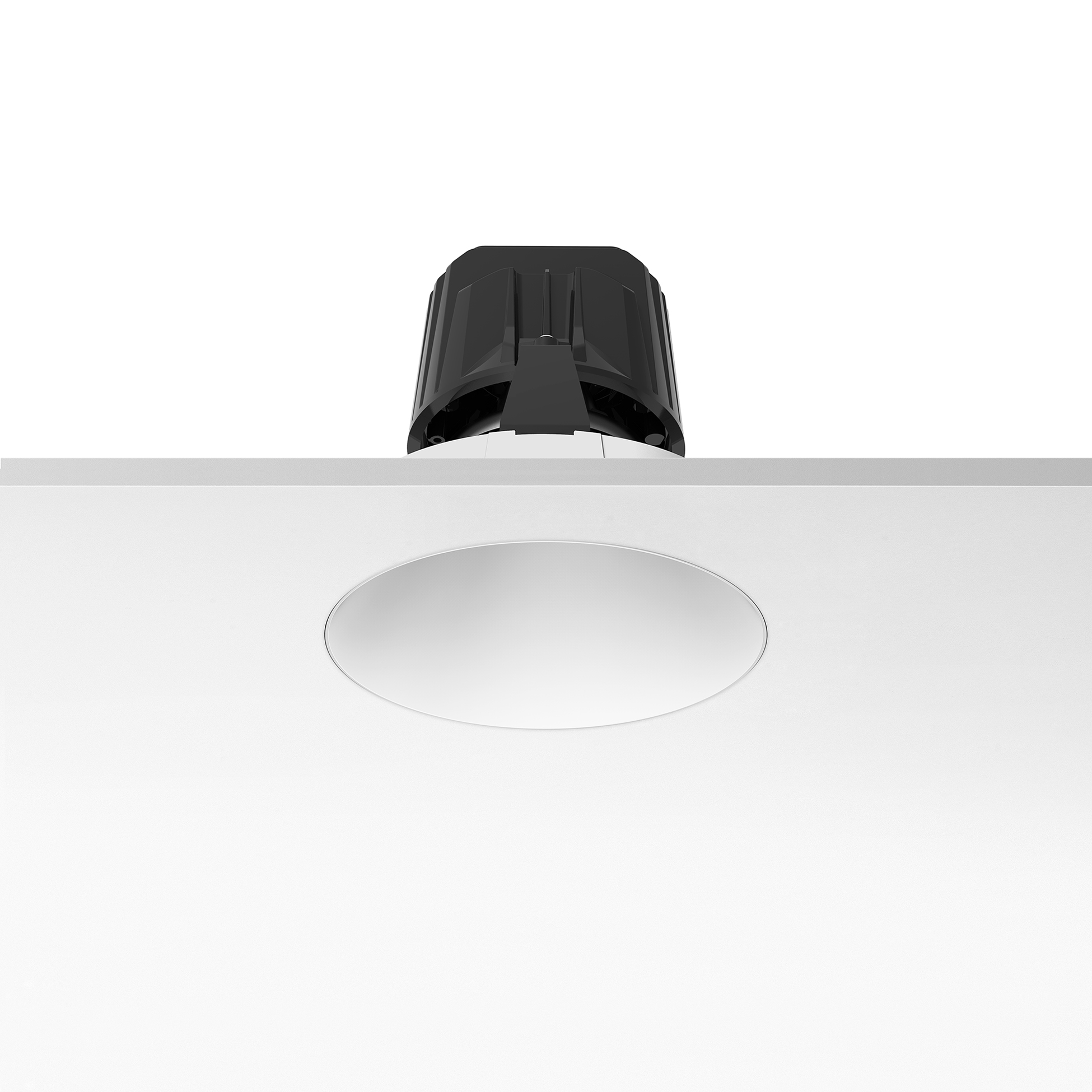

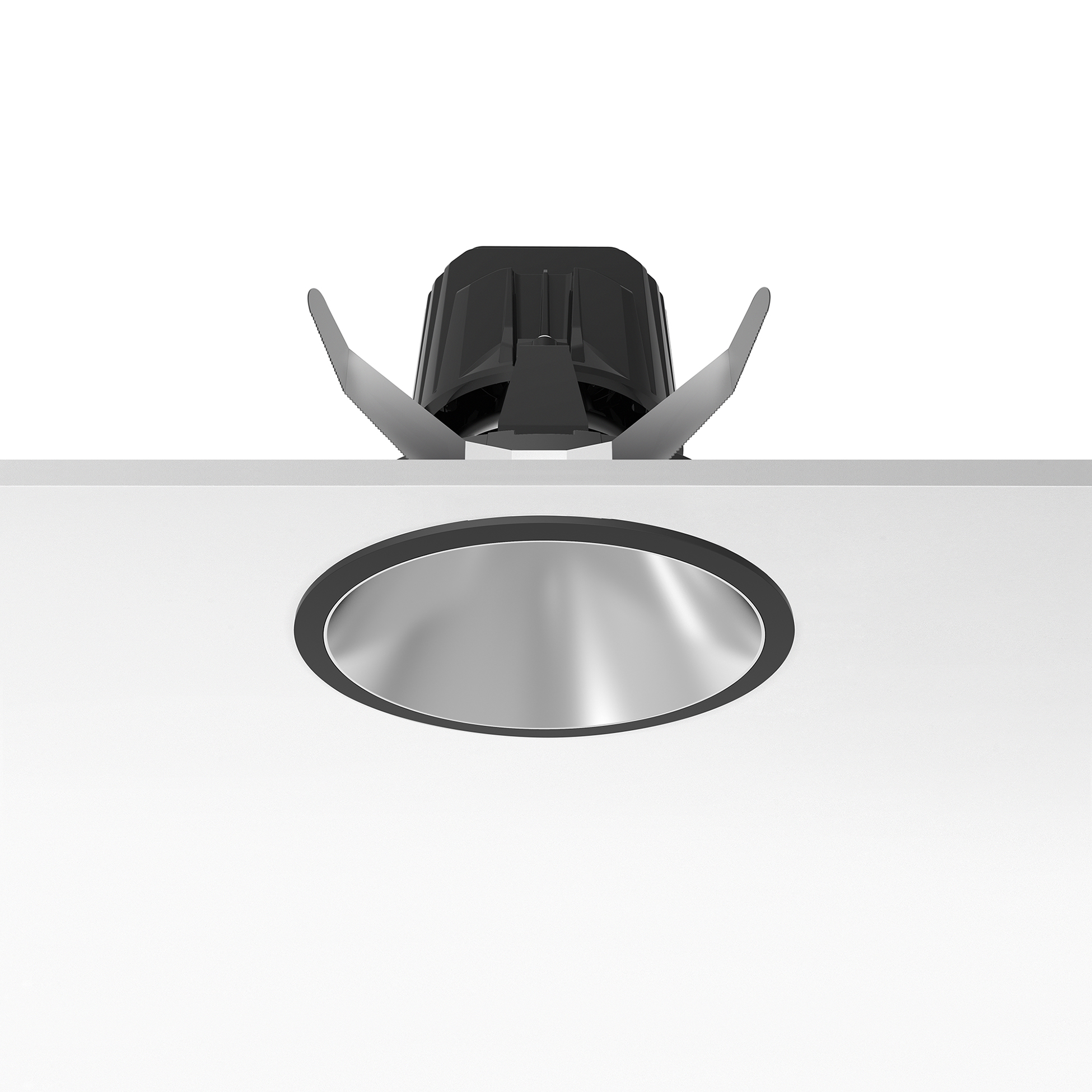

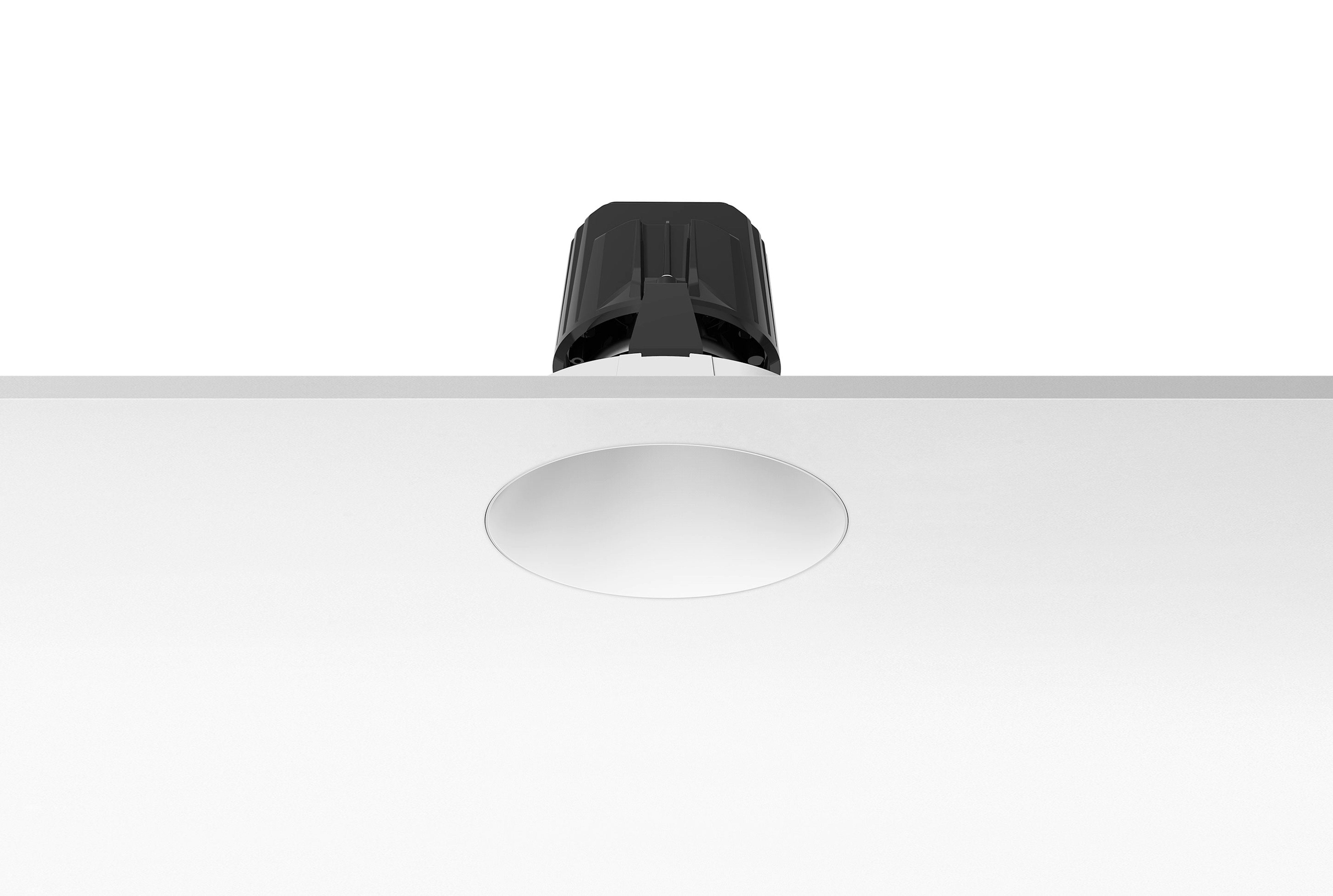

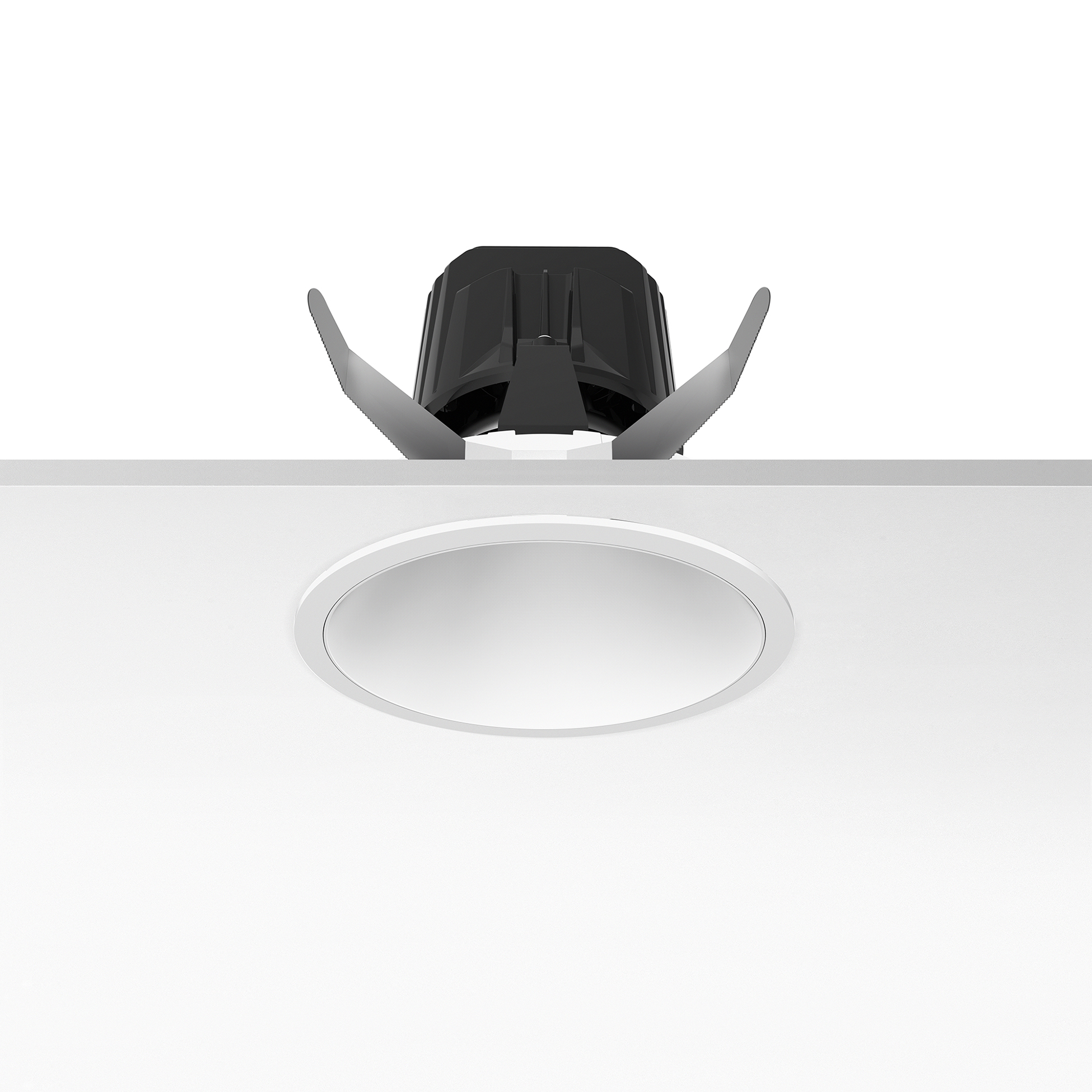

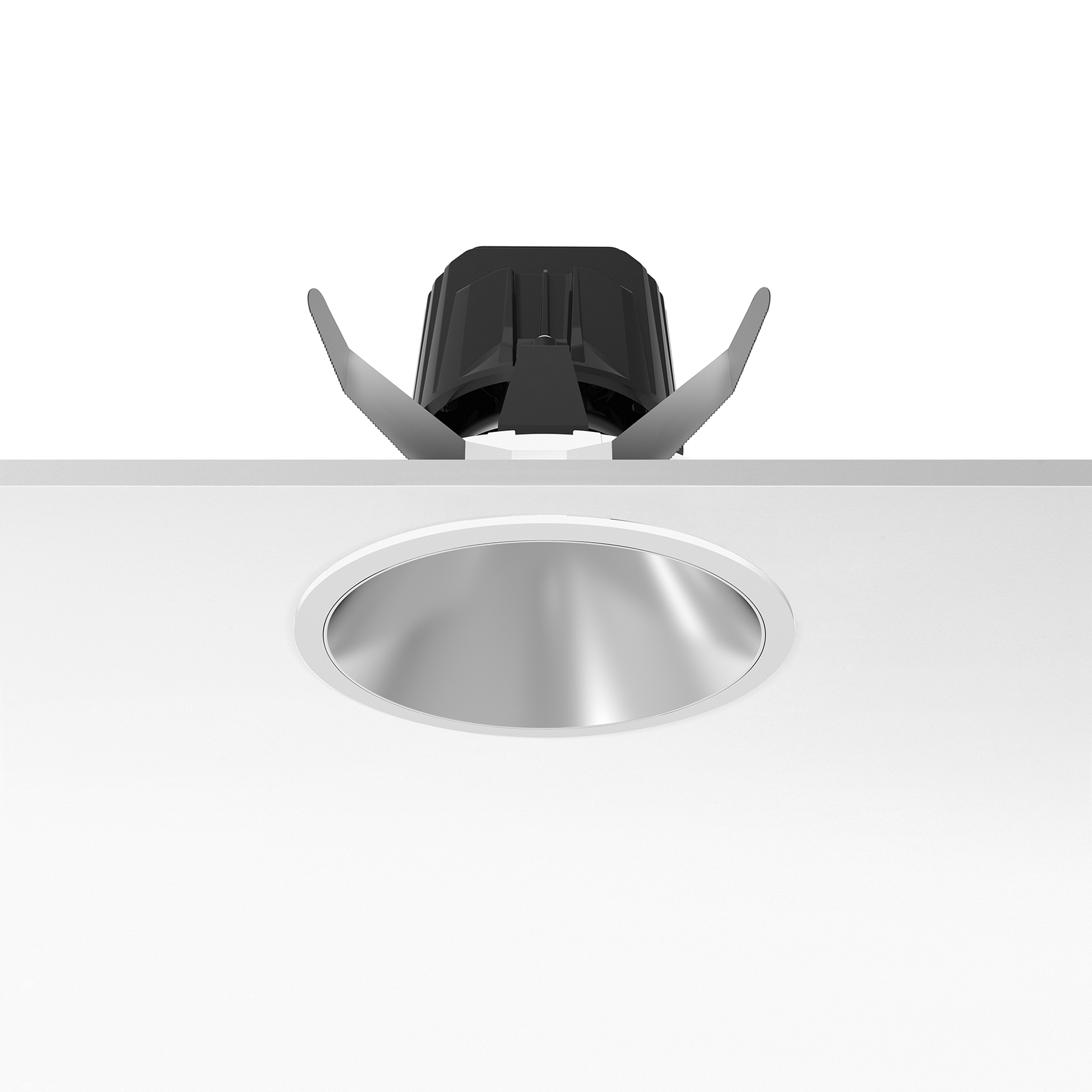

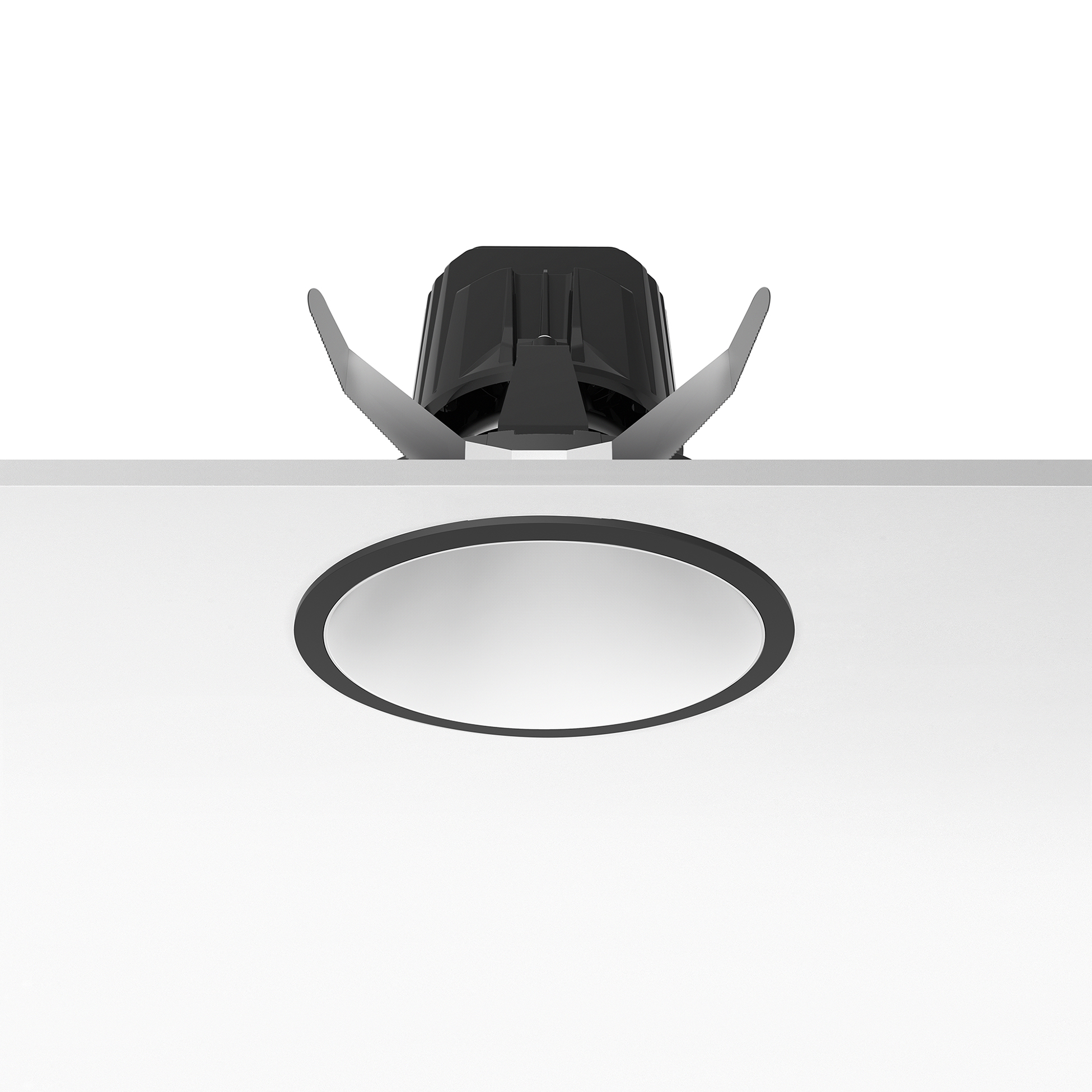

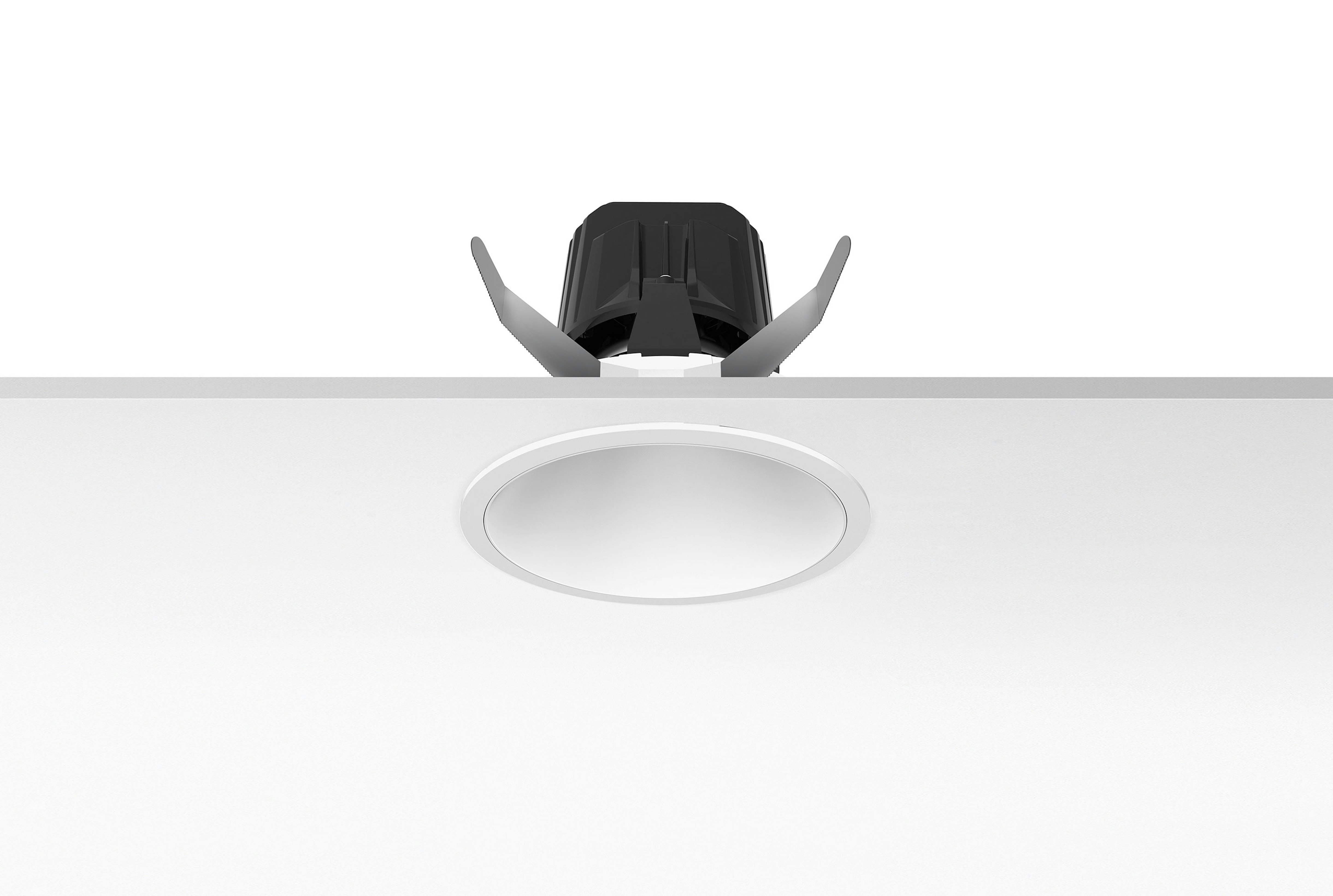

Recessed luminaire with LED light source. Remote power supply included.

Download Documentation

Product highlight

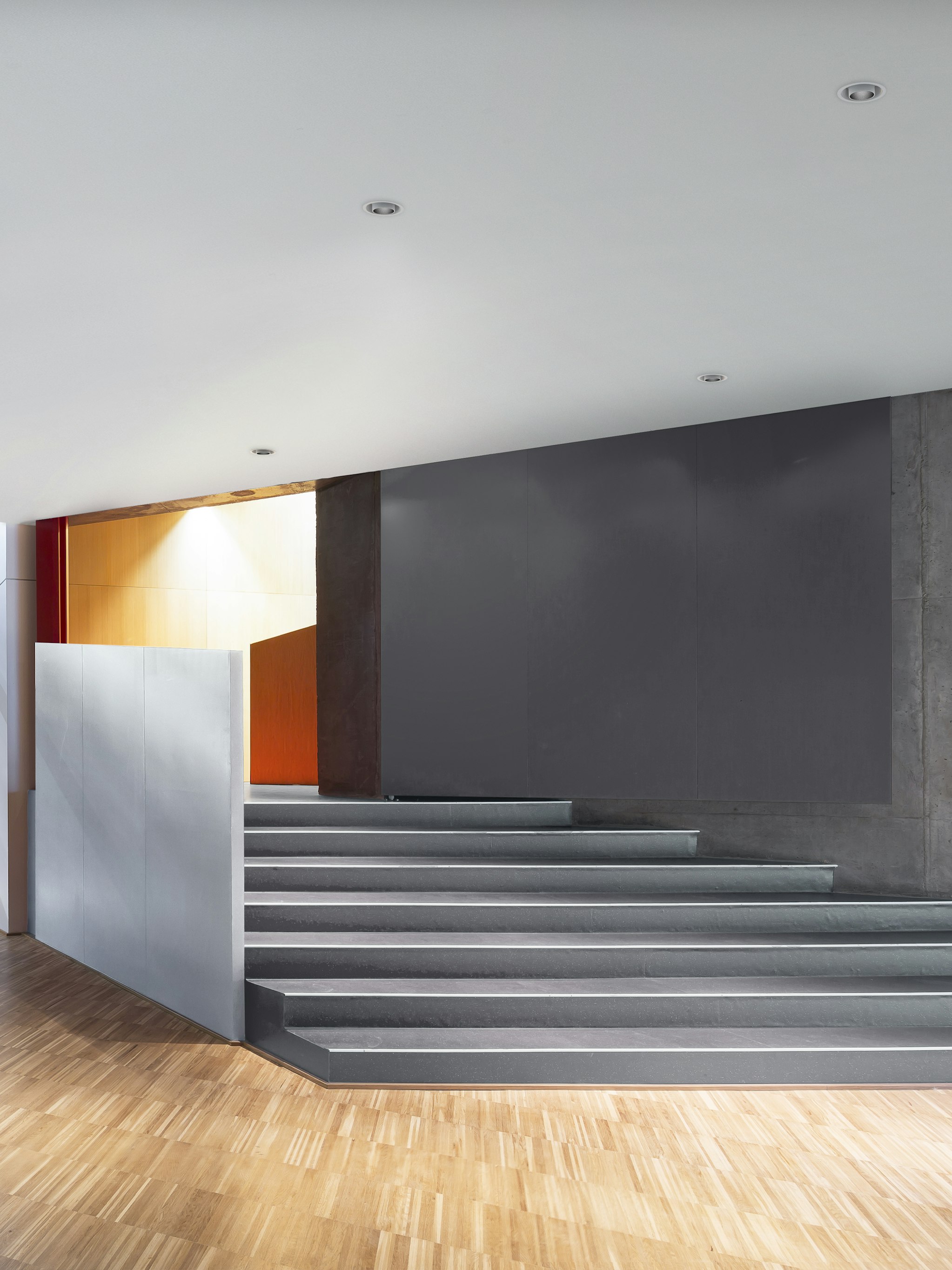

Compact meets avant-garde

High-power embedded elements with avant-garde LED modules featuring a compact size with maximum integration into the architecture.


Luminaire

(45)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Certifications

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.6826.40BDA	Light Supply Fixed No Trim Dimmable	29	1487	3000	90	62	Dimmable DALI 2	Ceiling recessed
03.6826.40A1V	Light Supply Fixed No Trim Dimmable	29	1487	3000	90	62	Dimmable 1-10V	Ceiling recessed
03.6826.40A	Light Supply Fixed No Trim	29	1487	3000	90	62	Non Dimmable	Ceiling recessed
03.6826.06ADA	Light Supply Fixed No Trim Dimmable	29	1755	3000	90	47	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6826.06A	Light Supply Fixed No Trim	29	1755	3000	90	47	Non Dimmable	Ceiling recessed
03.6825.40BDA	Light Supply Fixed No Trim Dimmable	29	1549	4000	90	62	Dimmable DALI 2	Ceiling recessed
03.6825.40A1V	Light Supply Fixed No Trim Dimmable	29	1549	4000	90	62	Dimmable 1-10V	Ceiling recessed
03.6825.40A	Light Supply Fixed No Trim	29	1549	4000	90	62	Non Dimmable	Ceiling recessed
03.6825.06ADA	Light Supply Fixed No Trim Dimmable	29	1828	4000	90	47	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6825.06A	Light Supply Fixed No Trim	29	1828	4000	90	47	Non Dimmable	Ceiling recessed
03.6824.40BDA	Light Supply Fixed No Trim Dimmable	29	1799	3000	80	62	Dimmable DALI 2	Ceiling recessed
03.6824.40A1V	Light Supply Fixed No Trim Dimmable	29	1799	3000	80	62	Dimmable 1-10V	Ceiling recessed
03.6824.40A	Light Supply Fixed No Trim	29	1799	3000	80	62	Non Dimmable	Ceiling recessed
03.6824.06ADA	Light Supply Fixed No Trim Dimmable	29	2123	3000	80	47	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6824.06A	Light Supply Fixed No Trim	29	2123	3000	80	47	Non Dimmable	Ceiling recessed
03.6811.3CADA	Light Supply Fixed Trim Dimmable	29	1487	3000	90	62	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6811.3CA	Light Supply Fixed Trim	29	1487	3000	90	62	Non Dimmable	Ceiling recessed
03.6811.3BBDA	Light Supply Fixed Trim Dimmable	29	1487	3000	90	62	Dimmable DALI 2	Ceiling recessed
03.6811.3BA1V	Light Supply Fixed Trim Dimmable	29	1487	3000	90	62	Dimmable 1-10V	Ceiling recessed
03.6811.3BA	Light Supply Fixed Trim	29	1487	3000	90	62	Non Dimmable	Ceiling recessed
03.6811.1CADA	Light Supply Fixed Trim Dimmable	29	1487	3000	90	62	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6811.1CA	Light Supply Fixed Trim	29	1487	3000	90	62	Non Dimmable	Ceiling recessed
03.6811.1BBDA	Light Supply Fixed Trim Dimmable	29	1487	3000	90	62	Dimmable DALI 2	Ceiling recessed
03.6811.1BA1V	Light Supply Fixed Trim Dimmable	29	1487	3000	90	62	Dimmable 1-10V	Ceiling recessed
03.6811.1BA	Light Supply Fixed Trim	29	1487	3000	90	62	Non Dimmable	Ceiling recessed
03.6810.3CADA	Light Supply Fixed Trim Dimmable	29	1549	4000	90	62	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6810.3CA	Light Supply Fixed Trim	29	1549	4000	90	62	Non Dimmable	Ceiling recessed
03.6810.3BBDA	Light Supply Fixed Trim Dimmable	29	1549	4000	90	62	Dimmable DALI 2	Ceiling recessed
03.6810.3BA1V	Light Supply Fixed Trim Dimmable	29	1549	4000	90	62	Dimmable 1-10V	Ceiling recessed
03.6810.3BA	Light Supply Fixed Trim	29	1549	4000	90	62	Non Dimmable	Ceiling recessed
03.6810.1CADA	Light Supply Fixed Trim Dimmable	29	1549	4000	90	62	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6810.1CA	Light Supply Fixed Trim	29	1549	4000	90	62	Non Dimmable	Ceiling recessed
03.6810.1BBDA	Light Supply Fixed Trim Dimmable	29	1549	4000	90	62	Dimmable DALI 2	Ceiling recessed
03.6810.1BA1V	Light Supply Fixed Trim Dimmable	29	1549	4000	90	62	Dimmable 1-10V	Ceiling recessed
03.6810.1BA	Light Supply Fixed Trim	29	1549	4000	90	62	Non Dimmable	Ceiling recessed
03.6809.3CADA	Light Supply Fixed Trim Dimmable	29	1799	3000	80	62	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6809.3CA	Light Supply Fixed Trim	29	1799	3000	80	62	Non Dimmable	Ceiling recessed
03.6809.3BBDA	Light Supply Fixed Trim Dimmable	29	1799	3000	80	62	Dimmable DALI 2	Ceiling recessed
03.6809.3BA1V	Light Supply Fixed Trim Dimmable	29	1799	3000	80	62	Dimmable 1-10V	Ceiling recessed
03.6809.3BA	Light Supply Fixed Trim	29	1799	3000	80	62	Non Dimmable	Ceiling recessed
03.6809.1CADA	Light Supply Fixed Trim Dimmable	29	1799	3000	80	62	Dimmable 1-10V, Dimmable DALI 1	Ceiling recessed
03.6809.1CA	Light Supply Fixed Trim	29	1799	3000	80	62	Non Dimmable	Ceiling recessed
03.6809.1BBDA	Light Supply Fixed Trim Dimmable	29	1799	3000	80	62	Dimmable DALI 2	Ceiling recessed
03.6809.1BA1V	Light Supply Fixed Trim Dimmable	29	1799	3000	80	62	Dimmable 1-10V	Ceiling recessed
03.6809.1BA	Light Supply Fixed Trim	29	1799	3000	80	62	Non Dimmable	Ceiling recessed
