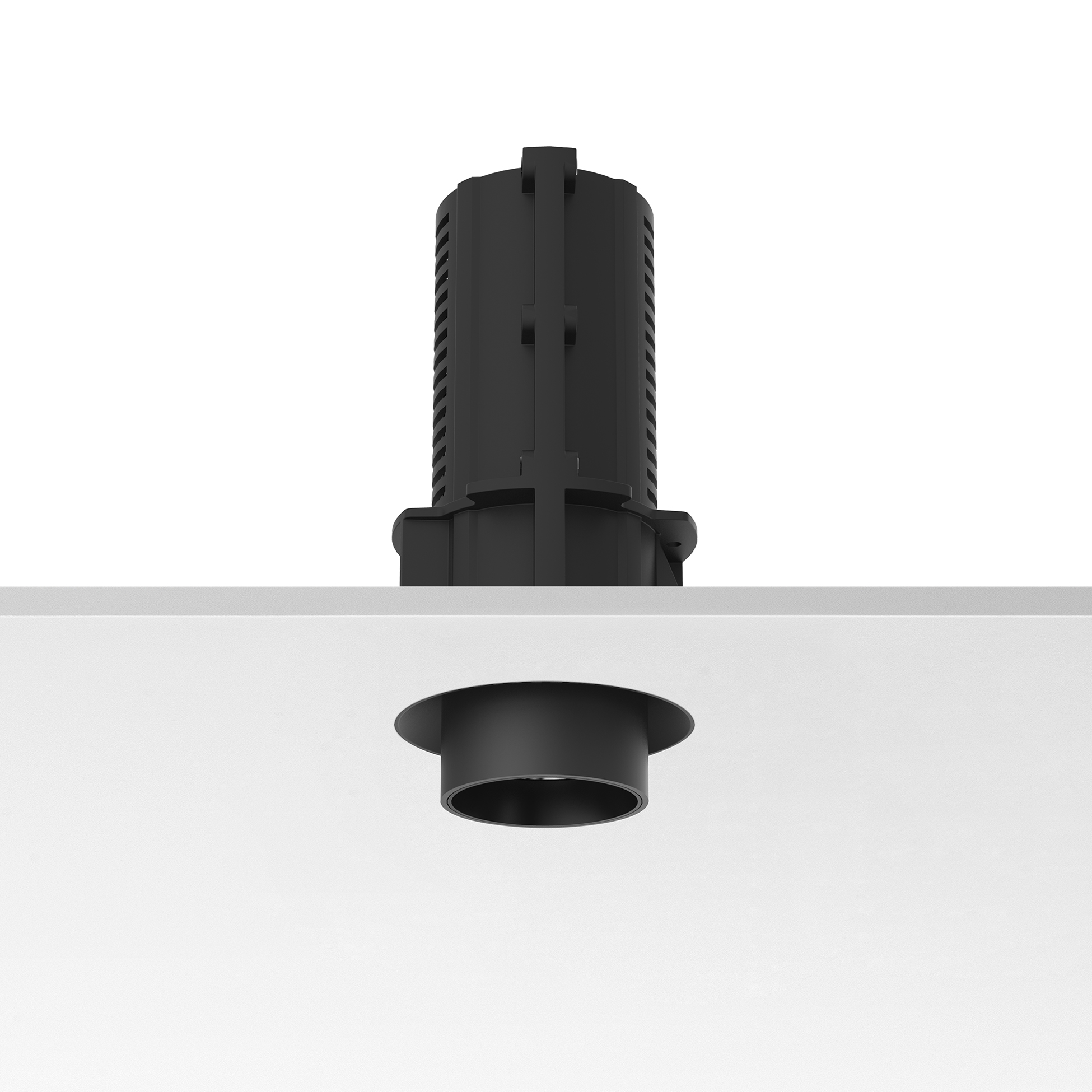

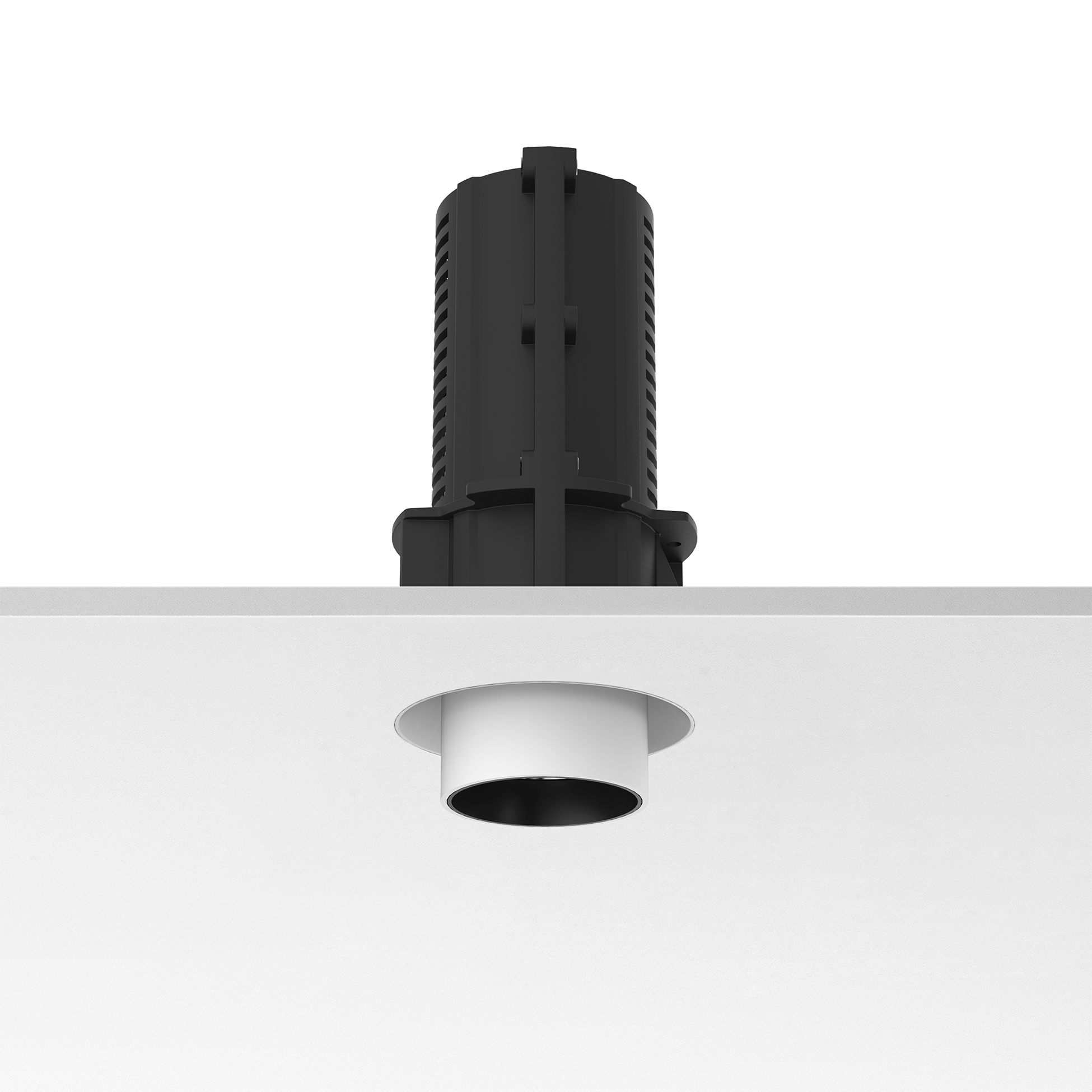

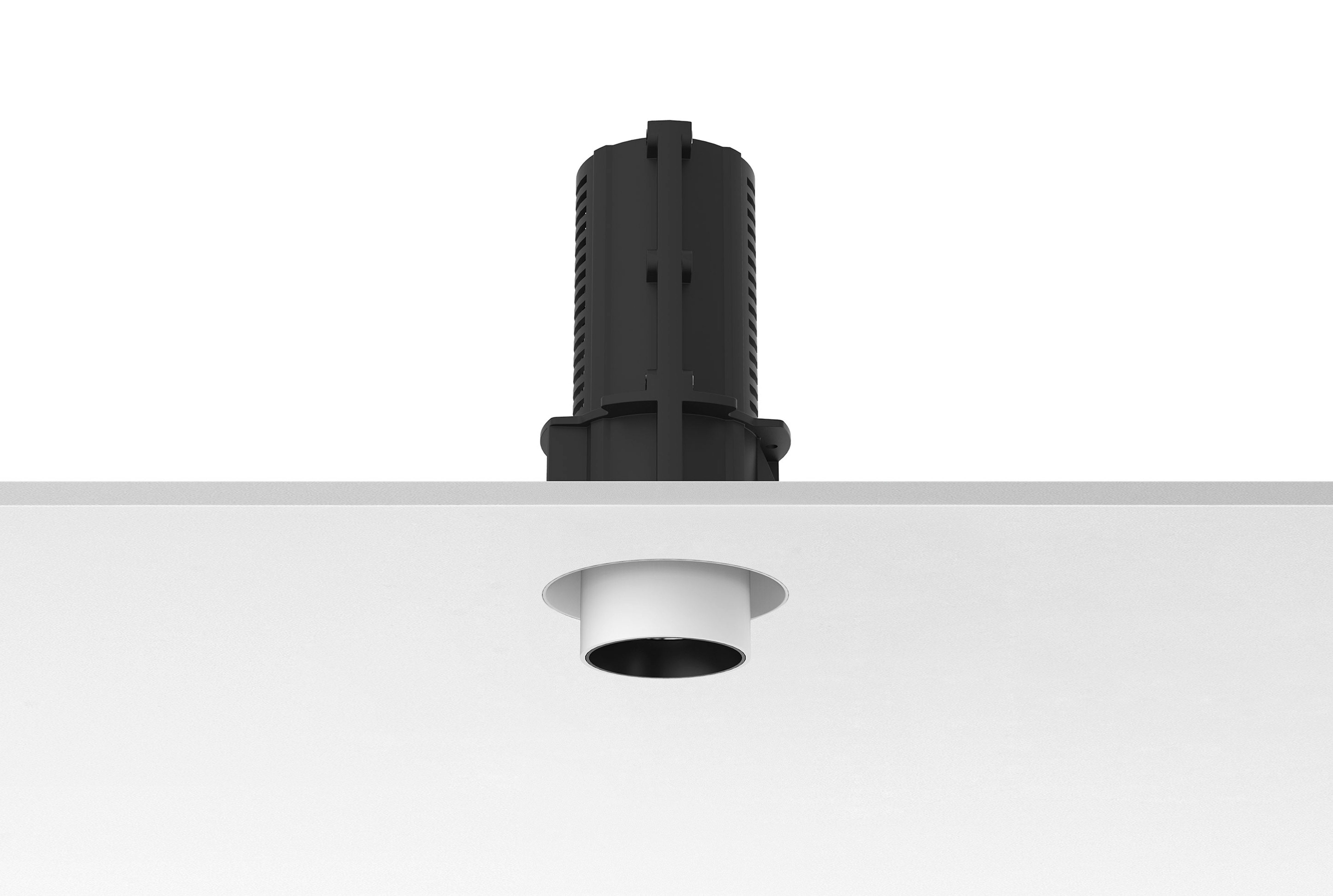

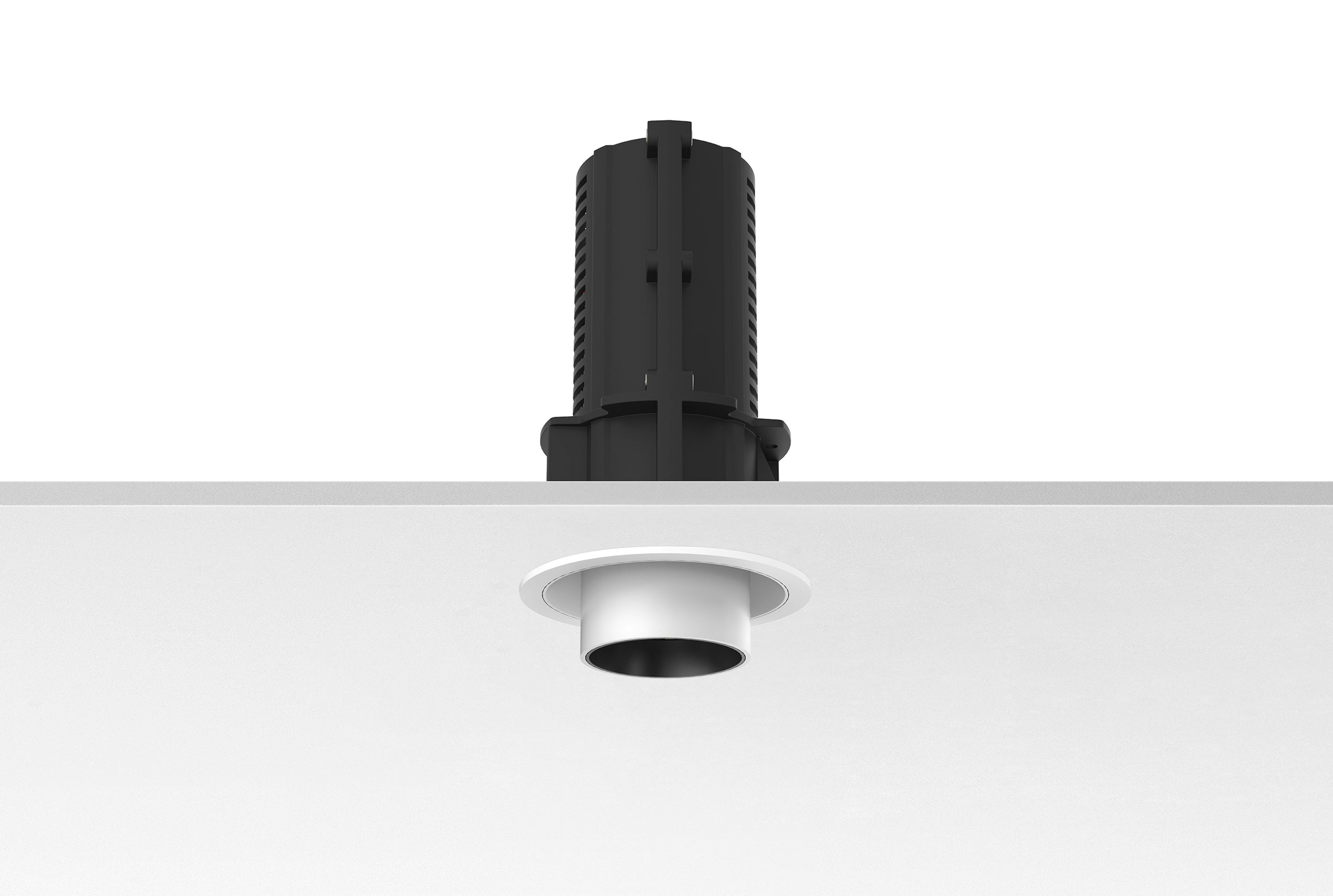

UT DownLight Ø57

Designed by FLOS Architectural

Recessed luminaire with LED light source. Remote power supply included.

Download Documentation

Product highlight

Minimal elegance

A wide range of solutions with light sources and optics for all your lighting needs.


Luminaire

(72)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
09.4527.30CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	932	4000	90	43	Dimmable DALI 1	Ceiling recessed
09.4527.30C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	932	4000	90	43	Non Dimmable	Ceiling recessed
09.4527.14CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	932	4000	90	43	Dimmable DALI 1	Ceiling recessed
09.4527.14C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	932	4000	90	43	Non Dimmable	Ceiling recessed
09.4526.30CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	918	4000	90	21	Dimmable DALI 1	Ceiling recessed
09.4526.30C	UT Downlight No Trim Ø 57 Non dimmable	11.7	918	4000	90	21	Non Dimmable	Ceiling recessed
09.4526.14CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	918	4000	90	21	Dimmable DALI 1	Ceiling recessed
09.4526.14C	UT Downlight No Trim Ø 57 Non dimmable	11.7	918	4000	90	21	Non Dimmable	Ceiling recessed
09.4525.30CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	1212	4000	90	11	Dimmable DALI 1	Ceiling recessed
09.4525.30C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	1212	4000	90	11	Non Dimmable	Ceiling recessed
09.4525.14CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	1212	4000	90	11	Dimmable DALI 1	Ceiling recessed
09.4525.14C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	1212	4000	90	11	Non Dimmable	Ceiling recessed
09.4524.30CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	820	3000	90	43	Dimmable DALI 1	Ceiling recessed
09.4524.30C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	820	3000	90	43	Non Dimmable	Ceiling recessed
09.4524.14CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	820	3000	90	43	Dimmable DALI 1	Ceiling recessed
09.4524.14C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	820	3000	90	43	Non Dimmable	Ceiling recessed
09.4523.30CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	808	3000	90	21	Dimmable DALI 1	Ceiling recessed
09.4523.30C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	808	3000	90	21	Non Dimmable	Ceiling recessed
09.4523.14CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	808	3000	90	21	Dimmable DALI 1	Ceiling recessed
09.4523.14C	UT Downlight No Trim Ø 57 Non Dimmable	11.7	808	3000	90	21	Non Dimmable	Ceiling recessed
09.4522.30CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	1067	3000	90	11	Dimmable DALI 1	Ceiling recessed
09.4522.30C	UT Downlight No Trim Ø 57 Non dimmable	11.7	1067	3000	90	11	Non Dimmable	Ceiling recessed
09.4522.14CDA	UT Downlight No Trim Ø 57 Dali Version	11.7	1067	3000	90	11	Dimmable DALI 1	Ceiling recessed
09.4522.14C	UT Downlight No Trim Ø 57 Non dimmable	11.7	1067	3000	90	11	Non Dimmable	Ceiling recessed
09.4521.30ADA	UT Downlight No Trim Ø 57 Dali Version	18	995	3000	80	43	Dimmable DALI 1	Ceiling recessed
09.4521.30A	UT Downlight No Trim Ø 57 Non Dimmable	18	995	3000	80	43	Non Dimmable	Ceiling recessed
09.4521.14ADA	UT Downlight No Trim Ø 57 Dali Version	18	995	3000	80	43	Dimmable DALI 1	Ceiling recessed
09.4521.14A	UT Downlight No Trim Ø 57 Non Dimmable	18	995	3000	80	43	Non Dimmable	Ceiling recessed
09.4520.30ADA	UT Downlight No Trim Ø 57 Dali Version	18	981	3000	80	21	Dimmable DALI 1	Ceiling recessed
09.4520.30A	UT Downlight No Trim Ø 57 Non Dimmable	18	981	3000	80	21	Non Dimmable	Ceiling recessed
09.4520.14ADA	UT Downlight No Trim Ø 57 Dali Version	18	981	3000	80	21	Dimmable DALI 1	Ceiling recessed
09.4520.14A	UT Downlight No Trim Ø 57 Non Dimmable	18	981	3000	80	21	Non Dimmable	Ceiling recessed
09.4519.30ADA	UT Downlight No Trim Ø 57 Dali Version	18	1295	3000	80	11	Dimmable DALI 1	Ceiling recessed
09.4519.30A	UT Downlight No Trim Ø 57 Non Dimmable	18	1295	3000	80	11	Non Dimmable	Ceiling recessed
09.4519.14ADA	UT Downlight No Trim Ø 57 Dali Version	18	1295	3000	80	11	Dimmable DALI 1	Ceiling recessed
09.4519.14A	UT Downlight No Trim Ø 57 Non Dimmable	18	1295	3000	80	11	Non Dimmable	Ceiling recessed
09.4518.30CDA	UT Downlight Trim Ø 57 Dali Version	11.7	932	4000	90	43	Dimmable DALI 1	Ceiling recessed
09.4518.30C	UT Downlight Trim Ø 57 Non Dimmable	11.7	932	4000	90	43	Non Dimmable	Ceiling recessed
09.4518.14CDA	UT Downlight Trim Ø 57 Dali Version	11.7	932	4000	90	43	Dimmable DALI 1	Ceiling recessed
09.4518.14C	UT Downlight Trim Ø 57 Non Dimmable	11.7	932	4000	90	43	Non Dimmable	Ceiling recessed
09.4517.30CDA	UT Downlight Trim Ø 57 Dali Version	11.7	918	4000	90	21	Dimmable DALI 1	Ceiling recessed
09.4517.30C	UT Downlight Trim Ø 57 Non Dimmable	11.7	918	4000	90	21	Non Dimmable	Ceiling recessed
09.4517.14CDA	UT Downlight Trim Ø 57 Dali Version	11.7	918	4000	90	21	Dimmable DALI 1	Ceiling recessed
09.4517.14C	UT Downlight Trim Ø 57 Non Dimmable	11.7	918	4000	90	21	Non Dimmable	Ceiling recessed
09.4516.30CDA	UT Downlight Trim Ø 57 Dali Version	11.7	1212	4000	90	11	Dimmable DALI 1	Ceiling recessed
09.4516.30C	UT Downlight Trim Ø 57 Non Dimmable	11.7	1212	4000	90	11	Non Dimmable	Ceiling recessed
09.4516.14CDA	UT Downlight Trim Ø 57 Dali Version	11.7	1212	4000	90	11	Dimmable DALI 1	Ceiling recessed
09.4516.14C	UT Downlight Trim Ø 57 Non Dimmable	11.7	1212	4000	90	11	Non Dimmable	Ceiling recessed
09.4515.30CDA	UT Downlight Trim Ø 57 Dali Version	11.7	820	3000	90	43	Dimmable DALI 1	Ceiling recessed
09.4515.30C	UT Downlight Trim Ø 57 Non Dimmable	11.7	820	3000	90	43	Non Dimmable	Ceiling recessed
09.4515.14CDA	UT Downlight Trim Ø 57 Dali Version	11.7	820	3000	90	43	Dimmable DALI 1	Ceiling recessed
09.4515.14C	UT Downlight Trim Ø 57 Non Dimmable	11.7	820	3000	90	43	Non Dimmable	Ceiling recessed
09.4514.30CDA	UT Downlight Trim Ø 57 Dali Version	11.7	808	3000	90	21	Dimmable DALI 1	Ceiling recessed
09.4514.30C	UT Downlight Trim Ø 57 Non Dimmable	11.7	808	3000	90	21	Non Dimmable	Ceiling recessed
09.4514.14CDA	UT Downlight Trim Ø 57 Dali Version	11.7	808	3000	90	21	Dimmable DALI 1	Ceiling recessed
09.4514.14C	UT Downlight Trim Ø 57 Non Dimmable	11.7	808	3000	90	21	Non Dimmable	Ceiling recessed
09.4513.30CDA	UT Downlight Trim Ø 57 Dali Version	11.7	1067	3000	90	11	Dimmable DALI 1	Ceiling recessed
09.4513.30C	UT Downlight Trim Ø 57 Non Dimmable	11.7	1067	3000	90	11	Non Dimmable	Ceiling recessed
09.4513.14CDA	UT Downlight Trim Ø 57 Dali Version	11.7	1067	3000	90	11	Dimmable DALI 1	Ceiling recessed
09.4513.14C	UT Downlight Trim Ø 57 Non Dimmable	11.7	1067	3000	90	11	Non Dimmable	Ceiling recessed
09.4512.30ADA	UT Downlight Trim Ø 57 Dali Version	18	995	3000	80	43	Dimmable DALI 1	Ceiling recessed
09.4512.30A	UT Downlight Trim Ø 57 Non Dimmable	18	995	3000	80	43	Non Dimmable	Ceiling recessed
09.4512.14ADA	UT Downlight Trim Ø 57 Dali Version	18	995	3000	80	43	Dimmable DALI 1	Ceiling recessed
09.4512.14A	UT Downlight Trim Ø 57 Non Dimmable	18	995	3000	80	43	Non Dimmable	Ceiling recessed
09.4511.30ADA	UT Downlight Trim Ø 57 Dali Version	18	981	3000	80	21	Dimmable DALI 1	Ceiling recessed
09.4511.30A	UT Downlight Trim Ø 57 Non Dimmable	18	981	3000	80	21	Non Dimmable	Ceiling recessed
09.4511.14ADA	UT Downlight Trim Ø 57 Dali Version	18	981	3000	80	21	Dimmable DALI 1	Ceiling recessed
09.4511.14A	UT Downlight Trim Ø 57 Non Dimmable	18	981	3000	80	21	Non Dimmable	Ceiling recessed
09.4510.30ADA	UT Downlight Trim Ø 57 Dali Version	18	1295	3000	80	11	Dimmable DALI 1	Ceiling recessed
09.4510.30A	UT Downlight Trim Ø 57 Non Dimmable	18	1295	3000	80	11	Non Dimmable	Ceiling recessed
09.4510.14ADA	UT Downlight Trim Ø 57 Dali Version	18	1295	3000	80	11	Dimmable DALI 1	Ceiling recessed
09.4510.14A	UT Downlight Trim Ø 57 Non Dimmable	18	1295	3000	80	11	Non Dimmable	Ceiling recessed
