UT Downlight Ø86

Designed by FLOS Architectural

Recessed luminaire with LED light source. Remote power supply included.

Download Documentation

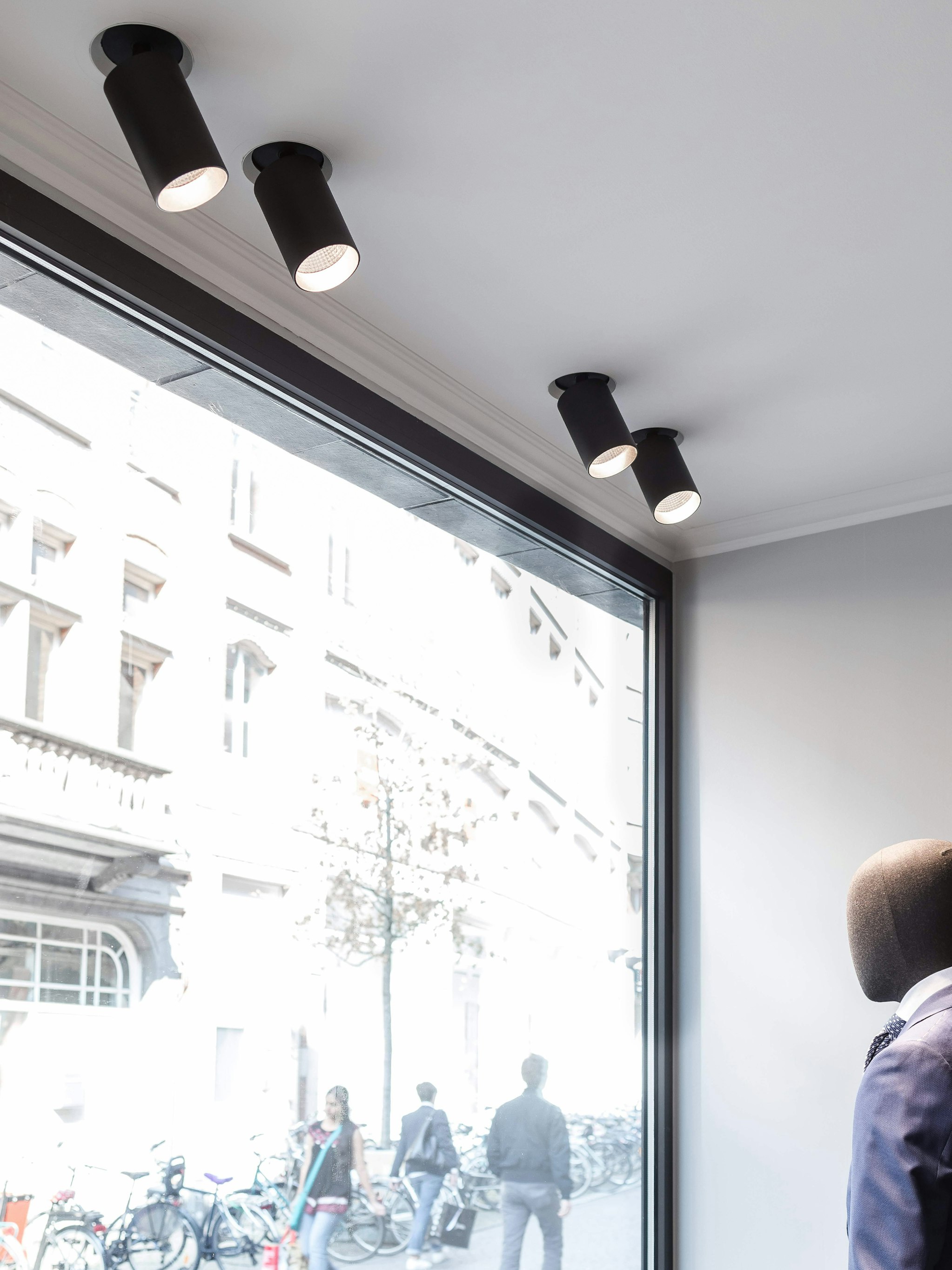

Product highlight

Minimal elegance

A wide range of solutions with light sources and optics for all your lighting needs.


Luminaire

(72)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

CRI>

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting

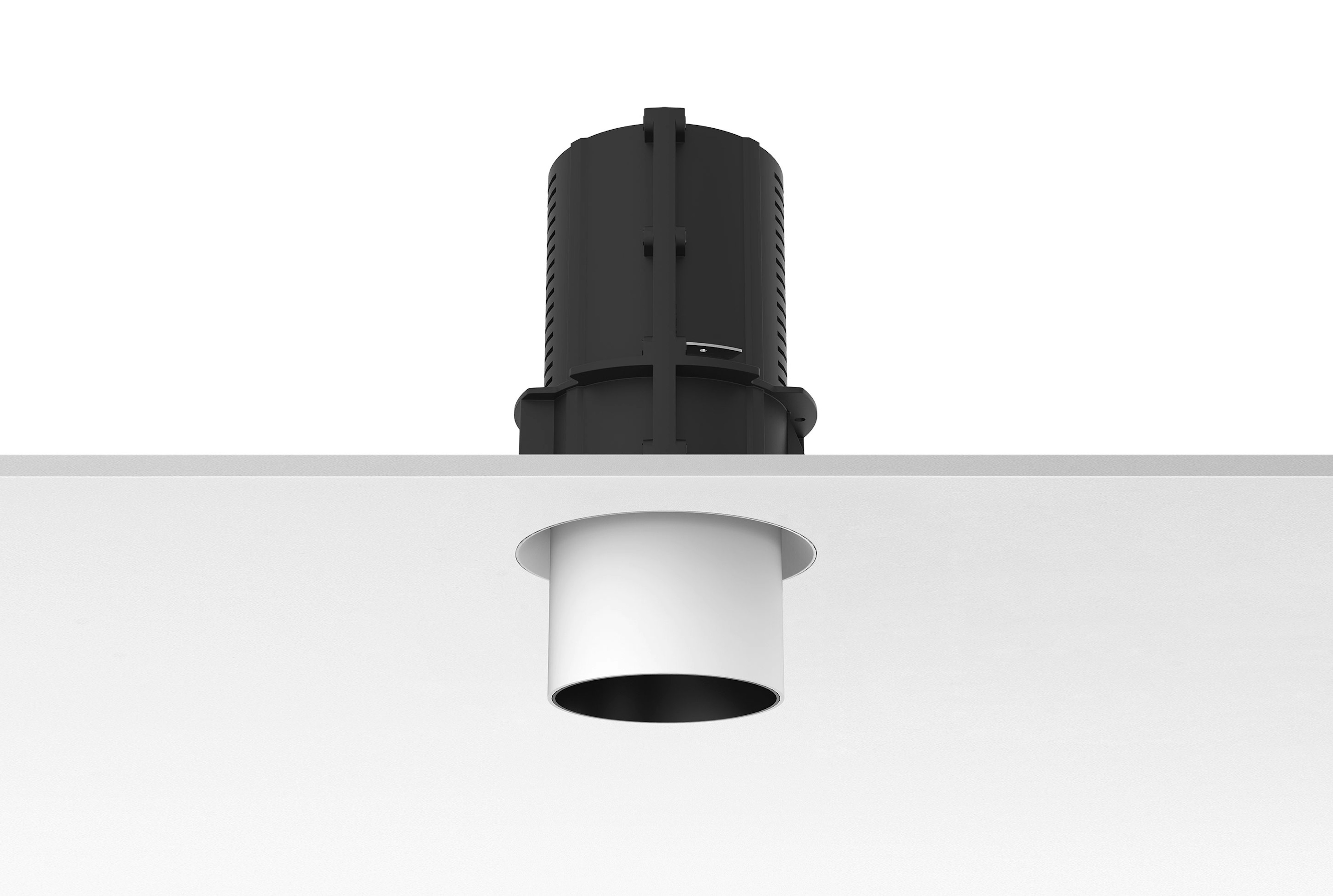

09.4927.30CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1768	4000	90	37	Dimmable DALI 2	Ceiling recessed
09.4927.30C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1768	4000	90	37	Non Dimmable	Ceiling recessed
09.4927.14CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1768	4000	90	37	Dimmable DALI 2	Ceiling recessed
09.4927.14C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1768	4000	90	37	Non Dimmable	Ceiling recessed
09.4926.30CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1855	4000	90	24	Dimmable DALI 2	Ceiling recessed
09.4926.30C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1855	4000	90	24	Non Dimmable	Ceiling recessed
09.4926.14CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1855	4000	90	24	Dimmable DALI 2	Ceiling recessed
09.4926.14C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1855	4000	90	24	Non Dimmable	Ceiling recessed
09.4925.30CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1945	4000	90	12	Dimmable DALI 2	Ceiling recessed
09.4925.30C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1945	4000	90	12	Non Dimmable	Ceiling recessed
09.4925.14CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1945	4000	90	12	Dimmable DALI 2	Ceiling recessed
09.4925.14C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1945	4000	90	12	Non Dimmable	Ceiling recessed
09.4924.30CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1697	3000	90	37	Dimmable DALI 2	Ceiling recessed
09.4924.30C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1697	3000	90	37	Non Dimmable	Ceiling recessed
09.4924.14CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1697	3000	90	37	Dimmable DALI 2	Ceiling recessed
09.4924.14C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1697	3000	90	37	Non Dimmable	Ceiling recessed
09.4923.30CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1781	3000	90	24	Dimmable DALI 2	Ceiling recessed
09.4923.30C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1781	3000	90	24	Non Dimmable	Ceiling recessed
09.4923.14CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1781	3000	90	24	Dimmable DALI 2	Ceiling recessed
09.4923.14C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1781	3000	90	24	Non Dimmable	Ceiling recessed
09.4922.30CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1867	3000	90	12	Dimmable DALI 2	Ceiling recessed
09.4922.30C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1867	3000	90	12	Non Dimmable	Ceiling recessed
09.4922.14CDA	UT Downlight No Trim Ø 86 Dali Version	22.1	1867	3000	90	12	Dimmable DALI 2	Ceiling recessed
09.4922.14C	UT Downlight No Trim Ø 86 Non Dimmable	22.1	1867	3000	90	12	Non Dimmable	Ceiling recessed
09.4921.30BDA	UT Downlight No Trim Ø 86 Dali Version	-	2053	3000	80	37	Dimmable DALI 2	Ceiling recessed
09.4921.30A	UT Downlight No Trim Ø 86 Non Dimmable	27	2053	3000	80	37	Non Dimmable	Ceiling recessed
09.4921.14BDA	UT Downlight No Trim Ø 86 Dali Version	-	2053	3000	80	37	Dimmable DALI 2	Ceiling recessed
09.4921.14A	UT Downlight No Trim Ø 86 Non Dimmable	27	2053	3000	80	37	Non Dimmable	Ceiling recessed
09.4920.30BDA	UT Downlight No Trim Ø 86 Dali Version	-	2155	3000	80	24	Dimmable DALI 2	Ceiling recessed
09.4920.30A	UT Downlight No Trim Ø 86 Non Dimmable	27	2155	3000	80	24	Non Dimmable	Ceiling recessed
09.4920.14BDA	UT Downlight No Trim Ø 86 Dali Version	-	2155	3000	80	24	Dimmable DALI 2	Ceiling recessed
09.4920.14A	UT Downlight No Trim Ø 86 Non Dimmable	27	2155	3000	80	24	Non Dimmable	Ceiling recessed
09.4919.30BDA	UT Downlight No Trim Ø 86 Dali Version	-	2259	3000	80	12	Dimmable DALI 2	Ceiling recessed
09.4919.30A	UT Downlight No Trim Ø 86 Non Dimmable	27	2259	3000	80	12	Non Dimmable	Ceiling recessed
09.4919.14BDA	UT Downlight No Trim Ø 86 Dali Version	-	2259	3000	80	12	Dimmable DALI 2	Ceiling recessed
09.4919.14A	UT Downlight No Trim Ø 86 Non Dimmable	27	2259	3000	80	12	Non Dimmable	Ceiling recessed

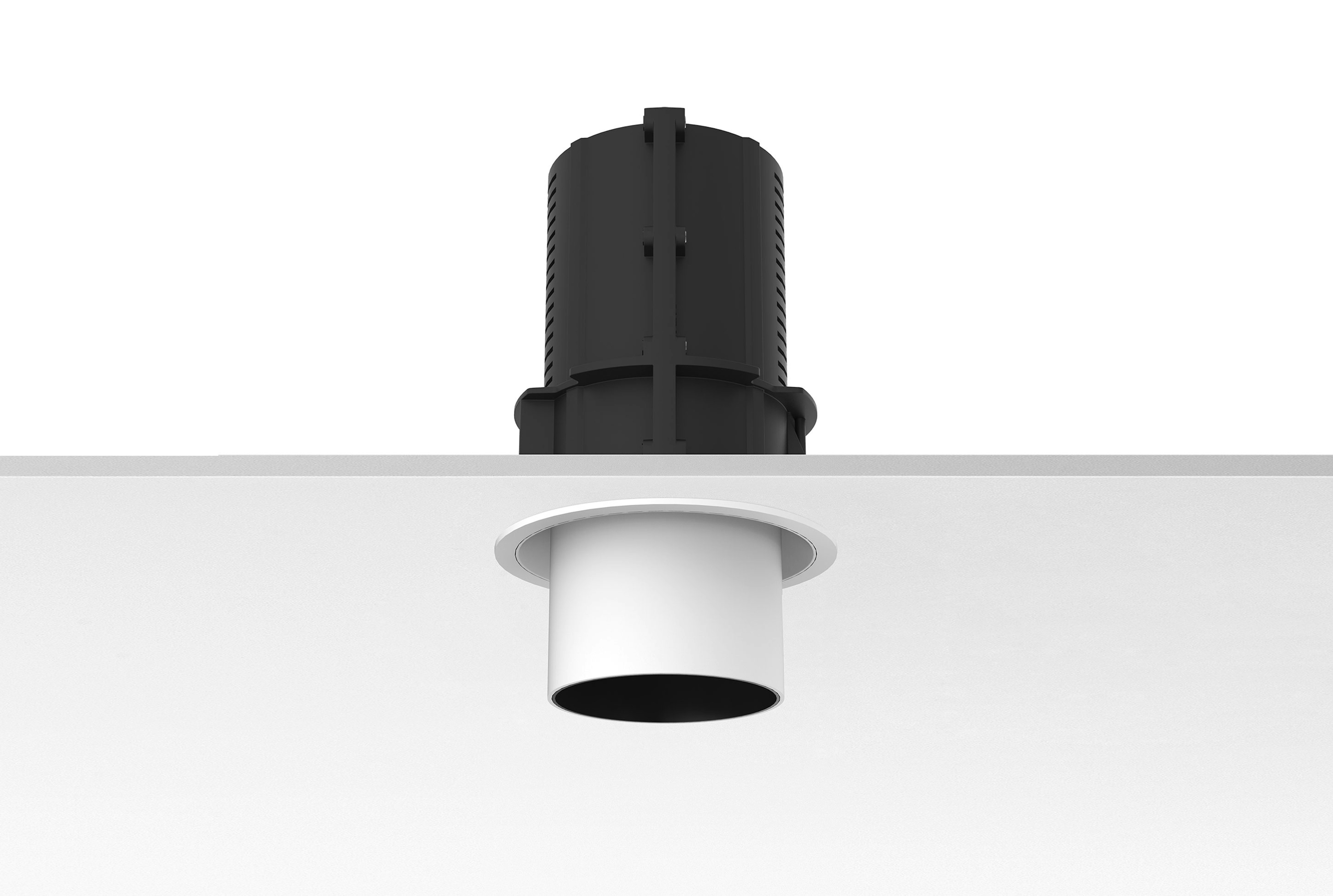

09.4918.30CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1768	4000	90	37	Dimmable DALI 2	Ceiling recessed
09.4918.30C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1768	4000	90	37	Non Dimmable	Ceiling recessed
09.4918.14CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1768	4000	90	37	Dimmable DALI 2	Ceiling recessed
09.4918.14C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1768	4000	90	37	Non Dimmable	Ceiling recessed
09.4917.30CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1855	4000	90	24	Dimmable DALI 2	Ceiling recessed
09.4917.30C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1855	4000	90	24	Non Dimmable	Ceiling recessed
09.4917.14CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1855	4000	90	24	Dimmable DALI 2	Ceiling recessed
09.4917.14C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1855	4000	90	24	Non Dimmable	Ceiling recessed
09.4916.30CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1945	4000	90	12	Dimmable DALI 2	Ceiling recessed
09.4916.30C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1945	4000	90	12	Non Dimmable	Ceiling recessed
09.4916.14CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1945	4000	90	12	Dimmable DALI 2	Ceiling recessed
09.4916.14C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1945	4000	90	12	Non Dimmable	Ceiling recessed
09.4915.30CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1697	3000	90	37	Dimmable DALI 2	Ceiling recessed
09.4915.30C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1697	3000	90	37	Non Dimmable	Ceiling recessed
09.4915.14CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1697	3000	90	37	Dimmable DALI 2	Ceiling recessed
09.4915.14C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1697	3000	90	37	Non Dimmable	Ceiling recessed
09.4914.30CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1781	3000	90	24	Dimmable DALI 2	Ceiling recessed
09.4914.30C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1781	3000	90	24	Non Dimmable	Ceiling recessed
09.4914.14CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1781	3000	90	24	Dimmable DALI 2	Ceiling recessed
09.4914.14C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1781	3000	90	24	Non Dimmable	Ceiling recessed
09.4913.30CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1867	3000	90	12	Dimmable DALI 2	Ceiling recessed
09.4913.30C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1867	3000	90	12	Non Dimmable	Ceiling recessed
09.4913.14CDA	UT Downlight Trim Ø 86 Dali Version	22.1	1867	3000	90	12	Dimmable DALI 2	Ceiling recessed
09.4913.14C	UT Downlight Trim Ø 86 Non Dimmable	22.1	1867	3000	90	12	Non Dimmable	Ceiling recessed
09.4912.30BDA	UT Downlight Trim Ø 86 Dali Version	-	2053	3000	80	37	Dimmable DALI 2	Ceiling recessed
09.4912.30A	UT Downlight Trim Ø 86 Non Dimmable	27	2053	3000	80	37	Non Dimmable	Ceiling recessed
09.4912.14BDA	UT Downlight Trim Ø 86 Dali Version	-	2053	3000	80	37	Dimmable DALI 2	Ceiling recessed
09.4912.14A	UT Downlight Trim Ø 86 Non Dimmable	27	2053	3000	80	37	Non Dimmable	Ceiling recessed
09.4911.30BDA	UT Downlight Trim Ø 86 Dali Version	-	2155	3000	80	24	Dimmable DALI 2	Ceiling recessed
09.4911.30A	UT Downlight Trim Ø 86 Non Dimmable	27	2155	3000	80	24	Non Dimmable	Ceiling recessed
09.4911.14BDA	UT Downlight Trim Ø 86 Dali Version	-	2155	3000	80	24	Dimmable DALI 2	Ceiling recessed
09.4911.14A	UT Downlight Trim Ø 86 Non Dimmable	27	2155	3000	80	24	Non Dimmable	Ceiling recessed
09.4910.30BDA	UT Downlight Trim Ø 86 Dali Version	-	2259	3000	80	12	Dimmable DALI 2	Ceiling recessed
09.4910.30A	UT Downlight Trim Ø 86 Non Dimmable	27	2259	3000	80	12	Non Dimmable	Ceiling recessed
09.4910.14BDA	UT Downlight Trim Ø 86 Dali Version	-	2259	3000	80	12	Dimmable DALI 2	Ceiling recessed
09.4910.14A	UT Downlight Trim Ø 86 Non Dimmable	27	2259	3000	80	12	Non Dimmable	Ceiling recessed
