Outdoor Dooku
FA53907833 Anthracite

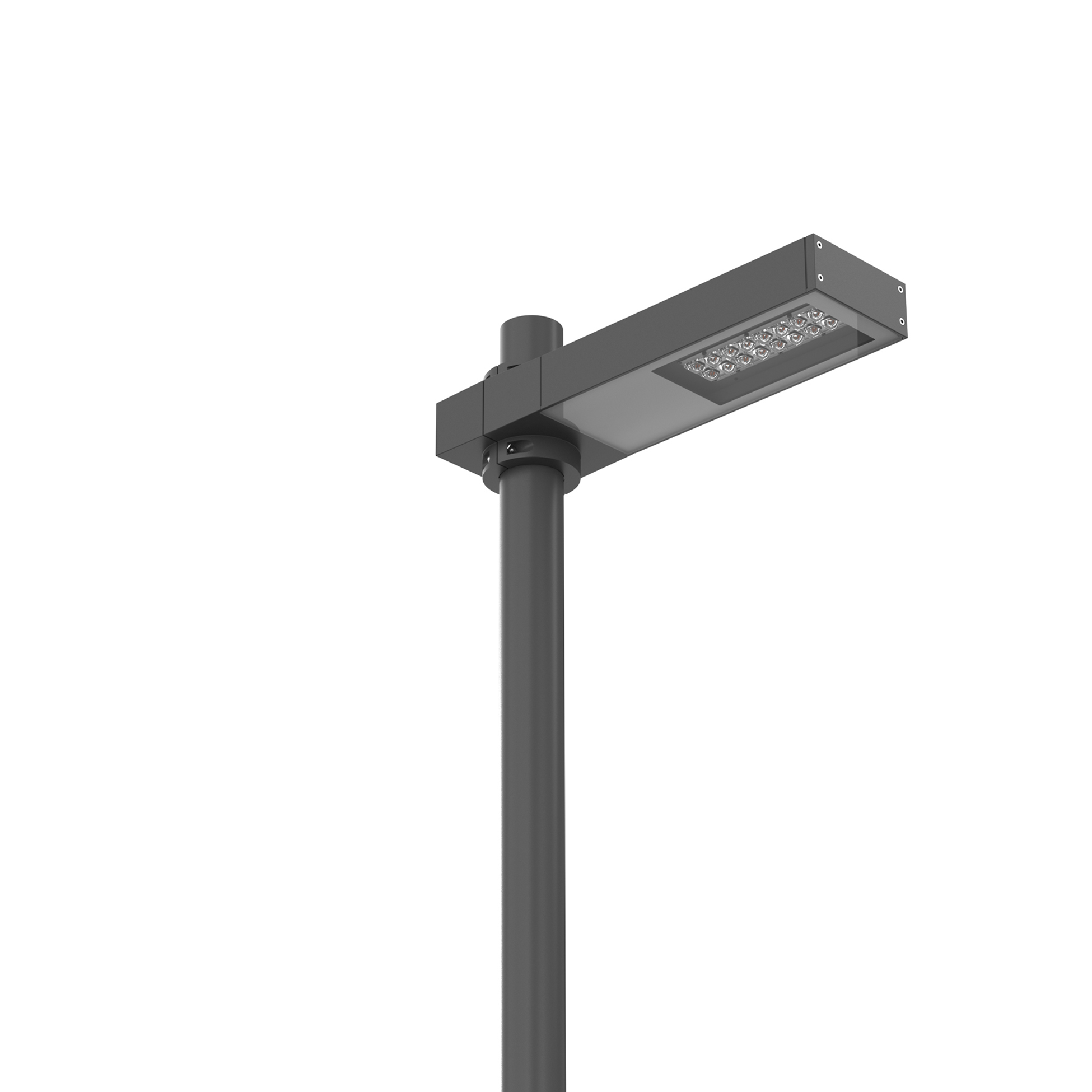

Dooku 400 Single Top Pole Ø76 mm Symmetric Optic

LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Single socket for 76mm diameter post. The post must be ordered separately. Smart-City version available upon request.

34W - 3389lm - 2700K - CRI> 80 - Beam° 120

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793682600
Mounting
Pole Top
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
34
System power (W)
39
Source flux (lm)
4122
System flux (lm)
3389
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
120
Beam angle C90-270 (º)
120
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
5.28
Package height (cm)
605
Package width (cm)
175
Package length (cm)
150
Package volume (m3)
0.02
IP
65
CE
IECEE-CB
EAC
USA
65
IK09 - 10.00 Joule
IK09 - 10.00 Joule
65
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

optional (2)
required (4)
