Outdoor Dooku
FA53903633 Anthracite

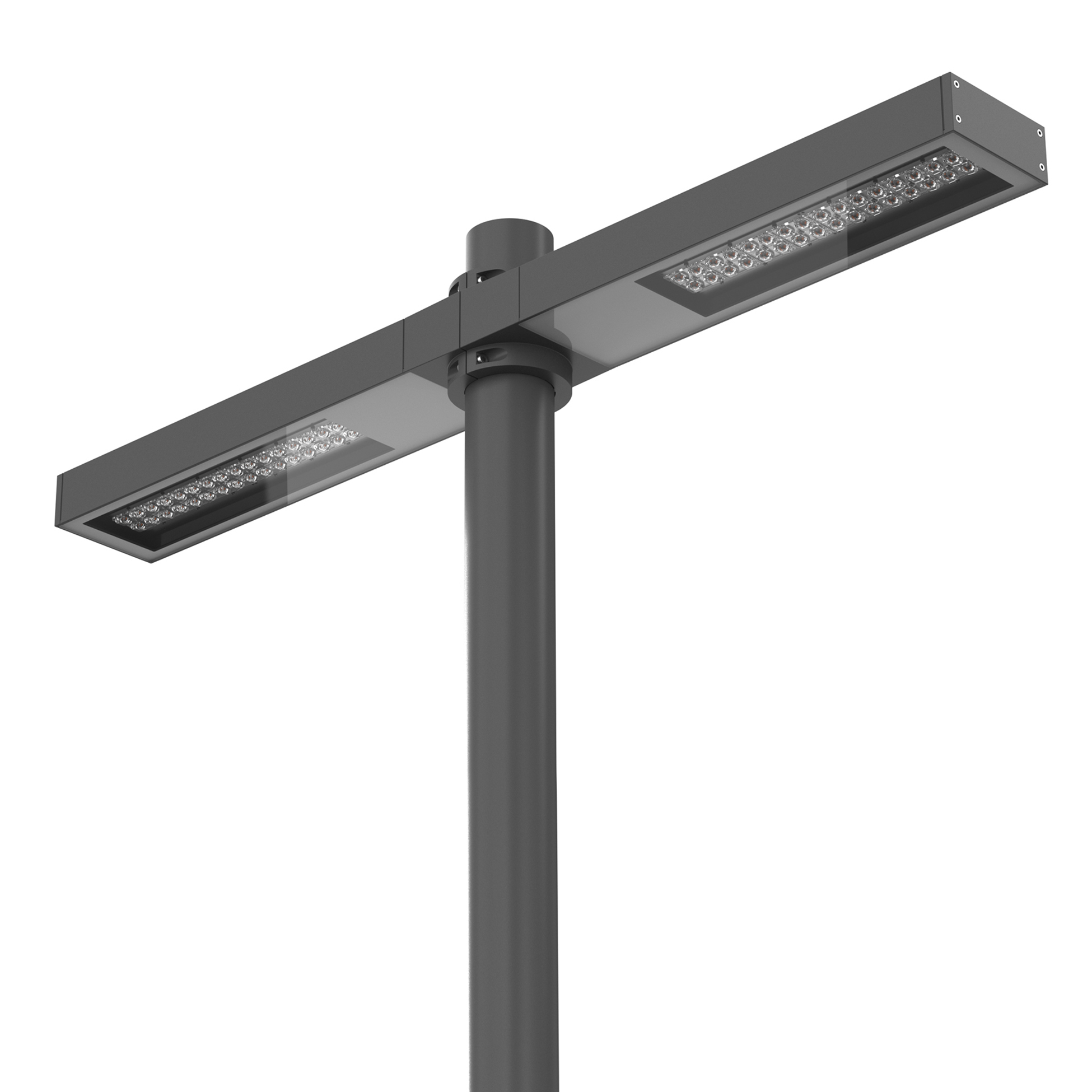

Dooku 600 Double Top Pole Ø102 mm Foot&Cycle Optic

LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Double socket for 102mm diameter post. The post must be ordered separately.Smart-City version available upon request.

2 x 67W - 2 x 13416lm - 3000K - CRI> 80

Also available in:
Are you a professional and your project needs consulting and support?
An exclusive one-on-one service for our professional clients providing specialist support and advice.
BOOK AN APPOINTMENT
Technical Drawing
Main specifications
EAN
8054793681030
Mounting
Pole Top
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
2
Power (W)
67
System power (W)
2X78
Source flux (lm)
17664
System flux (lm)
13416
Schematic light drawing
Photometric
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
13.8
Package height (cm)
825
Package width (cm)
380
Package length (cm)
185
Package volume (m3)
0.06
IP
65
CE
IECEE-CB
EAC
USA
65
IK09 - 10.00 Joule
IK09 - 10.00 Joule
65
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

optional (2)
required (4)
