FA53907533 Anthracite

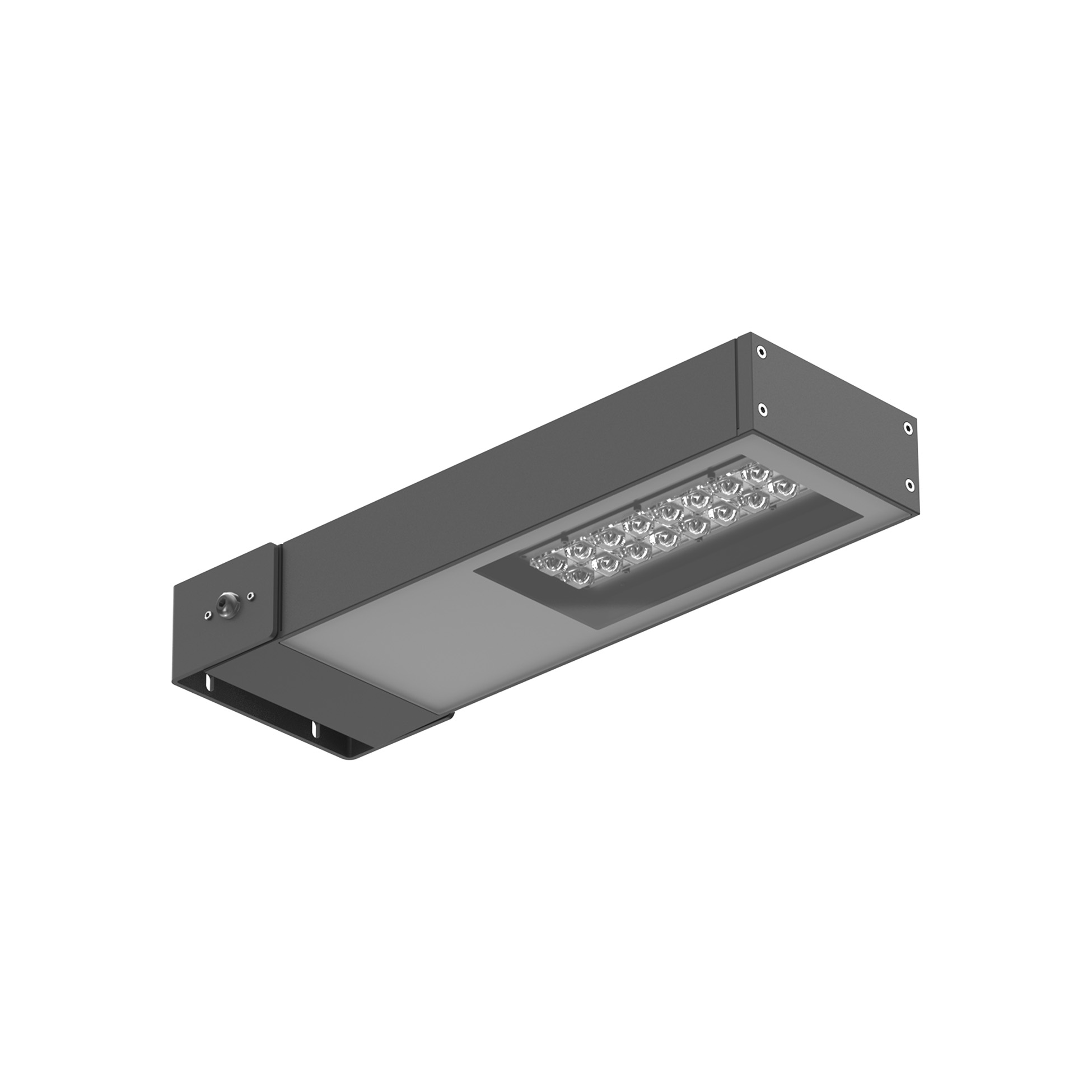

Dooku 400 Wall Symmetric Optic
New
Designed by FLOS Outdoor, 2014
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Smart-City version available upon request.
34W - 3198lm - 3000K - CRI> 80 - Beam° 120
Also available in:
Technical Drawing
Main specifications
EAN
8054793682495
Mounting
Wall
Enviroment
Outdoor wet location
Light source type
LED
LED type
Power LED
Number of heads
1
Power (W)
34
System power (W)
39
Source flux (lm)
4416
System flux (lm)
3198
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
120
Beam angle C90-270 (º)
120
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Driver
Integrated
Dimmable
No
Dimming type
Non Dimmable
Dimming interface
Not Dimmable
Emergency type
No
Physical
Colour
Anthracite
Orientation
Adjustable
Longitudinal tilting (°)
90
Net weight (kg)
5.1
Package height (cm)
140
Package width (cm)
535
Package length (cm)
200
Package volume (m3)
0.01
IP
65
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Photometric Files
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class E
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
