Atom 90

Designed by Piero Lissoni

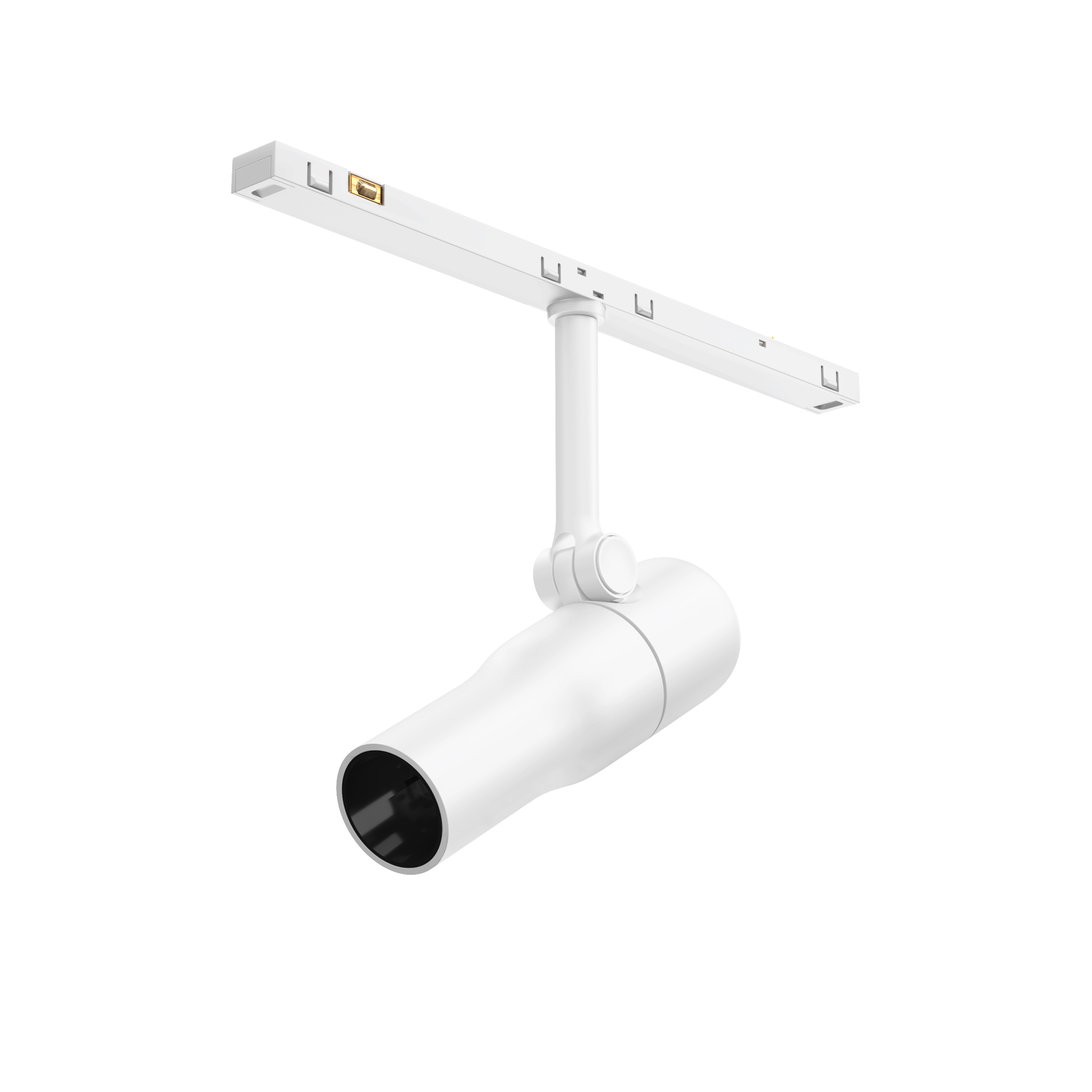

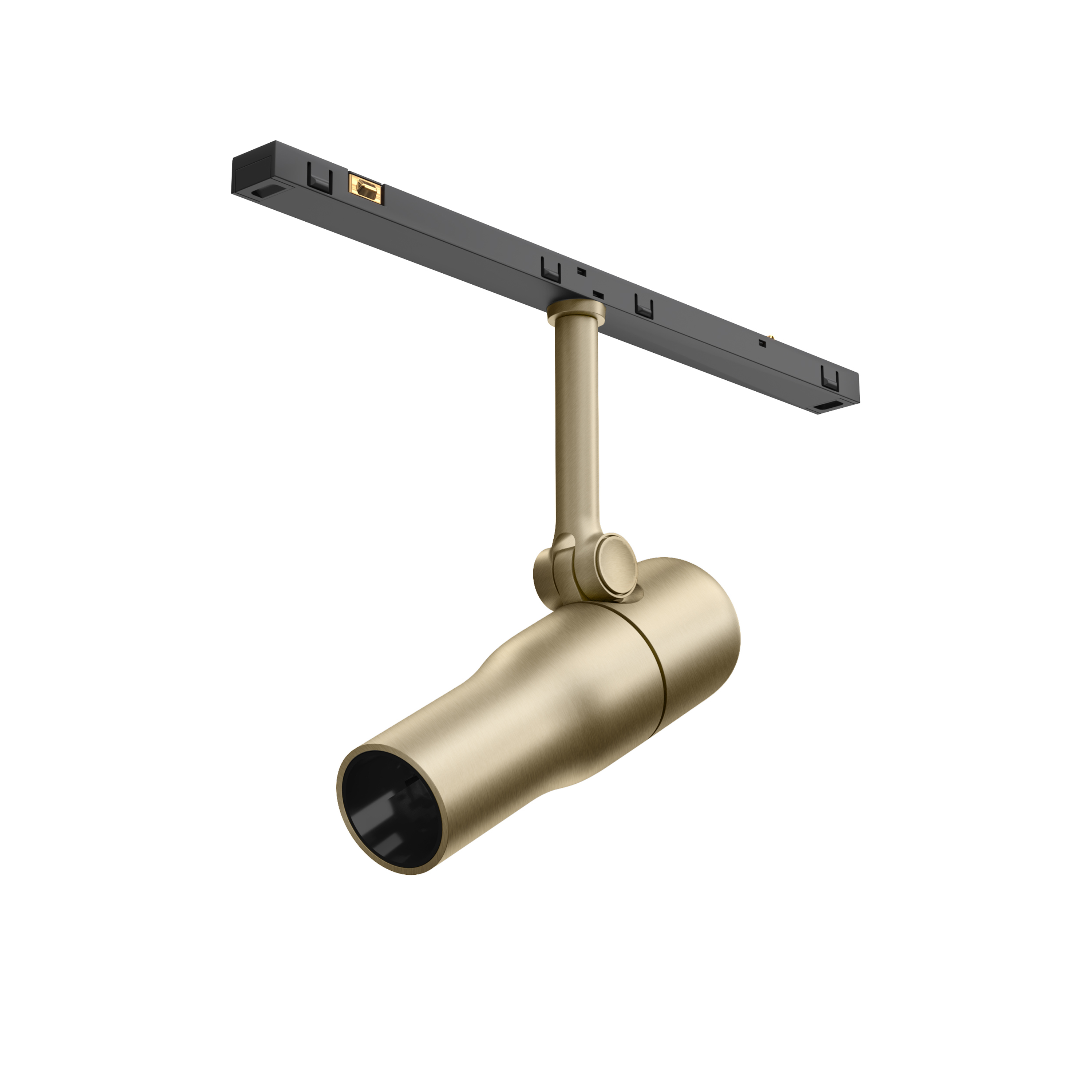

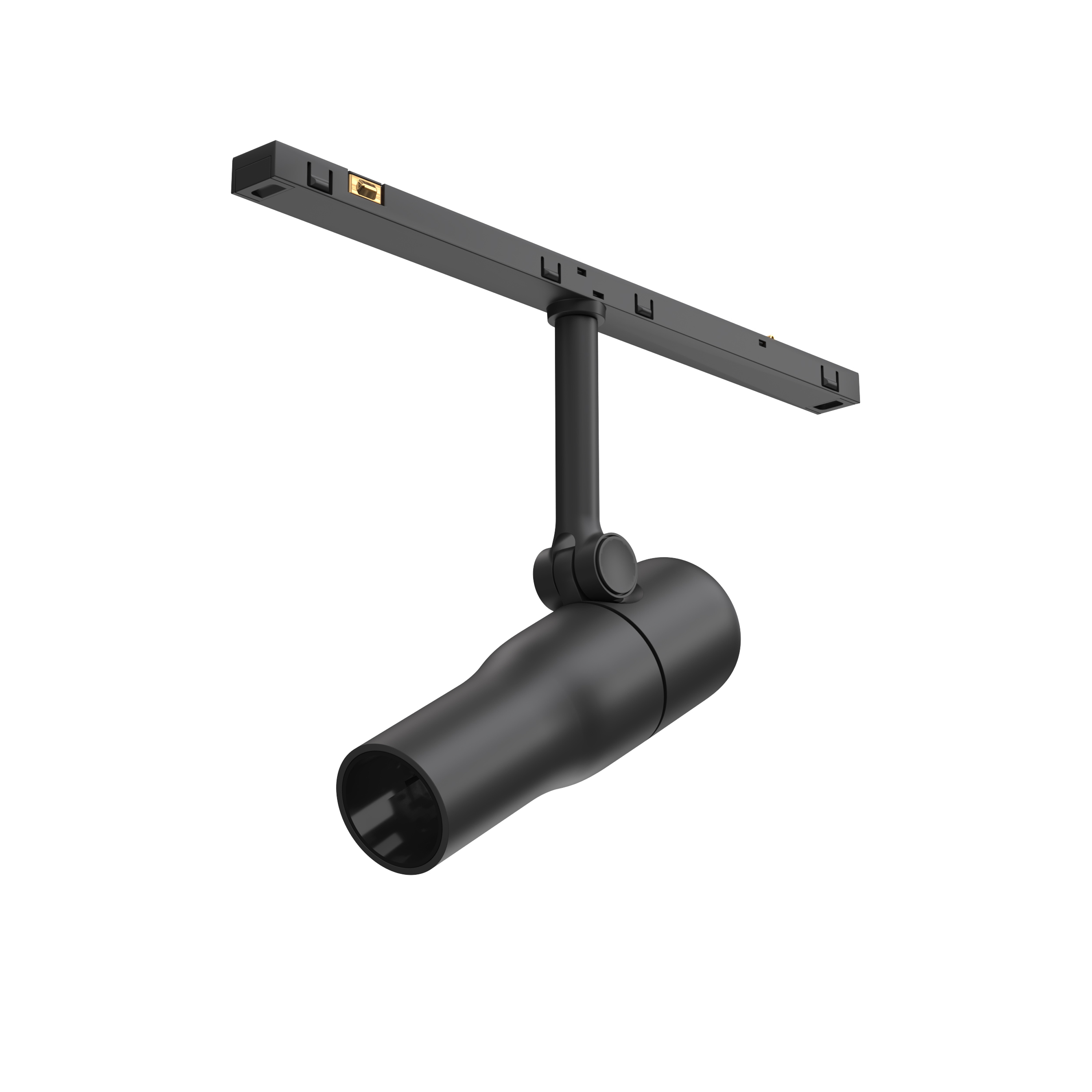

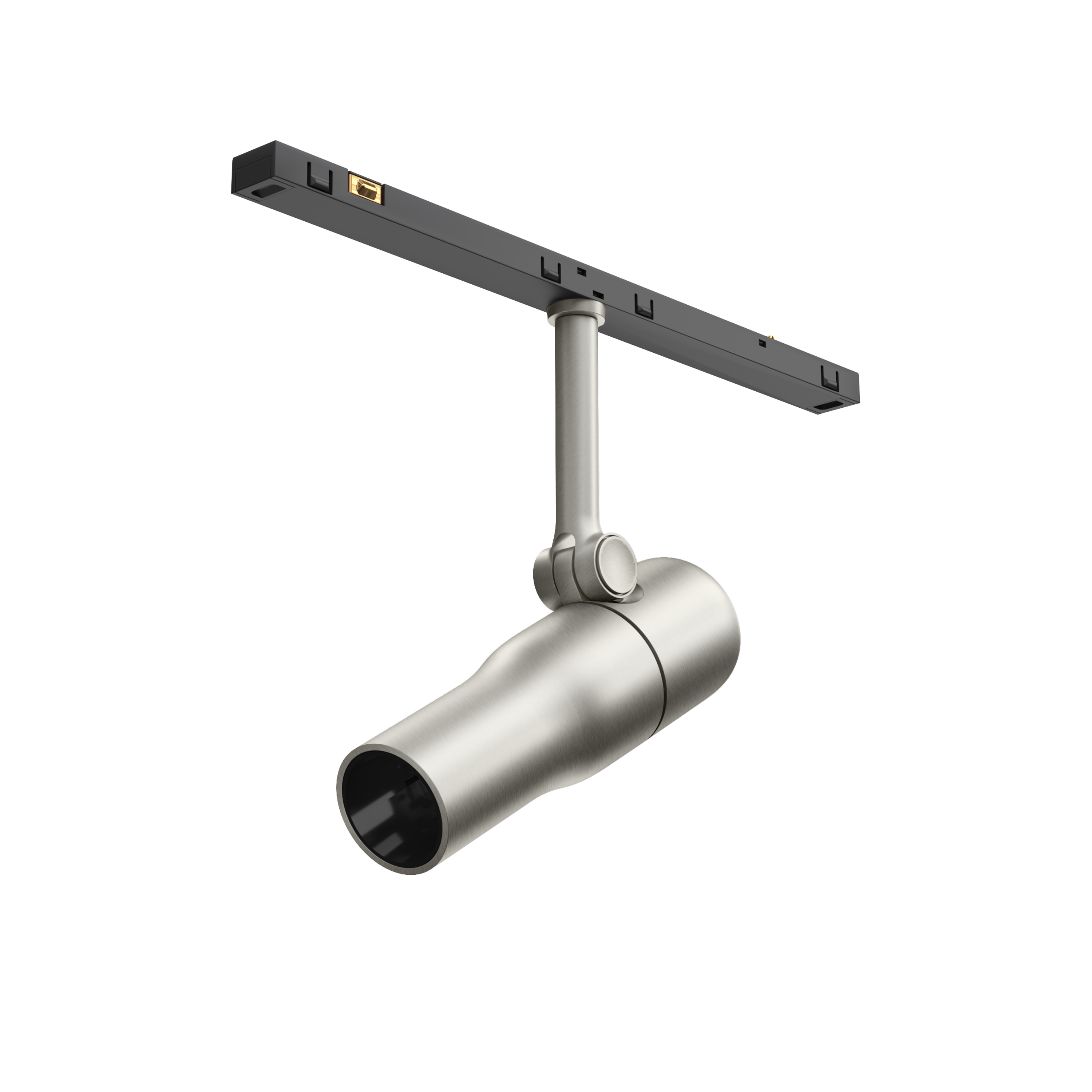

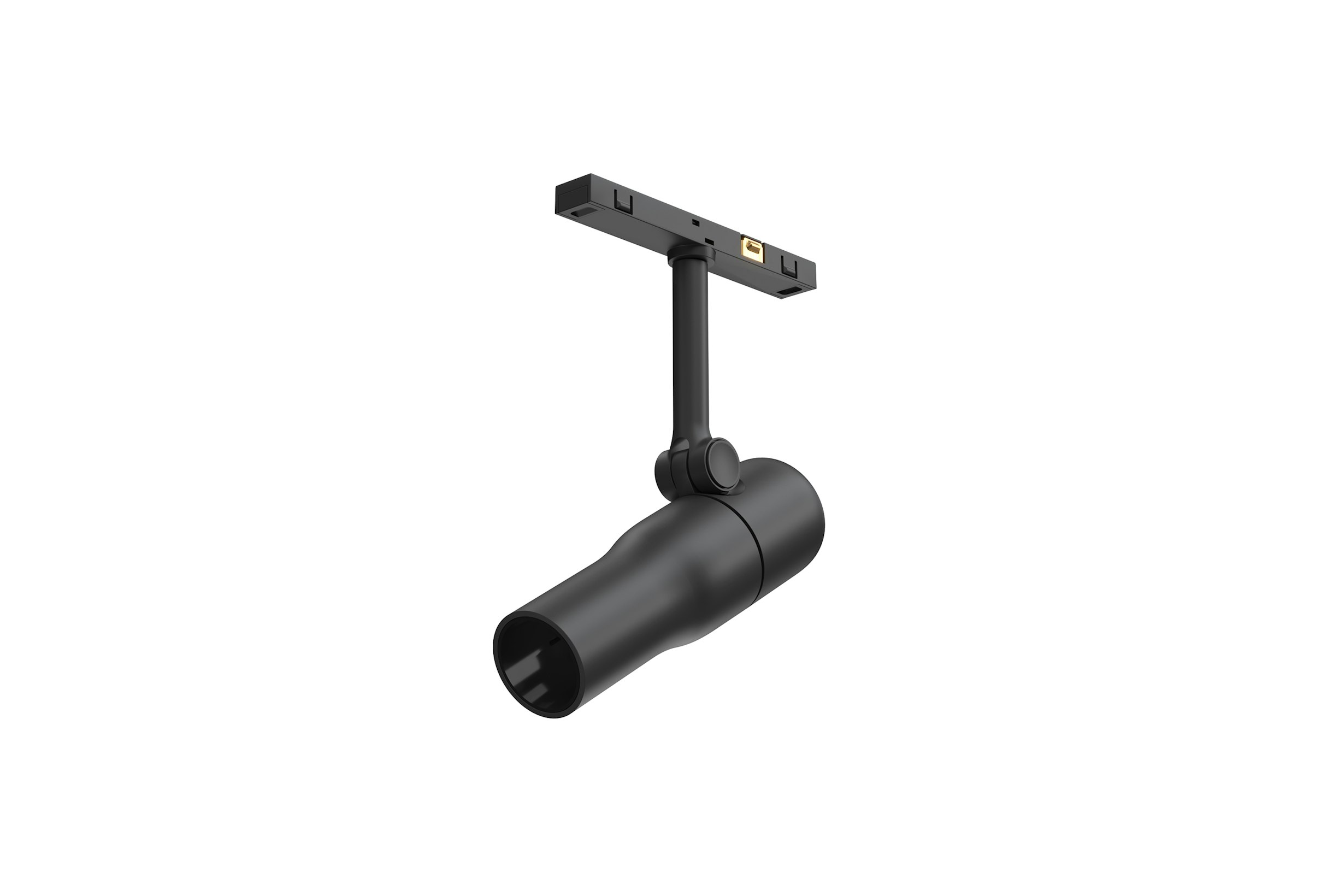

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated.

Download Documentation

Product highlight

Deceiving the eye

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

Discover the Story

Luminaire

(64)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.5146.ES.DA	Atom 90 Dali Dimmable	5.5	289	3000	90	25	Dimmable DALI 2	Track
05.5146.ES.CB	Atom 90 Casambi Dimmable	5.5	289	3000	90	25	Dimmable Casambi	Track
05.5146.ES.1V	Atom 90 1-10V Dimmable	5.5	289	3000	90	25	Dimmable 1-10V	Track
05.5146.ES	Atom 90 Non Dimmable	5.5	289	3000	90	25	-	Track
05.5146.ER.DA	Atom 90 Dali Dimmable	5.5	289	3000	90	25	Dimmable DALI 2	Track
05.5146.ER.CB	Atom 90 Casambi Dimmable	5.5	289	3000	90	25	Dimmable Casambi	Track
05.5146.ER.1V	Atom 90 1-10V Dimmable	5.5	289	3000	90	25	Dimmable 1-10V	Track
05.5146.ER	Atom 90 Non Dimmable	5.5	289	3000	90	25	-	Track
05.5146.40.DA	Atom 90 Dali Dimmable	5.5	289	3000	90	25	Dimmable DALI 2	Track
05.5146.40.CB	Atom 90 Casambi Dimmable	5.5	289	3000	90	25	Dimmable Casambi	Track
05.5146.40.1V	Atom 90 1-10V Dimmable	5.5	289	3000	90	25	Dimmable 1-10V	Track
05.5146.40	Atom 90 Non Dimmable	5.5	289	3000	90	25	-	Track
05.5146.14.DA	Atom 90 Dali Dimmable	5.5	289	3000	90	25	Dimmable DALI 2	Track
05.5146.14.CB	Atom 90 Casambi Dimmable	5.5	289	3000	90	25	Dimmable Casambi	Track
05.5146.14.1V	Atom 90 1-10V Dimmable	5.5	289	3000	90	25	Dimmable 1-10V	Track
05.5146.14	Atom 90 Non Dimmable	5.5	289	3000	90	25	-	Track
05.5145.ES.DA	Atom 90 Dali Dimmable	5.5	247	3000	90	14	Dimmable DALI 2	Track
05.5145.ES.CB	Atom 90 Casambi Dimmable	5.5	247	3000	90	14	Dimmable Casambi	Track
05.5145.ES.1V	Atom 90 1-10V Dimmable	5.5	247	3000	90	14	Dimmable 1-10V	Track
05.5145.ES	Atom 90 Non Dimmable	5.5	247	3000	90	14	-	Track
05.5145.ER.DA	Atom 90 Dali Dimmable	5.5	247	3000	90	14	Dimmable DALI 2	Track
05.5145.ER.CB	Atom 90 Casambi Dimmable	5.5	247	3000	90	14	Dimmable Casambi	Track
05.5145.ER.1V	Atom 90 1-10V Dimmable	5.5	247	3000	90	14	Dimmable 1-10V	Track
05.5145.ER	Atom 90 Non Dimmable	5.5	247	3000	90	14	-	Track
05.5145.40.DA	Atom 90 Dali Dimmable	5.5	247	3000	90	14	Dimmable DALI 2	Track
05.5145.40.CB	Atom 90 Casambi Dimmable	5.5	247	3000	90	14	Dimmable Casambi	Track
05.5145.40.1V	Atom 90 1-10V Dimmable	5.5	247	3000	90	14	Dimmable 1-10V	Track
05.5145.40	Atom 90 Non Dimmable	5.5	247	3000	90	14	-	Track
05.5145.14.DA	Atom 90 Dali Dimmable	5.5	247	3000	90	14	Dimmable DALI 2	Track
05.5145.14.CB	Atom 90 Casambi Dimmable	5.5	247	3000	90	14	Dimmable Casambi	Track
05.5145.14.1V	Atom 90 1-10V Dimmable	5.5	247	3000	90	14	Dimmable 1-10V	Track
05.5145.14	Atom 90 Non Dimmable	5.5	247	3000	90	14	-	Track
05.5141.ES.DA	Atom 90 Dali Dimmable	5.5	261	2700	90	25	Dimmable DALI 2	Track
05.5141.ES.CB	Atom 90 Casambi Dimmable	5.5	261	2700	90	25	Dimmable Casambi	Track
05.5141.ES.1V	Atom 90 1-10V Dimmable	5.5	261	2700	90	25	Dimmable 1-10V	Track
05.5141.ES	Atom 90 Non Dimmable	5.5	261	2700	90	25	-	Track
05.5141.ER.DA	Atom 90 Dali Dimmable	5.5	261	2700	90	25	Dimmable DALI 2	Track
05.5141.ER.CB	Atom 90 Casambi Dimmable	5.5	261	2700	90	25	Dimmable Casambi	Track
05.5141.ER.1V	Atom 90 1-10V Dimmable	5.5	261	2700	90	25	Dimmable 1-10V	Track
05.5141.ER	Atom 90 Non Dimmable	5.5	261	2700	90	25	-	Track
05.5141.40.DA	Atom 90 Dali Dimmable	5.5	261	2700	90	25	Dimmable DALI 2	Track
05.5141.40.CB	Atom 90 Casambi Dimmable	5.5	261	2700	90	25	Dimmable Casambi	Track
05.5141.40.1V	Atom 90 1-10V Dimmable	5.5	261	2700	90	25	Dimmable 1-10V	Track
05.5141.40	Atom 90 Non Dimmable	5.5	261	2700	90	25	-	Track
05.5141.14.DA	Atom 90 Dali Dimmable	5.5	261	2700	90	25	Dimmable DALI 2	Track
05.5141.14.CB	Atom 90 Casambi Dimmable	5.5	261	2700	90	25	Dimmable Casambi	Track
05.5141.14.1V	Atom 90 1-10V Dimmable	5.5	261	2700	90	25	Dimmable 1-10V	Track
05.5141.14	Atom 90 Non Dimmable	5.5	261	2700	90	25	-	Track
05.5140.ES.DA	Atom 90 Suspension Dali Dimmable	5.5	224	2700	90	14	Dimmable DALI 2	Track
05.5140.ES.CB	Atom 90 Suspension Casambi Dimmable	5.5	224	2700	90	14	Dimmable Casambi	Track
05.5140.ES.1V	Atom 90 1-10V Dimmable	5.5	224	2700	90	14	Dimmable 1-10V	Track
05.5140.ES	Atom 90 Suspension Non Dimmable	5.5	224	2700	90	14	-	Track
05.5140.ER.DA	Atom 90 Suspension Dali Dimmable	5.5	224	2700	90	14	Dimmable DALI 2	Track
05.5140.ER.CB	Atom 90 Suspension Casambi Dimmable	5.5	224	2700	90	14	Dimmable Casambi	Track
05.5140.ER.1V	Atom 90 1-10V Dimmable	5.5	224	2700	90	14	Dimmable 1-10V	Track
05.5140.ER	Atom 90 Suspension Non Dimmable	5.5	224	2700	90	14	-	Track
05.5140.40.DA	Atom 90 Dali Dimmable	5.5	224	2700	90	14	Dimmable DALI 2	Track
05.5140.40.CB	Atom 90 Casambi Dimmable	5.5	224	2700	90	14	Dimmable Casambi	Track
05.5140.40.1V	Atom 90 1-10V Dimmable	5.5	224	2700	90	14	Dimmable 1-10V	Track
05.5140.40	Find Me 1 Suspension Non Dimmable	5.5	224	2700	90	14	-	Track
05.5140.14.DA	Atom 90 Dali Dimmable	5.5	224	2700	90	14	Dimmable DALI 2	Track
05.5140.14.CB	Atom 90 Casambi Dimmable	5.5	224	2700	90	14	Dimmable Casambi	Track
05.5140.14.1V	Atom 90 1-10V Dimmable	5.5	224	2700	90	14	Dimmable 1-10V	Track
05.5140.14	Atom 90 Non Dimmable	5.5	224	2700	90	14	-	Track
