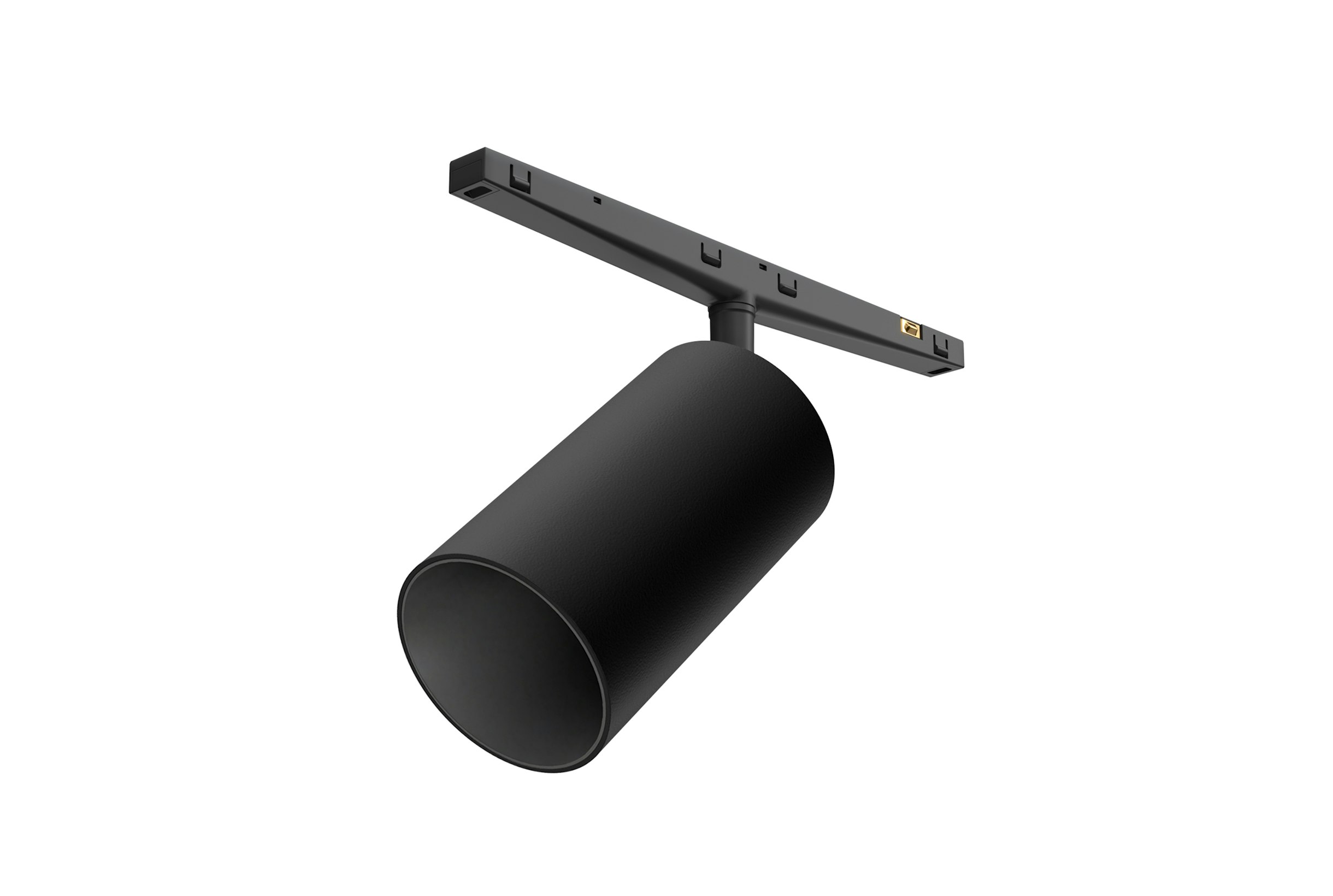

Light Shadow Spot 45

Designed by FLOS Architectural

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated.

Download Documentation

Product highlight

Deceiving the eye

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

Discover the Story

Luminaire

(72)

Optical Type

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.5187.ES.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	31	Dimmable DALI 2	Track
05.5187.ES.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	31	Dimmable 1-10V	Track
05.5187.ES	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	31	-	Track
05.5187.ER.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	31	Dimmable DALI 2	Track
05.5187.ER.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	31	Dimmable 1-10V	Track
05.5187.ER	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	31	-	Track
05.5187.40.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	31	Dimmable DALI 2	Track
05.5187.40.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	31	Dimmable 1-10V	Track
05.5187.40	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	31	-	Track
05.5187.14.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	31	Dimmable DALI 2	Track
05.5187.14.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	31	Dimmable 1-10V	Track
05.5187.14	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	31	-	Track
05.5186.ES.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	21	Dimmable DALI 2	Track
05.5186.ES.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	21	Dimmable 1-10V	Track
05.5186.ES	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	21	-	Track
05.5186.ER.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	21	Dimmable DALI 2	Track
05.5186.ER.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	21	Dimmable 1-10V	Track
05.5186.ER	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	21	-	Track
05.5186.40.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	21	Dimmable DALI 2	Track
05.5186.40.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	21	Dimmable 1-10V	Track
05.5186.40	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	21	-	Track
05.5186.14.DA	Light Shadow Spot 45 Dali Dimmable	10	682	3000	90	21	Dimmable DALI 2	Track
05.5186.14.1V	Light Shadow Spot 45 1-10V Dimmable	10	682	3000	90	21	Dimmable 1-10V	Track
05.5186.14	Light Shadow Spot 45 Non Dimmable	10	682	3000	90	21	-	Track
05.5185.ES.DA	Light Shadow Spot 45 Dali Dimmable	10	686	3000	90	15	Dimmable DALI 2	Track
05.5185.ES.1V	Light Shadow Spot 45 1-10V Dimmable	10	686	3000	90	15	Dimmable 1-10V	Track
05.5185.ES	Light Shadow Spot 45 Non Dimmable	10	686	3000	90	15	-	Track
05.5185.ER.DA	Light Shadow Spot 45 Dali Dimmable	10	686	3000	90	15	Dimmable DALI 2	Track
05.5185.ER.1V	Light Shadow Spot 45 1-10V Dimmable	10	686	3000	90	15	Dimmable 1-10V	Track
05.5185.ER	Light Shadow Spot 45 Non Dimmable	10	686	3000	90	15	-	Track
05.5185.40.DA	Light Shadow Spot 45 Dali Dimmable	10	686	3000	90	15	Dimmable DALI 2	Track
05.5185.40.1V	Light Shadow Spot 45 1-10V Dimmable	10	686	3000	90	15	Dimmable 1-10V	Track
05.5185.40	Light Shadow Spot 45 Non Dimmable	10	686	3000	90	15	-	Track
05.5185.14.DA	Light Shadow Spot 45 Dali Dimmable	10	686	3000	90	15	Dimmable DALI 2	Track
05.5185.14.1V	Light Shadow Spot 45 1-10V Dimmable	10	686	3000	90	15	Dimmable 1-10V	Track
05.5185.14	Light Shadow Spot 45 Non Dimmable	10	686	3000	90	15	-	Track
05.5182.ES.DA	Light Shadow Spot 45 Dali Dimmable	10	646	2700	90	31	Dimmable DALI 2	Track
05.5182.ES.1V	Light Shadow Spot 45 1-10V Dimmable	10	646	2700	90	31	Dimmable 1-10V	Track
05.5182.ES	Light Shadow Spot 45 Non Dimmable	10	646	2700	90	31	-	Track
05.5182.ER.DA	Light Shadow Spot 45 Dali Dimmable	10	646	2700	90	31	Dimmable DALI 2	Track
05.5182.ER.1V	Light Shadow Spot 45 1-10V Dimmable	10	646	2700	90	31	Dimmable 1-10V	Track
05.5182.ER	Light Shadow Spot 45 Non Dimmable	10	646	2700	90	31	-	Track
05.5182.40.DA	Light Shadow Spot 45 Dali Dimmable	10	646	2700	90	31	Dimmable DALI 2	Track
05.5182.40.1V	Light Shadow Spot 45 1-10V Dimmable	10	646	2700	90	31	Dimmable 1-10V	Track
05.5182.40	Light Shadow Spot 45 Non Dimmable	10	646	2700	90	31	-	Track
05.5182.14.DA	Light Shadow Spot 45 Dali Dimmable	10	646	2700	90	31	Dimmable DALI 2	Track
05.5182.14.1V	Light Shadow Spot 45 1-10V Dimmable	10	646	2700	90	31	Dimmable 1-10V	Track
05.5182.14	Light Shadow Spot 45 Non Dimmable	10	646	2700	90	31	-	Track
05.5181.ES.DA	Light Shadow Spot 45 Dali Dimmable	10	645	2700	90	21	Dimmable DALI 2	Track
05.5181.ES.1V	Light Shadow Spot 45 1-10V Dimmable	10	645	2700	90	21	Dimmable 1-10V	Track
05.5181.ES	Light Shadow Spot 45 Non Dimmable	10	645	2700	90	21	-	Track
05.5181.ER.DA	Light Shadow Spot 45 Dali Dimmable	10	645	2700	90	21	Dimmable DALI 2	Track
05.5181.ER.1V	Light Shadow Spot 45 1-10V Dimmable	10	645	2700	90	21	Dimmable 1-10V	Track
05.5181.ER	Light Shadow Spot 45 Non Dimmable	10	645	2700	90	21	-	Track
05.5181.40.DA	Light Shadow Spot 45 Dali Dimmable	10	645	2700	90	21	Dimmable DALI 2	Track
05.5181.40.1V	Light Shadow Spot 45 1-10V Dimmable	10	645	2700	90	21	Dimmable 1-10V	Track
05.5181.40	Light Shadow Spot 45 Non Dimmable	10	645	2700	90	21	-	Track
05.5181.14.DA	Light Shadow Spot 45 Dali Dimmable	10	645	2700	90	21	Dimmable DALI 2	Track
05.5181.14.1V	Light Shadow Spot 45 1-10V Dimmable	10	645	2700	90	21	Dimmable 1-10V	Track
05.5181.14	Light Shadow Spot 45 Non Dimmable	10	645	2700	90	21	-	Track
05.5180.ES.DA	Light Shadow Spot 45 Dali Dimmable	10	650	2700	90	15	Dimmable DALI 2	Track
05.5180.ES.1V	Light Shadow Spot 45 1-10V Dimmable	10	650	2700	90	15	Dimmable 1-10V	Track
05.5180.ES	Light Shadow Spot 45 Non Dimmable	10	650	2700	90	15	-	Track
05.5180.ER.DA	Light Shadow Spot 45 Dali Dimmable	10	650	2700	90	15	Dimmable DALI 2	Track
05.5180.ER.1V	Light Shadow Spot 45 1-10V Dimmable	10	650	2700	90	15	Dimmable 1-10V	Track
05.5180.ER	Light Shadow Spot 45 Non Dimmable	10	650	2700	90	15	-	Track
05.5180.40.DA	Light Shadow Spot 45 Dali Dimmable	10	650	2700	90	15	Dimmable DALI 2	Track
05.5180.40.1V	Light Shadow Spot 45 1-10V Dimmable	10	650	2700	90	15	Dimmable 1-10V	Track
05.5180.40	Light Shadow Spot 45 Non Dimmable	10	650	2700	90	15	-	Track
05.5180.14.DA	Light Shadow Spot 45 Dali Dimmable	10	650	2700	90	15	Dimmable DALI 2	Track
05.5180.14.1V	Light Shadow Spot 45 1-10V Dimmable	10	650	2700	90	15	Dimmable 1-10V	Track
05.5180.14	Light Shadow Spot 45 Non Dimmable	10	650	2700	90	15	-	Track
