My Spot 35 Long

Designed by Michael Anastassiades

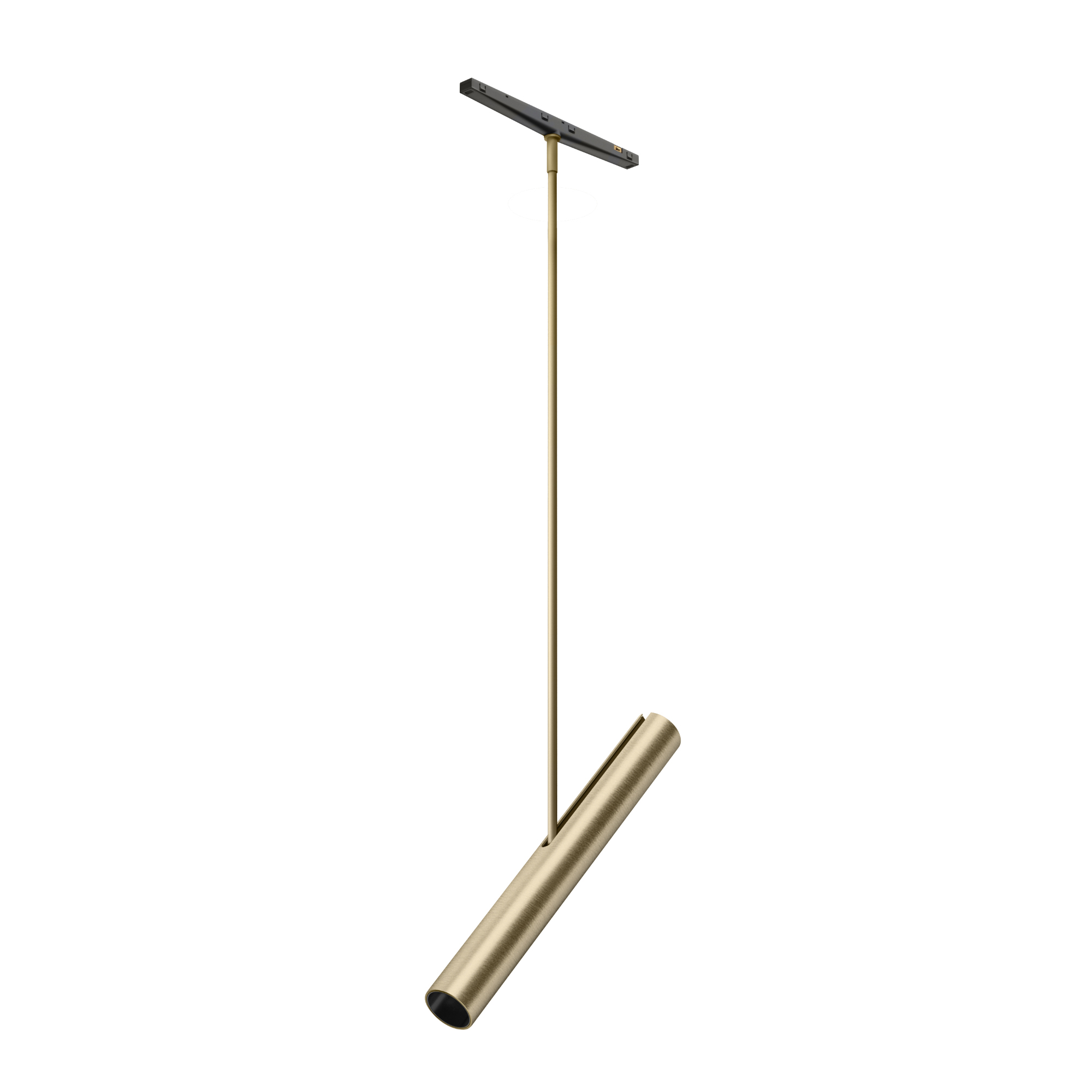

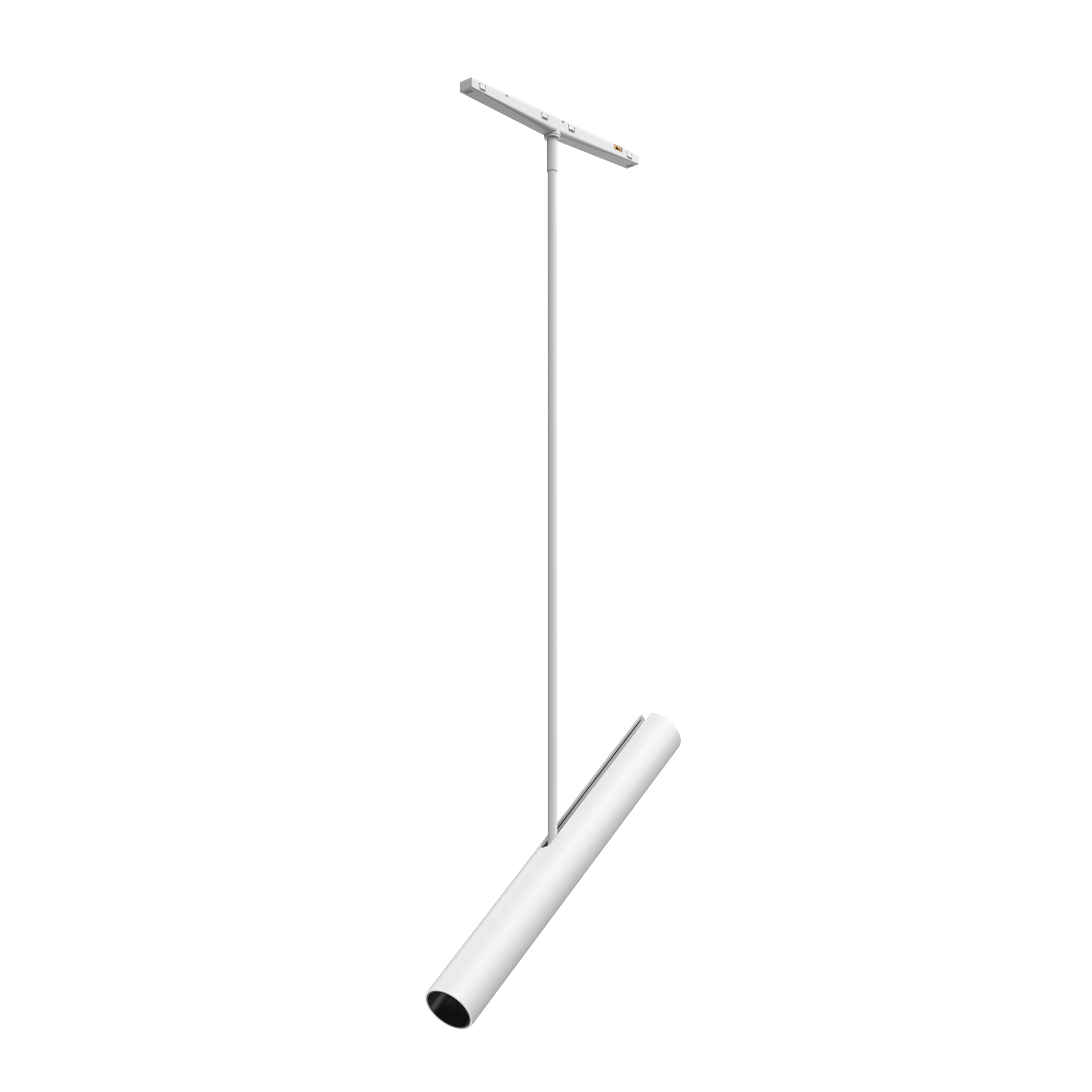

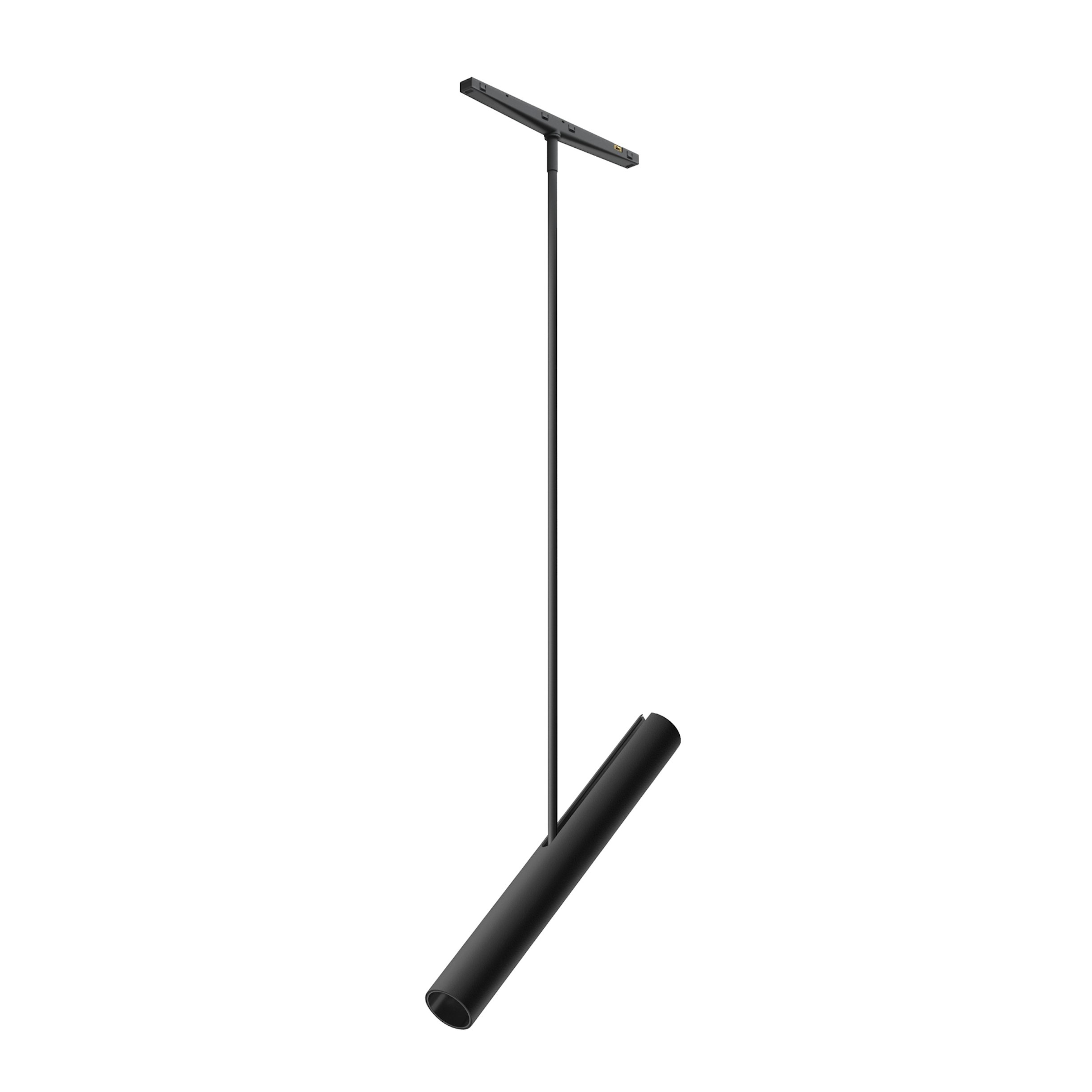

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated.

Download Documentation

Product highlight

Deceiving the eye

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

Discover the Story

Luminaire

(96)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.5337.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Track
05.5337.ES.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable Casambi	Track
05.5337.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10V	Track
05.5337.ES	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non Dimmable	Track
05.5337.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Track
05.5337.ER.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable Casambi	Track
05.5337.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10V	Track
05.5337.ER	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non Dimmable	Track
05.5337.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Track
05.5337.40.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable Casambi	Track
05.5337.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10V	Track
05.5337.40	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non Dimmable	Track
05.5337.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	677	3000	90	32	Dimmable DALI 2	Track
05.5337.14.CB	My Spot Ø35 Long Casambi	8.2	677	3000	90	32	Dimmable Casambi	Track
05.5337.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	677	3000	90	32	Dimmable 1-10V	Track
05.5337.14	My Spot Ø35 Long Non Dimmable	8.2	677	3000	90	32	Non Dimmable	Track
05.5336.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Track
05.5336.ES.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable Casambi	Track
05.5336.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10V	Track
05.5336.ES	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non Dimmable	Track
05.5336.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Track
05.5336.ER.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable Casambi	Track
05.5336.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10V	Track
05.5336.ER	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non Dimmable	Track
05.5336.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Track
05.5336.40.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable Casambi	Track
05.5336.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10V	Track
05.5336.40	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non Dimmable	Track
05.5336.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	679	3000	90	21	Dimmable DALI 2	Track
05.5336.14.CB	My Spot Ø35 Long Casambi	8.2	679	3000	90	21	Dimmable Casambi	Track
05.5336.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	679	3000	90	21	Dimmable 1-10V	Track
05.5336.14	My Spot Ø35 Long Non Dimmable	8.2	679	3000	90	21	Non Dimmable	Track
05.5335.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Track
05.5335.ES.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable Casambi	Track
05.5335.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10V	Track
05.5335.ES	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non Dimmable	Track
05.5335.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Track
05.5335.ER.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable Casambi	Track
05.5335.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10V	Track
05.5335.ER	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non Dimmable	Track
05.5335.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Track
05.5335.40.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable Casambi	Track
05.5335.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10V	Track
05.5335.40	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non Dimmable	Track
05.5335.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	613	3000	90	15	Dimmable DALI 2	Track
05.5335.14.CB	My Spot Ø35 Long Casambi	8.2	613	3000	90	15	Dimmable Casambi	Track
05.5335.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	613	3000	90	15	Dimmable 1-10V	Track
05.5335.14	My Spot Ø35 Long Non Dimmable	8.2	613	3000	90	15	Non Dimmable	Track
05.5332.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Track
05.5332.ES.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable Casambi	Track
05.5332.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10V	Track
05.5332.ES	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non Dimmable	Track
05.5332.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Track
05.5332.ER.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable Casambi	Track
05.5332.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10V	Track
05.5332.ER	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non Dimmable	Track
05.5332.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Track
05.5332.40.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable Casambi	Track
05.5332.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10V	Track
05.5332.40	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non Dimmable	Track
05.5332.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	641	2700	90	32	Dimmable DALI 2	Track
05.5332.14.CB	My Spot Ø35 Long Casambi	8.2	641	2700	90	32	Dimmable Casambi	Track
05.5332.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	641	2700	90	32	Dimmable 1-10V	Track
05.5332.14	My Spot Ø35 Long Non Dimmable	8.2	641	2700	90	32	Non Dimmable	Track
05.5331.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Track
05.5331.ES.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable Casambi	Track
05.5331.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10V	Track
05.5331.ES	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non Dimmable	Track
05.5331.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Track
05.5331.ER.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable Casambi	Track
05.5331.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10V	Track
05.5331.ER	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non Dimmable	Track
05.5331.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Track
05.5331.40.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable Casambi	Track
05.5331.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10V	Track
05.5331.40	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non Dimmable	Track
05.5331.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	642	2700	90	21	Dimmable DALI 2	Track
05.5331.14.CB	My Spot Ø35 Long Casambi	8.2	642	2700	90	21	Dimmable Casambi	Track
05.5331.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	642	2700	90	21	Dimmable 1-10V	Track
05.5331.14	My Spot Ø35 Long Non Dimmable	8.2	642	2700	90	21	Non Dimmable	Track
05.5330.ES.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Track
05.5330.ES.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable Casambi	Track
05.5330.ES.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10V	Track
05.5330.ES	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non Dimmable	Track
05.5330.ER.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Track
05.5330.ER.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable Casambi	Track
05.5330.ER.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10V	Track
05.5330.ER	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non Dimmable	Track
05.5330.40.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Track
05.5330.40.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable Casambi	Track
05.5330.40.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10V	Track
05.5330.40	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non Dimmable	Track
05.5330.14.DA	My Spot Ø35 Long Dali Dimmable	8.2	580	2700	90	15	Dimmable DALI 2	Track
05.5330.14.CB	My Spot Ø35 Long Casambi	8.2	580	2700	90	15	Dimmable Casambi	Track
05.5330.14.1V	My Spot Ø35 Long 1-10V Dimmable	8.2	580	2700	90	15	Dimmable 1-10V	Track
05.5330.14	My Spot Ø35 Long Non Dimmable	8.2	580	2700	90	15	Non Dimmable	Track
