Light Stripe Surface

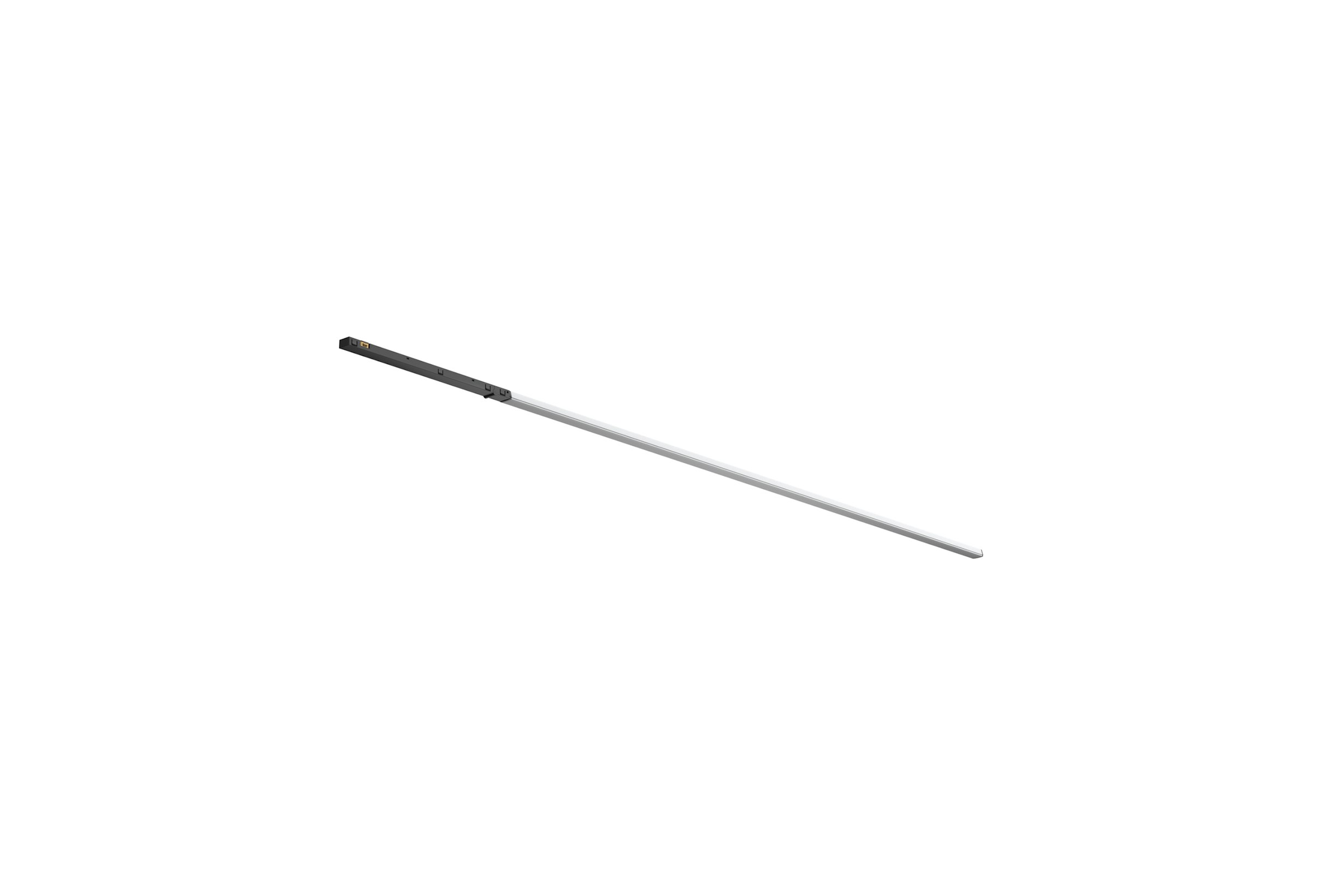

LED diffuse lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated.

Download Documentation

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

(18)

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting

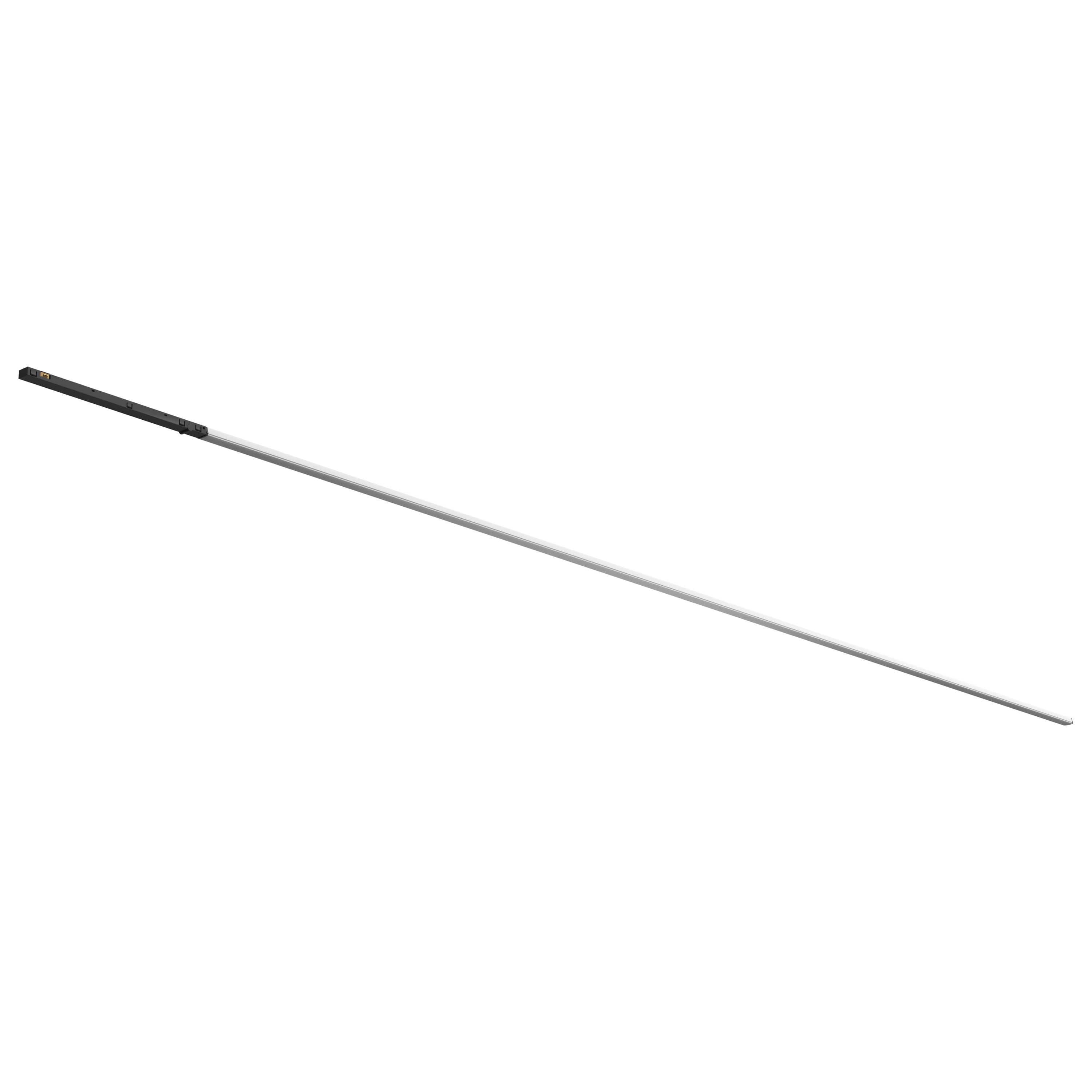

05.5195.14.DA	Light Stripe 1200 Dali Dimmable	13.5	816	3000	90	115	Dimmable DALI 2	Track
05.5195.14.1V	Light Stripe 1200 1-10V Dimmable	13.5	816	3000	90	115	Dimmable 1-10V	Track
05.5195.14	Light Stripe 1200 Non Dimmable	13.5	816	3000	90	115	-	Track
05.5194.14.DA	Light Stripe 1200 Dali Dimmable	13.5	777	2700	90	115	Dimmable DALI 2	Track
05.5194.14.1V	Light Stripe 1200 1-10V Dimmable	13.5	777	2700	90	115	Dimmable 1-10V	Track
05.5194.14	Light Stripe 1200 Non Dimmable	13.5	777	2700	90	115	-	Track

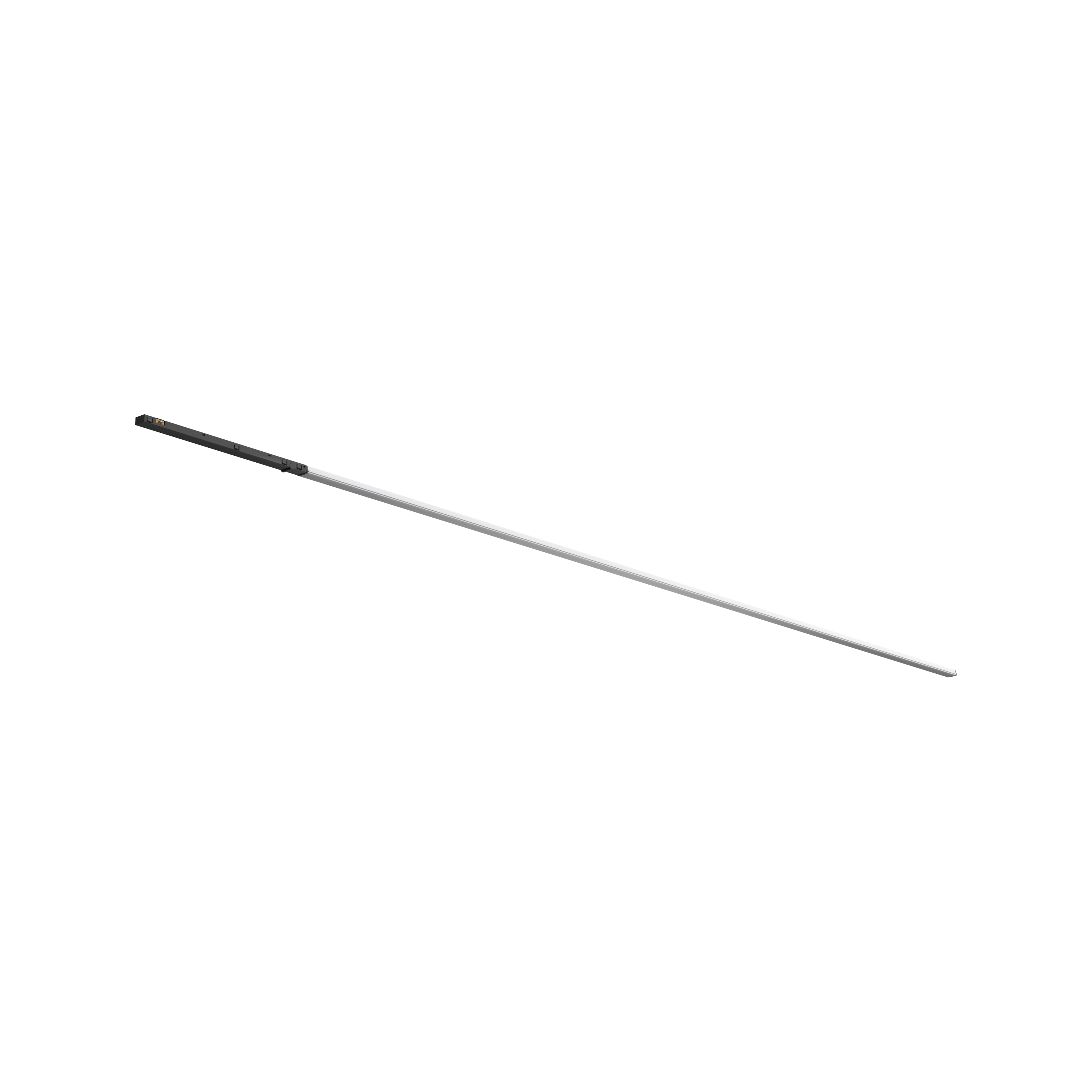

05.5193.14.DA	Light Stripe 900 Dali Dimmable	10	544	3000	90	115	Dimmable DALI 2	Track
05.5193.14.1V	Light Stripe 900 1-10V Dimmable	10	544	3000	90	115	Dimmable 1-10V	Track
05.5193.14	Light Stripe 900 Non Dimmable	10	544	3000	90	115	-	Track
05.5192.14.DA	Light Stripe 900 Dali Dimmable	10	518	2700	90	115	Dimmable DALI 2	Track
05.5192.14.1V	Light Stripe 900 1-10V Dimmable	10	518	2700	90	115	Dimmable 1-10V	Track
05.5192.14	Light Stripe 900 Non Dimmable	10	518	2700	90	115	-	Track

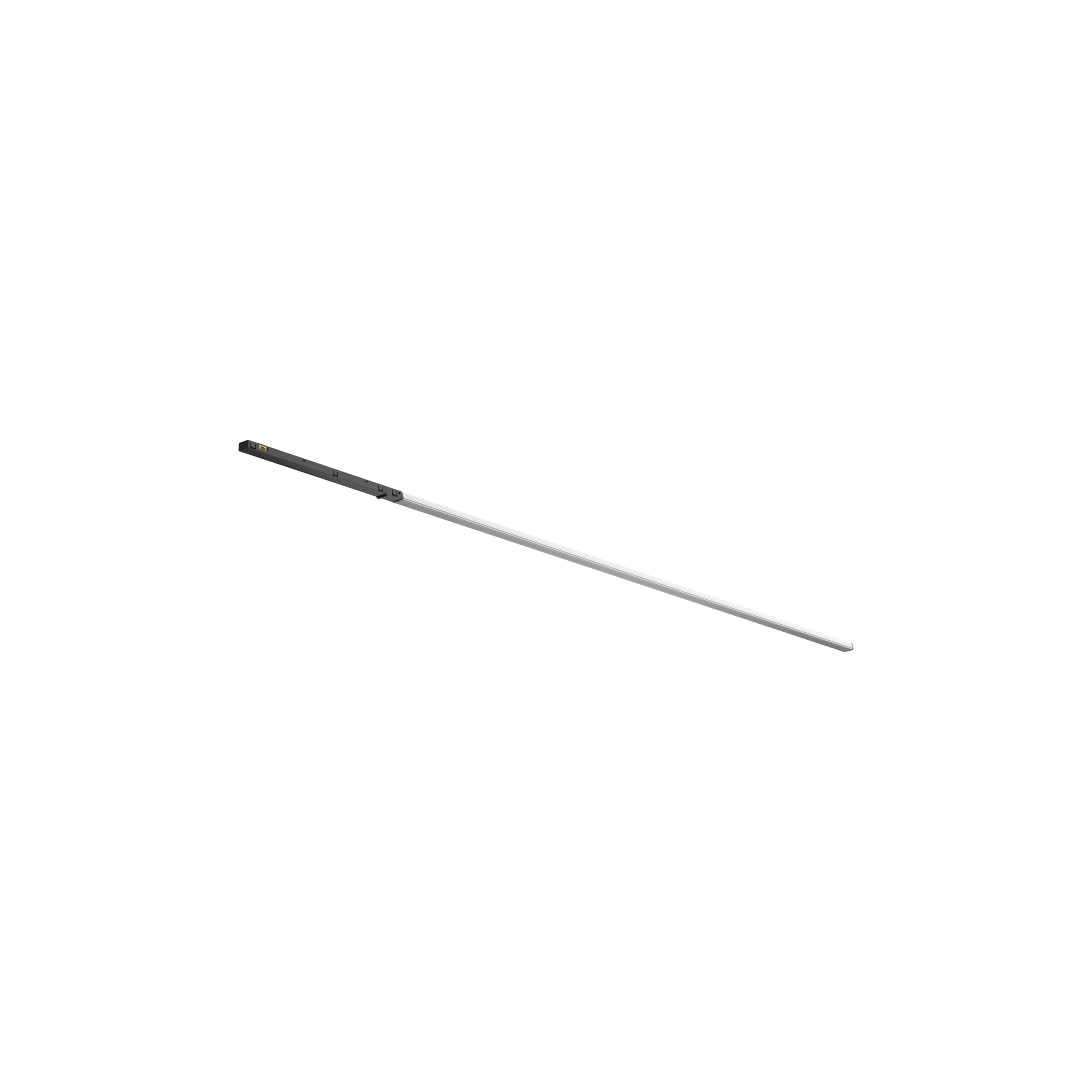

05.5191.14.DA	Light Stripe 600 Dali Dimmable	7	272	3000	90	115	Dimmable DALI 2	Track
05.5191.14.1V	Light Stripe 600 1-10V Dimmable	7	272	3000	90	115	Dimmable 1-10V	Track
05.5191.14	Light Stripe 600 Non Dimmable	7	272	3000	90	115	-	Track
05.5190.14.DA	Light Stripe 600 Dali Dimmable	7	259	2700	90	115	Dimmable DALI 2	Track
05.5190.14.1V	Light Stripe 600 1-10V Dimmable	7	259	2700	90	115	Dimmable 1-10V	Track
05.5190.14	Light Stripe 600 Non Dimmable	7	259	2700	90	115	-	Track
