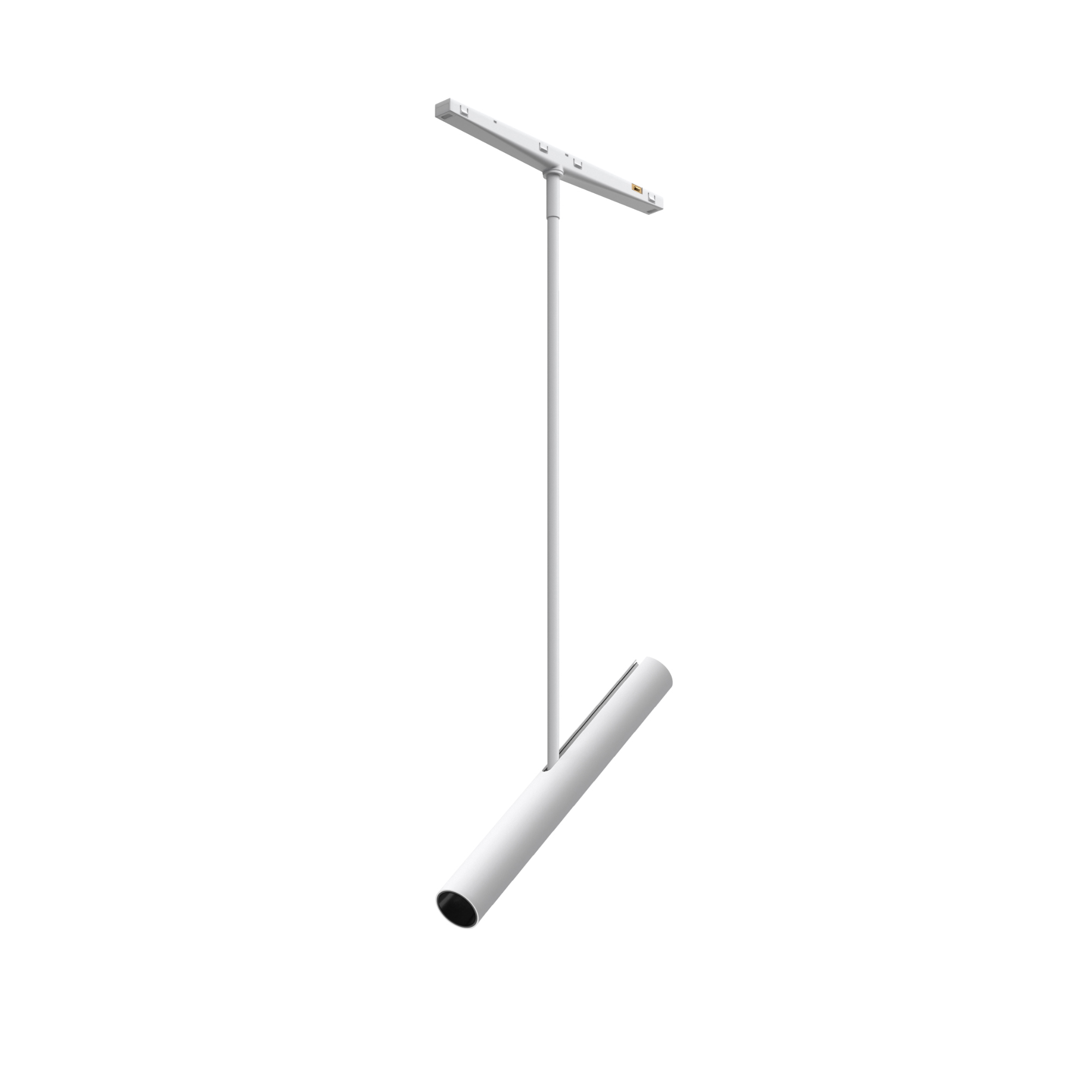

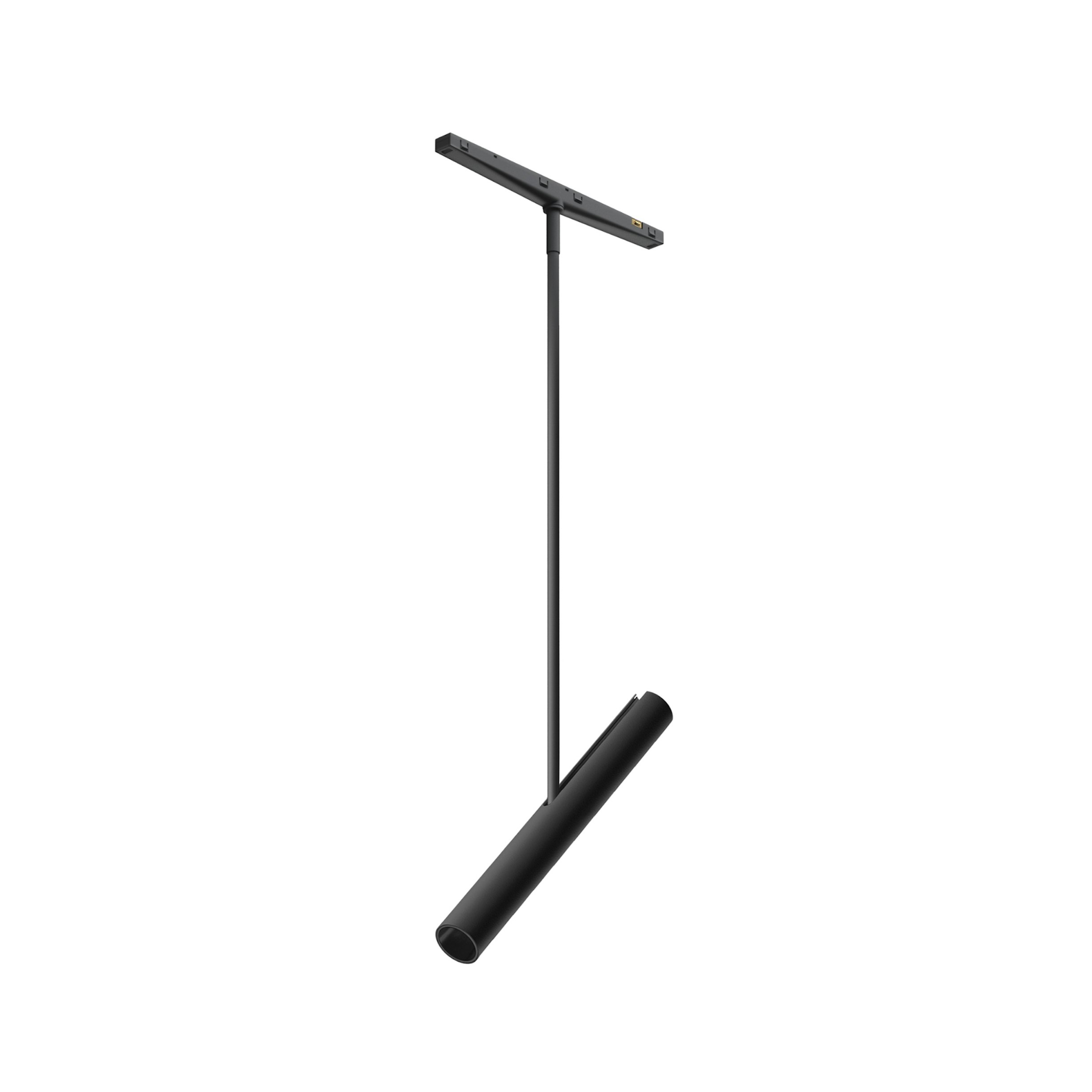

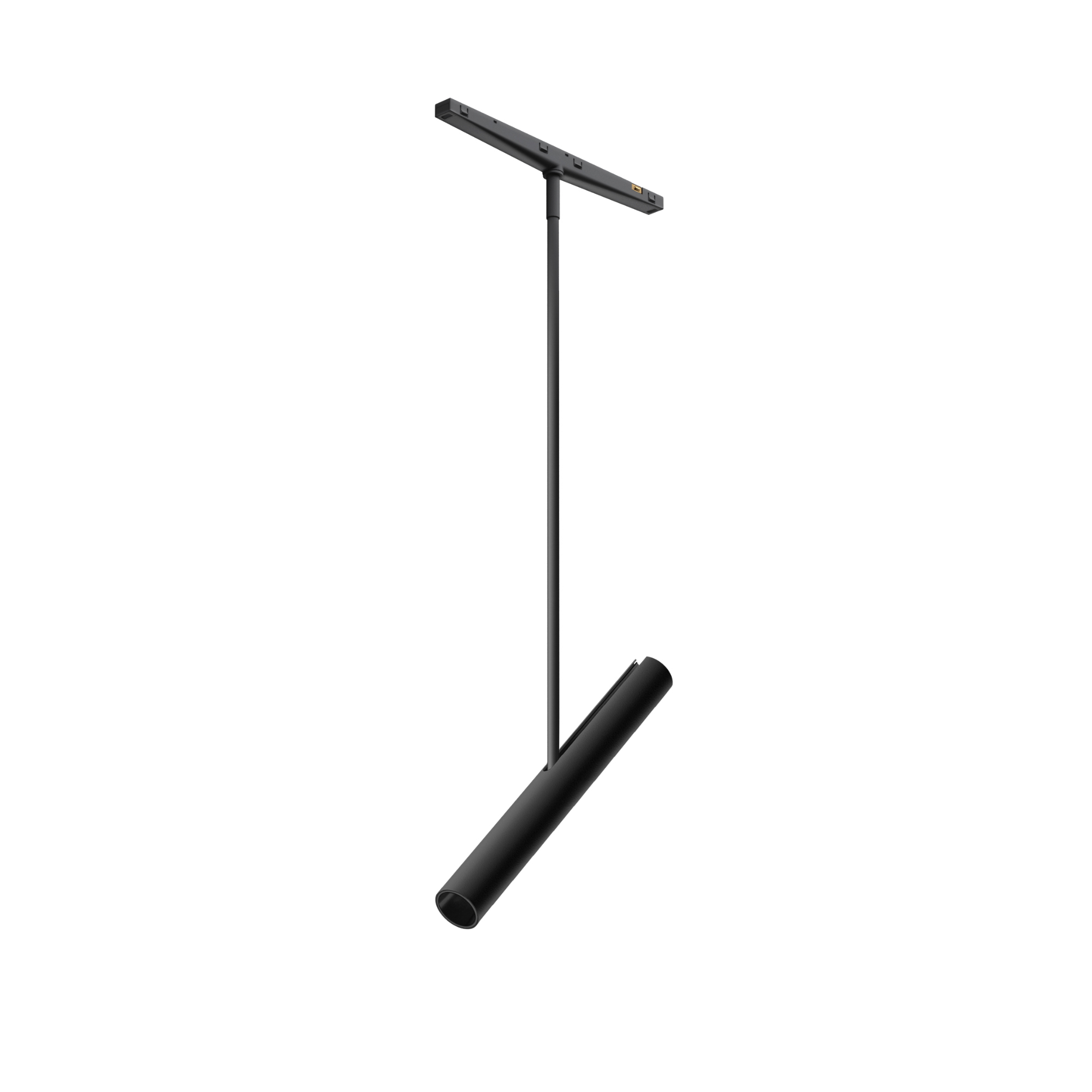

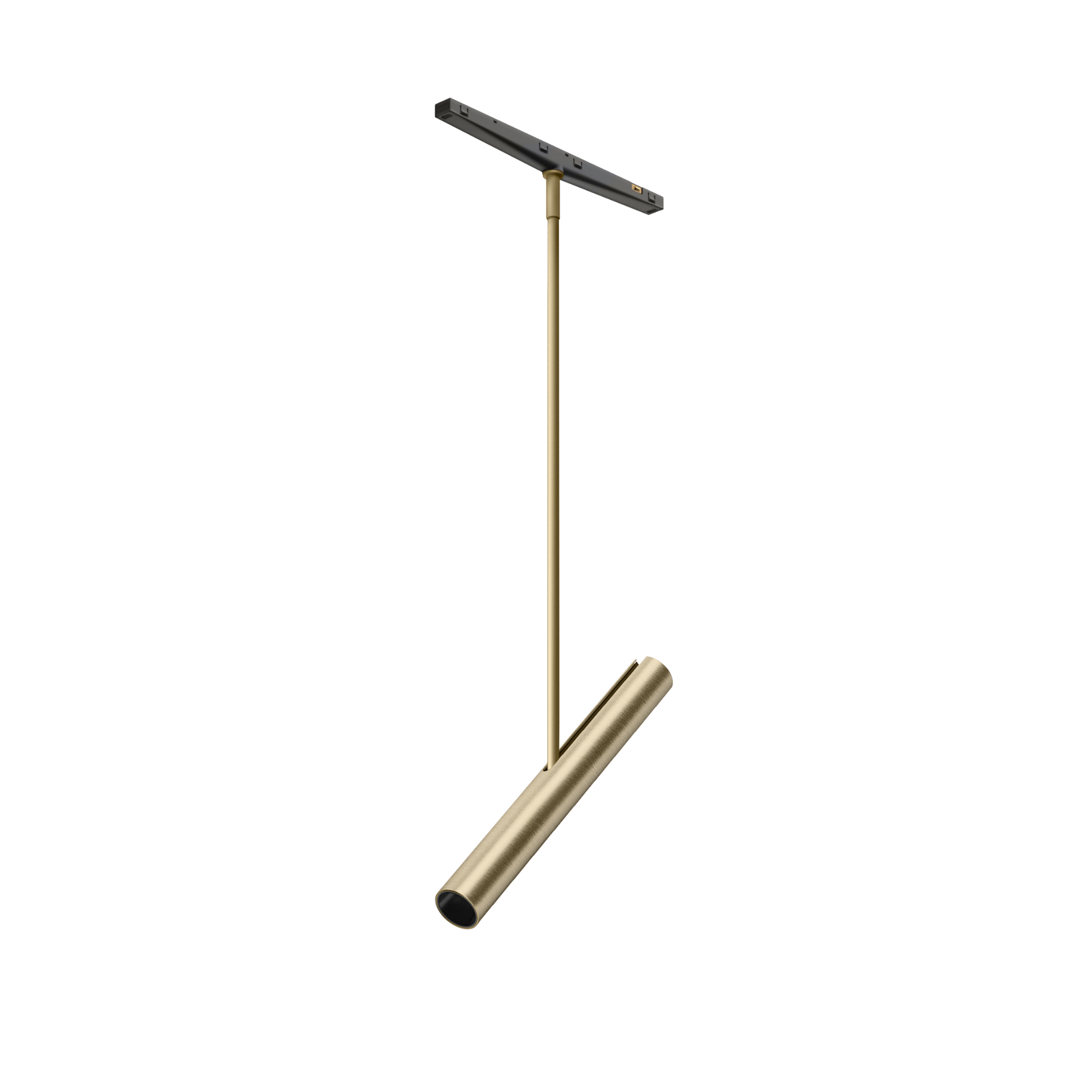

My Spot 25 Long

Designed by Michael Anastassiades

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated.

Download Documentation

Product highlight

Deceiving the eye

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

Discover the Story

Luminaire

(96)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.5317.ESADA	My Spot Ø25 Long Dali Dimmable	4.9	225	3000	90	34	Dimmable DALI 2	Track
05.5317.ESACB	My Spot Ø25 Long Casambi	3.8	199	3000	90	34	Dimmable Casambi	Track
05.5317.ESA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	225	3000	90	34	Dimmable 1-10V	Track
05.5317.ESA	My Spot Ø25 Long Non Dimmable	4.9	225	3000	90	34	Non Dimmable	Track
05.5317.ERADA	My Spot Ø25 Long Dali Dimmable	4.9	225	3000	90	34	Dimmable DALI 2	Track
05.5317.ERACB	My Spot Ø25 Long Casambi	3.8	199	3000	90	34	Dimmable Casambi	Track
05.5317.ERA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	225	3000	90	34	Dimmable 1-10V	Track
05.5317.ERA	My Spot Ø25 Long Non Dimmable	4.9	225	3000	90	34	Non Dimmable	Track
05.5317.40ADA	My Spot Ø25 Long Dali Dimmable	4.9	225	3000	90	34	Dimmable DALI 2	Track
05.5317.40ACB	My Spot Ø25 Long Casambi	3.8	199	3000	90	34	Dimmable Casambi	Track
05.5317.40A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	225	3000	90	34	Dimmable 1-10V	Track
05.5317.40A	My Spot Ø25 Long Non Dimmable	4.9	225	3000	90	34	Non Dimmable	Track
05.5317.14ADA	My Spot Ø25 Long Dali Dimmable	4.9	225	3000	90	34	Dimmable DALI 2	Track
05.5317.14ACB	My Spot Ø25 Long Casambi	3.8	199	3000	90	34	Dimmable Casambi	Track
05.5317.14A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	225	3000	90	34	Dimmable 1-10V	Track
05.5317.14A	My Spot Ø25 Long Non Dimmable	4.9	225	3000	90	34	Non Dimmable	Track
05.5316.ESADA	My Spot Ø25 Long Dali Dimmable	4.9	249	3000	90	23	Dimmable DALI 2	Track
05.5316.ESACB	My Spot Ø25 Long Casambi	3.8	220	3000	90	23	Dimmable Casambi	Track
05.5316.ESA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	249	3000	90	23	Dimmable 1-10V	Track
05.5316.ESA	My Spot Ø25 Long Non Dimmable	4.9	249	3000	90	23	Non Dimmable	Track
05.5316.ERADA	My Spot Ø25 Long Dali Dimmable	4.9	249	3000	90	23	Dimmable DALI 2	Track
05.5316.ERACB	My Spot Ø25 Long Casambi	3.8	220	3000	90	23	Dimmable Casambi	Track
05.5316.ERA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	249	3000	90	23	Dimmable 1-10V	Track
05.5316.ERA	My Spot Ø25 Long Non Dimmable	4.9	249	3000	90	23	Non Dimmable	Track
05.5316.40ADA	My Spot Ø25 Long Dali Dimmable	4.9	249	3000	90	23	Dimmable DALI 2	Track
05.5316.40ACB	My Spot Ø25 Long Casambi	3.8	220	3000	90	23	Dimmable Casambi	Track
05.5316.40A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	249	3000	90	23	Dimmable 1-10V	Track
05.5316.40A	My Spot Ø25 Long Non Dimmable	4.9	249	3000	90	23	Non Dimmable	Track
05.5316.14ADA	My Spot Ø25 Long Dali Dimmable	4.9	249	3000	90	23	Dimmable DALI 2	Track
05.5316.14ACB	My Spot Ø25 Long Casambi	3.8	220	3000	90	23	Dimmable Casambi	Track
05.5316.14A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	249	3000	90	23	Dimmable 1-10V	Track
05.5316.14A	My Spot Ø25 Long Non Dimmable	4.9	249	3000	90	23	Non Dimmable	Track
05.5315.ESADA	My Spot Ø25 Long Dali Dimmable	4.9	244	3000	90	11	Dimmable DALI 2	Track
05.5315.ESACB	My Spot Ø25 Long Casambi	3.8	216	3000	90	11	Dimmable Casambi	Track
05.5315.ESA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	244	3000	90	11	Dimmable 1-10V	Track
05.5315.ESA	My Spot Ø25 Long Non Dimmable	4.9	244	3000	90	11	Non Dimmable	Track
05.5315.ERADA	My Spot Ø25 Long Dali Dimmable	4.9	244	3000	90	11	Dimmable DALI 2	Track
05.5315.ERACB	My Spot Ø25 Long Casambi	3.8	216	3000	90	11	Dimmable Casambi	Track
05.5315.ERA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	244	3000	90	11	Dimmable 1-10V	Track
05.5315.ERA	My Spot Ø25 Long Non Dimmable	4.9	244	3000	90	11	Non Dimmable	Track
05.5315.40ADA	My Spot Ø25 Long Dali Dimmable	4.9	244	3000	90	11	Dimmable DALI 2	Track
05.5315.40ACB	My Spot Ø25 Long Casambi	3.8	216	3000	90	11	Dimmable Casambi	Track
05.5315.40A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	244	3000	90	11	Dimmable 1-10V	Track
05.5315.40A	My Spot Ø25 Long Non Dimmable	4.9	244	3000	90	11	Non Dimmable	Track
05.5315.14ADA	My Spot Ø25 Long Dali Dimmable	4.9	244	3000	90	11	Dimmable DALI 2	Track
05.5315.14ACB	My Spot Ø25 Long Casambi	3.8	216	3000	90	11	Dimmable Casambi	Track
05.5315.14A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	244	3000	90	11	Dimmable 1-10V	Track
05.5315.14A	My Spot Ø25 Long Non Dimmable	4.9	244	3000	90	11	Non Dimmable	Track
05.5312.ESADA	My Spot Ø25 Long Dali Dimmable	4.9	205	2700	90	34	Dimmable DALI 2	Track
05.5312.ESACB	My Spot Ø25 Long Casambi	3.8	187	2700	90	34	Dimmable Casambi	Track
05.5312.ESA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	205	2700	90	34	Dimmable 1-10V	Track
05.5312.ESA	My Spot Ø25 Long Non Dimmable	4.9	205	2700	90	34	Non Dimmable	Track
05.5312.ERADA	My Spot Ø25 Long Dali Dimmable	4.9	205	2700	90	34	Dimmable DALI 2	Track
05.5312.ERACB	My Spot Ø25 Long Casambi	3.8	187	2700	90	34	Dimmable Casambi	Track
05.5312.ERA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	205	2700	90	34	Dimmable 1-10V	Track
05.5312.ERA	My Spot Ø25 Long Non Dimmable	4.9	205	2700	90	34	Non Dimmable	Track
05.5312.40ADA	My Spot Ø25 Long Dali Dimmable	4.9	205	2700	90	34	Dimmable DALI 2	Track
05.5312.40ACB	My Spot Ø25 Long Casambi	3.8	187	2700	90	34	Dimmable Casambi	Track
05.5312.40A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	205	2700	90	34	Dimmable 1-10V	Track
05.5312.40A	My Spot Ø25 Long Non Dimmable	4.9	205	2700	90	34	Non Dimmable	Track
05.5312.14ADA	My Spot Ø25 Long Dali Dimmable	4.9	205	2700	90	34	Dimmable DALI 2	Track
05.5312.14ACB	My Spot Ø25 Long Casambi	3.8	187	2700	90	34	Dimmable Casambi	Track
05.5312.14A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	205	2700	90	34	Dimmable 1-10V	Track
05.5312.14A	My Spot Ø25 Long Non Dimmable	4.9	205	2700	90	34	Non Dimmable	Track
05.5311.ESADA	My Spot Ø25 Long Dali Dimmable	4.9	227	2700	90	23	Dimmable DALI 2	Track
05.5311.ESACB	My Spot Ø25 Long Casambi	3.8	207	2700	90	23	Dimmable Casambi	Track
05.5311.ESA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	227	2700	90	23	Dimmable 1-10V	Track
05.5311.ESA	My Spot Ø25 Long Non Dimmable	4.9	227	2700	90	23	Non Dimmable	Track
05.5311.ERADA	My Spot Ø25 Long Dali Dimmable	4.9	227	2700	90	23	Dimmable DALI 2	Track
05.5311.ERACB	My Spot Ø25 Long Casambi	3.8	207	2700	90	23	Dimmable Casambi	Track
05.5311.ERA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	227	2700	90	23	Dimmable 1-10V	Track
05.5311.ERA	My Spot Ø25 Long Non Dimmable	4.9	227	2700	90	23	Non Dimmable	Track
05.5311.40ADA	My Spot Ø25 Long Dali Dimmable	4.9	227	2700	90	23	Dimmable DALI 2	Track
05.5311.40ACB	My Spot Ø25 Long Casambi	3.8	207	2700	90	23	Dimmable Casambi	Track
05.5311.40A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	227	2700	90	23	Dimmable 1-10V	Track
05.5311.40A	My Spot Ø25 Long Non Dimmable	4.9	227	2700	90	23	Non Dimmable	Track
05.5311.14ADA	My Spot Ø25 Long Dali Dimmable	4.9	227	2700	90	23	Dimmable DALI 2	Track
05.5311.14ACB	My Spot Ø25 Long Casambi	3.8	207	2700	90	23	Dimmable Casambi	Track
05.5311.14A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	227	2700	90	23	Dimmable 1-10V	Track
05.5311.14A	My Spot Ø25 Long Non Dimmable	4.9	227	2700	90	23	Non Dimmable	Track
05.5310.ESADA	My Spot Ø25 Long Dali Dimmable	4.9	222	2700	90	11	Dimmable DALI 2	Track
05.5310.ESACB	My Spot Ø25 Long Casambi	3.8	203	2700	90	11	Dimmable Casambi	Track
05.5310.ESA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	222	2700	90	11	Dimmable 1-10V	Track
05.5310.ESA	My Spot Ø25 Long Non Dimmable	4.9	222	2700	90	11	Non Dimmable	Track
05.5310.ERADA	My Spot Ø25 Long Dali Dimmable	4.9	222	2700	90	11	Dimmable DALI 2	Track
05.5310.ERACB	My Spot Ø25 Long Casambi	3.8	203	2700	90	11	Dimmable Casambi	Track
05.5310.ERA1V	My Spot Ø25 Long 1-10V Dimmable	4.9	222	2700	90	11	Dimmable 1-10V	Track
05.5310.ERA	My Spot Ø25 Long Non Dimmable	4.9	222	2700	90	11	Non Dimmable	Track
05.5310.40ADA	My Spot Ø25 Long Dali Dimmable	4.9	222	2700	90	11	Dimmable DALI 2	Track
05.5310.40ACB	My Spot Ø25 Long Casambi	3.8	203	2700	90	11	Dimmable Casambi	Track
05.5310.40A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	222	2700	90	11	Dimmable 1-10V	Track
05.5310.40A	My Spot Ø25 Long Non Dimmable	4.9	222	2700	90	11	Non Dimmable	Track
05.5310.14ADA	My Spot Ø25 Long Dali Dimmable	4.9	222	2700	90	11	Dimmable DALI 2	Track
05.5310.14ACB	My Spot Ø25 Long Casambi	3.8	203	2700	90	11	Dimmable Casambi	Track
05.5310.14A1V	My Spot Ø25 Long 1-10V Dimmable	4.9	222	2700	90	11	Dimmable 1-10V	Track
05.5310.14A	My Spot Ø25 Long Non Dimmable	4.9	222	2700	90	11	Non Dimmable	Track
