Magic Stick Asymmetric

Designed by Jorge Herrera

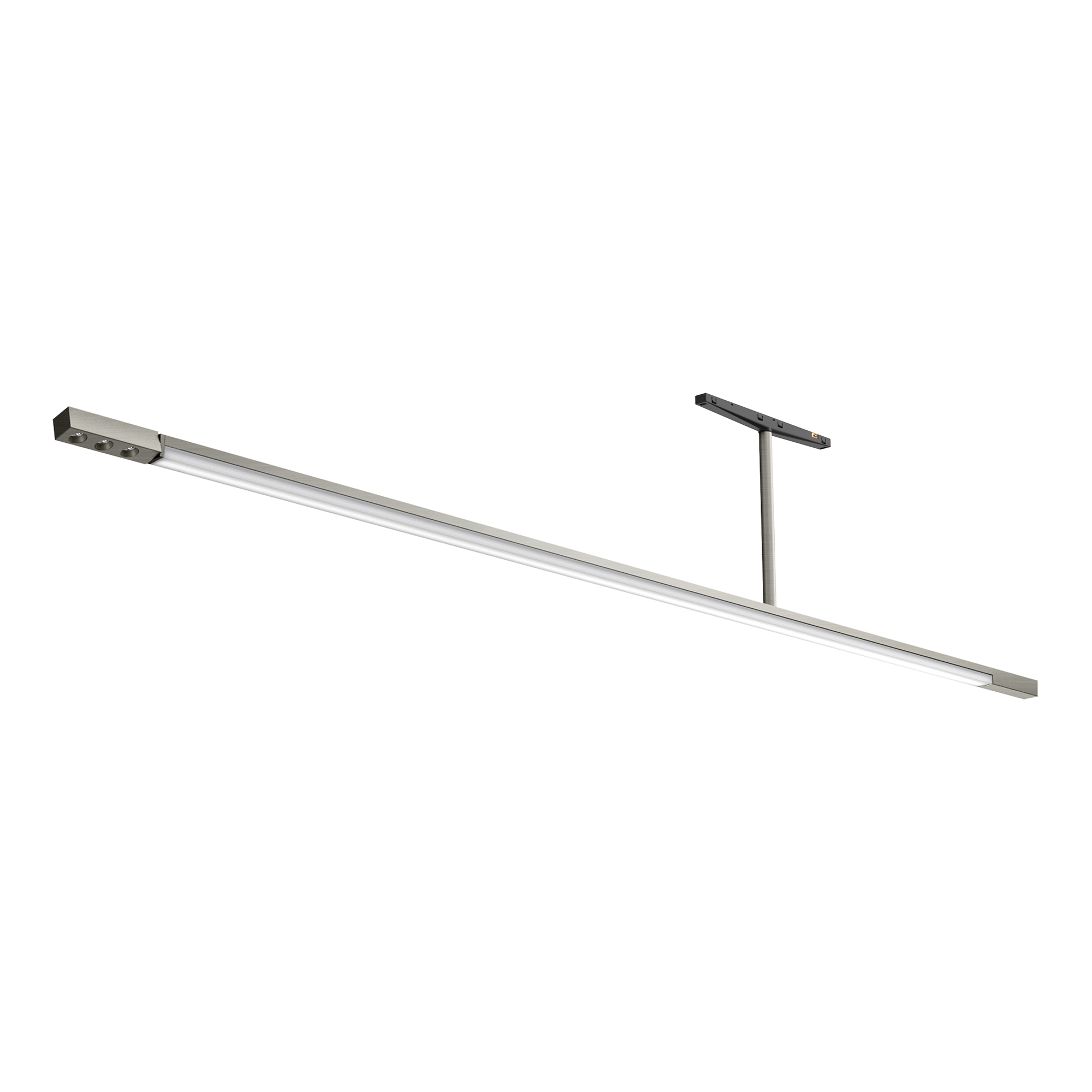

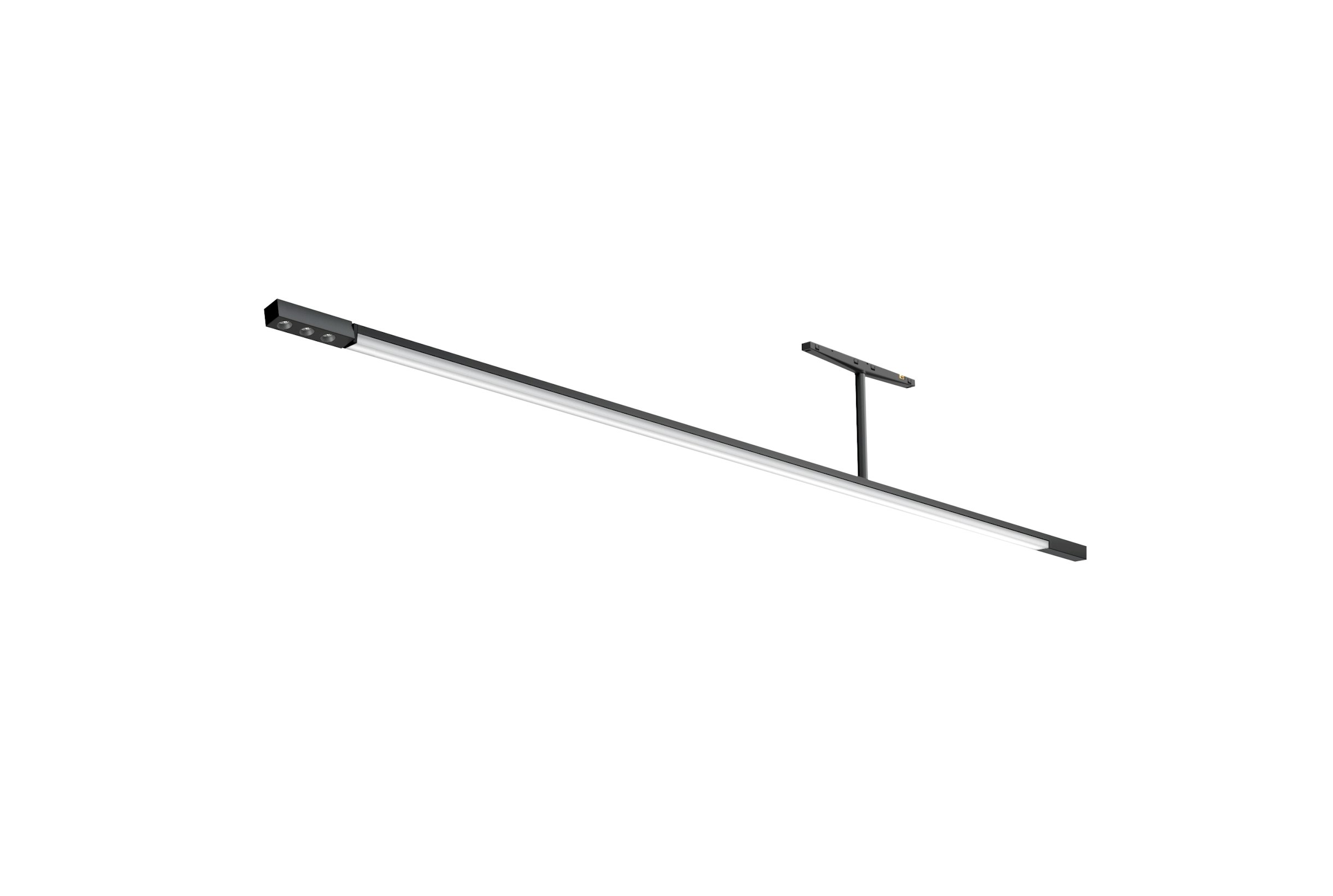

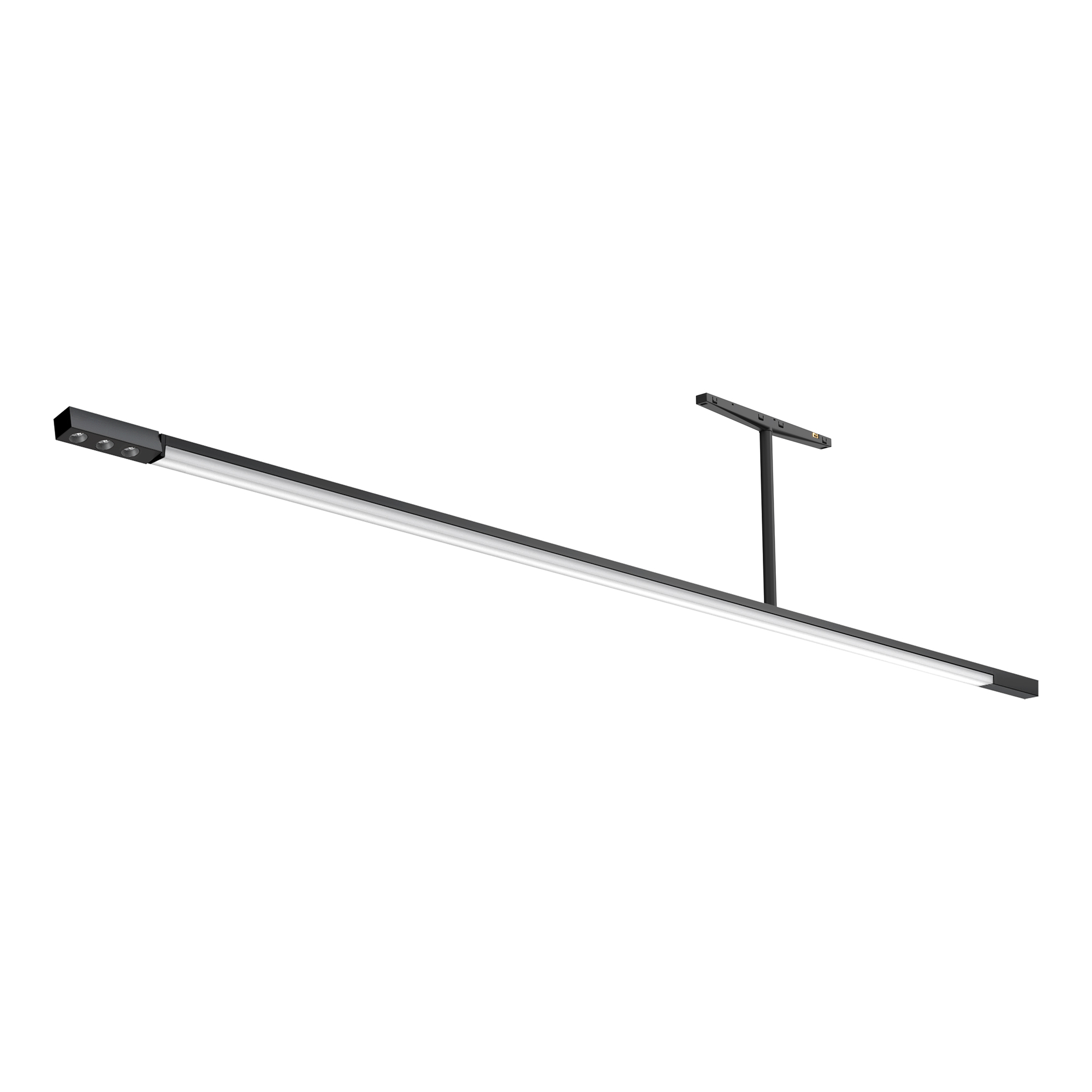

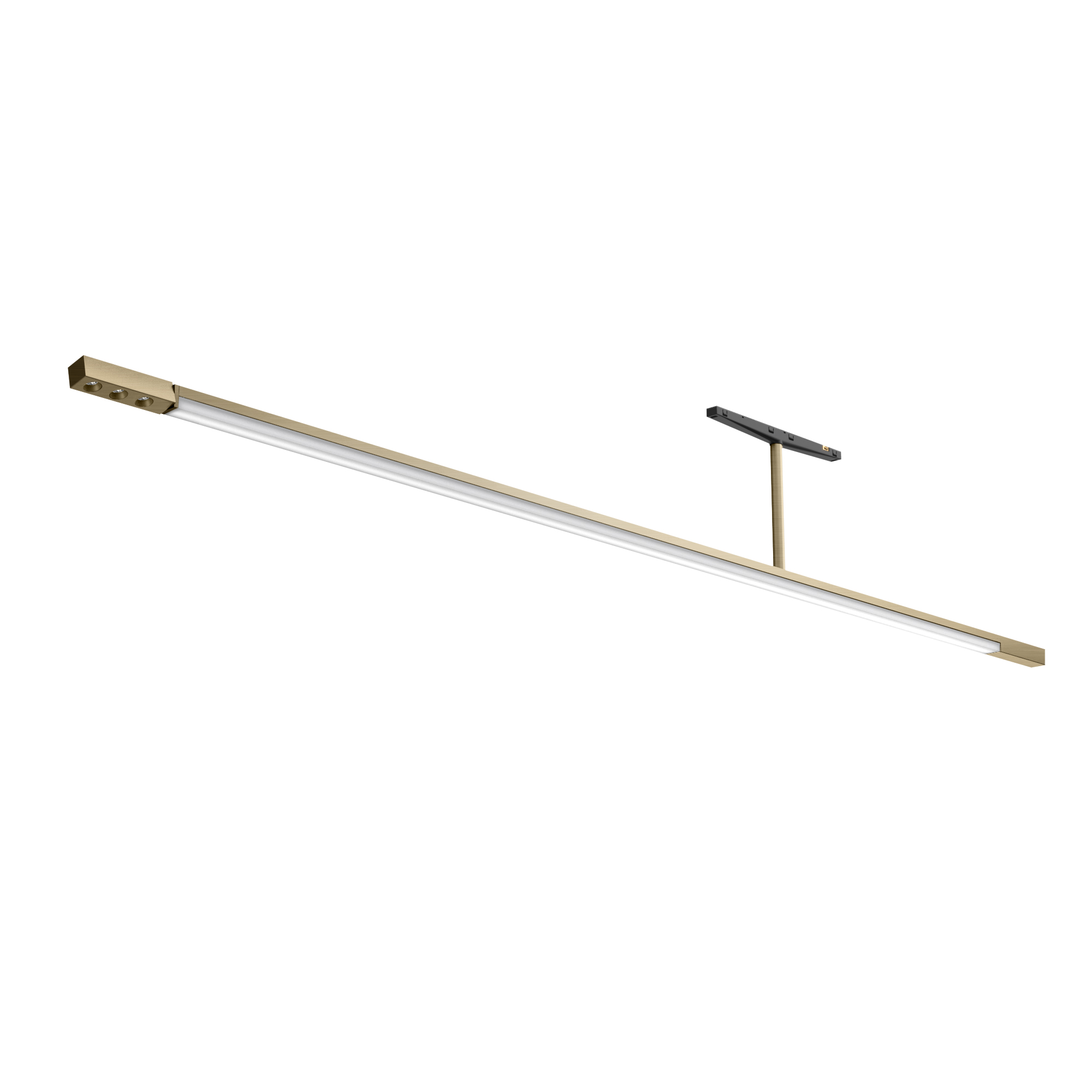

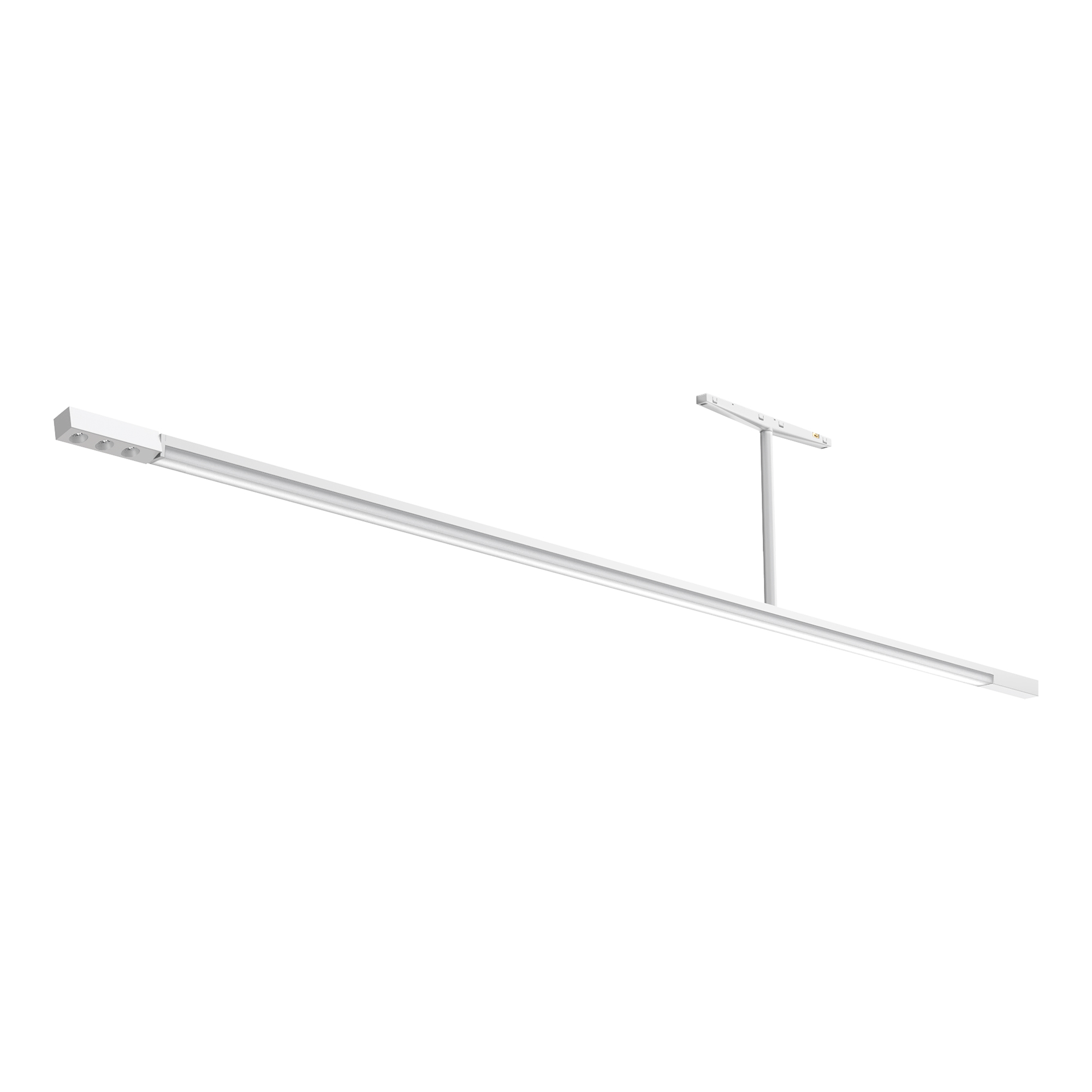

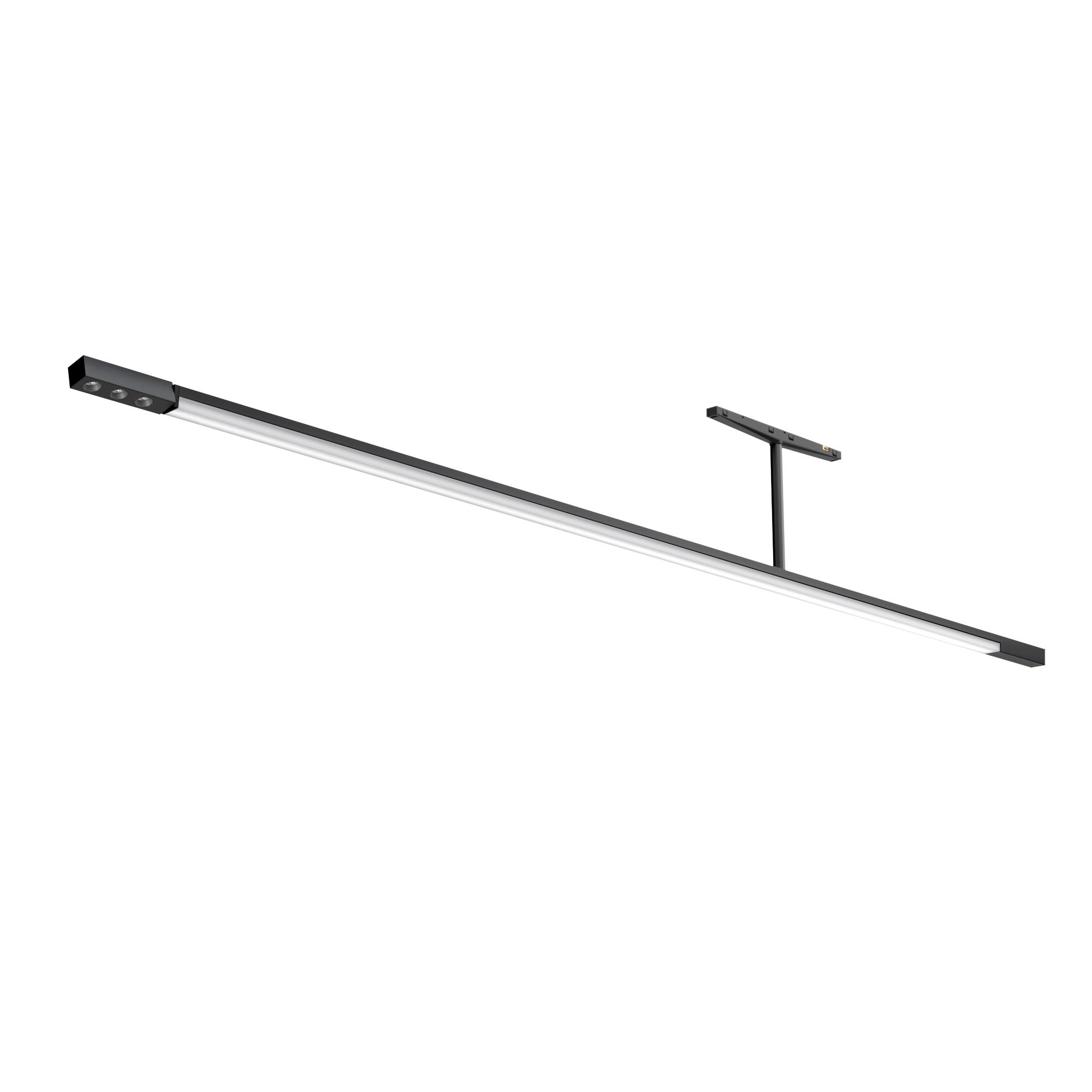

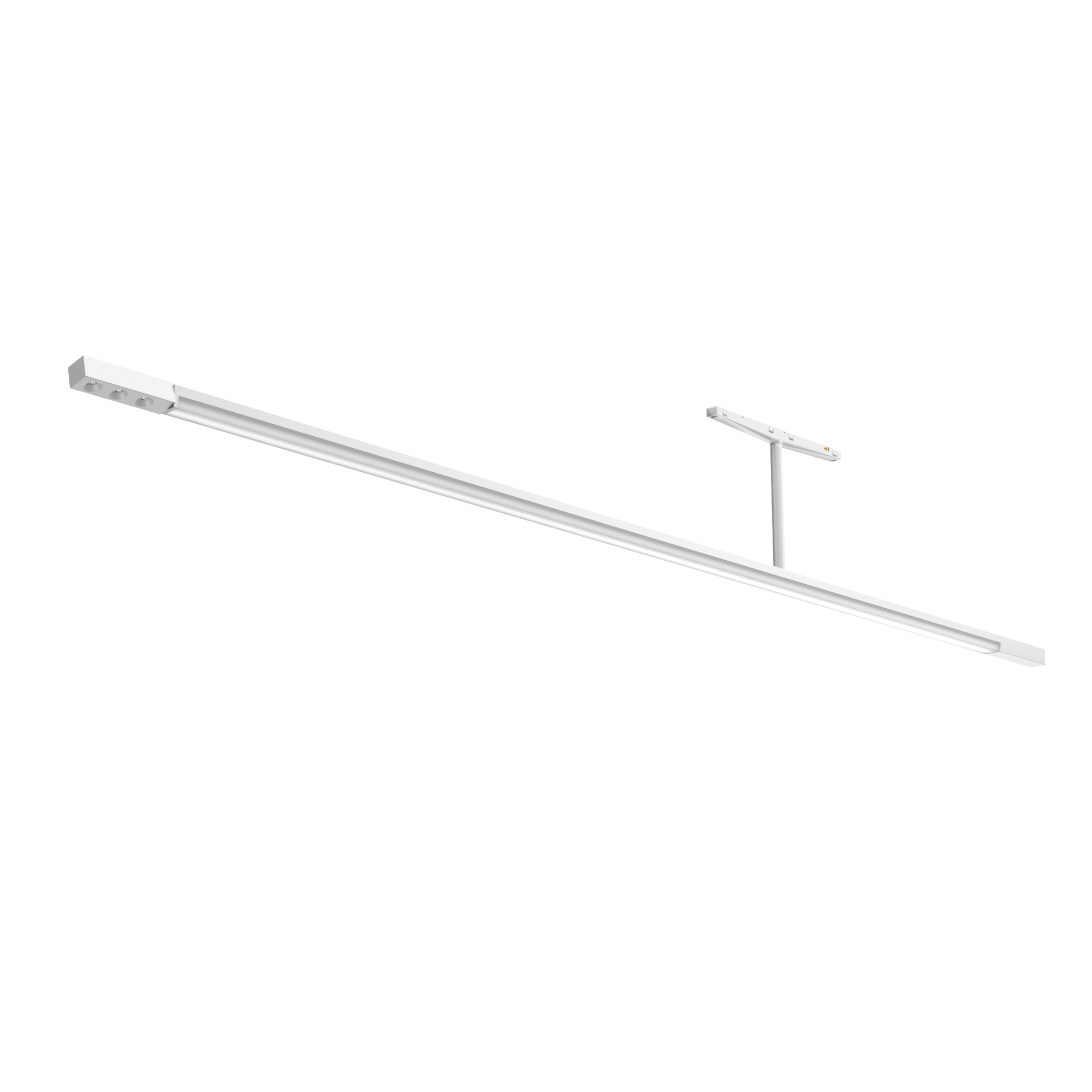

LED diffuse and accent lighting module for installation in the Zero Track Pro system. Can be adjusted by rotating from its axis located in an asymmetrical position. Electronic DC/DC converter incorporated.

Download Documentation

Product highlight

Deceiving the eye

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

Discover the Story

Luminaire

(48)

Power (W)

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.3231.ES.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3231.ES.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3231.ES	Magic Stick 145 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3231.ER.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3231.ER.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3231.ER	Magic Stick 145 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3231.40.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3231.40.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3231.40	Magic Stick 145 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3231.14.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3231.14.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3231.14	Magic Stick 145 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3230.ES.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3230.ES.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3230.ES	Magic Stick 145 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3230.ER.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3230.ER.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3230.ER	Magic Stick 145 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3230.40.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3230.40.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3230.40	Magic Stick 145 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3230.14.DA	Magic Stick 145 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3230.14.1V	Magic Stick 145 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3230.14	Magic Stick 145 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3211.ES.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3211.ES.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3211.ES	Magic Stick 100 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3211.ER.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3211.ER.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3211.ER	Magic Stick 100 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3211.40.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3211.40.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3211.40	Magic Stick 100 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3211.14.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	608	3000	90	131	Dimmable DALI 2	Track
05.3211.14.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	608	3000	90	131	Dimmable 1-10V	Track
05.3211.14	Magic Stick 100 Asymmetric Non Dimmable	9.8	608	3000	90	131	Non Dimmable	Track
05.3210.ES.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3210.ES.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3210.ES	Magic Stick 100 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3210.ER.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3210.ER.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3210.ER	Magic Stick 100 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3210.40.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3210.40.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3210.40	Magic Stick 100 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
05.3210.14.DA	Magic Stick 100 Asymmetric Dali Dimmable	9.8	587	2700	90	131	Dimmable DALI 2	Track
05.3210.14.1V	Magic Stick 100 Asymmetric 1-10V Dimmable	9.8	587	2700	90	131	Dimmable 1-10V	Track
05.3210.14	Magic Stick 100 Asymmetric Non Dimmable	9.8	587	2700	90	131	Non Dimmable	Track
