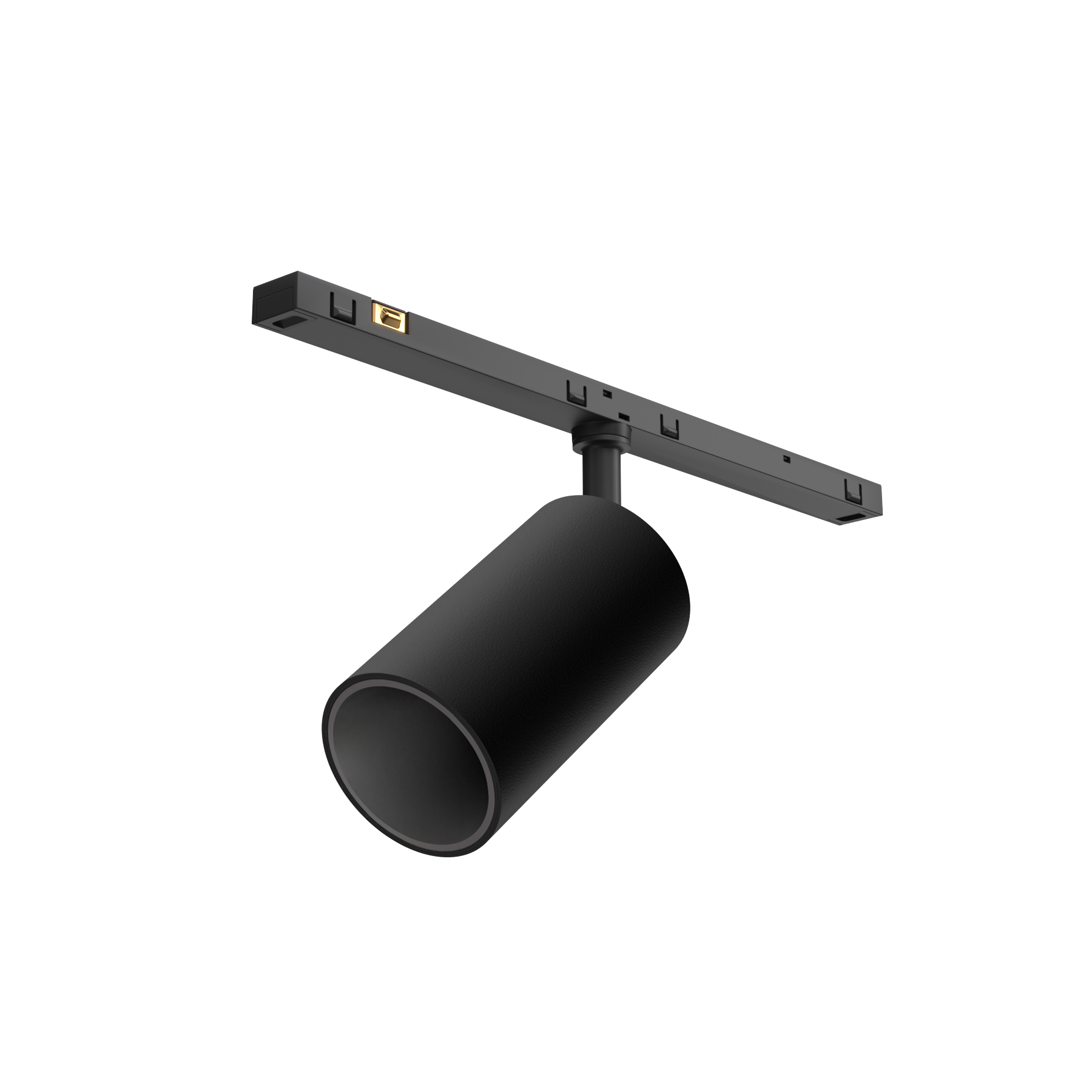

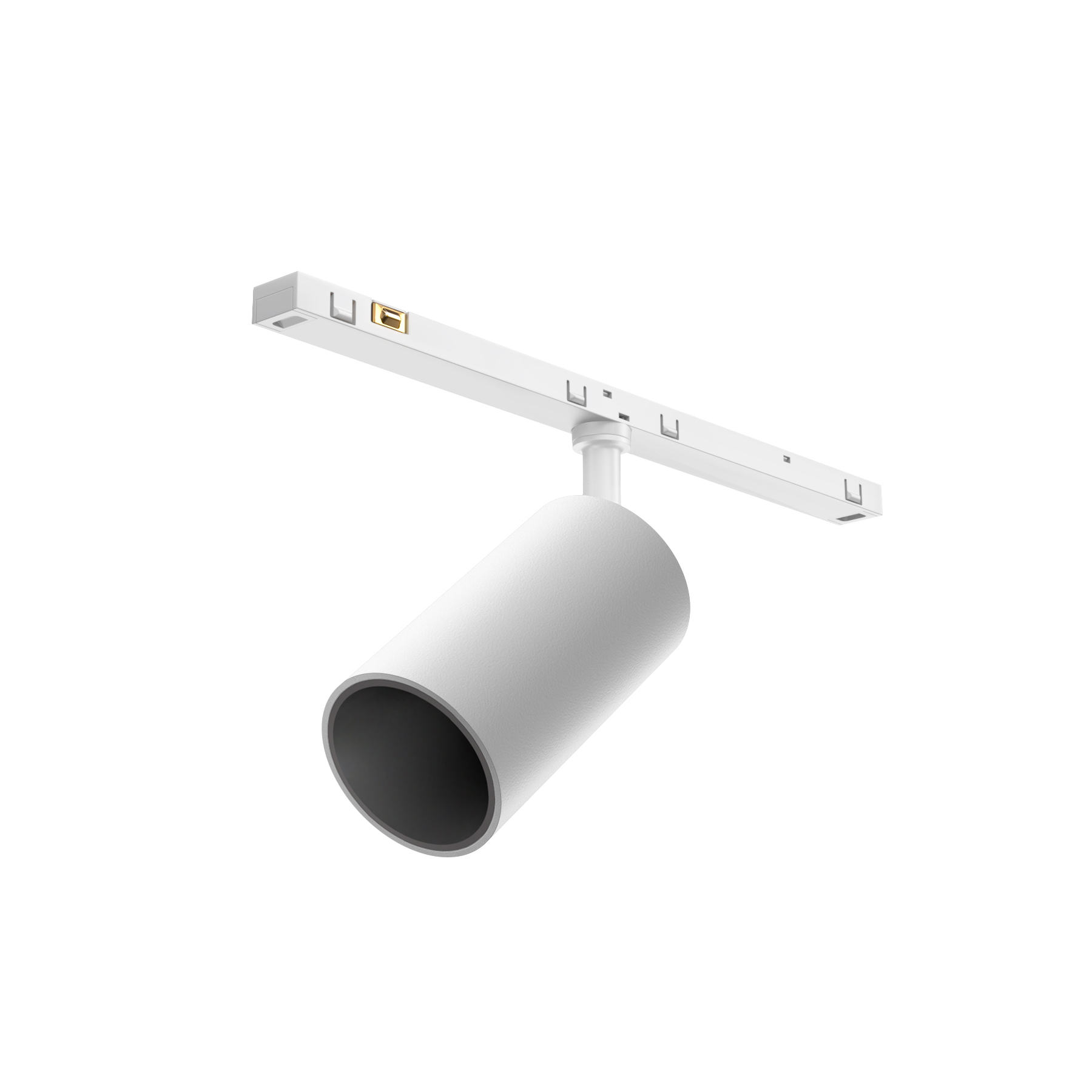

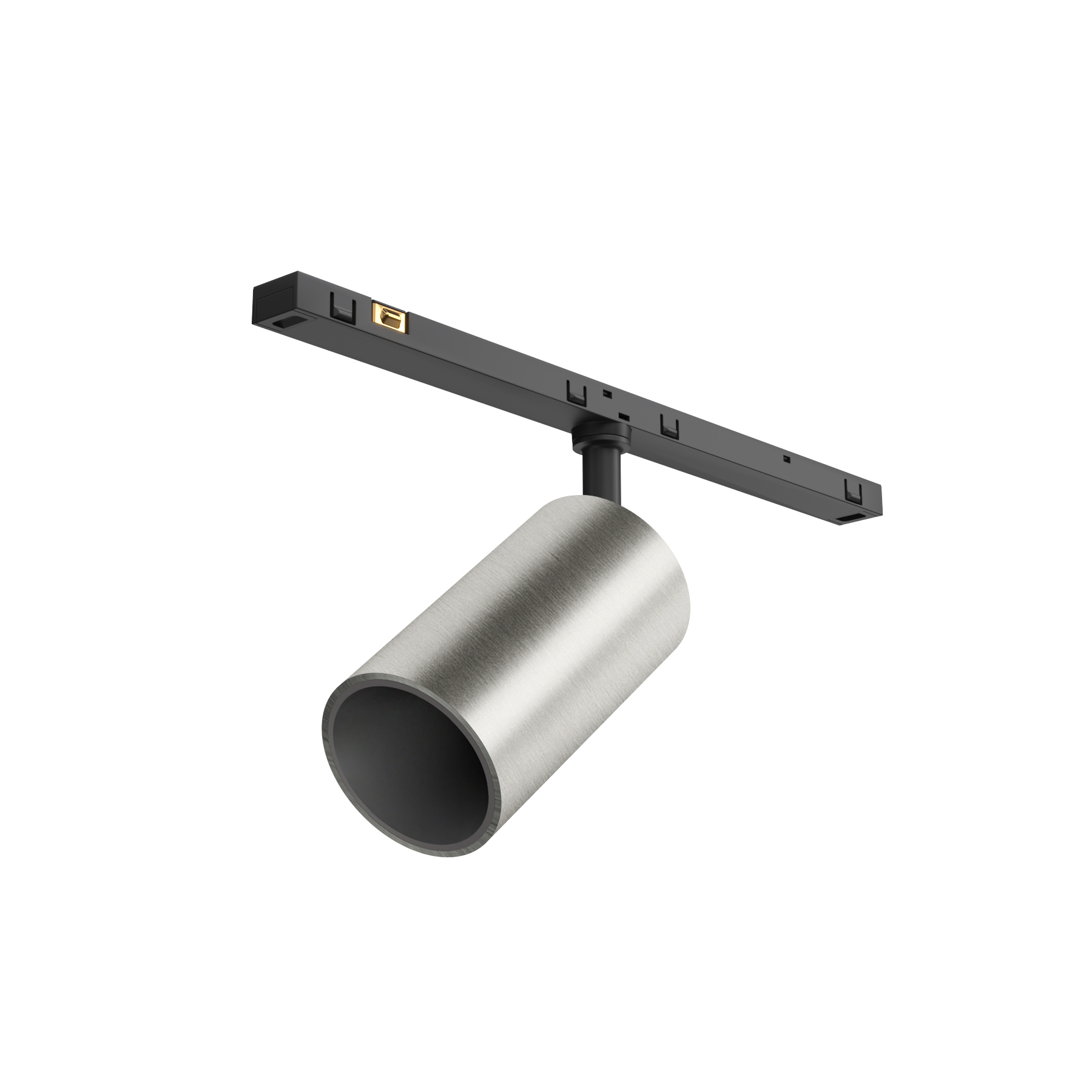

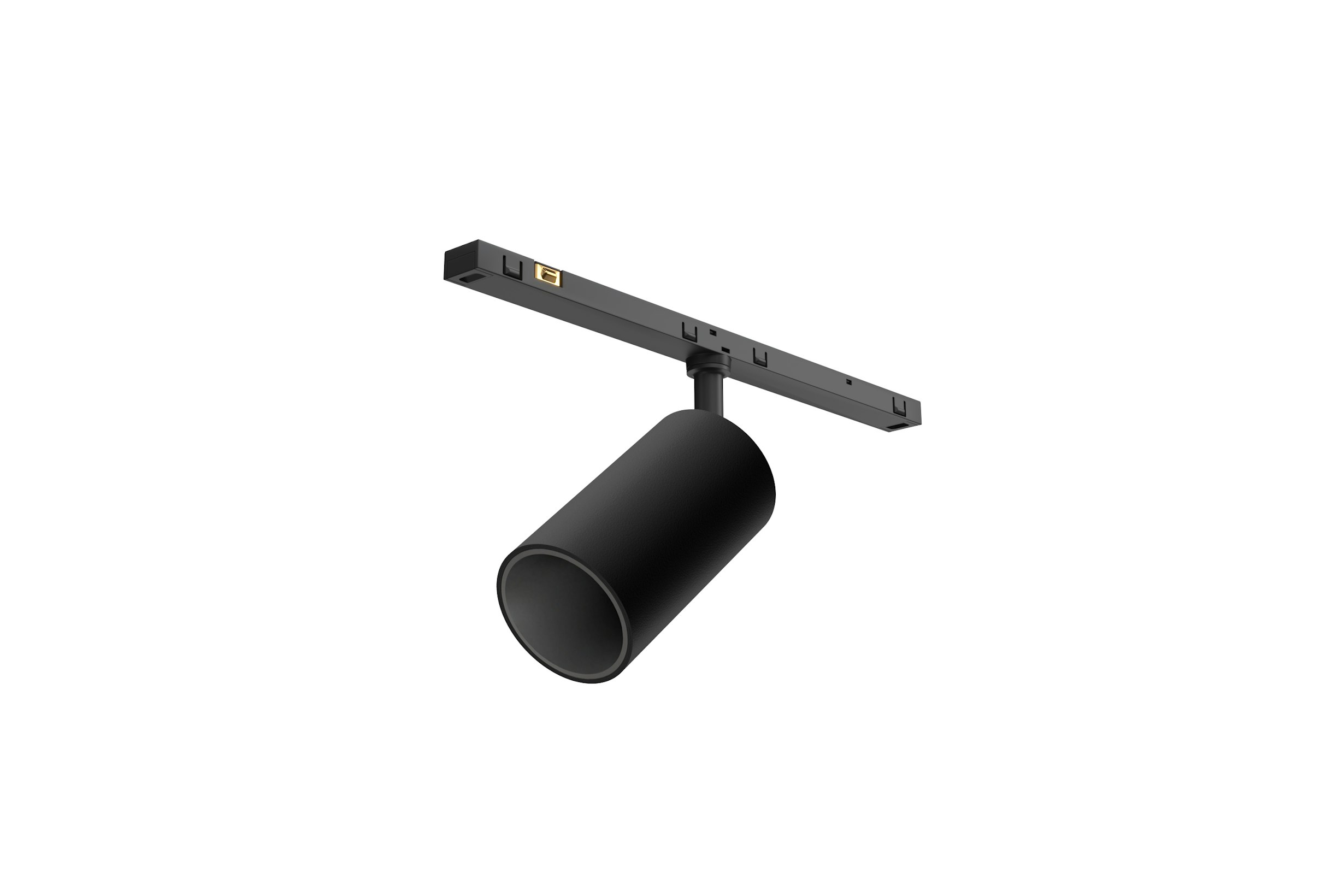

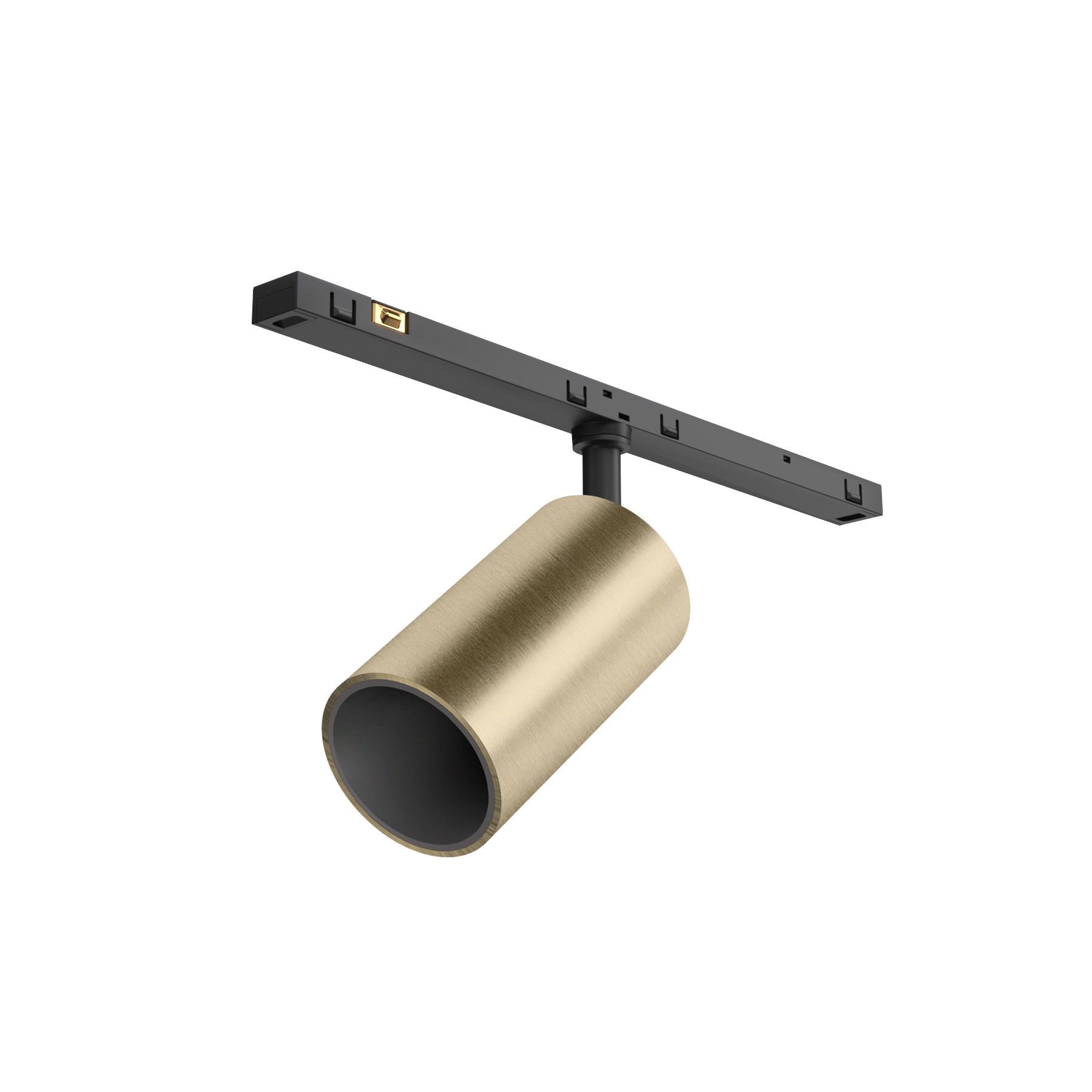

Light Shadow Spot 30

Designed by FLOS Architectural

LED projection lighting module for installation in the Zero Track Pro system. Electronic DC/DC converter incorporated.

Download Documentation

Product highlight

Deceiving the eye

Innovative low voltage system composed of a miniaturized track that subtly adapts to the surface offering a variety of dimmable luminaries.

Discover the Story

Luminaire

(96)

Optical Type

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.5178.ESADA	Light Shadow Spot 30 Dali Dimmable	4	262	3000	90	46	Dimmable DALI 2	Track
05.5178.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	262	3000	90	46	Dimmable 1-10V	Track
05.5178.ESA	Light Shadow Spot 30 Non Dimmable	4	262	3000	90	46	-	Track
05.5178.ERADA	Light Shadow Spot 30 Dali Dimmable	4	262	3000	90	46	Dimmable DALI 2	Track
05.5178.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	262	3000	90	46	Dimmable 1-10V	Track
05.5178.ERA	Light Shadow Spot 30 Non Dimmable	4	262	3000	90	46	-	Track
05.5178.40ADA	Light Shadow Spot 30 Dali Dimmable	4	262	3000	90	46	Dimmable DALI 2	Track
05.5178.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	262	3000	90	46	Dimmable 1-10V	Track
05.5178.40A	Light Shadow Spot 30 Non Dimmable	4	262	3000	90	46	-	Track
05.5178.14ADA	Light Shadow Spot 30 Dali Dimmable	4	262	3000	90	46	Dimmable DALI 2	Track
05.5178.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	262	3000	90	46	Dimmable 1-10V	Track
05.5178.14A	Light Shadow Spot 30 Non Dimmable	4	262	3000	90	46	-	Track
05.5177.ESADA	Light Shadow Spot 30 Dali Dimmable	4	263	3000	90	33	Dimmable DALI 2	Track
05.5177.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	263	3000	90	33	Dimmable 1-10V	Track
05.5177.ESA	Light Shadow Spot 30 Non Dimmable	4	263	3000	90	33	-	Track
05.5177.ERADA	Light Shadow Spot 30 Dali Dimmable	4	263	3000	90	33	Dimmable DALI 2	Track
05.5177.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	263	3000	90	33	Dimmable 1-10V	Track
05.5177.ERA	Light Shadow Spot 30 Non Dimmable	4	263	3000	90	33	-	Track
05.5177.40ADA	Light Shadow Spot 30 Dali Dimmable	4	263	3000	90	33	Dimmable DALI 2	Track
05.5177.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	263	3000	90	33	Dimmable 1-10V	Track
05.5177.40A	Light Shadow Spot 30 Non Dimmable	4	263	3000	90	33	-	Track
05.5177.14ADA	Light Shadow Spot 30 Dali Dimmable	4	263	3000	90	33	Dimmable DALI 2	Track
05.5177.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	263	3000	90	33	Dimmable 1-10V	Track
05.5177.14A	Light Shadow Spot 30 Non Dimmable	4	263	3000	90	33	-	Track
05.5176.ESADA	Light Shadow Spot 30 Dali Dimmable	4	274	3000	90	22	Dimmable DALI 2	Track
05.5176.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	274	3000	90	22	Dimmable 1-10V	Track
05.5176.ESA	Light Shadow Spot 30 Non Dimmable	4	274	3000	90	22	-	Track
05.5176.ERADA	Light Shadow Spot 30 Dali Dimmable	4	274	3000	90	22	Dimmable DALI 2	Track
05.5176.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	274	3000	90	22	Dimmable 1-10V	Track
05.5176.ERA	Light Shadow Spot 30 Non Dimmable	4	274	3000	90	22	-	Track
05.5176.40ADA	Light Shadow Spot 30 Dali Dimmable	4	274	3000	90	22	Dimmable DALI 2	Track
05.5176.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	274	3000	90	22	Dimmable 1-10V	Track
05.5176.40A	Light Shadow Spot 30 Non Dimmable	4	274	3000	90	22	-	Track
05.5176.14ADA	Light Shadow Spot 30 Dali Dimmable	4	274	3000	90	22	Dimmable DALI 2	Track
05.5176.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	274	3000	90	22	Dimmable 1-10V	Track
05.5176.14A	Light Shadow Spot 30 Non Dimmable	4	274	3000	90	22	-	Track
05.5175.ESADA	Light Shadow Spot 30 Dali Dimmable	4	270	3000	90	10	Dimmable DALI 2	Track
05.5175.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	270	3000	90	10	Dimmable 1-10V	Track
05.5175.ESA	Light Shadow Spot 30 Non Dimmable	4	270	3000	90	10	-	Track
05.5175.ERADA	Light Shadow Spot 30 Dali Dimmable	4	270	3000	90	10	Dimmable DALI 2	Track
05.5175.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	270	3000	90	10	Dimmable 1-10V	Track
05.5175.ERA	Light Shadow Spot 30 Non Dimmable	4	270	3000	90	10	-	Track
05.5175.40ADA	Light Shadow Spot 30 Dali Dimmable	4	270	3000	90	10	Dimmable DALI 2	Track
05.5175.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	270	3000	90	10	Dimmable 1-10V	Track
05.5175.40A	Light Shadow Spot 30 Non Dimmable	4	270	3000	90	10	-	Track
05.5175.14ADA	Light Shadow Spot 30 Dali Dimmable	4	270	3000	90	10	Dimmable DALI 2	Track
05.5175.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	270	3000	90	10	Dimmable 1-10V	Track
05.5175.14A	Light Shadow Spot 30 Non Dimmable	4	270	3000	90	10	-	Track
05.5173.ESADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	46	Dimmable DALI 2	Track
05.5173.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	46	Dimmable 1-10V	Track
05.5173.ESA	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	46	-	Track
05.5173.ERADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	46	Dimmable DALI 2	Track
05.5173.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	46	Dimmable 1-10V	Track
05.5173.ERA	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	46	-	Track
05.5173.40ADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	46	Dimmable DALI 2	Track
05.5173.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	46	Dimmable 1-10V	Track
05.5173.40A	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	46	-	Track
05.5173.14ADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	46	Dimmable DALI 2	Track
05.5173.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	46	Dimmable 1-10V	Track
05.5173.14A	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	46	-	Track
05.5172.ESADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	33	Dimmable DALI 2	Track
05.5172.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	33	Dimmable 1-10V	Track
05.5172.ESA	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	33	-	Track
05.5172.ERADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	33	Dimmable DALI 2	Track
05.5172.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	33	Dimmable 1-10V	Track
05.5172.ERA	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	33	-	Track
05.5172.40ADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	33	Dimmable DALI 2	Track
05.5172.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	33	Dimmable 1-10V	Track
05.5172.40A	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	33	-	Track
05.5172.14ADA	Light Shadow Spot 30 Dali Dimmable	4	246	2700	90	33	Dimmable DALI 2	Track
05.5172.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	246	2700	90	33	Dimmable 1-10V	Track
05.5172.14A	Light Shadow Spot 30 Non Dimmable	4	246	2700	90	33	-	Track
05.5171.ESADA	Light Shadow Spot 30 Dali Dimmable	4	257	2700	90	22	Dimmable DALI 2	Track
05.5171.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	257	2700	90	22	Dimmable 1-10V	Track
05.5171.ESA	Light Shadow Spot 30 Non Dimmable	4	257	2700	90	22	-	Track
05.5171.ERADA	Light Shadow Spot 30 Dali Dimmable	4	257	2700	90	22	Dimmable DALI 2	Track
05.5171.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	257	2700	90	22	Dimmable 1-10V	Track
05.5171.ERA	Light Shadow Spot 30 Non Dimmable	4	257	2700	90	22	-	Track
05.5171.40ADA	Light Shadow Spot 30 Dali Dimmable	4	257	2700	90	22	Dimmable DALI 2	Track
05.5171.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	257	2700	90	22	Dimmable 1-10V	Track
05.5171.40A	Light Shadow Spot 30 Non Dimmable	4	257	2700	90	22	-	Track
05.5171.14ADA	Light Shadow Spot 30 Dali Dimmable	4	257	2700	90	22	Dimmable DALI 2	Track
05.5171.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	257	2700	90	22	Dimmable 1-10V	Track
05.5171.14A	Light Shadow Spot 30 Non Dimmable	4	257	2700	90	22	-	Track
05.5170.ESADA	Light Shadow Spot 30 Dali Dimmable	4	253	2700	90	10	Dimmable DALI 2	Track
05.5170.ESA1V	Light Shadow Spot 30 1-10V Dimmable	4	253	2700	90	10	Dimmable 1-10V	Track
05.5170.ESA	Light Shadow Spot 30 Non Dimmable	4	253	2700	90	10	-	Track
05.5170.ERADA	Light Shadow Spot 30 Dali Dimmable	4	253	2700	90	10	Dimmable DALI 2	Track
05.5170.ERA1V	Light Shadow Spot 30 1-10V Dimmable	4	253	2700	90	10	Dimmable 1-10V	Track
05.5170.ERA	Light Shadow Spot 30 Non Dimmable	4	253	2700	90	10	-	Track
05.5170.40ADA	Light Shadow Spot 30 Dali Dimmable	4	253	2700	90	10	Dimmable DALI 2	Track
05.5170.40A1V	Light Shadow Spot 30 1-10V Dimmable	4	253	2700	90	10	Dimmable 1-10V	Track
05.5170.40A	Light Shadow Spot 30 Non Dimmable	4	253	2700	90	10	-	Track
05.5170.14ADA	Light Shadow Spot 30 Dali Dimmable	4	253	2700	90	10	Dimmable DALI 2	Track
05.5170.14A1V	Light Shadow Spot 30 1-10V Dimmable	4	253	2700	90	10	Dimmable 1-10V	Track
05.5170.14A	Light Shadow Spot 30 Non Dimmable	4	253	2700	90	10	-	Track
