Infra-Structure Light Tube

Designed by Vincent Van Duysen

Diffused LED light module to be installed in The Infra-Structure.

Download Documentation

Product highlight

Rhythm and sequences

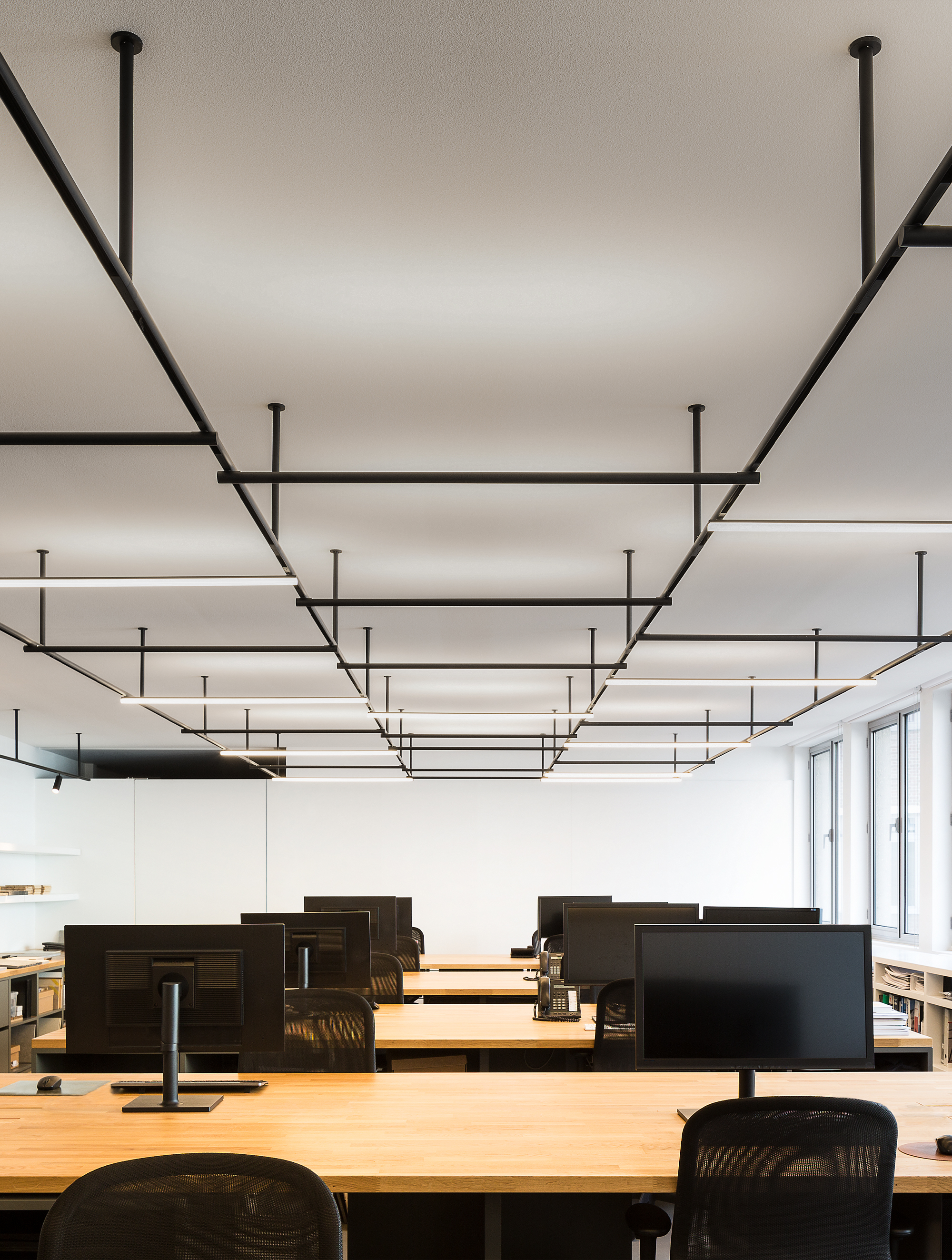

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(96)

Power (W)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting

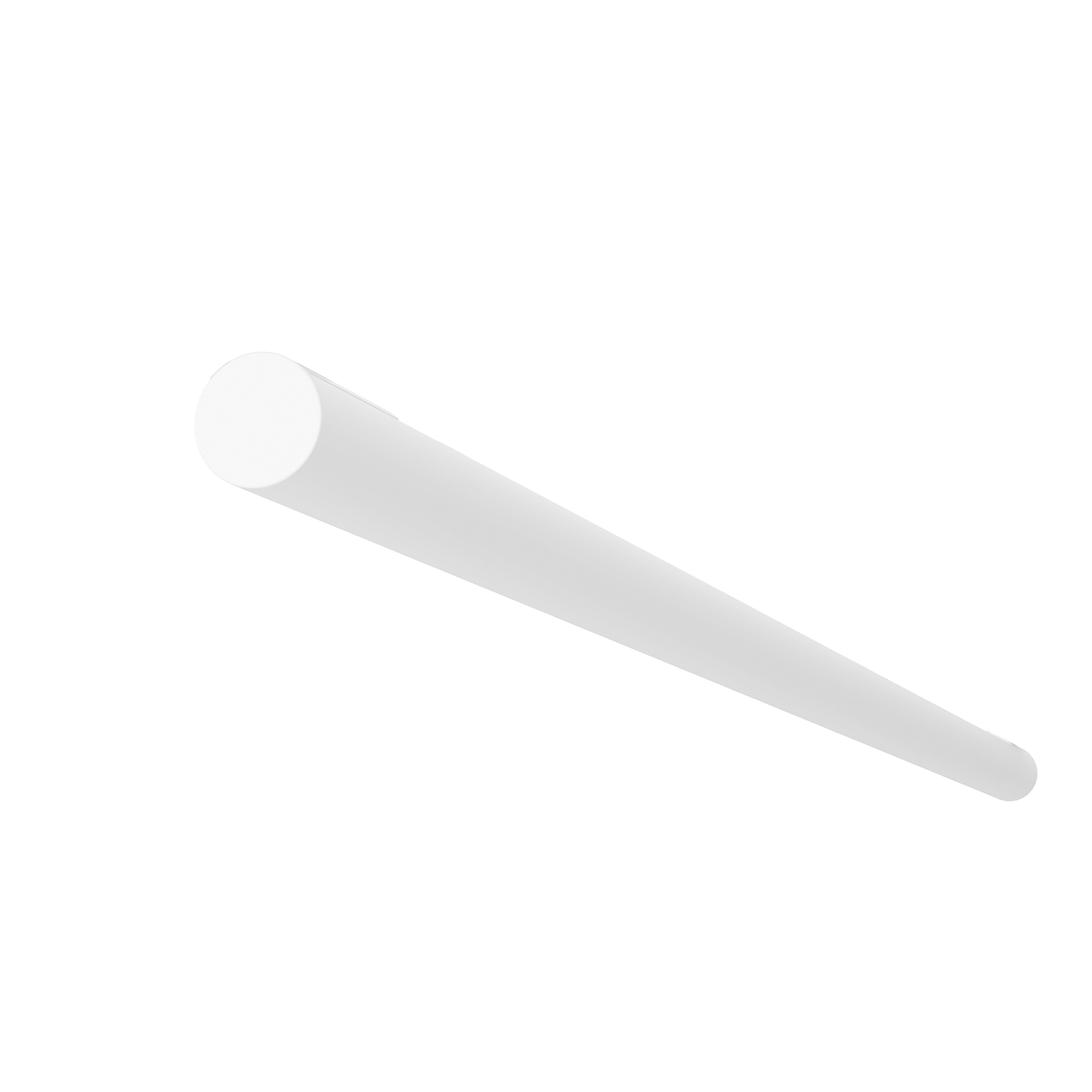

03.8117.40ADA	Light Tube Ø 30 Indirect 1500 mm Dali Version	38	-	3000	90	93	Dimmable DALI 2	Track
03.8117.40ACB	Light Tube Ø 30 Indirect 1500 mm Casambi integrated	38	-	3000	90	93	Dimmable Casambi	Track
03.8117.40A1V	Light Tube Ø 30 Indirect 1500 mm Dimmable 1-10V	38	-	3000	90	93	Dimmable 1-10V	Track
03.8117.40A	Light Tube Ø 30 Indirect 1500 mm On Board Dimmer	38	-	3000	90	93	Dimmer on board	Track
03.8117.14ADA	Light Tube Ø 30 Indirect 1500 mm Dali Version	38	-	3000	90	93	Dimmable DALI 2	Track
03.8117.14ACB	Light Tube Ø 30 Indirect 1500 mm Casambi integrated	38	-	3000	90	93	Dimmable Casambi	Track
03.8117.14A1V	Light Tube Ø 30 Indirect 1500 mm Dimmable 1-10V	38	-	3000	90	93	Dimmable 1-10V	Track
03.8117.14A	Light Tube Ø 30 Indirect 1500 mm On Board Dimmer	38	-	3000	90	93	Dimmer on board	Track
03.8116.40ADA	Light Tube Ø 30 Indirect 1200 mm Dali Version	30	-	3000	90	93	Dimmable DALI 2	Track
03.8116.40ACB	Light Tube Ø 30 Indirect 1200 mm Casambi integrated	30	-	3000	90	93	Dimmable Casambi	Track
03.8116.40A1V	Light Tube Ø 30 Indirect 1200 mm Dimmable 1-10V	30	-	3000	90	93	Dimmable 1-10V	Track
03.8116.40A	Light Tube Ø 30 Indirect 1200 mm On Board Dimmer	30	-	3000	90	93	Dimmer on board	Track
03.8116.14ADA	Light Tube Ø 30 Indirect 1200 mm Dali Version	30	-	3000	90	93	Dimmable DALI 2	Track
03.8116.14ACB	Light Tube Ø 30 Indirect 1200 mm Casambi integrated	30	-	3000	90	93	Dimmable Casambi	Track
03.8116.14A1V	Light Tube Ø 30 Indirect 1200 mm Dimmable 1-10V	30	-	3000	90	93	Dimmable 1-10V	Track
03.8116.14A	Light Tube Ø 30 Indirect 1200 mm On Board Dimmer	30	-	3000	90	93	Dimmer on board	Track
03.8115.40ADA	Light Tube Ø 30 Indirect 900 mm Dali Version	23	-	3000	90	93	Dimmable DALI 2	Track
03.8115.40ACB	Light Tube Ø 30 Indirect 900 mm Casambi integrated	23	-	3000	90	93	Dimmable Casambi	Track
03.8115.40A1V	Light Tube Ø 30 Indirect 900 mm Dimmable 1-10V	23	-	3000	90	93	Dimmable 1-10V	Track
03.8115.40A	Light Tube Ø 30 Indirect 900 mm On Board Dimmer	23	-	3000	90	93	Dimmer on board	Track
03.8115.14ADA	Light Tube Ø 30 Indirect 900 mm Dali Version	23	-	3000	90	93	Dimmable DALI 2	Track
03.8115.14ACB	Light Tube Ø 30 Indirect 900 mm Casambi integrated	23	-	3000	90	93	Dimmable Casambi	Track
03.8115.14A1V	Light Tube Ø 30 Indirect 900 mm Dimmable 1-10V	23	-	3000	90	93	Dimmable 1-10V	Track
03.8115.14A	Light Tube Ø 30 Indirect 900 mm On Board Dimmer	23	-	3000	90	93	Dimmer on board	Track
03.8112.40ADA	Light Tube Ø 30 Indirect 1500 mm Dali Version	38	-	2700	90	93	Dimmable DALI 2	Track
03.8112.40ACB	Light Tube Ø 30 Indirect 1500 mm Casambi integrated	38	-	2700	90	93	Dimmable Casambi	Track
03.8112.40A1V	Light Tube Ø 30 Indirect 1500 mm Dimmable 1-10V	38	-	2700	90	93	Dimmable 1-10V	Track
03.8112.40A	Light Tube Ø 30 Indirect 1500 mm On Board Dimmer	38	-	2700	90	93	Dimmer on board	Track
03.8112.14ADA	Light Tube Ø 30 Indirect 1500 mm Dali Version	38	-	2700	90	93	Dimmable DALI 2	Track
03.8112.14ACB	Light Tube Ø 30 Indirect 1500 mm Casambi integrated	38	-	2700	90	93	Dimmable Casambi	Track
03.8112.14A1V	Light Tube Ø 30 Indirect 1500 mm Dimmable 1-10V	38	-	2700	90	93	Dimmable 1-10V	Track
03.8112.14A	Light Tube Ø 30 Indirect 1500 mm On Board Dimmer	38	-	2700	90	93	Dimmer on board	Track
03.8111.40ADA	Light Tube Ø 30 Indirect 1200 mm Dali Version	30	-	2700	90	93	Dimmable DALI 2	Track
03.8111.40ACB	Light Tube Ø 30 Indirect 1200 mm Casambi integrated	30	-	2700	90	93	Dimmable Casambi	Track
03.8111.40A1V	Light Tube Ø 30 Indirect 1200 mm Dimmable 1-10V	30	-	2700	90	93	Dimmable 1-10V	Track
03.8111.40A	Light Tube Ø 30 Indirect 1200 mm On Board Dimmer	30	-	2700	90	93	Dimmer on board	Track
03.8111.14ADA	Light Tube Ø 30 Indirect 1200 mm Dali Version	30	-	2700	90	93	Dimmable DALI 2	Track
03.8111.14ACB	Light Tube Ø 30 Indirect 1200 mm Casambi integrated	30	-	2700	90	93	Dimmable Casambi	Track
03.8111.14A1V	Light Tube Ø 30 Indirect 1200 mm Dimmable 1-10V	30	-	2700	90	93	Dimmable 1-10V	Track
03.8111.14A	Light Tube Ø 30 Indirect 1200 mm On Board Dimmer	30	-	2700	90	93	Dimmer on board	Track
03.8110.40ADA	Light Tube Ø 30 Indirect 900 mm Dali Version	23	-	2700	90	93	Dimmable DALI 2	Track
03.8110.40ACB	Light Tube Ø 30 Indirect 900 mm Casambi integrated	23	-	2700	90	93	Dimmable Casambi	Track
03.8110.40A1V	Light Tube Ø 30 Indirect 900 mm Dimmable 1-10V	23	-	2700	90	93	Dimmable 1-10V	Track
03.8110.40A	Light Tube Ø 30 Indirect 900 mm On Board Dimmer	23	-	2700	90	93	Dimmer on board	Track
03.8110.14ADA	Light Tube Ø 30 Indirect 900 mm Dali Version	23	-	2700	90	93	Dimmable DALI 2	Track
03.8110.14ACB	Light Tube Ø 30 Indirect 900 mm Casambi integrated	23	-	2700	90	93	Dimmable Casambi	Track
03.8110.14A1V	Light Tube Ø 30 Indirect 900 mm Dimmable 1-10V	23	-	2700	90	93	Dimmable 1-10V	Track
03.8110.14A	Light Tube Ø 30 Indirect 900 mm On Board Dimmer	23	-	2700	90	93	Dimmer on board	Track

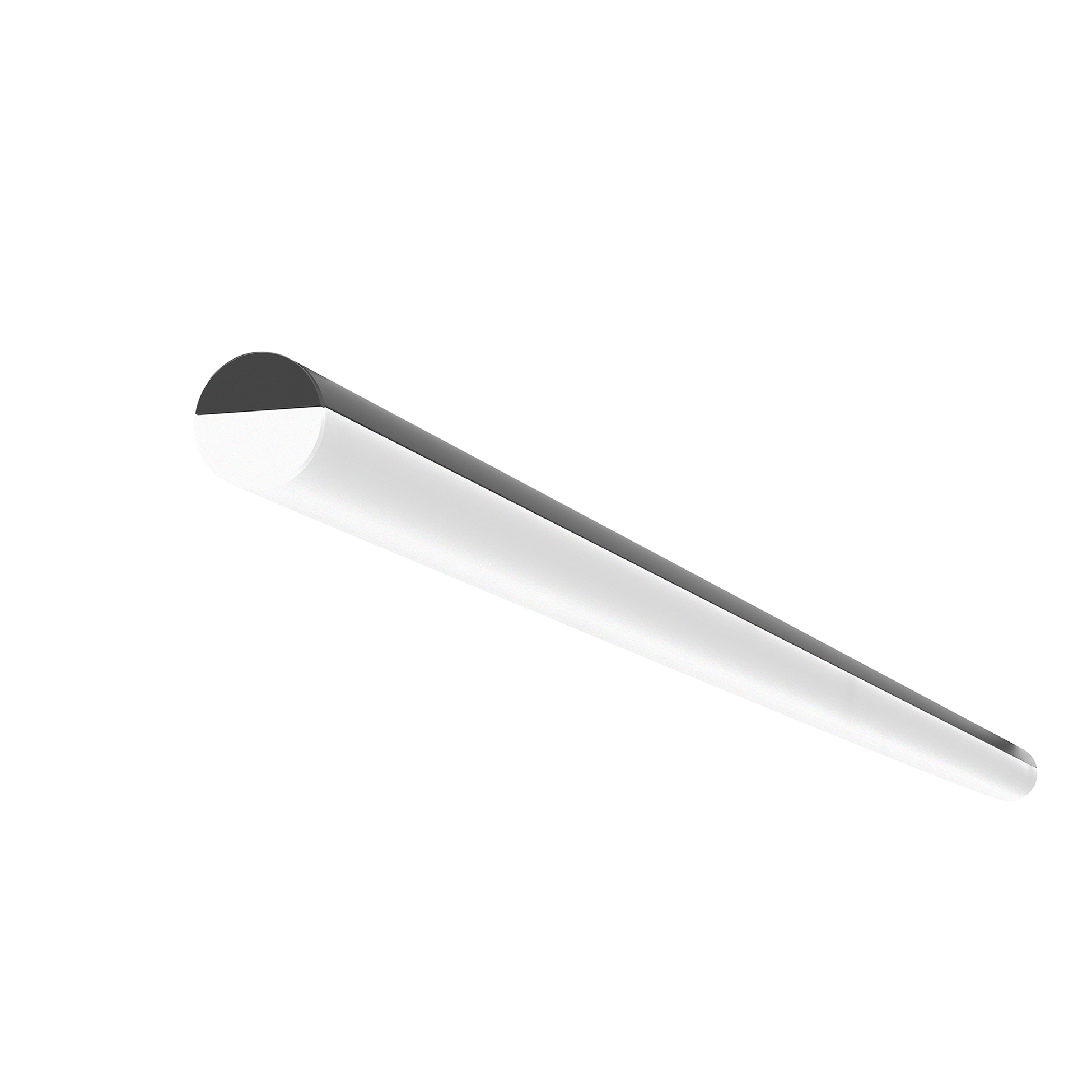

03.8107.40ADA	Light Tube Ø 30 Direct 1500 mm Dali Version	38	-	3000	90	150	Dimmable DALI 2	Track
03.8107.40ACB	Light Tube Ø 30 Direct 1500 mm Casambi integrated	38	-	3000	90	150	Dimmable Casambi	Track
03.8107.40A1V	Light Tube Ø 30 Direct 1500 mm Dimmable 1-10V	38	-	3000	90	150	Dimmable 1-10V	Track
03.8107.40A	Light Tube Ø 30 Direct 1500 mm On Board Dimmer	38	-	3000	90	150	Dimmer on board	Track
03.8107.14ADA	Light Tube Ø 30 Direct 1500 mm Dali Version	38	-	3000	90	150	Dimmable DALI 2	Track
03.8107.14ACB	Light Tube Ø 30 Direct 1500 mm Casambi integrated	38	-	3000	90	150	Dimmable Casambi	Track
03.8107.14A1V	Light Tube Ø 30 Direct 1500 mm Dimmable 1-10V	38	-	3000	90	150	Dimmable 1-10V	Track
03.8107.14A	Light Tube Ø 30 Direct 1500 mm On Board Dimmer	38	-	3000	90	150	Dimmer on board	Track
03.8106.40ADA	Light Tube Ø 30 Direct 1200 mm Dali Version	30	-	3000	90	150	Dimmable DALI 2	Track
03.8106.40ACB	Light Tube Ø 30 Direct 1200 mm Casambi integrated	30	-	3000	90	150	Dimmable Casambi	Track
03.8106.40A1V	Light Tube Ø 30 Direct 1200 mm Dimmable 1-10V	30	-	3000	90	150	Dimmable 1-10V	Track
03.8106.40A	Light Tube Ø 30 Direct 1200 mm On Board Dimmer	30	-	3000	90	150	Dimmer on board	Track
03.8106.14ADA	Light Tube Ø 30 Direct 1200 mm Dali Version	30	-	3000	90	150	Dimmable DALI 2	Track
03.8106.14ACB	Light Tube Ø 30 Direct 1200 mm Casambi integrated	30	-	3000	90	150	Dimmable Casambi	Track
03.8106.14A1V	Light Tube Ø 30 Direct 1200 mm Dimmable 1-10V	30	-	3000	90	150	Dimmable 1-10V	Track
03.8106.14A	Light Tube Ø 30 Direct 1200 mm On Board Dimmer	30	-	3000	90	150	Dimmer on board	Track
03.8105.40ADA	Light Tube Ø 30 Direct 900 mm Dali Version	23	-	3000	90	150	Dimmable DALI 2	Track
03.8105.40ACB	Light Tube Ø 30 Direct 900 mm Casambi integrated	23	-	3000	90	150	Dimmable Casambi	Track
03.8105.40A1V	Light Tube Ø 30 Direct 900 mm Dimmable 1-10V	23	-	3000	90	150	Dimmable 1-10V	Track
03.8105.40A	Light Tube Ø 30 Direct 900 mm On Board Dimmer	23	-	3000	90	150	Dimmer on board	Track
03.8105.14ADA	Light Tube Ø 30 Direct 900 mm Dali Version	23	-	3000	90	150	Dimmable DALI 2	Track
03.8105.14ACB	Light Tube Ø 30 Direct 900 mm Casambi integrated	23	-	3000	90	150	Dimmable Casambi	Track
03.8105.14A1V	Light Tube Ø 30 Direct 900 mm Dimmable 1-10V	23	-	3000	90	150	Dimmable 1-10V	Track
03.8105.14A	Light Tube Ø 30 Direct 900 mm On Board Dimmer	23	-	3000	90	150	Dimmer on board	Track
03.8102.40ADA	Light Tube Ø 30 Direct 1500 mm Dali Version	38	-	2700	90	150	Dimmable DALI 2	Track
03.8102.40ACB	Light Tube Ø 30 Direct 1500 mm Casambi integrated	38	-	2700	90	150	Dimmable Casambi	Track
03.8102.40A1V	Light Tube Ø 30 Direct 1500 mm Dimmable 1-10V	38	-	2700	90	150	Dimmable 1-10V	Track
03.8102.40A	Light Tube Ø 30 Direct 1500 mm On Board Dimmer	38	-	2700	90	150	Dimmer on board	Track
03.8102.14ADA	Light Tube Ø 30 Direct 1500 mm Dali Version	38	-	2700	90	150	Dimmable DALI 2	Track
03.8102.14ACB	Light Tube Ø 30 Direct 1500 mm Casambi integrated	38	-	2700	90	150	Dimmable Casambi	Track
03.8102.14A1V	Light Tube Ø 30 Direct 1500 mm Dimmable 1-10V	38	-	2700	90	150	Dimmable 1-10V	Track
03.8102.14A	Light Tube Ø 30 Direct 1500 mm On Board Dimmer	38	-	2700	90	150	Dimmer on board	Track
03.8101.40ADA	Light Tube Ø 30 Direct 1200 mm Dali Version	30	-	2700	90	150	Dimmable DALI 2	Track
03.8101.40ACB	Light Tube Ø 30 Direct 1200 mm Casambi integrated	30	-	2700	90	150	Dimmable Casambi	Track
03.8101.40A1V	Light Tube Ø 30 Direct 1200 mm Dimmable 1-10V	30	-	2700	90	150	Dimmable 1-10V	Track
03.8101.40A	Light Tube Ø 30 Direct 1200 mm On Board Dimmer	30	-	2700	90	150	Dimmer on board	Track
03.8101.14ADA	Light Tube Ø 30 Direct 1200 mm Dali Version	30	-	2700	90	150	Dimmable DALI 2	Track
03.8101.14ACB	Light Tube Ø 30 Direct 1200 mm Casambi integrated	30	-	2700	90	150	Dimmable Casambi	Track
03.8101.14A1V	Light Tube Ø 30 Direct 1200 mm Dimmable 1-10V	30	-	2700	90	150	Dimmable 1-10V	Track
03.8101.14A	Light Tube Ø 30 Direct 1200 mm On Board Dimmer	30	-	2700	90	150	Dimmer on board	Track
03.8100.40ADA	Light Tube Ø 30 Direct 900 mm Dali Version	23	-	2700	90	150	Dimmable DALI 2	Track
03.8100.40ACB	Light Tube Ø 30 Direct 900 mm Casambi integrated	23	-	2700	90	150	Dimmable Casambi	Track
03.8100.40A1V	Light Tube Ø 30 Direct 900 mm Dimmable 1-10V	23	-	2700	90	150	Dimmable 1-10V	Track
03.8100.40A	Light Tube Ø 30 Direct 900 mm On Board Dimmer	23	-	2700	90	150	Dimmer on board	Track
03.8100.14ADA	Light Tube Ø 30 Direct 900 mm Dali Version	23	-	2700	90	150	Dimmable DALI 2	Track
03.8100.14ACB	Light Tube Ø 30 Direct 900 mm Casambi integrated	23	-	2700	90	150	Dimmable Casambi	Track
03.8100.14A1V	Light Tube Ø 30 Direct 900 mm Dimmable 1-10V	23	-	2700	90	150	Dimmable 1-10V	Track
03.8100.14A	Light Tube Ø 30 Direct 900 mm On Board Dimmer	23	-	2700	90	150	Dimmer on board	Track
