Infra-Structure Suspension Panel Ø600

Designed by Vincent Van Duysen

Suspended luminaire with rigid rod, to be installed in the Infra-Structure system.

Download Documentation

Product highlight

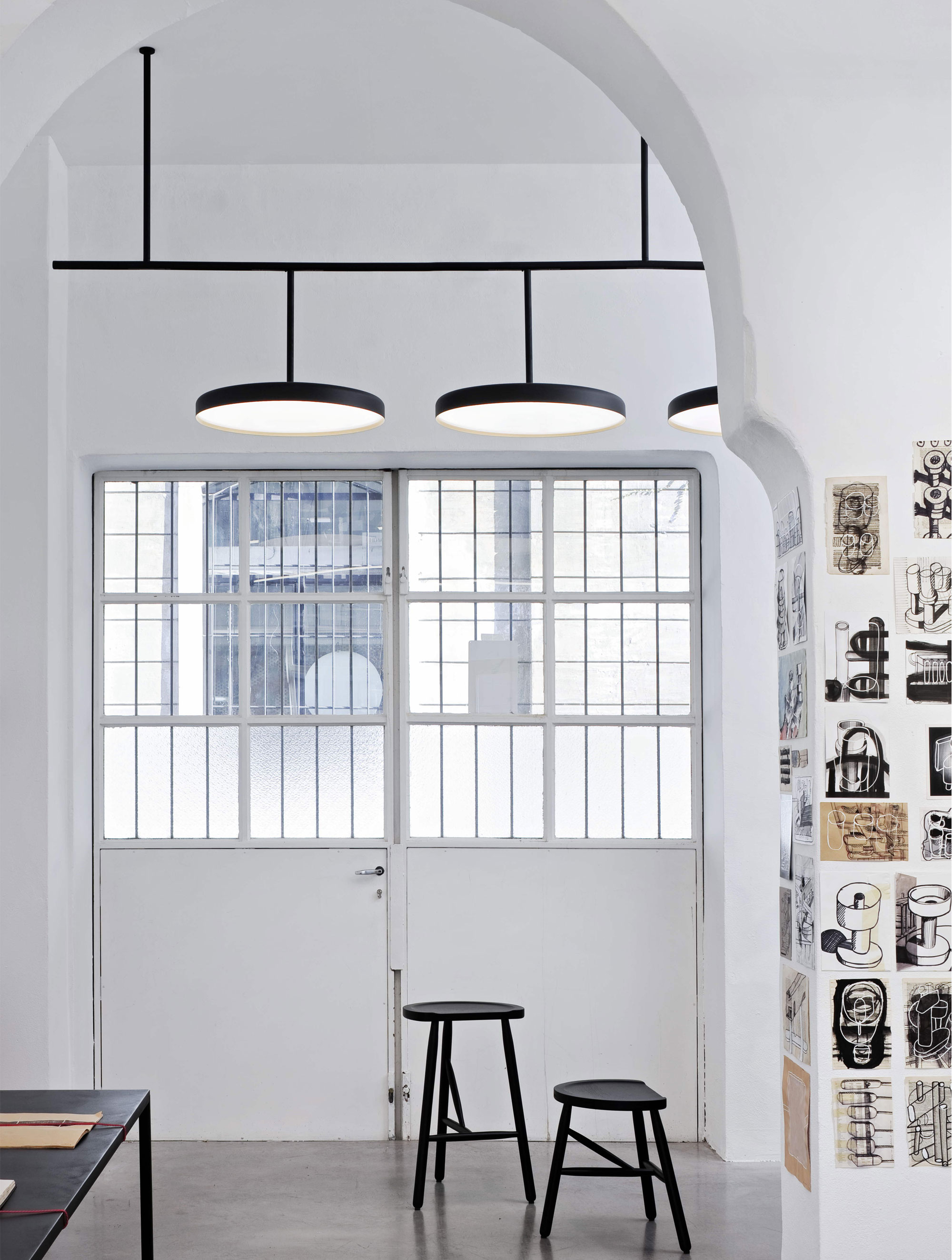

Rhythm and sequences

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(32)

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.8143.40ADA	Suspension Panel 600 Rod 400 mm Dali Version	24.5	1694	3000	90	113	Dimmable DALI 2	Track
03.8143.40ACB	Suspension Panel 600 Rod 400 mm Casambi integrated	24.5	1694	3000	90	113	Dimmable Casambi	Track
03.8143.40A1V	Suspension Panel 600 Rod 400 mm Dimmable 1-10V	24.5	1694	3000	90	113	Dimmable 1-10V	Track
03.8143.40A	Suspension Panel 600 Rod 400 mm On Board Dimmer	24.5	1694	3000	90	113	Dimmer on board	Track
03.8143.14ADA	Suspension Panel 600 Rod 400 mm Dali Version	24.5	1647	3000	90	113	Dimmable DALI 1	Track
03.8143.14ACB	Suspension Panel 600 Rod 400 mm Casambi integrated	24.5	1647	3000	90	113	Dimmable Casambi	Track
03.8143.14A1V	Suspension Panel 600 Rod 400 mm Dimmable 1-10V	24.5	1647	3000	90	113	Dimmable 1-10V	Track
03.8143.14A	Suspension Panel 600 Rod 400 mm On Board Dimmer	24.5	1647	3000	90	113	Dimmer on board	Track
03.8142.40ADA	Suspension Panel 600 Rod 100 mm Dali Version	24.5	1694	3000	90	113	Dimmable DALI 2	Track
03.8142.40ACB	Suspension Panel 600 Rod 100 mm Casambi integrated	24.5	1694	3000	90	113	Dimmable Casambi	Track
03.8142.40A1V	Suspension Panel 600 Rod 100 mm Dimmable 1-10V	24.5	1694	3000	90	113	Dimmable 1-10V	Track
03.8142.40A	Suspension Panel 600 Rod 100 mm On Board Dimmer	24.5	1694	3000	90	113	Dimmer on board	Track
03.8142.14ADA	Suspension Panel 600 Rod 100 mm Dali Version	24.5	1647	3000	90	113	Dimmable DALI 2	Track
03.8142.14ACB	Suspension Panel 600 Rod 100 mm Casambi integrated	24.5	1647	3000	90	113	Dimmable Casambi	Track
03.8142.14A1V	Suspension Panel 600 Rod 100 mm Dimmable 1-10V	24.5	1647	3000	90	113	Dimmable 1-10V	Track
03.8142.14A	Suspension Panel 600 Rod 100 mm On Board Dimmer	24.5	1647	3000	90	113	Dimmer on board	Track
03.8141.40ADA	Suspension Panel 600 Rod 400 mm Dali Version	40	-	2700	90	113	Dimmable DALI 2	Track
03.8141.40ACB	Suspension Panel 600 Rod 400 mm Casambi integrated	40	-	2700	90	113	Dimmable Casambi	Track
03.8141.40A1V	Suspension Panel 600 Rod 400 mm Dimmable 1-10V	40	-	2700	90	113	Dimmable 1-10V	Track
03.8141.40A	Suspension Panel 600 Rod 400 mm On Board Dimmer	40	-	2700	90	113	Dimmer on board	Track
03.8141.14ADA	Suspension Panel 600 Rod 400 mm Dali Version	40	-	2700	90	113	Dimmable DALI 2	Track
03.8141.14ACB	Suspension Panel 600 Rod 400 mm Casambi integrated	40	-	2700	90	113	Dimmable Casambi	Track
03.8141.14A1V	Suspension Panel 600 Rod 400 mm Dimmable 1-10V	40	-	2700	90	113	Dimmable 1-10V	Track
03.8141.14A	Suspension Panel 600 Rod 400 mm On Board Dimmer	40	-	2700	90	113	Dimmer on board	Track
03.8140.40ADA	Suspension Panel 600 Rod 100 mm Dali Version	40	-	2700	90	113	Dimmable DALI 2	Track
03.8140.40ACB	Suspension Panel 600 Rod 100 mm Casambi integrated	40	-	2700	90	113	Dimmable Casambi	Track
03.8140.40A1V	Suspension Panel 600 Rod 100 mm Dimmable 1-10V	40	-	2700	90	113	Dimmable 1-10V	Track
03.8140.40A	Suspension Panel 600 Rod 100 mm On Board Dimmer	40	-	2700	90	113	Dimmer on board	Track
03.8140.14ADA	Suspension Panel 600 Rod 100 mm Dali Version	40	-	2700	90	113	Dimmable DALI 2	Track
03.8140.14ACB	Suspension Panel 600 Rod 100 mm Casambi integrated	40	-	2700	90	113	Dimmable Casambi	Track
03.8140.14A1V	Suspension Panel 600 Rod 100 mm Dimmable 1-10V	40	-	2700	90	113	Dimmable 1-10V	Track
03.8140.14A	Suspension Panel 600 Rod 100 mm On Board Dimmer	40	-	2700	90	113	Dimmer on board	Track
