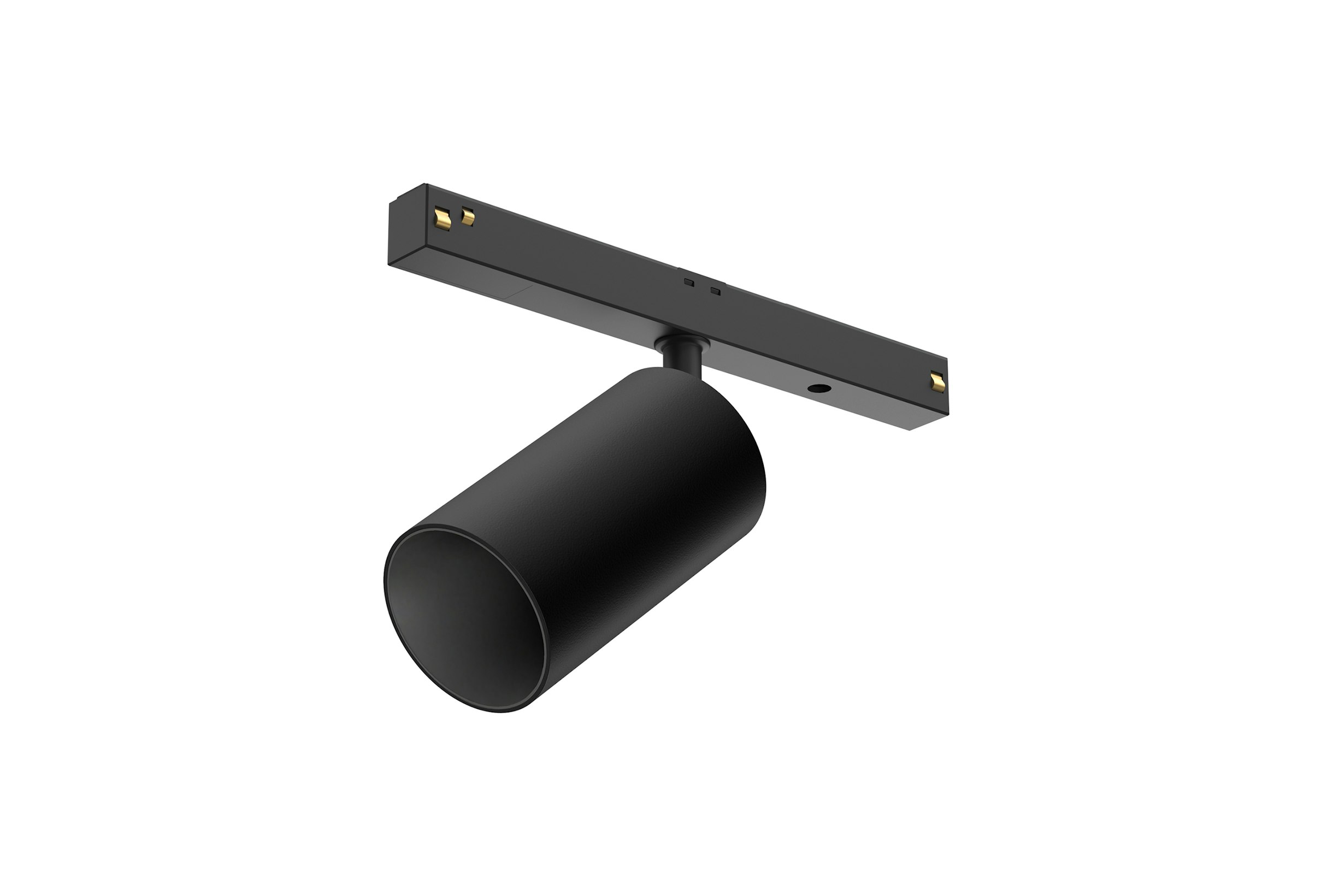

Light Shadow Spot 45

Designed by Vincent Van Duysen

LED accent lighting module for installation in Infra-Structure system.
For wireless control of luminaires, please select Casambi integrated versions.

Download Documentation

Product highlight

Rhythm and sequences

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(96)

Optical Type

Lumen Output (lm)

CCT (K)

Dimmable

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.9037.ES.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	31	Dimmable DALI 2	Track
05.9037.ES.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	31	Dimmable Casambi	Track
05.9037.ES.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	31	Dimmable 1-10V	Track
05.9037.ES	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	31	Non Dimmable	Track
05.9037.ER.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	31	Dimmable DALI 2	Track
05.9037.ER.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	31	Dimmable Casambi	Track
05.9037.ER.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	31	Dimmable 1-10V	Track
05.9037.ER	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	31	Non Dimmable	Track
05.9037.40.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	31	Dimmable DALI 2	Track
05.9037.40.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	31	Dimmable Casambi	Track
05.9037.40.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	31	Dimmable 1-10V	Track
05.9037.40	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	31	Non Dimmable	Track
05.9037.14.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	31	Dimmable DALI 2	Track
05.9037.14.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	31	Dimmable Casambi	Track
05.9037.14.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	31	Dimmable 1-10V	Track
05.9037.14	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	31	Non Dimmable	Track
05.9036.ES.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	21	Dimmable DALI 2	Track
05.9036.ES.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	21	Dimmable Casambi	Track
05.9036.ES.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	21	Dimmable 1-10V	Track
05.9036.ES	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	21	Non Dimmable	Track
05.9036.ER.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	21	Dimmable DALI 2	Track
05.9036.ER.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	21	Dimmable Casambi	Track
05.9036.ER.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	21	Dimmable 1-10V	Track
05.9036.ER	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	21	Non Dimmable	Track
05.9036.40.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	21	Dimmable DALI 2	Track
05.9036.40.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	21	Dimmable Casambi	Track
05.9036.40.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	21	Dimmable 1-10V	Track
05.9036.40	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	21	Non Dimmable	Track
05.9036.14.DA	Light Shadow Spot 45 Dali Version	10	682	3000	90	21	Dimmable DALI 2	Track
05.9036.14.CB	Light Shadow Spot 45 Casambi	10	682	3000	90	21	Dimmable Casambi	Track
05.9036.14.1V	Light Shadow Spot 45 Dimmable 1-10V	10	682	3000	90	21	Dimmable 1-10V	Track
05.9036.14	Light Shadow Spot 45 Dimmer On Board	10	682	3000	90	21	Non Dimmable	Track
05.9035.ES.DA	Light Shadow Spot 45 Dali Version	10	686	3000	90	15	Dimmable DALI 2	Track
05.9035.ES.CB	Light Shadow Spot 45 Casambi	10	686	3000	90	15	Dimmable Casambi	Track
05.9035.ES.1V	Light Shadow Spot 45 Dimmable 1-10V	10	686	3000	90	15	Dimmable 1-10V	Track
05.9035.ES	Light Shadow Spot 45 Dimmer On Board	10	686	3000	90	15	Non Dimmable	Track
05.9035.ER.DA	Light Shadow Spot 45 Dali Version	10	686	3000	90	15	Dimmable DALI 2	Track
05.9035.ER.CB	Light Shadow Spot 45 Casambi	10	686	3000	90	15	Dimmable Casambi	Track
05.9035.ER.1V	Light Shadow Spot 45 Dimmable 1-10V	10	686	3000	90	15	Dimmable 1-10V	Track
05.9035.ER	Light Shadow Spot 45 Dimmer On Board	10	686	3000	90	15	Non Dimmable	Track
05.9035.40.DA	Light Shadow Spot 45 Dali Version	10	686	3000	90	15	Dimmable DALI 2	Track
05.9035.40.CB	Light Shadow Spot 45 Casambi	10	686	3000	90	15	Dimmable Casambi	Track
05.9035.40.1V	Light Shadow Spot 45 Dimmable 1-10V	10	686	3000	90	15	Dimmable 1-10V	Track
05.9035.40	Light Shadow Spot 45 Dimmer On Board	10	686	3000	90	15	Non Dimmable	Track
05.9035.14.DA	Light Shadow Spot 45 Dali Version	10	686	3000	90	15	Dimmable DALI 2	Track
05.9035.14.CB	Light Shadow Spot 45 Casambi	10	686	3000	90	15	Dimmable Casambi	Track
05.9035.14.1V	Light Shadow Spot 45 Dimmable 1-10V	10	686	3000	90	15	Dimmable 1-10V	Track
05.9035.14	Light Shadow Spot 45 Dimmer On Board	10	686	3000	90	15	Non Dimmable	Track
05.9032.ES.DA	Light Shadow Spot 45 Dali Version	10	646	2700	90	31	Dimmable DALI 2	Track
05.9032.ES.CB	Light Shadow Spot 45 Casambi	10	646	2700	90	31	Dimmable Casambi	Track
05.9032.ES.1V	Light Shadow Spot 45 Dimmable 1-10V	10	646	2700	90	31	Dimmable 1-10V	Track
05.9032.ES	Light Shadow Spot 45 On Board Dimmer	10	646	2700	90	31	Non Dimmable	Track
05.9032.ER.DA	Light Shadow Spot 45 Dali Version	10	646	2700	90	31	Dimmable DALI 2	Track
05.9032.ER.CB	Light Shadow Spot 45 Casambi	10	646	2700	90	31	Dimmable Casambi	Track
05.9032.ER.1V	Light Shadow Spot 45 Dimmable 1-10V	10	646	2700	90	31	Dimmable 1-10V	Track
05.9032.ER	Light Shadow Spot 45 On Board Dimmer	10	646	2700	90	31	Non Dimmable	Track
05.9032.40.DA	Light Shadow Spot 45 Dali Version	10	646	2700	90	31	Dimmable DALI 2	Track
05.9032.40.CB	Light Shadow Spot 45 Casambi	10	646	2700	90	31	Dimmable Casambi	Track
05.9032.40.1V	Light Shadow Spot 45 Dimmable 1-10V	10	646	2700	90	31	Dimmable 1-10V	Track
05.9032.40	Light Shadow Spot 45 On Board Dimmer	10	646	2700	90	31	Non Dimmable	Track
05.9032.14.DA	Light Shadow Spot 45 Dali Version	10	646	2700	90	31	Dimmable DALI 2	Track
05.9032.14.CB	Light Shadow Spot 45 Casambi	10	646	2700	90	31	Dimmable Casambi	Track
05.9032.14.1V	Light Shadow Spot 45 Dimmable 1-10V	10	646	2700	90	31	Dimmable 1-10V	Track
05.9032.14	Light Shadow Spot 45 On Board Dimmer	10	646	2700	90	31	Non Dimmable	Track
05.9031.ES.DA	Light Shadow Spot 45 Dali Version	10	645	2700	90	21	Dimmable DALI 2	Track
05.9031.ES.CB	Light Shadow Spot 45 Casambi	10	645	2700	90	21	Dimmable Casambi	Track
05.9031.ES.1V	Light Shadow Spot 45 Dimmable 1-10V	10	645	2700	90	21	Dimmable 1-10V	Track
05.9031.ES	Light Shadow Spot 45 On Board Dimmer	10	645	2700	90	21	Non Dimmable	Track
05.9031.ER.DA	Light Shadow Spot 45 Dali Version	10	645	2700	90	21	Dimmable DALI 2	Track
05.9031.ER.CB	Light Shadow Spot 45 Casambi	10	645	2700	90	21	Dimmable Casambi	Track
05.9031.ER.1V	Light Shadow Spot 45 Dimmable 1-10V	10	645	2700	90	21	Dimmable 1-10V	Track
05.9031.ER	Light Shadow Spot 45 On Board Dimmer	10	645	2700	90	21	Non Dimmable	Track
05.9031.40.DA	Light Shadow Spot 45 Dali Version	10	645	2700	90	21	Dimmable DALI 2	Track
05.9031.40.CB	Light Shadow Spot 45 Casambi	10	645	2700	90	21	Dimmable Casambi	Track
05.9031.40.1V	Light Shadow Spot 45 Dimmable 1-10V	10	645	2700	90	21	Dimmable 1-10V	Track
05.9031.40	Light Shadow Spot 45 On Board Dimmer	10	645	2700	90	21	Non Dimmable	Track
05.9031.14.DA	Light Shadow Spot 45 Dali Version	10	645	2700	90	21	Dimmable DALI 2	Track
05.9031.14.CB	Light Shadow Spot 45 Casambi	10	645	2700	90	21	Dimmable Casambi	Track
05.9031.14.1V	Light Shadow Spot 45 Dimmable 1-10V	10	645	2700	90	21	Dimmable 1-10V	Track
05.9031.14	Light Shadow Spot 45 On Board Dimmer	10	645	2700	90	21	Non Dimmable	Track
05.9030.ES.DA	Light Shadow Spot 45 Dali Version	10	650	2700	90	15	Dimmable DALI 2	Track
05.9030.ES.CB	Light Shadow Spot 45 Casambi	10	650	2700	90	15	Dimmable Casambi	Track
05.9030.ES.1V	Light Shadow Spot 45 Dimmable 1-10V	10	650	2700	90	15	Dimmable 1-10V	Track
05.9030.ES	Light Shadow Spot 45 On Board Dimmer	10	650	2700	90	15	Non Dimmable	Track
05.9030.ER.DA	Light Shadow Spot 45 Dali Version	10	650	2700	90	15	Dimmable DALI 2	Track
05.9030.ER.CB	Light Shadow Spot 45 Casambi	10	650	2700	90	15	Dimmable Casambi	Track
05.9030.ER.1V	Light Shadow Spot 45 Dimmable 1-10V	10	650	2700	90	15	Dimmable 1-10V	Track
05.9030.ER	Light Shadow Spot 45 On Board Dimmer	10	650	2700	90	15	Non Dimmable	Track
05.9030.40.DA	Light Shadow Spot 45 Dali Version	10	650	2700	90	15	Dimmable DALI 2	Track
05.9030.40.CB	Light Shadow Spot 45 Casambi	10	650	2700	90	15	Dimmable Casambi	Track
05.9030.40.1V	Light Shadow Spot 45 Dimmable 1-10V	10	650	2700	90	15	Dimmable 1-10V	Track
05.9030.40	Light Shadow Spot 45 On Board Dimmer	10	650	2700	90	15	Non Dimmable	Track
05.9030.14.DA	Light Shadow Spot 45 Dali Version	10	650	2700	90	15	Dimmable DALI 2	Track
05.9030.14.CB	Light Shadow Spot 45 Casambi	10	650	2700	90	15	Dimmable Casambi	Track
05.9030.14.1V	Light Shadow Spot 45 Dimmable 1-10V	10	650	2700	90	15	Dimmable 1-10V	Track
05.9030.14	Light Shadow Spot 45 On Board Dimmer	10	650	2700	90	15	Non Dimmable	Track
