Spot 120

Designed by Vincent Van Duysen

Accent lighting LED module.

Download Documentation

Product highlight

Rhythm and sequences

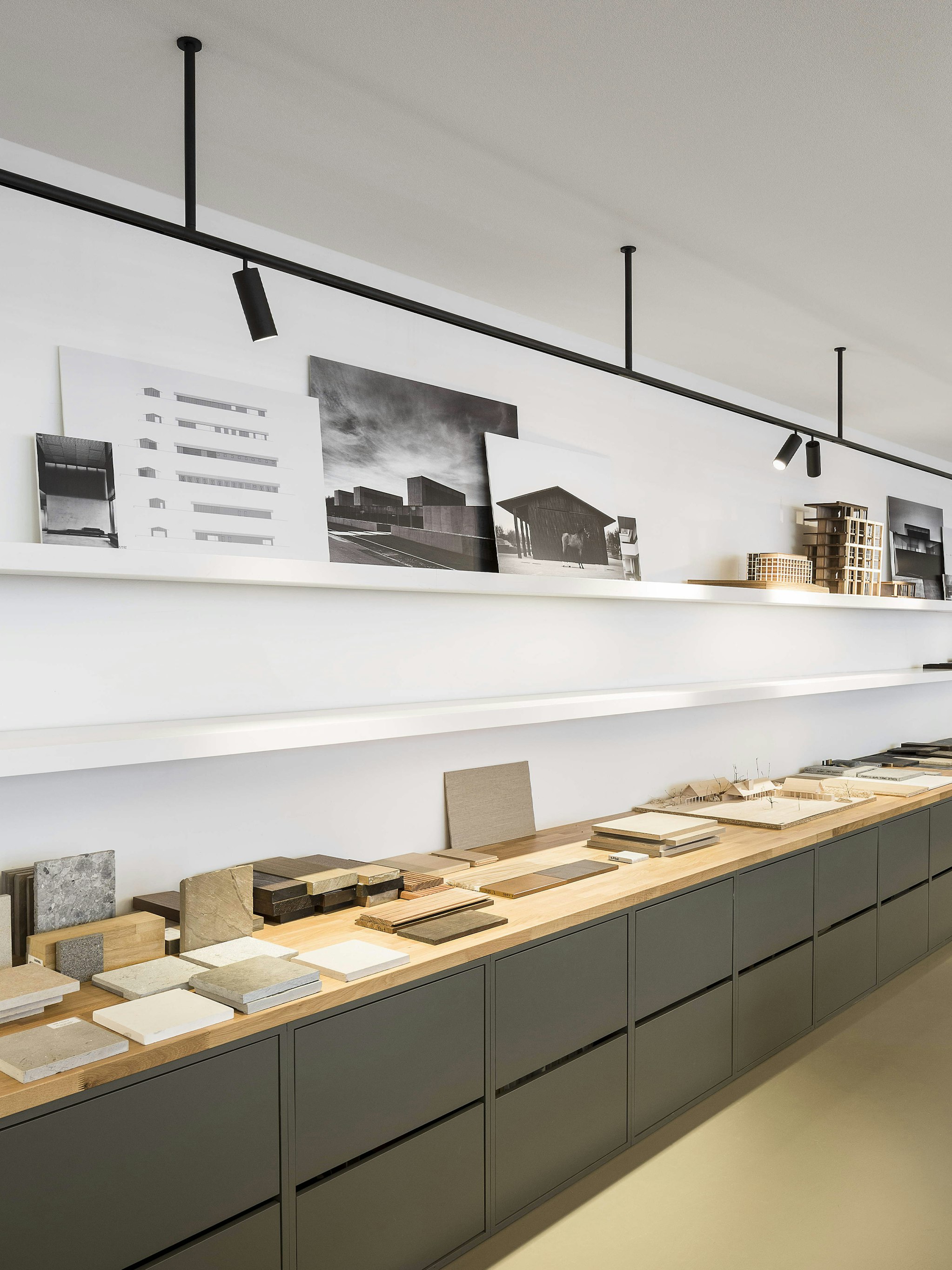

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(96)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.8157.40.DA	Spot 120 Dali Version	12.5	629	3000	90	40	Dimmable DALI 2	Track
03.8157.40.CB	Spot 120 Casambi integrated	12.5	629	3000	90	40	Dimmable Casambi	Track
03.8157.40.1V	Spot 120 Dimmable 1-10V	12.5	629	3000	90	40	Dimmable 1-10V	Track
03.8157.40	Spot 120 On Board Dimmer	12.5	629	3000	90	40	Dimmer on board	Track
03.8157.14.DA	Spot 120 Dali Version	12.5	629	3000	90	40	Dimmable DALI 2	Track
03.8157.14.CB	Spot 120 Casambi integrated	12.5	629	3000	90	40	Dimmable Casambi	Track
03.8157.14.1V	Spot 120 Dimmable 1-10V	12.5	629	3000	90	40	Dimmable 1-10V	Track
03.8157.14	Spot 120 On Board Dimmer	12.5	629	3000	90	40	Dimmer on board	Track
03.8157.05ADA	Spot 120 Dali Version	12.5	629	3000	90	40	Dimmable DALI 2	Track
03.8157.05A1V	Spot 120 Dimmable 1-10V	12.5	629	3000	90	40	Dimmable 1-10V	Track
03.8157.05A	Spot 120 On Board Dimmer	12.5	629	3000	90	40	Dimmer on board	Track
03.8157.05.CB	Spot 120 Casambi integrated	12.5	629	3000	90	40	Dimmable Casambi	Track
03.8156.40.DA	Spot 120 Dali Version	12.5	599	2700	90	40	Dimmable DALI 2	Track
03.8156.40.CB	Spot 120 Casambi integrated	12.5	599	2700	90	40	Dimmable Casambi	Track
03.8156.40.1V	Spot 120 Dimmable 1-10V	12.5	599	2700	90	40	Dimmable 1-10V	Track
03.8156.40	Spot 120 On Board Dimmer	12.5	599	2700	90	40	Dimmer on board	Track
03.8156.14.DA	Spot 120 Dali Version	12.5	599	2700	90	40	Dimmable DALI 2	Track
03.8156.14.CB	Spot 120 Casambi integrated	12.5	599	2700	90	40	Dimmable Casambi	Track
03.8156.14.1V	Spot 120 Dimmable 1-10V	12.5	599	2700	90	40	Dimmable 1-10V	Track
03.8156.14	Spot 120 On Board Dimmer	12.5	599	2700	90	40	Dimmer on board	Track
03.8156.05ADA	Spot 120 Dali Version	12.5	599	2700	90	40	Dimmable DALI 2	Track
03.8156.05A1V	Spot 120 Dimmable 1-10V	12.5	599	2700	90	40	Dimmable 1-10V	Track
03.8156.05A	Spot 120 On Board Dimmer	12.5	599	2700	90	40	Dimmer on board	Track
03.8156.05.CB	Spot 120 Casambi integrated	12.5	599	2700	90	40	Dimmable Casambi	Track
03.8155.40.DA	Spot 120 Dali Version	12.5	687	3000	90	17	Dimmable DALI 2	Track
03.8155.40.CB	Spot 120 Casambi integrated	12.5	687	3000	90	17	Dimmable Casambi	Track
03.8155.40.1V	Spot 120 Dimmable 1-10V	12.5	687	3000	90	17	Dimmable 1-10V	Track
03.8155.40	Spot 120 On Board Dimmer	12.5	687	3000	90	17	Dimmer on board	Track
03.8155.14.DA	Spot 120 Dali Version	12.5	687	3000	90	17	Dimmable DALI 2	Track
03.8155.14.CB	Spot 120 Casambi integrated	12.5	687	3000	90	17	Dimmable Casambi	Track
03.8155.14.1V	Spot 120 Dimmable 1-10V	12.5	687	3000	90	17	Dimmable 1-10V	Track
03.8155.14	Spot 120 On Board Dimmer	12.5	687	3000	90	17	Dimmer on board	Track
03.8155.05ADA	Spot 120 Dali Version	12.5	687	3000	90	17	Dimmable DALI 2	Track
03.8155.05A1V	Spot 120 Dimmable 1-10V	12.5	687	3000	90	17	Dimmable 1-10V	Track
03.8155.05A	Spot 120 On Board Dimmer	12.5	687	3000	90	17	Dimmer on board	Track
03.8155.05.CB	Spot 120 Casambi integrated	12.5	687	3000	90	17	Dimmable Casambi	Track
03.8154.40.DA	Spot 120 Dali Version	12.5	654	2700	90	17	Dimmable DALI 2	Track
03.8154.40.CB	Spot 120 Casambi integrated	12.5	654	2700	90	17	Dimmable Casambi	Track
03.8154.40.1V	Spot 120 Dimmable 1-10V	12.5	654	2700	90	17	Dimmable 1-10V	Track
03.8154.40	Spot 120 On Board Dimmer	12.5	654	2700	90	17	Dimmer on board	Track
03.8154.14.DA	Spot 120 Dali Version	12.5	654	2700	90	17	Dimmable DALI 2	Track
03.8154.14.CB	Spot 120 Casambi integrated	12.5	654	2700	90	17	Dimmable Casambi	Track
03.8154.14.1V	Spot 120 Dimmable 1-10V	12.5	654	2700	90	17	Dimmable 1-10V	Track
03.8154.14	Spot 120 On Board Dimmer	12.5	654	2700	90	17	Dimmer on board	Track
03.8154.05ADA	Spot 120 Dali Version	12.5	654	2700	90	17	Dimmable DALI 2	Track
03.8154.05A1V	Spot 120 Dimmable 1-10V	12.5	654	2700	90	17	Dimmable 1-10V	Track
03.8154.05A	Spot 120 On Board Dimmer	12.5	654	2700	90	17	Dimmer on board	Track
03.8154.05.CB	Spot 120 Casambi integrated	12.5	654	2700	90	17	Dimmable Casambi	Track
03.8055.40ADA	Spot 120 Dali Version	12	505	3000	90	17	Dimmable DALI 2	Track
03.8055.40ACB	Spot 120 Casambi integrated	12	505	3000	90	17	Dimmable Casambi	Track
03.8055.40A1V	Spot 120 Dimmable 1-10V	12	505	3000	90	17	Dimmable 1-10V	Track
03.8055.40A	Spot 120 On Board Dimmer	12	505	3000	90	17	Dimmer on board	Track
03.8055.14ADA	Spot 120 Dali Version	12	505	3000	90	17	Dimmable DALI 2	Track
03.8055.14ACB	Spot 120 Casambi integrated	12	505	3000	90	17	Dimmable Casambi	Track
03.8055.14A1V	Spot 120 Dimmable 1-10V	12	505	3000	90	17	Dimmable 1-10V	Track
03.8055.14A	Spot 120 On Board Dimmer	12	505	3000	90	17	Dimmer on board	Track
03.8055.05BDA	Spot 120 Dali Version	12	505	3000	90	17	Dimmable DALI 2	Track
03.8055.05B1V	Spot 120 Dimmable 1-10V	12	505	3000	90	17	Dimmable 1-10V	Track
03.8055.05B	Spot 120 On Board Dimmer	12	505	3000	90	17	Dimmer on board	Track
03.8055.05ACB	Spot 120 Casambi integrated	12	505	3000	90	17	Dimmable Casambi	Track
03.8054.40ADA	Spot 120 Dali Version	12	487	2700	90	17	Dimmable DALI 2	Track
03.8054.40ACB	Spot 120 Casambi integrated	12	487	2700	90	17	Dimmable Casambi	Track
03.8054.40A1V	Spot 120 Dimmable 1-10V	12	487	2700	90	17	Dimmable 1-10V	Track
03.8054.40A	Spot 120 On Board Dimmer	12	487	2700	90	17	Dimmer on board	Track
03.8054.14ADA	Spot 120 Dali Version	12	487	2700	90	17	Dimmable DALI 2	Track
03.8054.14ACB	Spot 120 Casambi integrated	12	487	2700	90	17	Dimmable Casambi	Track
03.8054.14A1V	Spot 120 Dimmable 1-10V	12	487	2700	90	17	Dimmable 1-10V	Track
03.8054.14A	Spot 120 On Board Dimmer	12	487	2700	90	17	Dimmer on board	Track
03.8054.05BDA	Spot 120 Dali Version	12	487	2700	90	17	Dimmable DALI 2	Track
03.8054.05B1V	Spot 120 Dimmable 1-10V	12	487	2700	90	17	Dimmable 1-10V	Track
03.8054.05B	Spot 120 On Board Dimmer	12	487	2700	90	17	Dimmer on board	Track
03.8054.05ACB	Spot 120 Casambi integrated	12	487	2700	90	17	Dimmable Casambi	Track
03.8053.40ADA	Spot 120 Dali Version	12	558	3000	90	11	Dimmable DALI 2	Track
03.8053.40ACB	Spot 120 Casambi integrated	12	558	3000	90	11	Dimmable Casambi	Track
03.8053.40A1V	Spot 120 Dimmable 1-10V	12	558	3000	90	11	Dimmable 1-10V	Track
03.8053.40A	Spot 120 On Board Dimmer	12	558	3000	90	11	Dimmer on board	Track
03.8053.14ADA	Spot 120 Dali Version	12	558	3000	90	11	Dimmable DALI 2	Track
03.8053.14ACB	Spot 120 Casambi integrated	12	558	3000	90	11	Dimmable Casambi	Track
03.8053.14A1V	Spot 120 Dimmable 1-10V	12	558	3000	90	11	Dimmable 1-10V	Track
03.8053.14A	Spot 120 On Board Dimmer	12	558	3000	90	11	Dimmer on board	Track
03.8053.05BDA	Spot 120 Dali Version	12	558	3000	90	11	Dimmable DALI 2	Track
03.8053.05B1V	Spot 120 Dimmable 1-10V	12	558	3000	90	11	Dimmable 1-10V	Track
03.8053.05B	Spot 120 On Board Dimmer	12	558	3000	90	11	Dimmer on board	Track
03.8053.05ACB	Spot 120 Casambi integrated	12	558	3000	90	11	Dimmable Casambi	Track
03.8052.40ADA	Spot 120 Dali Version	12	539	2700	90	11	Dimmable DALI 2	Track
03.8052.40ACB	Spot 120 Casambi integrated	12	539	2700	90	11	Dimmable Casambi	Track
03.8052.40A1V	Spot 120 Dimmable 1-10V	12	539	2700	90	11	Dimmable 1-10V	Track
03.8052.40A	Spot 120 On Board Dimmer	12	539	2700	90	11	Dimmer on board	Track
03.8052.14ADA	Spot 120 Dali Version	12	539	2700	90	11	Dimmable DALI 2	Track
03.8052.14ACB	Spot 120 Casambi integrated	12	539	2700	90	11	Dimmable Casambi	Track
03.8052.14A1V	Spot 120 Dimmable 1-10V	12	539	2700	90	11	Dimmable 1-10V	Track
03.8052.14A	Spot 120 On Board Dimmer	12	539	2700	90	11	Dimmer on board	Track
03.8052.05BDA	Spot 120 Dali Version	12	539	2700	90	11	Dimmable DALI 2	Track
03.8052.05B1V	Spot 120 Dimmable 1-10V	12	539	2700	90	11	Dimmable 1-10V	Track
03.8052.05B	Spot 120 On Board Dimmer	12	539	2700	90	11	Dimmer on board	Track
03.8052.05ACB	Spot 120 Casambi integrated	12	539	2700	90	11	Dimmable Casambi	Track
