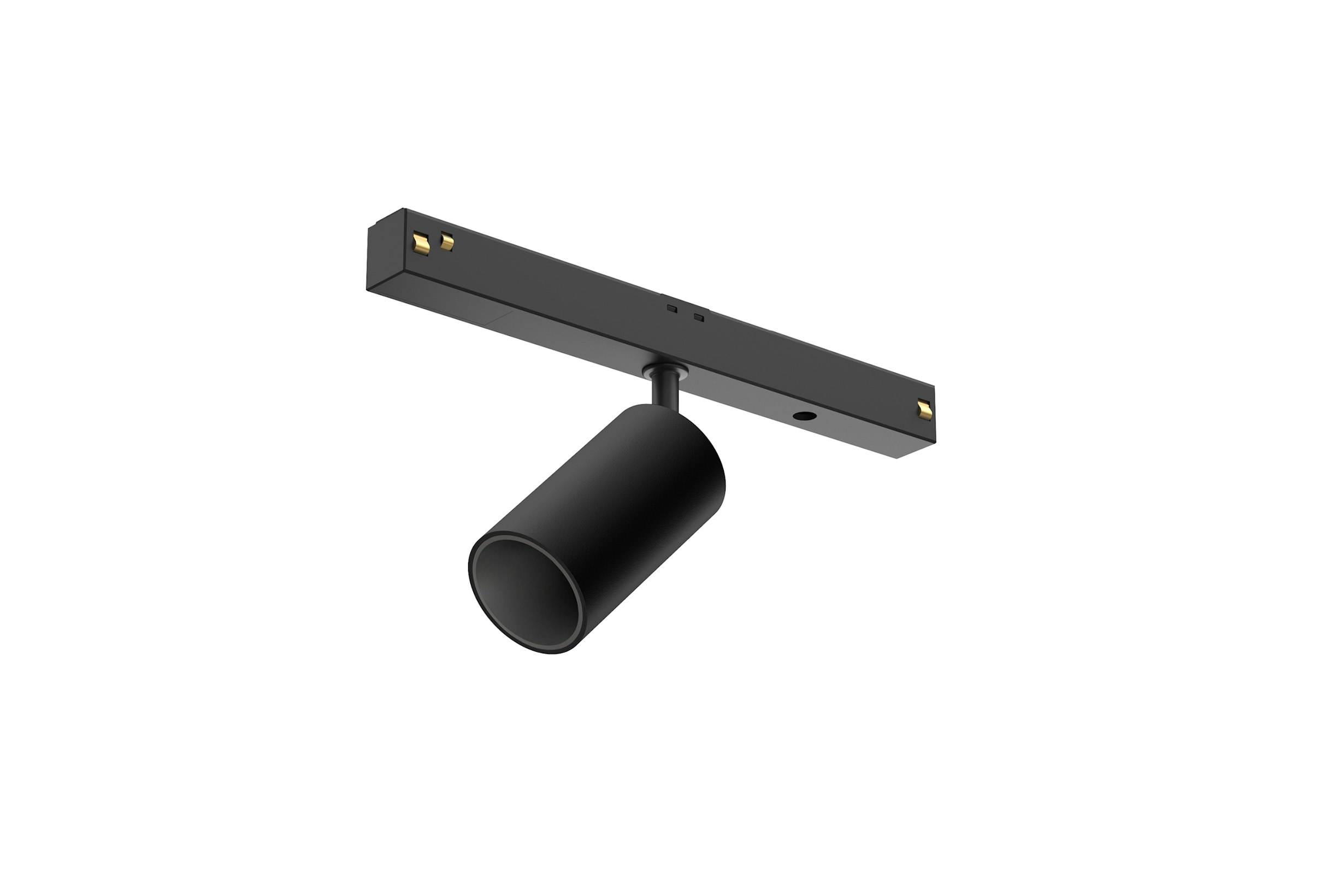

Light Shadow Spot 30

Designed by Vincent Van Duysen

LED accent lighting module for installation in Infra-Structure system.
For wireless control of luminaires, please select Casambi integrated versions.

Download Documentation

Product highlight

Rhythm and sequences

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(126)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.9008.ES.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	46	Dimmable DALI 2	Track
05.9008.ES.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	46	Dimmable Casambi	Track
05.9008.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	46	Dimmable 1-10V	Track
05.9008.ES	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	46	Dimmer on board	Track
05.9008.ER.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	46	Dimmable DALI 2	Track
05.9008.ER.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	46	Dimmable Casambi	Track
05.9008.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	46	Dimmable 1-10V	Track
05.9008.ER	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	46	Dimmer on board	Track
05.9008.40.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	46	Dimmable DALI 2	Track
05.9008.40.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	46	Dimmable Casambi	Track
05.9008.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	46	Dimmable 1-10V	Track
05.9008.40	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	46	Dimmer on board	Track
05.9008.14.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	46	Dimmable DALI 2	Track
05.9008.14.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	46	Dimmable Casambi	Track
05.9008.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	46	Dimmable 1-10V	Track
05.9008.14	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	46	Dimmer on board	Track
05.9007.ES.DA	Light Shadow Spot 30 Dali Version	4.5	204	3000	90	33	Dimmable DALI 2	Track
05.9007.ES.CB	Light Shadow Spot 30 Casambi	4	204	3000	90	33	Dimmable Casambi	Track
05.9007.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	204	3000	90	33	Dimmable 1-10V	Track
05.9007.ES	Light Shadow Spot 30 Dimmer On Board	4	204	3000	90	33	Dimmer on board	Track
05.9007.ER.DA	Light Shadow Spot 30 Dali Version	4.5	204	3000	90	33	Dimmable DALI 2	Track
05.9007.ER.CB	Light Shadow Spot 30 Casambi	4	204	3000	90	33	Dimmable Casambi	Track
05.9007.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	204	3000	90	33	Dimmable 1-10V	Track
05.9007.ER	Light Shadow Spot 30 Dimmer On Board	4	204	3000	90	33	Dimmer on board	Track
05.9007.40.DA	Light Shadow Spot 30 Dali Version	4.5	204	3000	90	33	Dimmable DALI 2	Track
05.9007.40.CB	Light Shadow Spot 30 Casambi	4	204	3000	90	33	Dimmable Casambi	Track
05.9007.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	204	3000	90	33	Dimmable 1-10V	Track
05.9007.40	Light Shadow Spot 30 Dimmer On Board	4	204	3000	90	33	Dimmer on board	Track
05.9007.14.DA	Light Shadow Spot 30 Dali Version	4.5	204	3000	90	33	Dimmable DALI 2	Track
05.9007.14.CB	Light Shadow Spot 30 Casambi	4	204	3000	90	33	Dimmable Casambi	Track
05.9007.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	204	3000	90	33	Dimmable 1-10V	Track
05.9007.14	Light Shadow Spot 30 Dimmer On Board	4	204	3000	90	33	Dimmer on board	Track
05.9006.ES.DA	Light Shadow Spot 30 Dali Version	4.5	205	3000	90	22	Dimmable DALI 2	Track
05.9006.ES.CB	Light Shadow Spot 30 Casambi	4	205	3000	90	22	Dimmable Casambi	Track
05.9006.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	205	3000	90	22	Dimmable 1-10V	Track
05.9006.ES	Light Shadow Spot 30 Dimmer On Board	4	205	3000	90	22	Dimmer on board	Track
05.9006.ER.DA	Light Shadow Spot 30 Dali Version	4.5	205	3000	90	22	Dimmable DALI 2	Track
05.9006.ER.CB	Light Shadow Spot 30 Casambi	4	205	3000	90	22	Dimmable Casambi	Track
05.9006.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	205	3000	90	22	Dimmable 1-10V	Track
05.9006.ER	Light Shadow Spot 30 Dimmer On Board	4	205	3000	90	22	Dimmer on board	Track
05.9006.40.DA	Light Shadow Spot 30 Dali Version	4.5	205	3000	90	22	Dimmable DALI 2	Track
05.9006.40.CB	Light Shadow Spot 30 Casambi	4	205	3000	90	22	Dimmable Casambi	Track
05.9006.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	205	3000	90	22	Dimmable 1-10V	Track
05.9006.40	Light Shadow Spot 30 Dimmer On Board	4	205	3000	90	22	Dimmer on board	Track
05.9006.14.DA	Light Shadow Spot 30 Dali Version	4.5	205	3000	90	22	Dimmable DALI 2	Track
05.9006.14.CB	Light Shadow Spot 30 Casambi	4	205	3000	90	22	Dimmable Casambi	Track
05.9006.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	205	3000	90	22	Dimmable 1-10V	Track
05.9006.14	Light Shadow Spot 30 Dimmer On Board	4	205	3000	90	22	Dimmer on board	Track
05.9005.ES.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	10	Dimmable DALI 2	Track
05.9005.ES.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	10	Dimmable Casambi	Track
05.9005.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	10	Dimmable 1-10V	Track
05.9005.ES	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	10	Dimmer on board	Track
05.9005.ER.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	10	Dimmable DALI 2	Track
05.9005.ER.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	10	Dimmable Casambi	Track
05.9005.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	10	Dimmable 1-10V	Track
05.9005.ER	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	10	Dimmer on board	Track
05.9005.40.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	10	Dimmable DALI 2	Track
05.9005.40.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	10	Dimmable Casambi	Track
05.9005.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	10	Dimmable 1-10V	Track
05.9005.40	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	10	Dimmer on board	Track
05.9005.14.DA	Light Shadow Spot 30 Dali Version	4.5	214	3000	90	10	Dimmable DALI 2	Track
05.9005.14.CB	Light Shadow Spot 30 Casambi	4	214	3000	90	10	Dimmable Casambi	Track
05.9005.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	214	3000	90	10	Dimmable 1-10V	Track
05.9005.14	Light Shadow Spot 30 Dimmer On Board	4	214	3000	90	10	Dimmer on board	Track
05.9003.ES.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	46	Dimmable DALI 2	Track
05.9003.ES.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	46	Dimmable Casambi	Track
05.9003.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	46	Dimmable 1-10V	Track
05.9003.ES	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	46	Dimmer on board	Track
05.9003.ER.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	46	Dimmable DALI 2	Track
05.9003.ER.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	46	Dimmable Casambi	Track
05.9003.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	46	Dimmable 1-10V	Track
05.9003.ER	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	46	Dimmer on board	Track
05.9003.40.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	46	Dimmable DALI 2	Track
05.9003.40.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	46	Dimmable Casambi	Track
05.9003.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	46	Dimmable 1-10V	Track
05.9003.40	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	46	Dimmer on board	Track
05.9003.14.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	46	Dimmable DALI 2	Track
05.9003.14.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	46	Dimmable Casambi	Track
05.9003.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	46	Dimmable 1-10V	Track
05.9003.14	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	46	Dimmer on board	Track
05.9002.ES.DA	Light Shadow Spot 30 Dali Version	4.5	200	2700	90	33	Dimmable DALI 2	Track
05.9002.ES.CB	Light Shadow Spot 30 Casambi	4	200	2700	90	33	Dimmable Casambi	Track
05.9002.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	200	2700	90	33	Dimmable 1-10V	Track
05.9002.ES	Light Shadow Spot 30 Dimmer On Board	4	200	2700	90	33	Dimmer on board	Track
05.9002.ER.DA	Light Shadow Spot 30 Dali Version	4.5	200	2700	90	33	Dimmable DALI 2	Track
05.9002.ER.CB	Light Shadow Spot 30 Casambi	4	200	2700	90	33	Dimmable Casambi	Track
05.9002.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	200	2700	90	33	Dimmable 1-10V	Track
05.9002.ER	Light Shadow Spot 30 Dimmer On Board	4	200	2700	90	33	Dimmer on board	Track
05.9002.40.DA	Light Shadow Spot 30 Dali Version	4.5	200	2700	90	33	Dimmable DALI 2	Track
05.9002.40.CB	Light Shadow Spot 30 Casambi	4	200	2700	90	33	Dimmable Casambi	Track
05.9002.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	200	2700	90	33	Dimmable 1-10V	Track
05.9002.40	Light Shadow Spot 30 Dimmer On Board	4	200	2700	90	33	Dimmer on board	Track
05.9002.14.DA	Light Shadow Spot 30 Dali Version	4.5	200	2700	90	33	Dimmable DALI 2	Track
05.9002.14.CB	Light Shadow Spot 30 Casambi	4	200	2700	90	33	Dimmable Casambi	Track
05.9002.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	200	2700	90	33	Dimmable 1-10V	Track
05.9002.14	Light Shadow Spot 30 Dimmer On Board	4	200	2700	90	33	Dimmer on board	Track
05.9001.ES.DA	Light Shadow Spot 30 Dali Version	4.5	201	2700	90	22	Dimmable DALI 2	Track
05.9001.ES.CB	Light Shadow Spot 30 Casambi	4	201	2700	90	22	Dimmable Casambi	Track
05.9001.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	201	2700	90	22	Dimmable 1-10V	Track
05.9001.ES	Light Shadow Spot 30 Dimmer On Board	4	201	2700	90	22	Dimmer on board	Track
05.9001.ER.DA	Light Shadow Spot 30 Dali Version	4.5	201	2700	90	22	Dimmable DALI 2	Track
05.9001.ER.CB	Light Shadow Spot 30 Casambi	4	201	2700	90	22	Dimmable Casambi	Track
05.9001.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	201	2700	90	22	Dimmable 1-10V	Track
05.9001.ER	Light Shadow Spot 30 Dimmer On Board	4	201	2700	90	22	Dimmer on board	Track
05.9001.40.DA	Light Shadow Spot 30 Dali Version	4.5	201	2700	90	22	Dimmable DALI 2	Track
05.9001.40.CB	Light Shadow Spot 30 Casambi	4	201	2700	90	22	Dimmable Casambi	Track
05.9001.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	201	2700	90	22	Dimmable 1-10V	Track
05.9001.40	Light Shadow Spot 30 Dimmer On Board	4	201	2700	90	22	Dimmer on board	Track
05.9001.14.DA	Light Shadow Spot 30 Dali Version	4.5	201	2700	90	22	Dimmable DALI 2	Track
05.9001.14.CB	Light Shadow Spot 30 Casambi	4	201	2700	90	22	Dimmable Casambi	Track
05.9001.14.1V	Light Shadow Spot 30 Dimmable 1-10V	4	201	2700	90	22	Dimmable 1-10V	Track
05.9001.14	Light Shadow Spot 30 Dimmer On Board	4	201	2700	90	22	Dimmer on board	Track
05.9000.ES.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	10	Dimmable DALI 2	Track
05.9000.ES.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	10	Dimmable Casambi	Track
05.9000.ES.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	10	Dimmable 1-10V	Track
05.9000.ES	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	10	Dimmer on board	Track
05.9000.ER.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	10	Dimmable DALI 2	Track
05.9000.ER.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	10	Dimmable Casambi	Track
05.9000.ER.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	10	Dimmable 1-10V	Track
05.9000.ER	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	10	Dimmer on board	Track
05.9000.40.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	10	Dimmable DALI 2	Track
05.9000.40.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	10	Dimmable Casambi	Track
05.9000.40.1V	Light Shadow Spot 30 Dimmable 1-10V	4	209	2700	90	10	Dimmable 1-10V	Track
05.9000.40	Light Shadow Spot 30 Dimmer On Board	4	209	2700	90	10	Dimmer on board	Track
05.9000.14.DA	Light Shadow Spot 30 Dali Version	4.5	209	2700	90	10	Dimmable DALI 2	Track
05.9000.14.CB	Light Shadow Spot 30 Casambi	4	209	2700	90	10	Dimmable Casambi	Track
