Suspension Glass Downlight Ø110

Designed by Vincent Van Duysen

Suspended luminaire with rigid rod and blown glass in several finishes to be installed in the Infra-Structure system.

Download Documentation

Product highlight

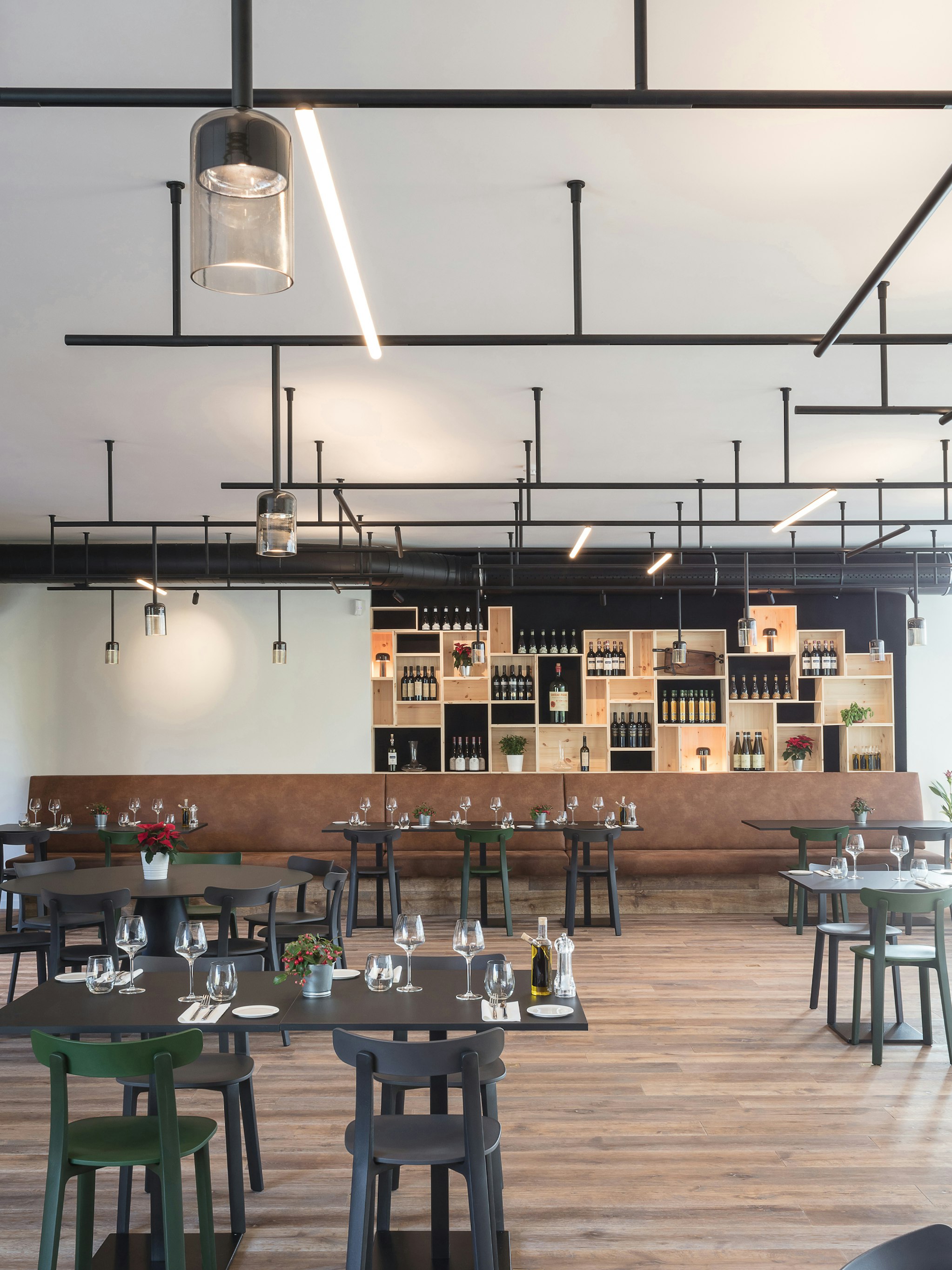

Rhythm and sequences

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(96)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.8138.RC.DA	Suspension Glass Downlight 110 White Rod 400 mm Dali Version	13.5	309	3000	90	42	Dimmable DALI 2	Track
03.8138.RC.CB	Suspension Glass Downlight 110 White Rod 400 mm Casambi integrated	13.5	309	3000	90	42	Dimmable Casambi	Track
03.8138.RC.1V	Suspension Glass Downlight 110 White Rod 400 mm Dimmable 1-10V	13.5	309	3000	90	42	Dimmable 1-10V	Track
03.8138.RC	Suspension Glass Downlight 110 White Rod 400 mm On Board Dimmer	13.5	309	3000	90	42	Dimmer on board	Track
03.8138.FU.DA	Suspension Glass Downlight 110 White Rod 400 mm Dali Version	13.5	510	3000	90	47	Dimmable DALI 2	Track
03.8138.FU.CB	Suspension Glass Downlight 110 White Rod 400 mm Casambi integrated	13.5	510	3000	90	47	Dimmable Casambi	Track
03.8138.FU.1V	Suspension Glass Downlight 110 White Rod 400 mm Dimmable 1-10V	13.5	510	3000	90	47	Dimmable 1-10V	Track
03.8138.FU	Suspension Glass Downlight 110 White Rod 400 mm On Board Dimmer	13.5	510	3000	90	47	Dimmer on board	Track
03.8138.00.DA	Suspension Glass Downlight 110 White Rod 400 mm Dali Version	13.5	746	3000	90	82	Dimmable DALI 2	Track
03.8138.00.CB	Suspension Glass Downlight 110 White Rod 400 mm Casambi integrated	13.5	746	3000	90	82	Dimmable Casambi	Track
03.8138.00.1V	Suspension Glass Downlight 110 White Rod 400 mm Dimmable 1-10V	13.5	746	3000	90	82	Dimmable 1-10V	Track
03.8138.00	Suspension Glass Downlight 110 White Rod 400 mm On Board Dimmer	13.5	746	3000	90	82	Dimmer on board	Track
03.8137.RC.DA	Suspension Glass Downlight 110 White Rod 100 mm Dali Version	13.5	309	3000	90	42	Dimmable DALI 2	Track
03.8137.RC.CB	Suspension Glass Downlight 110 White Rod 100 mm Casambi integrated	13.5	309	3000	90	42	Dimmable Casambi	Track
03.8137.RC.1V	Suspension Glass Downlight 110 White Rod 100 mm Dimmable 1-10V	13.5	309	3000	90	42	Dimmable 1-10V	Track
03.8137.RC	Suspension Glass Downlight 110 White Rod 100 mm On Board Dimmer	13.5	309	3000	90	42	Dimmer on board	Track
03.8137.FU.DA	Suspension Glass Downlight 110 White Rod 100 mm Dali Version	13.5	510	3000	90	47	Dimmable DALI 2	Track
03.8137.FU.CB	Suspension Glass Downlight 110 White Rod 100 mm Casambi integrated	13.5	510	3000	90	47	Dimmable Casambi	Track
03.8137.FU.1V	Suspension Glass Downlight 110 White Rod 100 mm Dimmable 1-10V	13.5	510	3000	90	47	Dimmable 1-10V	Track
03.8137.FU	Suspension Glass Downlight 110 White Rod 100 mm On Board Dimmer	13.5	510	3000	90	47	Dimmer on board	Track
03.8137.00.DA	Suspension Glass Downlight 110 White Rod 100 mm Dali Version	13.5	746	3000	90	82	Dimmable DALI 2	Track
03.8137.00.CB	Suspension Glass Downlight 110 White Rod 100 mm Casambi integrated	13.5	746	3000	90	82	Dimmable Casambi	Track
03.8137.00.1V	Suspension Glass Downlight 110 White Rod 100 mm Dimmable 1-10V	13.5	746	3000	90	82	Dimmable 1-10V	Track
03.8137.00	Suspension Glass Downlight 110 White Rod 100 mm On Board Dimmer	13.5	746	3000	90	82	Dimmer on board	Track
03.8136.RC.DA	Suspension Glass Downlight 110 White Rod 400 mm Dali Version	13.5	292	2700	90	42	Dimmable DALI 2	Track
03.8136.RC.CB	Suspension Glass Downlight 110 White Rod 400 mm Casambi integrated	13.5	292	2700	90	42	Dimmable Casambi	Track
03.8136.RC.1V	Suspension Glass Downlight 110 White Rod 400 mm Dimmable 1-10V	13.5	292	2700	90	42	Dimmable 1-10V	Track
03.8136.RC	Suspension Glass Downlight 110 White Rod 400 mm On Board Dimmer	13.5	292	2700	90	42	Dimmer on board	Track
03.8136.FU.DA	Suspension Glass Downlight 110 White Rod 400 mm Dali Version	13.5	483	2700	90	47	Dimmable DALI 2	Track
03.8136.FU.CB	Suspension Glass Downlight 110 White Rod 400 mm Casambi integrated	13.5	483	2700	90	47	Dimmable Casambi	Track
03.8136.FU.1V	Suspension Glass Downlight 110 White Rod 400 mm Dimmable 1-10V	13.5	483	2700	90	47	Dimmable 1-10V	Track
03.8136.FU	Suspension Glass Downlight 110 White Rod 400 mm On Board Dimmer	13.5	483	2700	90	47	Dimmer on board	Track
03.8136.00.DA	Suspension Glass Downlight 110 White Rod 400 mm Dali Version	13.5	706	2700	90	82	Dimmable DALI 2	Track
03.8136.00.CB	Suspension Glass Downlight 110 White Rod 400 mm Casambi integrated	13.5	706	2700	90	82	Dimmable Casambi	Track
03.8136.00.1V	Suspension Glass Downlight 110 White Rod 400 mm Dimmable 1-10V	13.5	706	2700	90	82	Dimmable 1-10V	Track
03.8136.00	Suspension Glass Downlight 110 White Rod 400 mm On Board Dimmer	13.5	706	2700	90	82	Dimmer on board	Track
03.8135.RC.DA	Suspension Glass Downlight 110 White Rod 100 mm Dali Version	13.5	292	2700	90	42	Dimmable DALI 2	Track
03.8135.RC.CB	Suspension Glass Downlight 110 White Rod 100 mm Casambi integrated	13.5	292	2700	90	42	Dimmable Casambi	Track
03.8135.RC.1V	Suspension Glass Downlight 110 White Rod 100 mm Dimmable 1-10V	13.5	292	2700	90	42	Dimmable 1-10V	Track
03.8135.RC	Suspension Glass Downlight 110 White Rod 100 mm On Board Dimmer	13.5	292	2700	90	42	Dimmer on board	Track
03.8135.FU.DA	Suspension Glass Downlight 110 White Rod 100 mm Dali Version	13.5	483	2700	90	47	Dimmable DALI 2	Track
03.8135.FU.CB	Suspension Glass Downlight 110 White Rod 100 mm Casambi integrated	13.5	483	2700	90	47	Dimmable Casambi	Track
03.8135.FU.1V	Suspension Glass Downlight 110 White Rod 100 mm Dimmable 1-10V	13.5	483	2700	90	47	Dimmable 1-10V	Track
03.8135.FU	Suspension Glass Downlight 110 White Rod 100 mm On Board Dimmer	13.5	483	2700	90	47	Dimmer on board	Track
03.8135.00.DA	Suspension Glass Downlight 110 White Rod 100 mm Dali Version	13.5	706	2700	90	82	Dimmable DALI 2	Track
03.8135.00.CB	Suspension Glass Downlight 110 White Rod 100 mm Casambi integrated	13.5	706	2700	90	82	Dimmable Casambi	Track
03.8135.00.1V	Suspension Glass Downlight 110 White Rod 100 mm Dimmable 1-10V	13.5	706	2700	90	82	Dimmable 1-10V	Track
03.8135.00	Suspension Glass Downlight 110 White Rod 100 mm On Board Dimmer	13.5	706	2700	90	82	Dimmer on board	Track
03.8133.RC.DA	Suspension Glass Downlight 110 Black Rod 400 mm Dali Version	13.5	309	3000	90	42	Dimmable DALI 2	Track
03.8133.RC.CB	Suspension Glass Downlight 110 Black Rod 400 mm Casambi integrated	13.5	309	3000	90	42	Dimmable Casambi	Track
03.8133.RC.1V	Suspension Glass Downlight 110 Black Rod 400 mm Dimmable 1-10V	13.5	309	3000	90	42	Dimmable 1-10V	Track
03.8133.RC	Suspension Glass Downlight 110 Black Rod 400 mm On Board Dimmer	13.5	309	3000	90	42	Dimmer on board	Track
03.8133.FU.DA	Suspension Glass Downlight 110 Black Rod 400 mm Dali Version	13.5	510	3000	90	47	Dimmable DALI 2	Track
03.8133.FU.CB	Suspension Glass Downlight 110 Black Rod 400 mm Casambi integrated	13.5	510	3000	90	47	Dimmable Casambi	Track
03.8133.FU.1V	Suspension Glass Downlight 110 Black Rod 400 mm Dimmable 1-10V	13.5	510	3000	90	47	Dimmable 1-10V	Track
03.8133.FU	Suspension Glass Downlight 110 Black Rod 400 mm On Board Dimmer	13.5	510	3000	90	47	Dimmer on board	Track
03.8133.00.DA	Suspension Glass Downlight 110 Black Rod 400 mm Dali Version	13.5	746	3000	90	82	Dimmable DALI 2	Track
03.8133.00.CB	Suspension Glass Downlight 110 Black Rod 400 mm Casambi integrated	13.5	746	3000	90	82	Dimmable Casambi	Track
03.8133.00.1V	Suspension Glass Downlight 110 Black Rod 400 mm Dimmable 1-10V	13.5	746	3000	90	82	Dimmable 1-10V	Track
03.8133.00	Suspension Glass Downlight 110 Black Rod 400 mm On Board Dimmer	13.5	746	3000	90	82	Dimmer on board	Track
03.8132.RC.DA	Suspension Glass Downlight 110 Black Rod 100 mm Dali Version	13.5	309	3000	90	42	Dimmable DALI 2	Track
03.8132.RC.CB	Suspension Glass Downlight 110 Black Rod 100 mm Casambi integrated	13.5	309	3000	90	42	Dimmable Casambi	Track
03.8132.RC.1V	Suspension Glass Downlight 110 Black Rod 100 mm Dimmable 1-10V	13.5	309	3000	90	42	Dimmable 1-10V	Track
03.8132.RC	Suspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer	13.5	309	3000	90	42	Dimmer on board	Track
03.8132.FU.DA	Suspension Glass Downlight 110 Black Rod 100 mm Dali Version	13.5	510	3000	90	47	Dimmable DALI 2	Track
03.8132.FU.CB	Suspension Glass Downlight 110 Black Rod 100 mm Casambi integrated	13.5	510	3000	90	47	Dimmable Casambi	Track
03.8132.FU.1V	Suspension Glass Downlight 110 Black Rod 100 mm Dimmable 1-10V	13.5	510	3000	90	47	Dimmable 1-10V	Track
03.8132.FU	Suspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer	13.5	510	3000	90	47	Dimmer on board	Track
03.8132.00.DA	Suspension Glass Downlight 110 Black Rod 100 mm Dali Version	13.5	746	3000	90	82	Dimmable DALI 2	Track
03.8132.00.CB	Suspension Glass Downlight 110 Black Rod 100 mm Casambi integrated	13.5	746	3000	90	82	Dimmable Casambi	Track
03.8132.00.1V	Suspension Glass Downlight 110 Black Rod 100 mm Dimmable 1-10V	13.5	746	3000	90	82	Dimmable 1-10V	Track
03.8132.00	Suspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer	13.5	746	3000	90	82	Dimmer on board	Track
03.8131.RC.DA	Suspension Glass Downlight 110 Black Rod 400 mm Dali Version	13.5	292	2700	90	42	Dimmable DALI 2	Track
03.8131.RC.CB	Suspension Glass Downlight 110 Black Rod 400 mm Casambi integrated	13.5	292	2700	90	42	Dimmable Casambi	Track
03.8131.RC.1V	Suspension Glass Downlight 110 Black Rod 400 mm Dimmable 1-10V	13.5	292	2700	90	42	Dimmable 1-10V	Track
03.8131.RC	Suspension Glass Downlight 110 Black Rod 400 mm On Board Dimmer	13.5	292	2700	90	42	Dimmer on board	Track
03.8131.FU.DA	Suspension Glass Downlight 110 Black Rod 400 mm Dali Version	13.5	483	2700	90	47	Dimmable DALI 2	Track
03.8131.FU.CB	Suspension Glass Downlight 110 Black Rod 400 mm Casambi integrated	13.5	483	2700	90	47	Dimmable Casambi	Track
03.8131.FU.1V	Suspension Glass Downlight 110 Black Rod 400 mm Dimmable 1-10V	13.5	483	2700	90	47	Dimmable 1-10V	Track
03.8131.FU	Suspension Glass Downlight 110 Black Rod 400 mm On Board Dimmer	13.5	483	2700	90	47	Dimmer on board	Track
03.8131.00.DA	Suspension Glass Downlight 110 Black Rod 400 mm Dali Version	13.5	706	2700	90	82	Dimmable DALI 2	Track
03.8131.00.CB	Suspension Glass Downlight 110 Black Rod 400 mm Casambi integrated	13.5	706	2700	90	82	Dimmable Casambi	Track
03.8131.00.1V	Suspension Glass Downlight 110 Black Rod 400 mm Dimmable 1-10V	13.5	706	2700	90	82	Dimmable 1-10V	Track
03.8131.00	Suspension Glass Downlight 110 Black Rod 400 mm On Board Dimmer	13.5	706	2700	90	82	Dimmer on board	Track
03.8130.RC.DA	Suspension Glass Downlight 110 Black Rod 100 mm Dali Version	13.5	292	2700	90	42	Dimmable DALI 2	Track
03.8130.RC.CB	Suspension Glass Downlight 110 Black Rod 100 mm Casambi integrated	13.5	292	2700	90	42	Dimmable Casambi	Track
03.8130.RC.1V	Suspension Glass Downlight 110 Black Rod 100 mm Dimmable 1-10V	13.5	292	2700	90	42	Dimmable 1-10V	Track
03.8130.RC	Suspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer	13.5	292	2700	90	42	Dimmer on board	Track
03.8130.FU.DA	Suspension Glass Downlight 110 Black Rod 100 mm Dali Version	13.5	483	2700	90	47	Dimmable DALI 2	Track
03.8130.FU.CB	Suspension Glass Downlight 110 Black Rod 100 mm Casambi integrated	13.5	483	2700	90	47	Dimmable Casambi	Track
03.8130.FU.1V	Suspension Glass Downlight 110 Black Rod 100 mm Dimmable 1-10V	13.5	483	2700	90	47	Dimmable 1-10V	Track
03.8130.FU	Suspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer	13.5	483	2700	90	47	Dimmer on board	Track
03.8130.00.DA	Suspension Glass Downlight 110 Black Rod 100 mm Dali Version	13.5	706	2700	90	82	Dimmable DALI 2	Track
03.8130.00.CB	Suspension Glass Downlight 110 Black Rod 100 mm Casambi integrated	13.5	706	2700	90	82	Dimmable Casambi	Track
03.8130.00.1V	Suspension Glass Downlight 110 Black Rod 100 mm Dimmable 1-10V	13.5	706	2700	90	82	Dimmable 1-10V	Track
03.8130.00	Suspension Glass Downlight 110 Black Rod 100 mm On Board Dimmer	13.5	706	2700	90	82	Dimmer on board	Track
