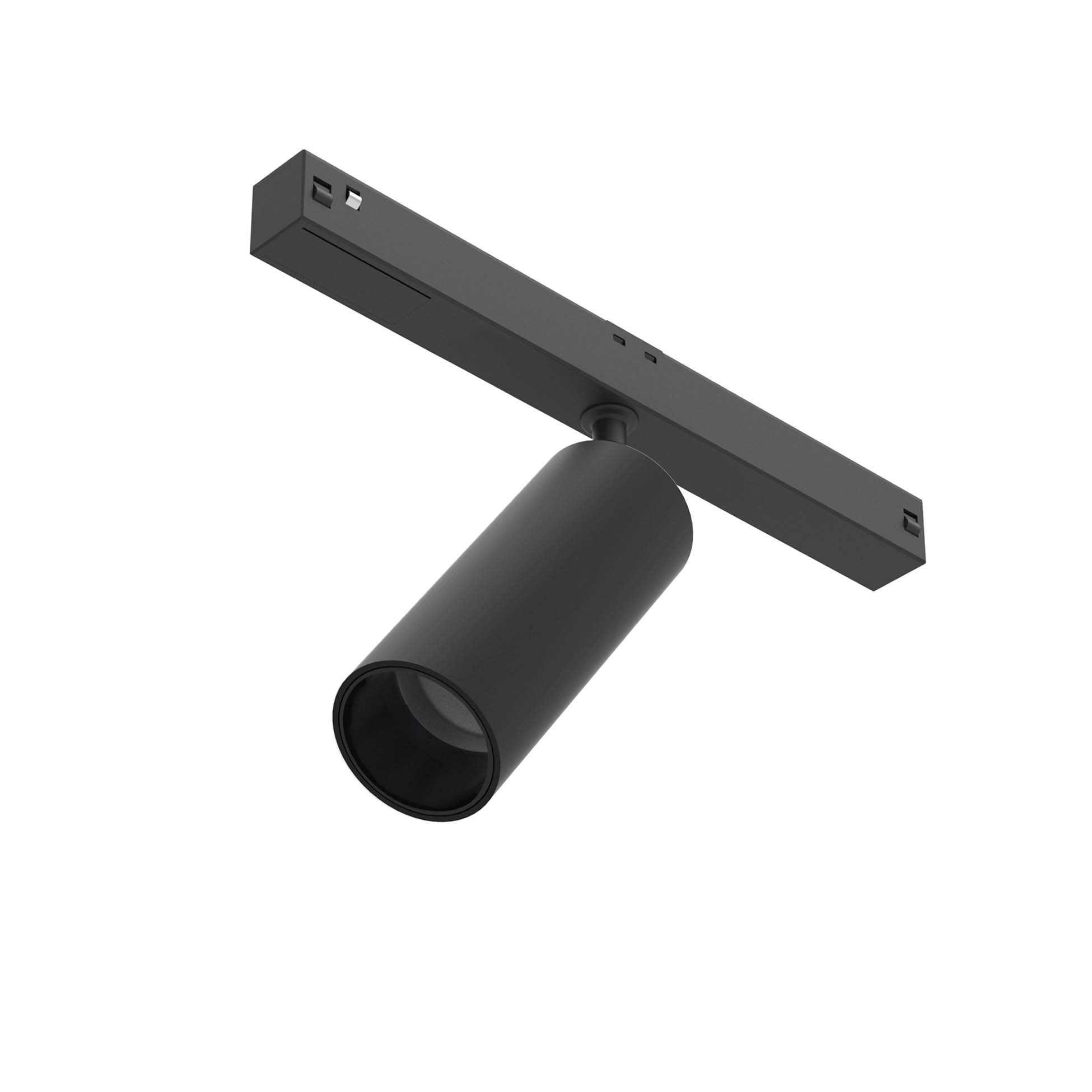

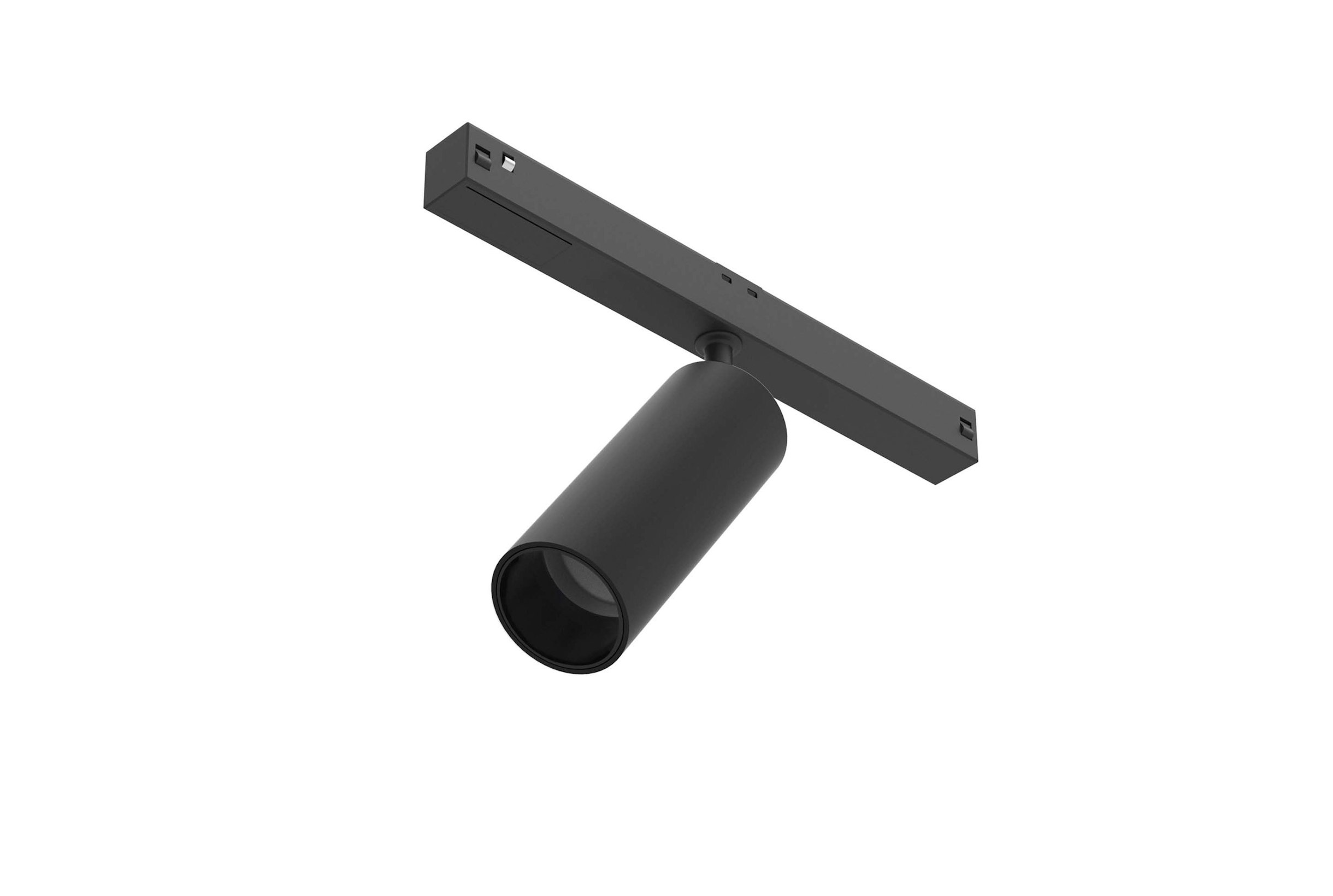

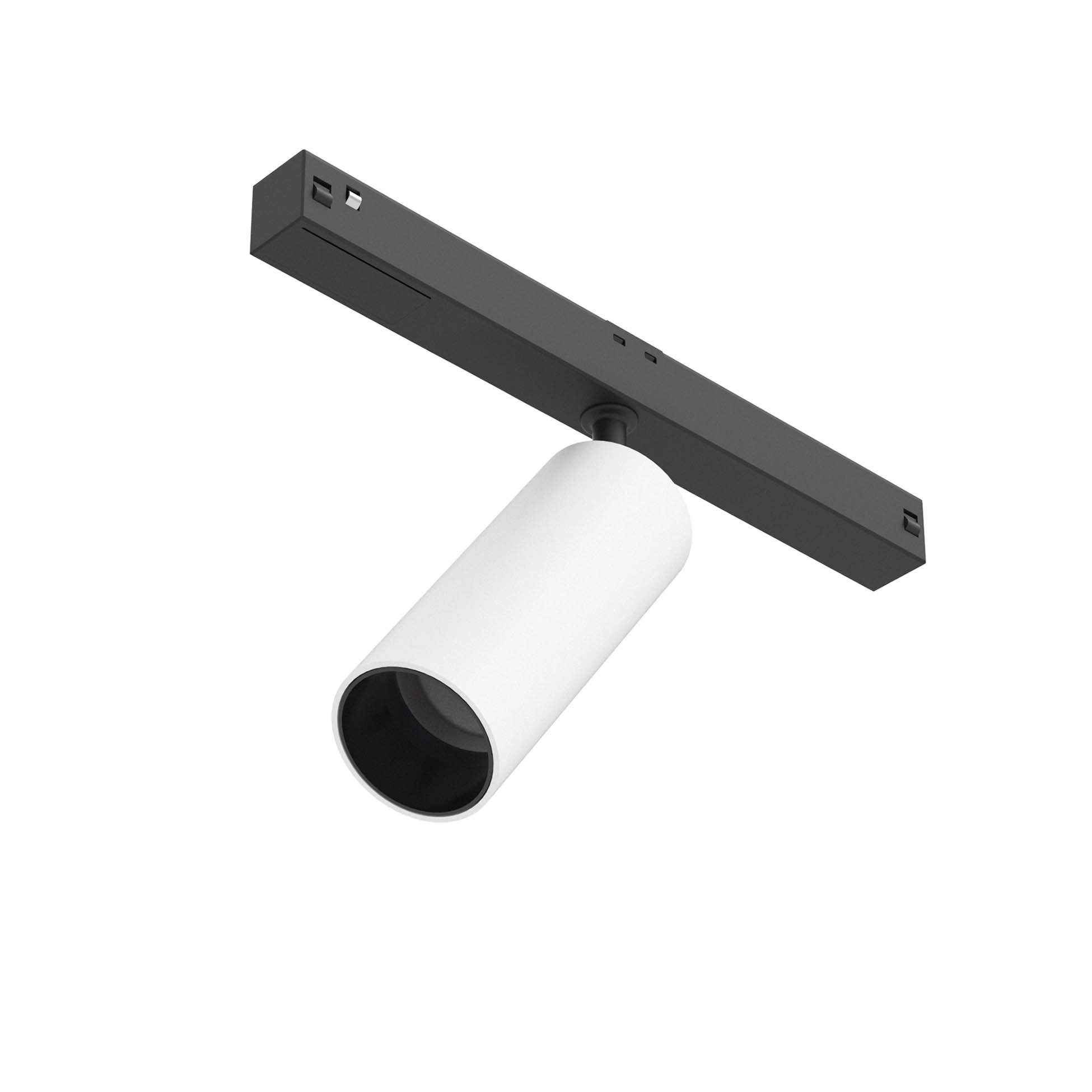

Spot 90

Designed by Vincent Van Duysen

Accent lighting LED module.

Download Documentation

Product highlight

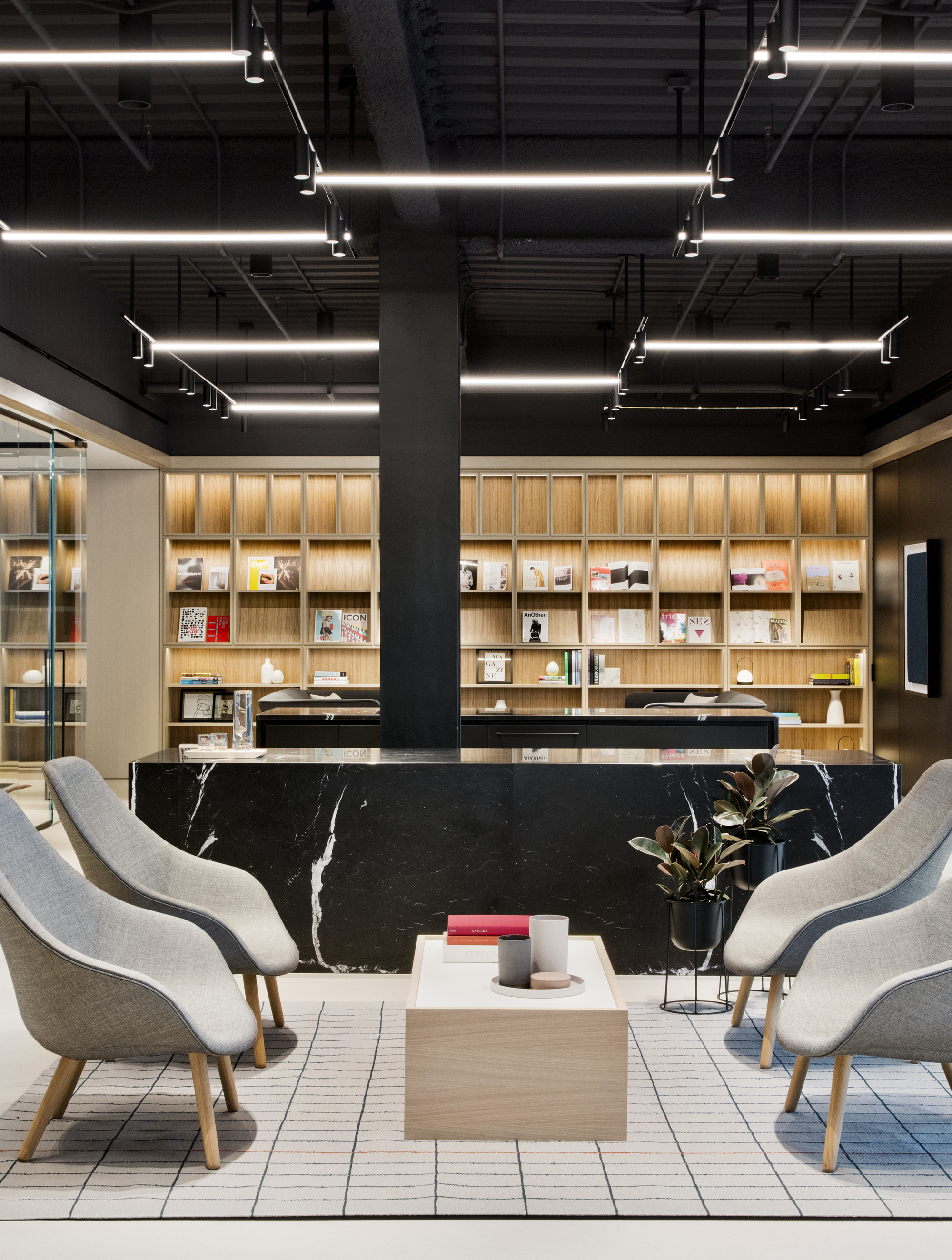

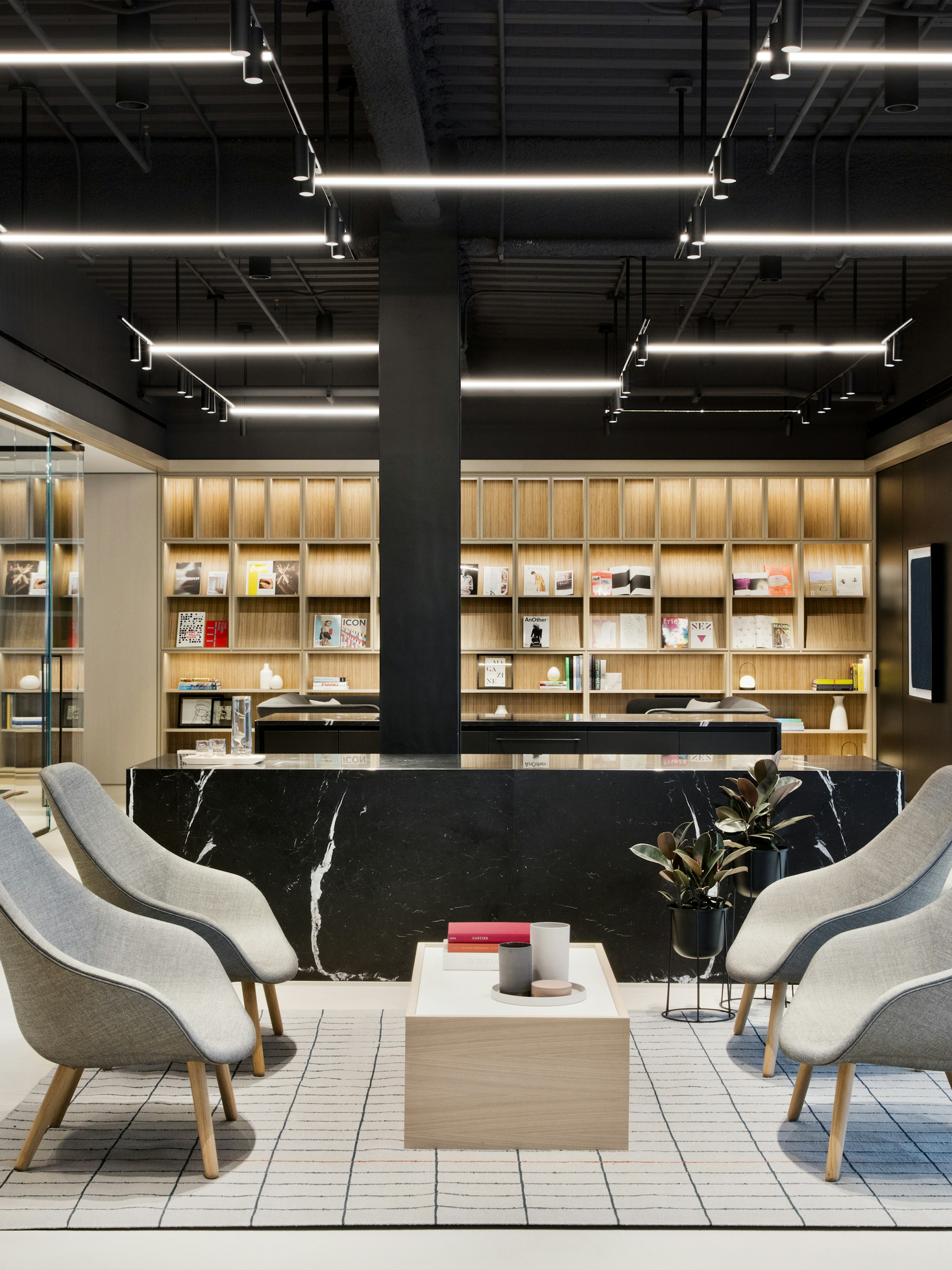

Rhythm and sequences

Essential structures with an industrial aesthetic, creating a network of light within the space.

Discover the Story


Luminaire

(48)

Optical Type

Power (W)

Lumen Output (lm)

CCT (K)

Colour

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
03.8045.40ADA	Spot 90 Dali Version	8.5	406	3000	90	22	Dimmable DALI 2	Track
03.8045.40ACB	Spot 90 Casambi integrated	8.5	406	3000	90	22	Dimmable Casambi	Track
03.8045.40A1V	Spot 90 Dimmable 1-10V	8.5	406	3000	90	22	Dimmable 1-10V	Track
03.8045.40A	Spot 90 On Board Dimmer	8.5	406	3000	90	22	Dimmer on board	Track
03.8045.14ADA	Spot 90 Dali Version	8.5	406	3000	90	22	Dimmable DALI 2	Track
03.8045.14ACB	Spot 90 Casambi integrated	8.5	406	3000	90	22	Dimmable Casambi	Track
03.8045.14A1V	Spot 90 Dimmable 1-10V	8.5	406	3000	90	22	Dimmable 1-10V	Track
03.8045.14A	Spot 90 On Board Dimmer	8.5	406	3000	90	22	Dimmer on board	Track
03.8045.05BDA	Spot 90 Dali Version	8.5	406	3000	90	22	Dimmable DALI 2	Track
03.8045.05B1V	Spot 90 Dimmable 1-10V	8.5	406	3000	90	22	Dimmable 1-10V	Track
03.8045.05B	Spot 90 On Board Dimmer	8.5	406	3000	90	22	Dimmer on board	Track
03.8045.05ACB	Spot 90 Casambi integrated	8.5	406	3000	90	22	Dimmable Casambi	Track
03.8044.40ADA	Spot 90 Dali Version	8.5	392	2700	90	22	Dimmable DALI 2	Track
03.8044.40ACB	Spot 90 Casambi integrated	8.5	392	2700	90	22	Dimmable Casambi	Track
03.8044.40A1V	Spot 90 Dimmable 1-10V	8.5	392	2700	90	22	Dimmable 1-10V	Track
03.8044.40A	Spot 90 On Board Dimmer	8.5	392	2700	90	22	Dimmer on board	Track
03.8044.14ADA	Spot 90 Dali Version	8.5	392	2700	90	22	Dimmable DALI 2	Track
03.8044.14ACB	Spot 90 Casambi integrated	8.5	392	2700	90	22	Dimmable Casambi	Track
03.8044.14A1V	Spot 90 Dimmable 1-10V	8.5	392	2700	90	22	Dimmable 1-10V	Track
03.8044.14A	Spot 90 On Board Dimmer	8.5	392	2700	90	22	Dimmer on board	Track
03.8044.05BDA	Spot 90 Dali Version	8.5	392	2700	90	22	Dimmable DALI 2	Track
03.8044.05B1V	Spot 90 Dimmable 1-10V	8.5	392	2700	90	22	Dimmable 1-10V	Track
03.8044.05B	Spot 90 On Board Dimmer	8.5	392	2700	90	22	Dimmer on board	Track
03.8044.05ACB	Spot 90 Casambi integrated	8.5	392	2700	90	22	Dimmable Casambi	Track
03.8043.40ADA	Spot 90 Dali Version	8.5	443	3000	90	14	Dimmable DALI 2	Track
03.8043.40ACB	Spot 90 Casambi integrated	8.5	443	3000	90	14	Dimmable Casambi	Track
03.8043.40A1V	Spot 90 Dimmable 1-10V	8.5	443	3000	90	14	Dimmable 1-10V	Track
03.8043.40A	Spot 90 On Board Dimmer	8.5	443	3000	90	14	Dimmer on board	Track
03.8043.14ADA	Spot 90 Dali Version	8.5	443	3000	90	14	Dimmable DALI 2	Track
03.8043.14ACB	Spot 90 Casambi integrated	8.5	443	3000	90	14	Dimmable Casambi	Track
03.8043.14A1V	Spot 90 Dimmable 1-10V	8.5	443	3000	90	14	Dimmable 1-10V	Track
03.8043.14A	Spot 90 On Board Dimmer	8.5	443	3000	90	14	Dimmer on board	Track
03.8043.05BDA	Spot 90 Dali Version	8.5	443	3000	90	14	Dimmable DALI 2	Track
03.8043.05B1V	Spot 90 Dimmable 1-10V	8.5	443	3000	90	14	Dimmable 1-10V	Track
03.8043.05B	Spot 90 On Board Dimmer	8.5	443	3000	90	14	Dimmer on board	Track
03.8043.05ACB	Spot 90 Casambi integrated	8.5	443	3000	90	14	Dimmable Casambi	Track
03.8042.40ADA	Spot 90 Dali Version	8.5	428	2700	90	14	Dimmable DALI 2	Track
03.8042.40ACB	Spot 90 Casambi integrated	8.5	428	2700	90	14	Dimmable Casambi	Track
03.8042.40A1V	Spot 90 Dimmable 1-10V	8.5	428	2700	90	14	Dimmable 1-10V	Track
03.8042.40A	Spot 90 On Board Dimmer	8.5	428	2700	90	14	Dimmer on board	Track
03.8042.14ADA	Spot 90 Dali Version	8.5	428	2700	90	14	Dimmable DALI 2	Track
03.8042.14ACB	Spot 90 Casambi integrated	8.5	428	2700	90	14	Dimmable Casambi	Track
03.8042.14A1V	Spot 90 Dimmable 1-10V	8.5	428	2700	90	14	Dimmable 1-10V	Track
03.8042.14A	Spot 90 On Board Dimmer	8.5	428	2700	90	14	Dimmer on board	Track
03.8042.05BDA	Spot 90 Dali Version	8.5	428	2700	90	14	Dimmable DALI 2	Track
03.8042.05B1V	Spot 90 Dimmable 1-10V	8.5	428	2700	90	14	Dimmable 1-10V	Track
03.8042.05B	Spot 90 On Board Dimmer	8.5	428	2700	90	14	Dimmer on board	Track
03.8042.05ACB	Spot 90 Casambi integrated	8.5	428	2700	90	14	Dimmable Casambi	Track
